COOLERSIL/NY
COOLERSIL is a silicone rubber hose designed for wind turbine cooling systems, suitable for conveying water and glycol mixtures even in demanding offshore environments.
Suction and delivery hose for conveying water mixed with antifreeze fluids, flue gas and hot air.
t ensures reliable temperature control, high resistance, and long service life in wind power applications.
More detailsMain benefits
COOLERSIL silicone hoses ensure efficient cooling and temperature control in wind turbine systems, offering high resistance, long service life, and reduced maintenance needs even in demanding offshore environments.

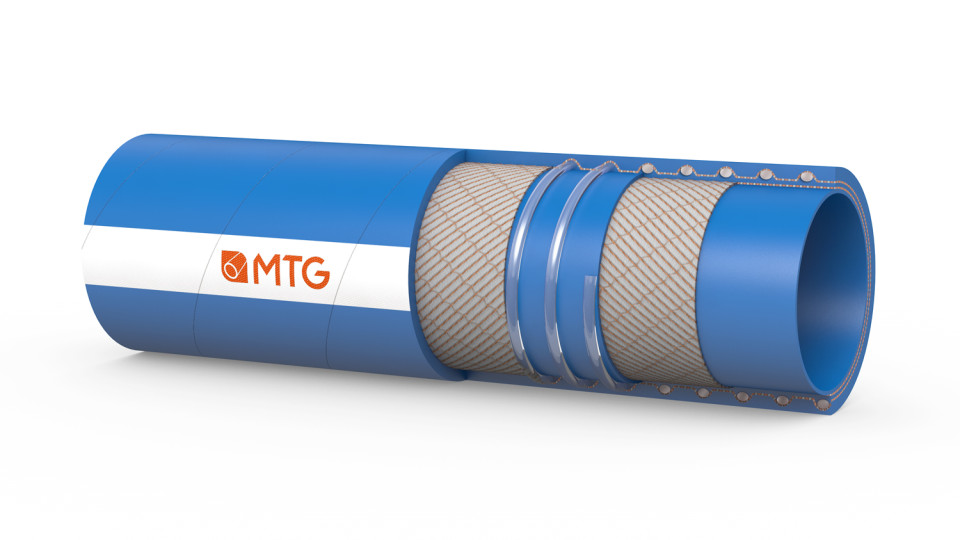

Construcion
INNER TUBE
- Silicone rubber, blue colour, smooth.
REINFORCEMENT
- Synthetic textile plies.
- Embedded PET helix wire.
COVER
- Silicone rubber, smooth (cloth finish), blue colour.
Safety factors
≥ 3 working pressure.
Temperatures
From -40°C to +80°C, with peaks up to + 100°C depending on the product conveyed, contact time and type of application.
Note
- If required, it is available in sizes for use with cuffs at the ends
- Fittings: By means of clamps, standard collars or other systems required by the equipment manufacturers.
Marking
Dimensional tolerance
I.D.: ±0,4mm - O.D.: -0,8 / +2,4 mm up to Ø38; -0,4 / +1,4 mm on Ø51; -1,0 / +2,0 mm on Ø63.5 - Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Vacuum BAR |
Min. bending radius mm |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 13 | 25 | 6 | 13 | 39 | -0,7 | 70 | 0.46 | 30 |
| 19 | 31 | 6 | 13 | 39 | -0,7 | 100 | 0.60 | 30 |
| 25 | 37 | 6 | 10 | 30 | -0,7 | 120 | 0.75 | 30 |
| 38 | 50 | 6 | 7 | 21 | -0,7 | 200 | 1.05 | 30 |
| 51 | 64 | 6.5 | 6 | 18 | -0,7 | 275 | 1.37 | 30 |
| 63.5 | 77.5 | 7 | 5 | 15 | -0,7 | 400 | 1.80 | 30 |
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
The selection of fittings for our hoses should be made in accordance with the recommendations provided in ISO 8331: "Rubber and plastics hoses and hose assemblies - Guidelines for selection, storage, use and maintenance."
