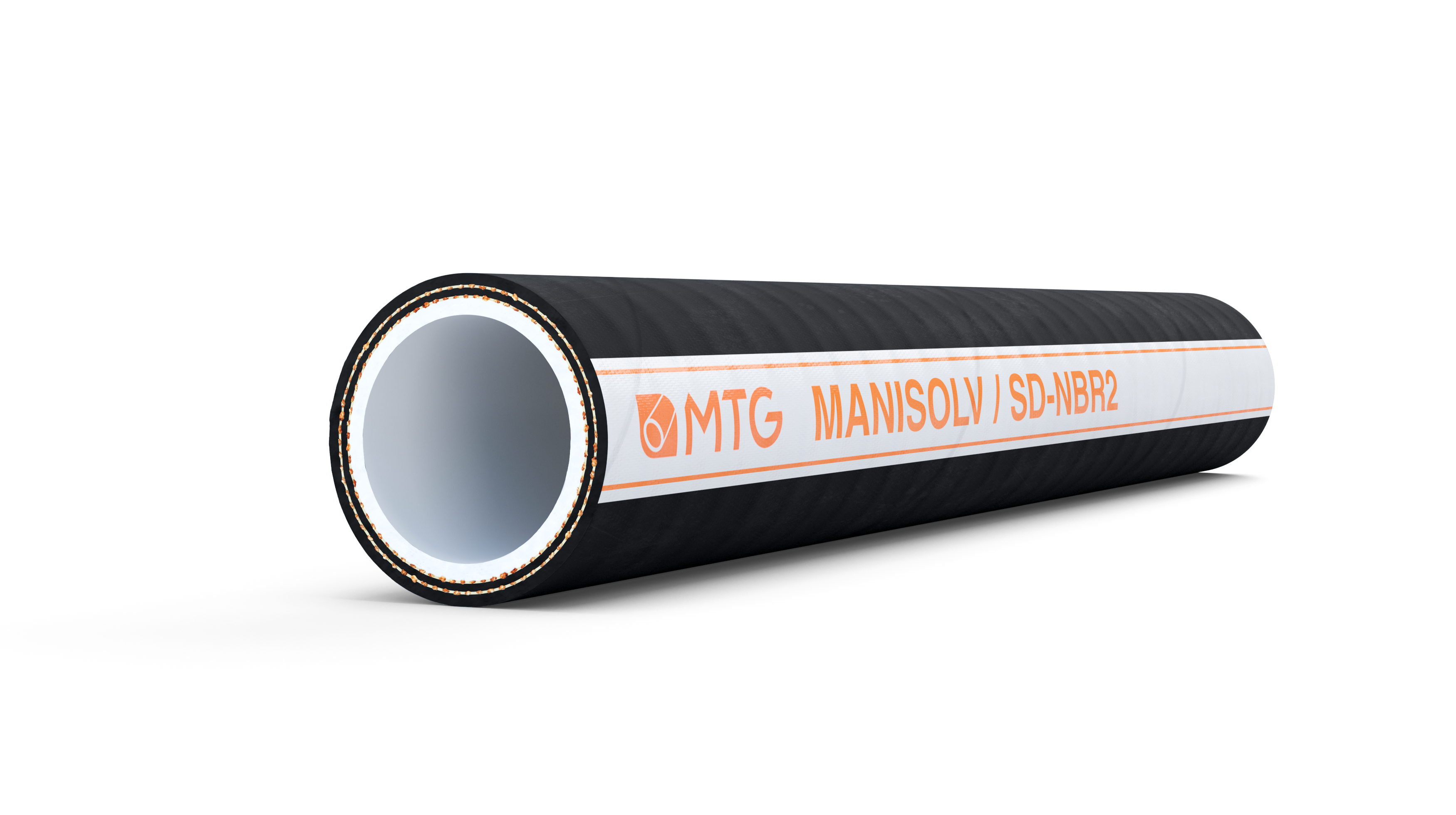

MANISOLV/SD-NBR2
Rubber hose for suction and delivery of hydrocarbon solvents with an aromatic content up to 70% .
MANISOLV/SD-NBR2 is suitable for conveying petrol, diesel, biodiesel blends including B100 and ethanol based fuels.
Execution in accordance with EN 12115:2011.
More detailsConstrucion

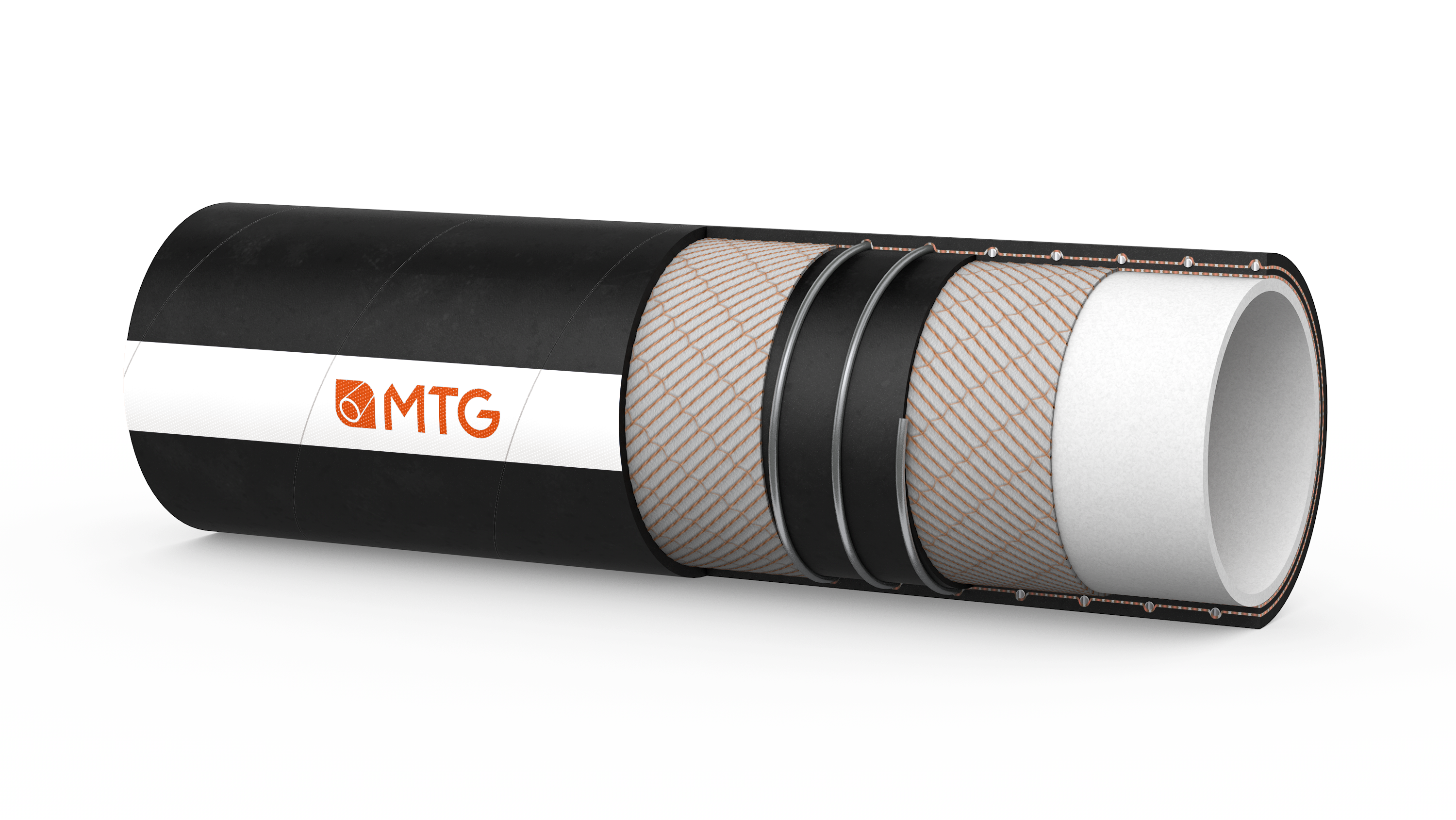

TUBE
- NBR2 rubber, light colour, smooth.
REINFORCEMENT
- High strength plies of synthetic cord.
- Embedded steel helix wire.
- Copper wires on demand.
COVER
- NBR rubber, black colour, antistatic (R < 10^6 Ω), resistant to abrasion, ozone, weather, fats and mineral oils, smooth, cloth finish.
Safety factors
- ≥ 4 times working pressure up to DN 63.5 mm.
- ≥ 3 times working pressure over DN 63.5 mm.
Temperatures
- In accordance with EN 12115:2011.
- Peaks up to +90°C depending on the fluids conveyed.
Electrical properties
- Identification symbol :
– Ω for version without copper wires.
– M for version with copper wires.
Marking
Dimensional tolerance
Inner diameter: EN 12115 – Outer diameter: EN 12115 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 19 | 31 | 6 | 16 | 64 | 125 | -0,9 | 0,62 | 40 |
| 25 | 37 | 6 | 16 | 64 | 150 | -0,9 | 0,87 | 40 |
| 32 | 44 | 6 | 16 | 64 | 175 | -0,9 | 1 | 40 |
| 38 | 51 | 6,5 | 16 | 64 | 225 | -0,9 | 1,4 | 40 |
| 50 | 66 | 8 | 16 | 64 | 275 | -0,9 | 2 | 40 |
| 51 | 67 | 8 | 16 | 64 | 275 | -0,9 | 2,05 | 40 |
| 63,5 | 79,5 | 8 | 16 | 64 | 300 | -0,9 | 2,8 | 40 |
| 75 | 91 | 8 | 16 | 48 | 350 | -0,9 | 3,4 | 40 |
| 76 | 92 | 8 | 16 | 48 | 350 | -0,9 | 3,45 | 40 |
| 100 | 118 | 9 | 16 | 48 | 450 | -0,9 | 5 | 40 |
| 102 | 120 | 9 | 16 | 48 | 450 | -0,9 | 5,1 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 3/4 | 1,22 | 240 | 960 | 4,92 | -26,57 | 0,42 | 131,2 |
| 1 | 1,46 | 240 | 960 | 5,91 | -26,57 | 0,58 | 131,2 |
| 1 1/4 | 1,73 | 240 | 960 | 6,89 | -26,57 | 0,67 | 131,2 |
| 1 1/2 | 2,01 | 240 | 960 | 8,86 | -26,57 | 0,94 | 131,2 |
| 1 31/32 | 2,6 | 240 | 960 | 10,83 | -26,57 | 1,34 | 131,2 |
| 2 | 2,64 | 240 | 960 | 10,83 | -26,57 | 1,38 | 131,2 |
| 2 1/2 | 3,13 | 240 | 960 | 11,81 | -26,57 | 1,88 | 131,2 |
| 2 61/64 | 3,58 | 240 | 720 | 13,78 | -26,57 | 2,28 | 131,2 |
| 3 | 3,62 | 240 | 720 | 13,78 | -26,57 | 2,31 | 131,2 |
| 3 15/16 | 4,65 | 240 | 720 | 17,72 | -26,57 | 3,35 | 131,2 |
| 4 | 4,72 | 240 | 720 | 17,72 | -26,57 | 3,42 | 131,2 |
Chemical resistance acc. to MTG Chemical Resistance Chart. Above technical data are based on application at room temperature (+20°C).
Other sizes are available on request.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
