MANITANK/SD-AVIO

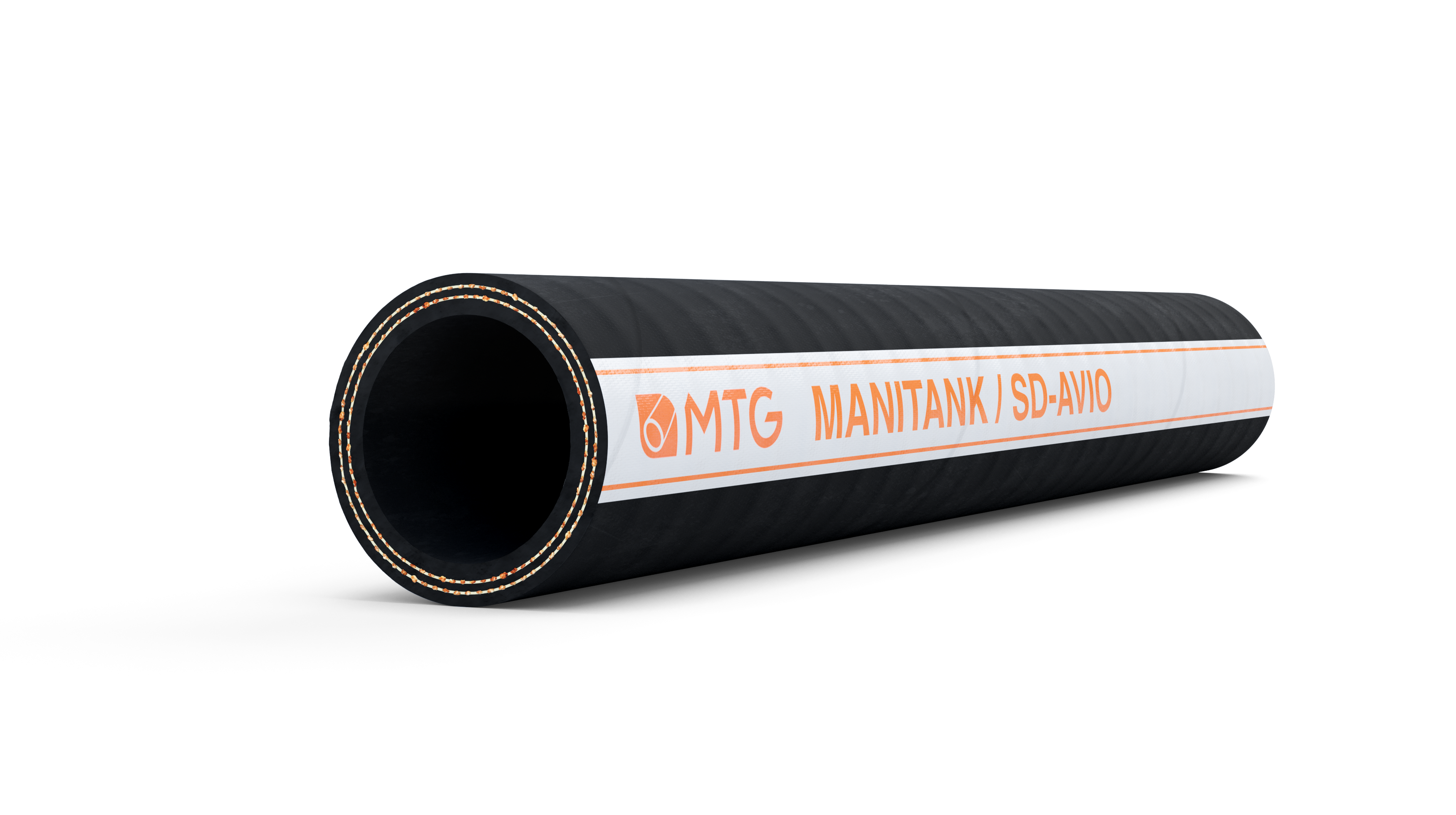

MANITANK/SD-AVIO is a suction and delivery hose for handling aviation fuel.
Specifically designed for conveying kerosene and hydrocarbons with an aromatic content up to 50%.
Suitable for use on tank truck reels.
Execution according to the aviation fuel handling Standards EN 1825 (Type E), EN 1361, BS 3158, EI 1529.
More detailsConstrucion

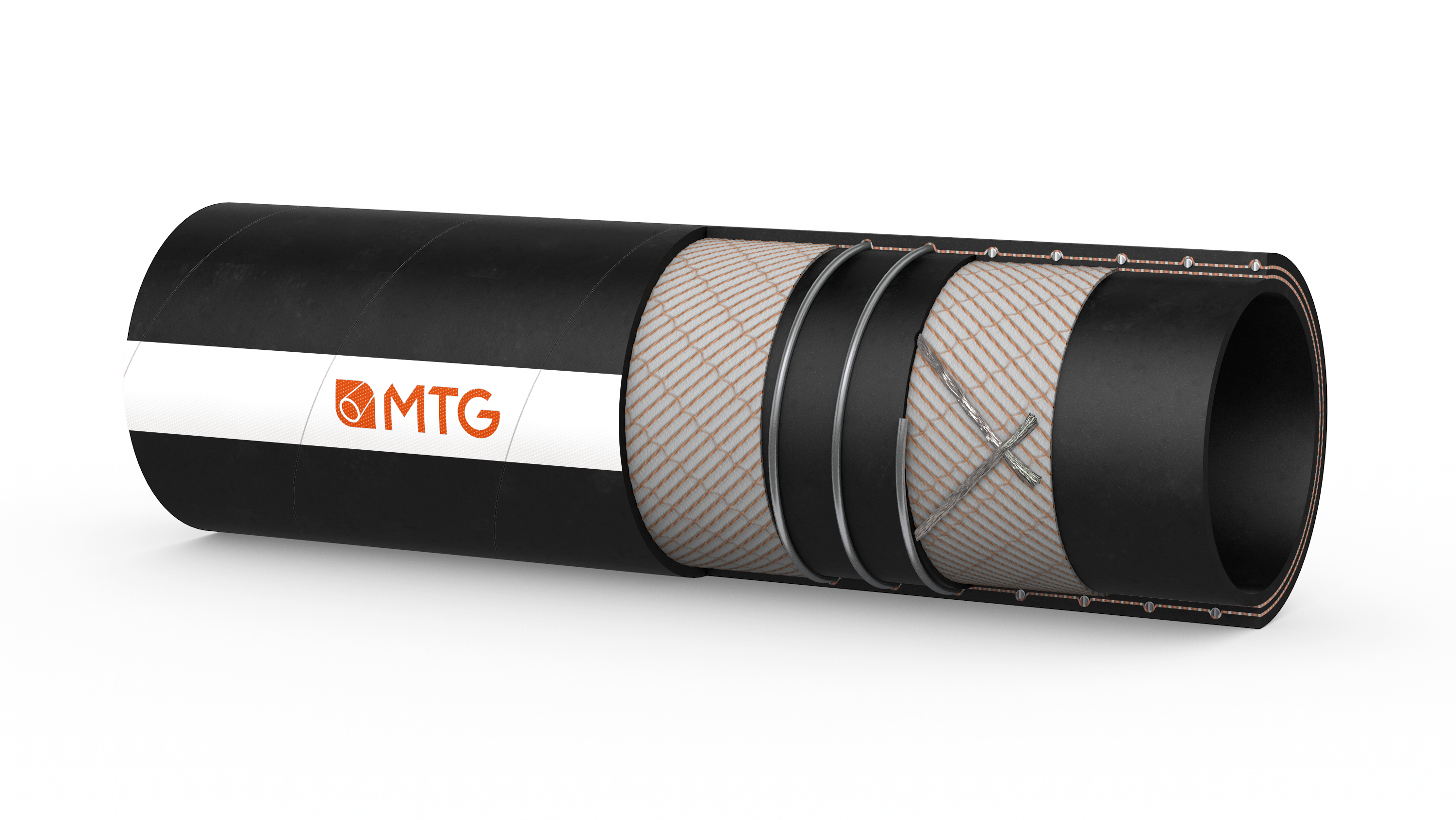

TUBE
- NBR rubber, black colour, conductive, smooth.
REINFORCEMENT
- High strength plies of synthetic cord.
- Embedded steel helix wire.
- Built-in copper wires.
COVER
- CR rubber, black colour, conductive, self-extinguishing, resistant to abrasion, weather and contact with hydrocarbons, smooth, cloth finish.
Safety factors
- ≥ 4 times working pressure.
Temperatures
- In accordance with EN 1825.
- For other fluids please check the MTG Chemical Resistance Chart.
Note
- If required, it may be supplied in service lengths with couplings at the ends and with hydrostatic test certificate.
Electrical properties
- Identification symbol:
-M (Resistance : R< 10^2 Ω).
Marking
Dimensional tolerance
I.D.: EN 1825 – Wall thickness: DIN 7715 T4 S2 – Length: EN 1825
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 19 | 31 | 6 | 20 | 80 | 100 | -0,9 | 0,8 | 40 |
| 25 | 38,5 | 6,75 | 20 | 80 | 125 | -0,9 | 1 | 40 |
| 32 | 46 | 7 | 20 | 80 | 140 | -0,9 | 1,45 | 40 |
| 38 | 52 | 7 | 20 | 80 | 180 | -0,9 | 1,68 | 40 |
| 50 | 65 | 7,5 | 20 | 80 | 215 | -0,9 | 2,05 | 40 |
| 51 | 66 | 7,5 | 20 | 80 | 215 | -0,9 | 2,1 | 40 |
| 63,5 | 81,5 | 9 | 20 | 80 | 250 | -0,9 | 3 | 40 |
| 75 | 93,5 | 9,25 | 20 | 80 | 250 | -0,9 | 4,4 | 40 |
| 76 | 94,5 | 9,25 | 20 | 80 | 250 | -0,9 | 4,45 | 40 |
| 100 | 120 | 10 | 20 | 80 | 350 | -0,9 | 4,5 | 40 |
| 102 | 122 | 10 | 20 | 80 | 350 | -0,9 | 4,6 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 3/4 | 1,22 | 300 | 1200 | 3,94 | -26,57 | 0,54 | 131,2 |
| 1 | 1,52 | 300 | 1200 | 4,92 | -26,57 | 0,67 | 131,2 |
| 1 1/4 | 1,81 | 300 | 1200 | 5,51 | -26,57 | 0,97 | 131,2 |
| 1 1/2 | 2,05 | 300 | 1200 | 7,09 | -26,57 | 1,13 | 131,2 |
| 1 31/32 | 2,56 | 300 | 1200 | 8,46 | -26,57 | 1,38 | 131,2 |
| 2 | 2,6 | 300 | 1200 | 8,46 | -26,57 | 1,41 | 131,2 |
| 2 1/2 | 3,21 | 300 | 1200 | 9,84 | -26,57 | 2,01 | 131,2 |
| 2 61/64 | 3,68 | 300 | 1200 | 9,84 | -26,57 | 2,95 | 131,2 |
| 3 | 3,72 | 300 | 1200 | 9,84 | -26,57 | 2,98 | 131,2 |
| 3 15/16 | 4,72 | 300 | 1200 | 13,78 | -26,57 | 3,02 | 131,2 |
| 4 | 4,8 | 300 | 1200 | 13,78 | -26,57 | 3,09 | 131,2 |
Chemical resistance acc. to MTG Chemical Resistance Chart.
Above technical data are based on application at room temperature (+20°C). Other sizes are available on request.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
