Dredging and abrasive materials

DRAGA/8-S16/RACC

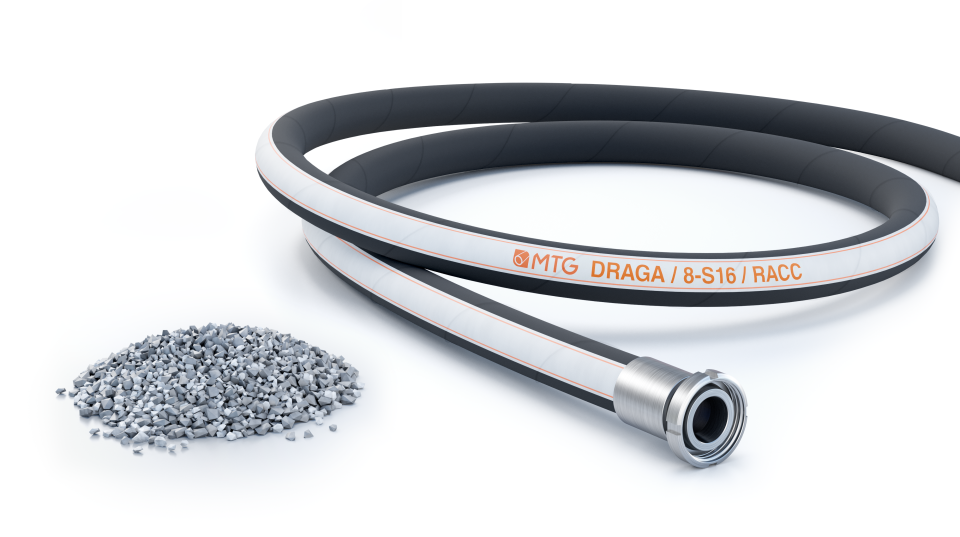

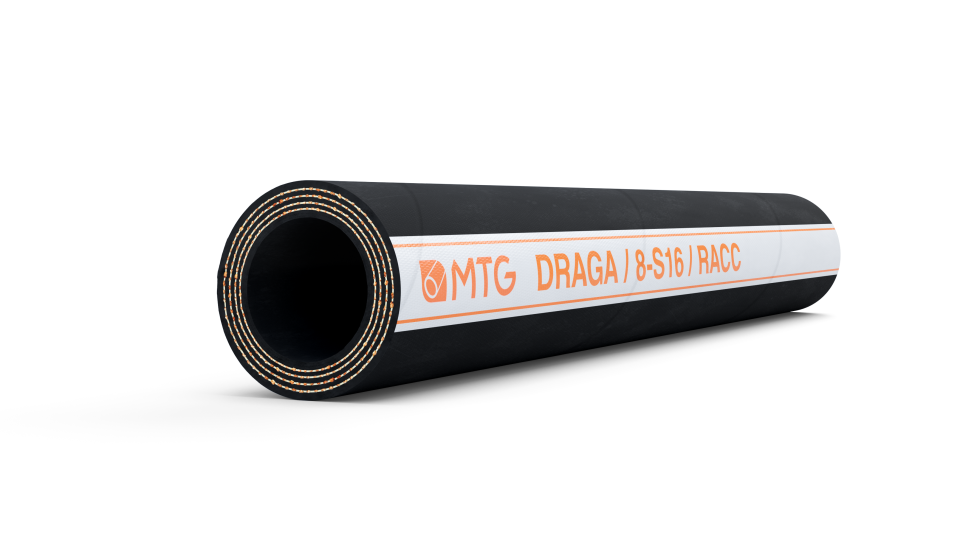

DRAGA/8-S16/RACC is a flexible connection hose in the discharge line of dredges, for hydraulic transport of sand, gravel and crushed materials.

More details

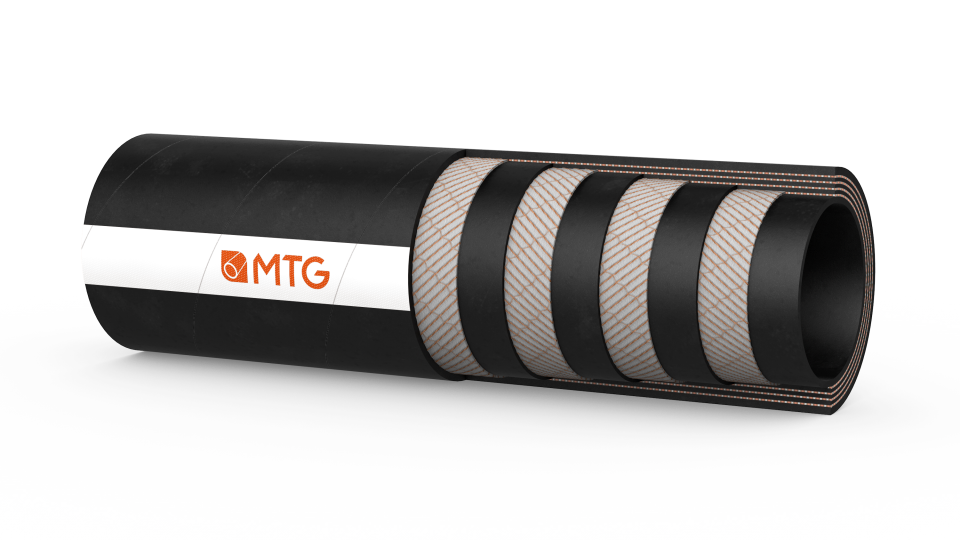

Construcion

TUBE

  • NR/BR rubber, resistant to abrasion, smooth, black colour.
  • Thickness: 16 mm.

REINFORCEMENT

  • High strength textile plies, divided by NR rubber.

COVER

  • Synthetic rubber, resistant to abrasion, ozone and weather. Black, smooth, cloth finish.

Safety factors

  • ≥ 3 times working pressure.

Temperatures

  • From -30°C to +70°C.

Note

  • It is only available in service lengths with couplings at the ends.
  • The type of connections is to be agreed with our Technical Department.

Fitting

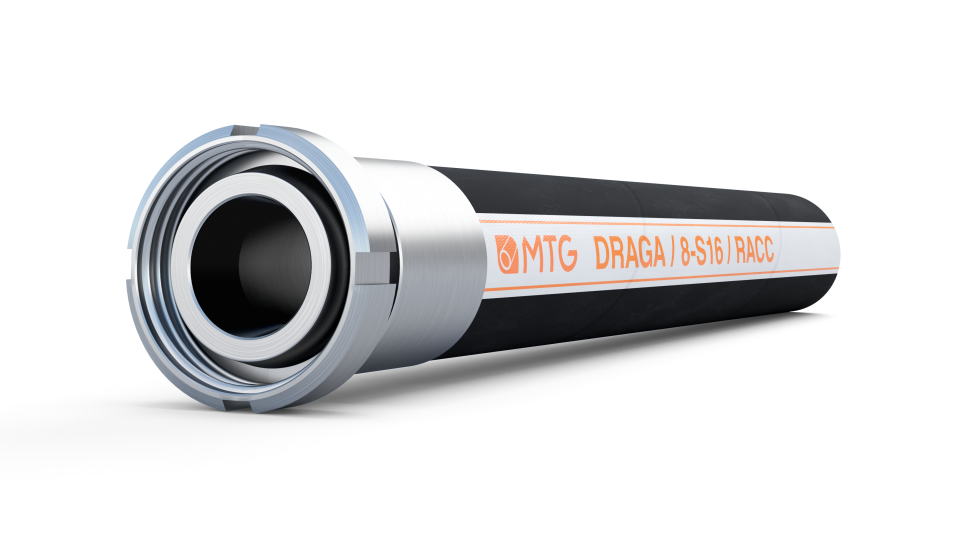

  • Vulcanized stems or beaded rubber ends with trapezoidal section.

Dimensional tolerance

Inner diameter: ISO 1307 – Wall Thickness: DIN 7715 T4 S2 – Length: ISO 1307

Other sizes and colours are available on request. Please contact our Sales Department.  Above technical data are referring to application at room temperature (20°C).

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.

The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
