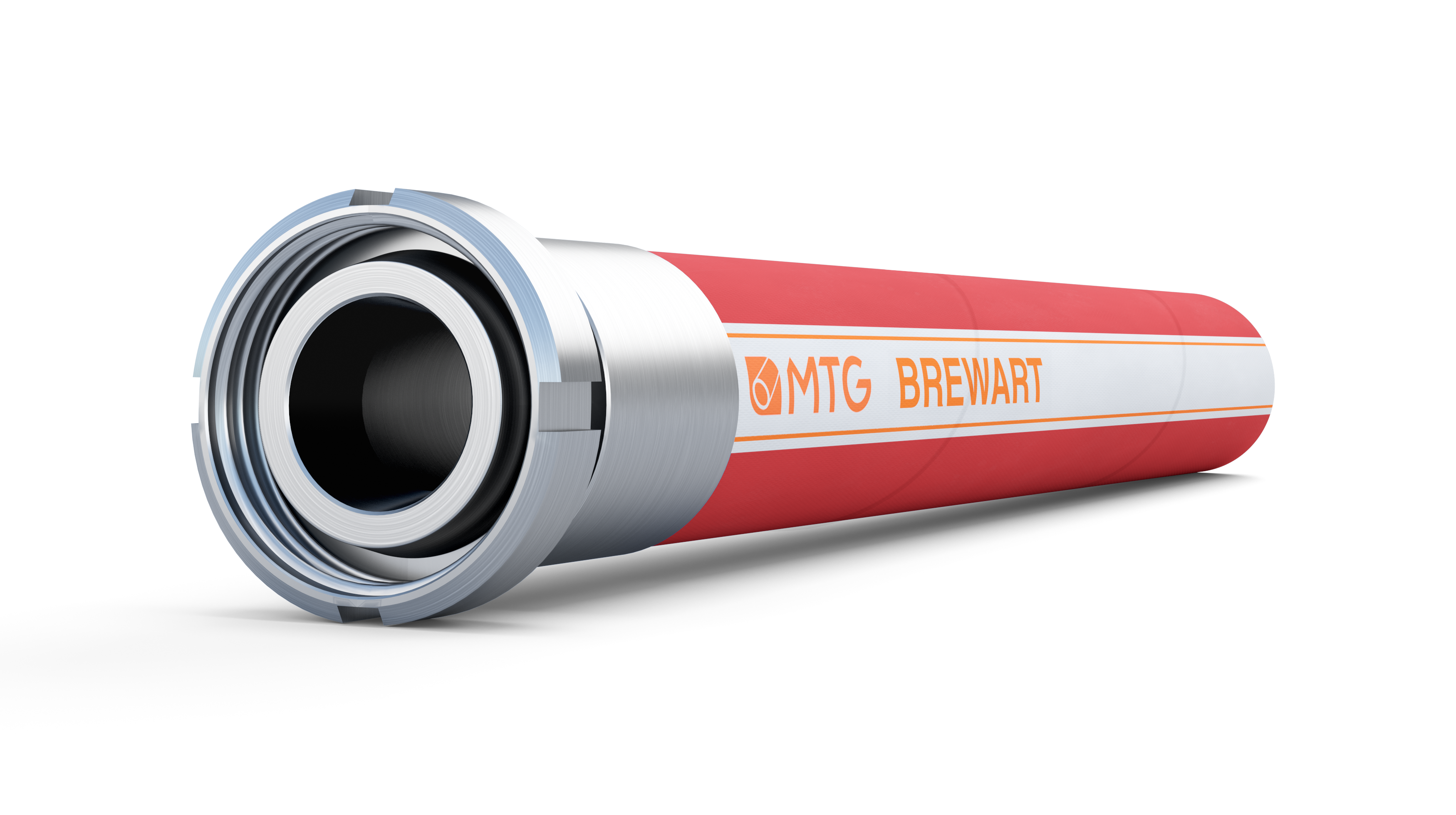

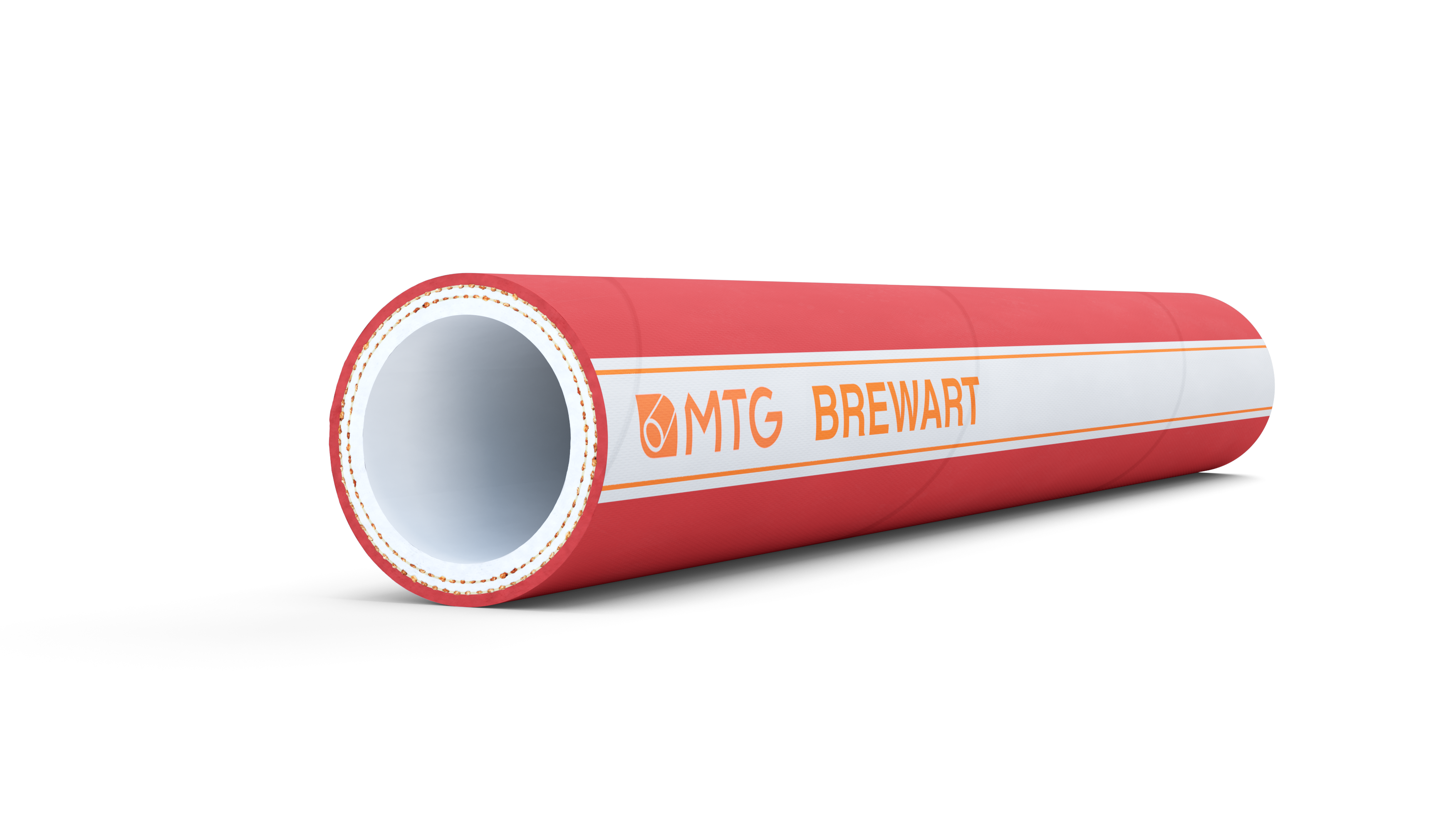

MTG BREWART

Food hose specifically designed to meet the demanding requirements of the beer processing industry.

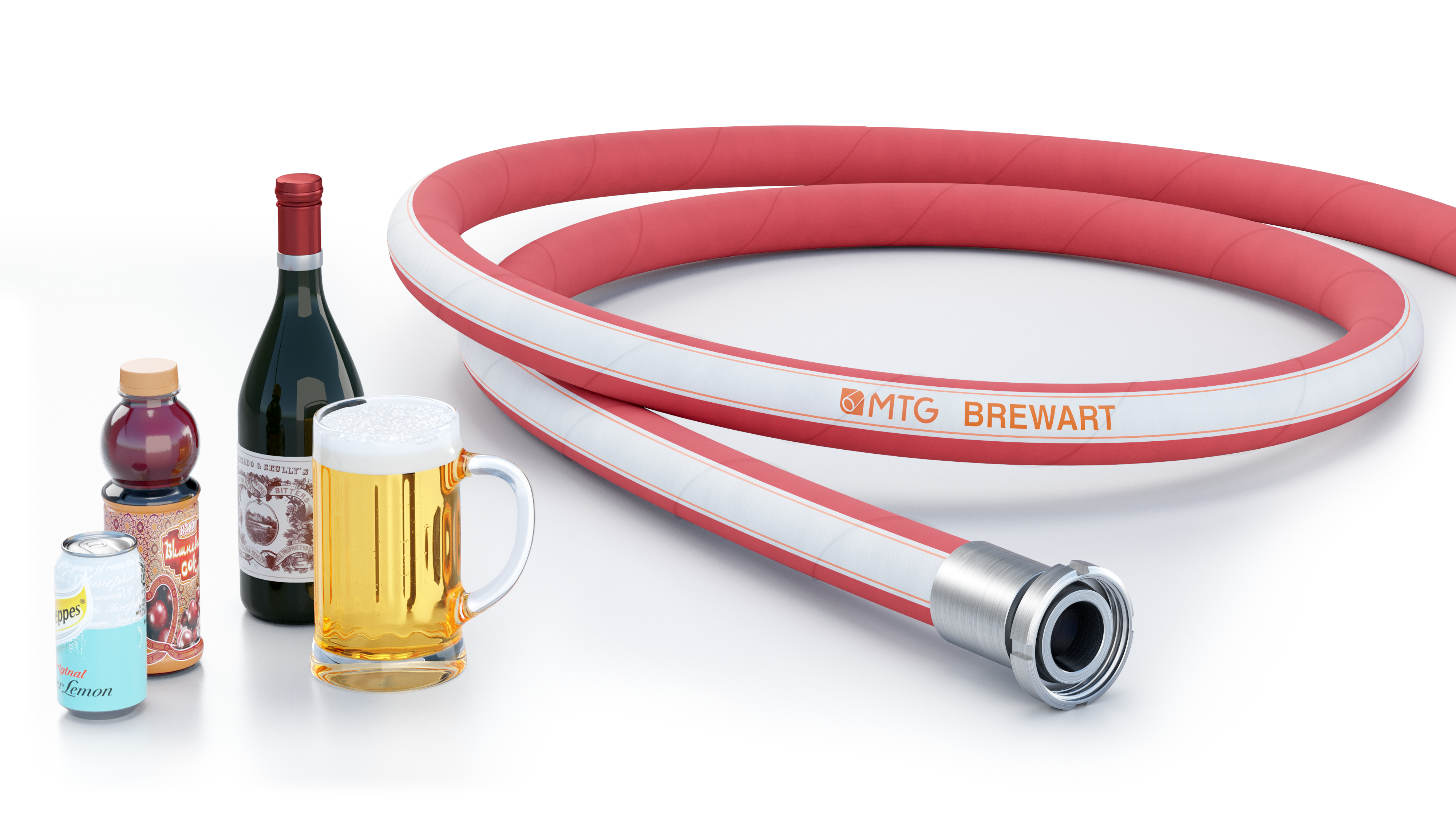

MTG BREWART is suitable for conveying high quality raw, pasteurized and organic beer, alcoholic beverages, soft drinks and wine.

Delivery and slight suction hose.

More details

Main benefits

  • The very strong structure makes it perfect for loading and unloading operations in breweries.
  • The composition of the cover ensures utmost resistance to aging.
  • Hose in accordance with Reg. EC 1935/2004 and Reg. EC 2023/2006 (GMP).
  • The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH)
  • Non-plasticized hose.

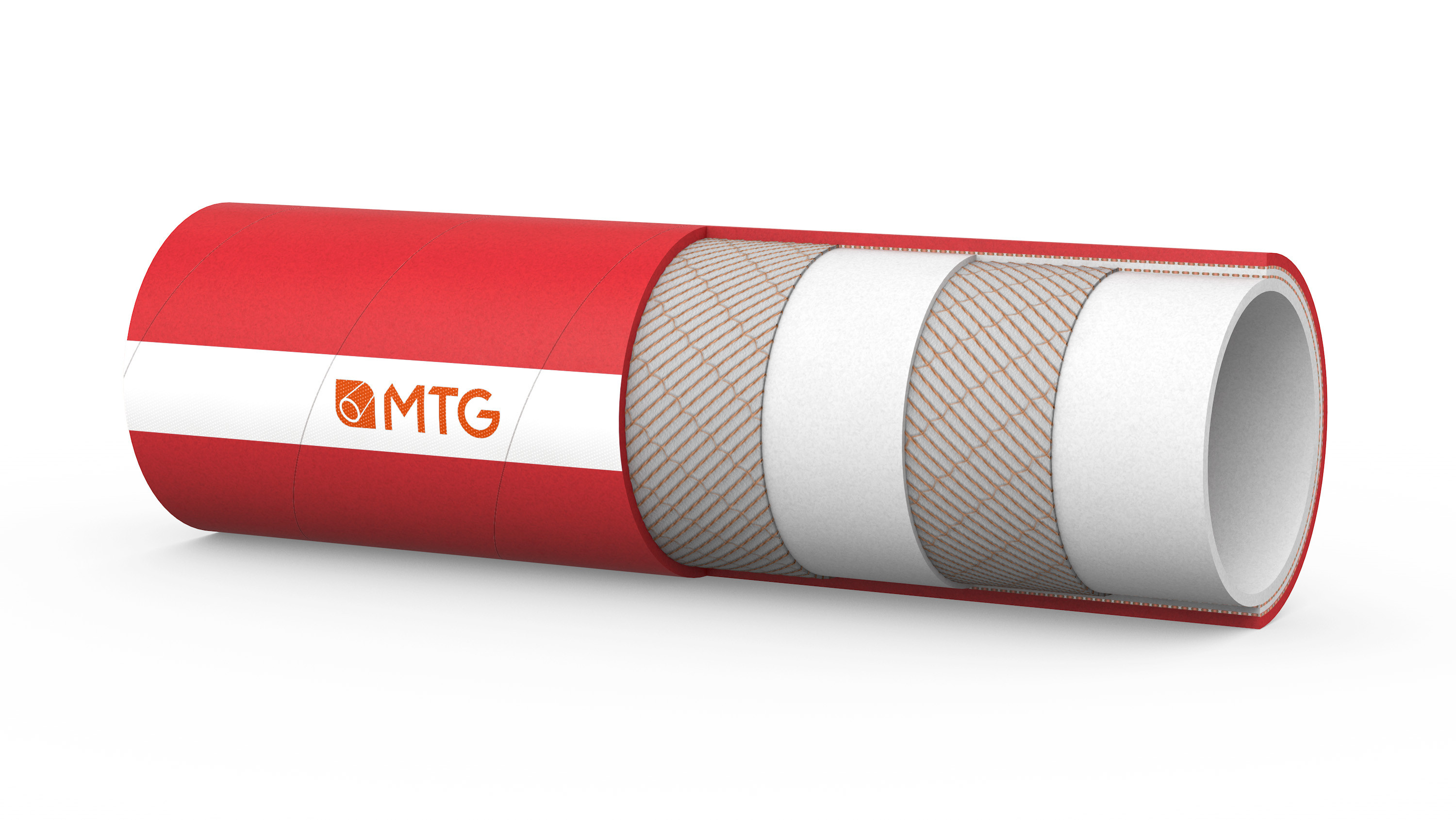

Construcion

TUBE

  • BIIR rubber (code 90FDA), light colour, food grade, odourless and tasteless, mirror smooth.
  • Compliance: FDA Standards, 3-A Sanitary Standards n.18-03-Class II, D.M. 21/03/73 and following amendments. Validation by the institute “Technische Universität München WEIHENSTEPHAN”.

REINFORCEMENT

  • Plies of synthetic cord.

COVER

  • CR rubber, red colour, abrasion, ozone and weather resistant, smooth, cloth finish.

Safety factors

  • ≥ 3 times working pressure.

Temperatures

  • From -40°C to +120°C depending on the product conveyed and on use.

Sterilization

  • Sterilization up to +130°C for max. 30 minutes.
  • In case of long lasting sterilizations we suggest to use the model with vulcanized couplings at the ends.

Marking

Dimensional tolerance

I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307

Internal diam.
mm
External diam.
mm
Wall thickness
mm
Working pressure
BAR
Burst pressure
BAR
Min. bending radius
(Static) mm
Vacuum
BAR
Approx. weight
kg/m
Max. length
m
13 23 5,0 16 48 80 -0,6 0,37 40
19 29 5,0 16 48 120 -0,6 0,48 40
25 37 6,0 16 48 150 -0,6 0,74 40
32 48 8,0 16 48 200 -0,6 1,38 40
38 56 9,0 16 48 240 -0,6 1,85 40
40 60 10,0 16 48 240 -0,6 2,10 40
50 70 10,0 16 48 300 -0,6 2,75 40
51 71 10,0 16 48 300 -0,6 2,80 40
63,5 87,5 12,0 16 48 400 -0,5 3,90 40
65 89 12,0 16 48 400 -0,5 4,00 40
75 105 15,0 16 48 450 -0,4 5,70 40
76 106 15,0 16 48 450 -0,4 5,75 40
80 110 15,0 16 48 500 -0,4 5,90 40
100 130 15,0 16 48 600 -0,4 6,95 40
102 132 15,0 16 48 600 -0,4 7,00 40
Internal diam.
inch
External diam.
inch
Working pressure
PSI
Burst pressure
PSI
Min. bending radius
inch
Vacuum
inHg
Approx. weight
lbs/ft
Max. length
inch
1/2 0,91 240 720 3,15 -17,71 0,25 131,2
3/4 1,14 240 720 4,72 -17,71 0,32 131,2
1 1,46 240 720 5,91 -17,71 0,50 131,2
1 1/4 1,89 240 720 7,87 -17,71 0,93 131,2
1 1/2 2,20 240 720 9,45 -17,71 1,24 131,2
1 37/64 2,36 240 720 9,45 -17,71 1,41 131,2
1 31/32 2,76 240 720 11,81 -17,71 1,84 131,2
2 2,80 240 720 11,81 -17,71 1,88 131,2
2 1/2 3,44 240 720 15,75 14,76 2,62 131,2
2 9/16 3,50 240 720 15,75 14,76 2,68 131,2
2 61/64 4,13 240 720 17,72 11,81 3,82 131,2
3 4,17 240 720 17,72 11,81 3,86 131,2
3 5/32 4,33 240 720 19,69 11,81 3,96 131,2
3 15/16 5,12 240 720 23,62 11,81 4,66 131,2
4 5,20 240 720 23,62 11,81 4,70 131,2

Other diameters and colours of the cover are available upon request. Please contact our Sales Offices. The a.m. data are referring to room temperature (+20°C).

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.

The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
