Peristaltic pump and valves
PERISTALTIC EPDM-FOOD
PERISTALTIC/EPDM-Food is a EPDM rubber hose specifically engineered for application on peristaltic pumps.
Suitable for conveying water mixed with acidic and/or alkaline substances of medium concentration.
More detailsConstrucion
TUBE
- EPDM rubber, light colour, non-toxic, smooth.
- Complying with FDA Standards.
REINFORCEMENT
- High strength plies of synthetic cord.
COVER
- EPDM rubber, black colour, smooth, cloth finish, resistant to abrasion.
- Version with ground cover available on demand: MTG-PERISTALTIC/EPDM-Food/RET.
Safety factors
- ≥ 4 times working pressure.
Temperatures
- From -20°C to +100°C depending on medium.
Note
- For any further information concerning technical features, hose solutions available and chemical compatibility with the products conveyed, please contact MTG Sales Department.
- Normally supplied in service lengths.
- Inner diameter, wall thickness and length are defined by the peristaltic pump manufacturer.
- Without any marking or marking on demand.
- Without any marking for the version with ground cover.
Working pressurre
- 10 bar.
Dimensional tolerance
For sizes and colours available, please contact our Sales Department.
Above technical data refer to application at room temperature (+20°C).

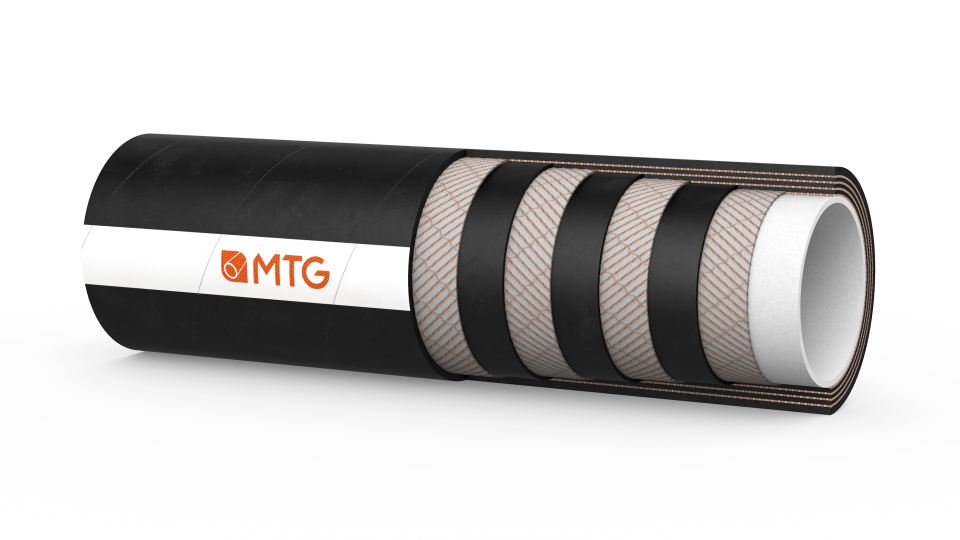

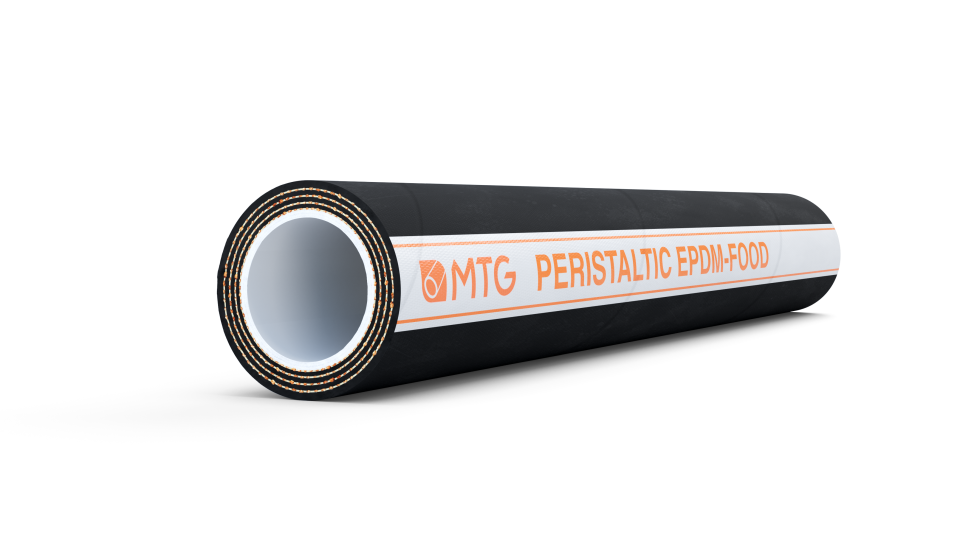

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
