Peristaltic pump and valves

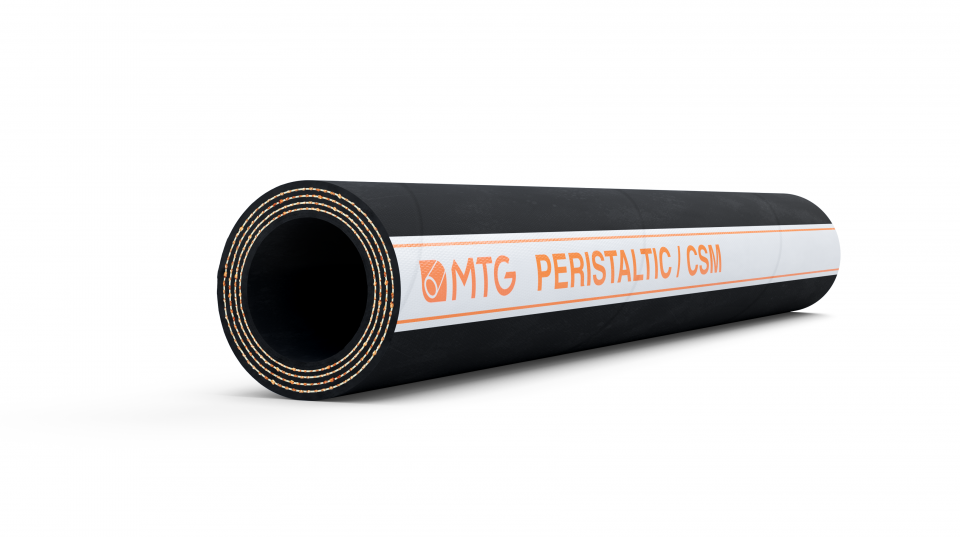

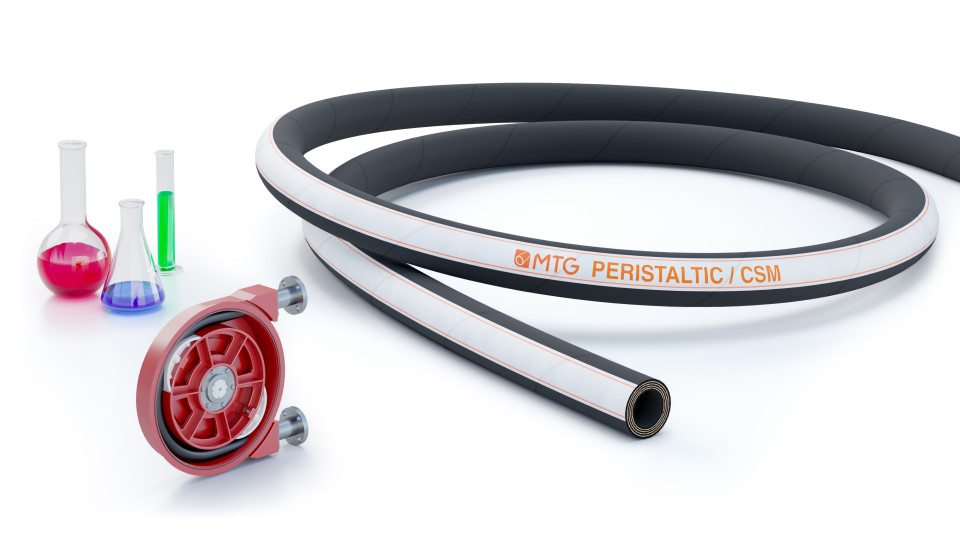

PERISTALTIC/CSM
PERISTALTIC/CSM is a CSM rubber hose specifically engineered for application on peristaltic pumps.
The structure provides a good mechanical performance and is highly suitable for conveying plenty of aggressive chemicals*.
(*) Please contact the MTG Technical Sales Department to check the chemical compatibility with the products.

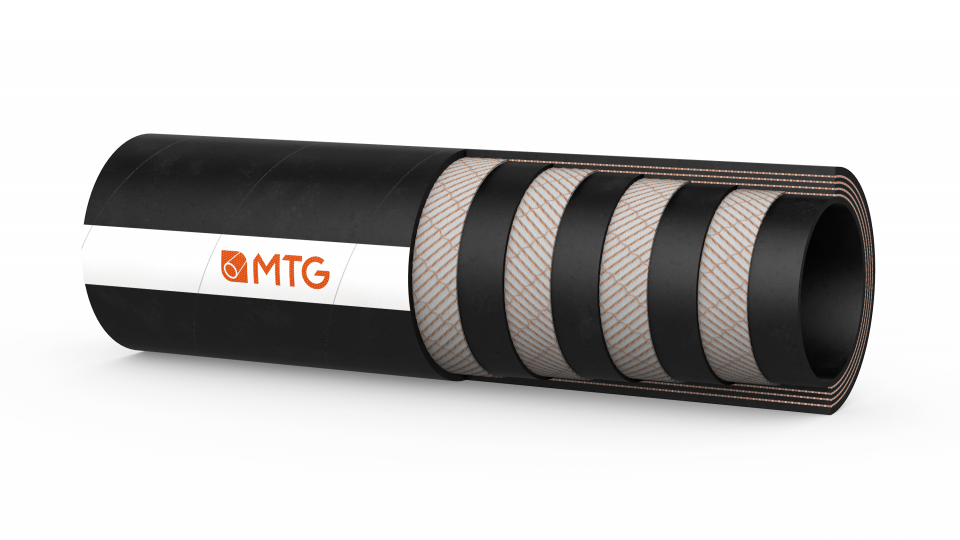

More detailsConstrucion
TUBE
- CSM rubber, black colour, smooth.
REINFORCEMENT
- Plies of synthetic cord.
COVER
- CSM rubber, black colour, smooth, cloth finish.
- Version available with ground cover: MTG-PERISTALTIC/CSM/Ret.
Safety factors
- ≥ 4 times working pressure.
Temperatures
- From -10°C to +80°C depending on medium.
Note
- For any further information concerning technical features, hoses producted from other types of synthetic rubber, hose solutions available and chemical compatibility with the products conveyed, please contact MTG Sales Department.
- Normally supplied in service lengths.
- Inner diameter, wall thickness and length are defined by the peristaltic pump manufacturer.
- Without any marking or marking on demand.
- Without any marking for the version with ground cover.
Working pressure
- 10 bar.
Dimensional tolerance
For sizes and colours available, please contact our Sales Department.
Above technical data refer to application at room temperature (+20°C).
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
