Railway sector

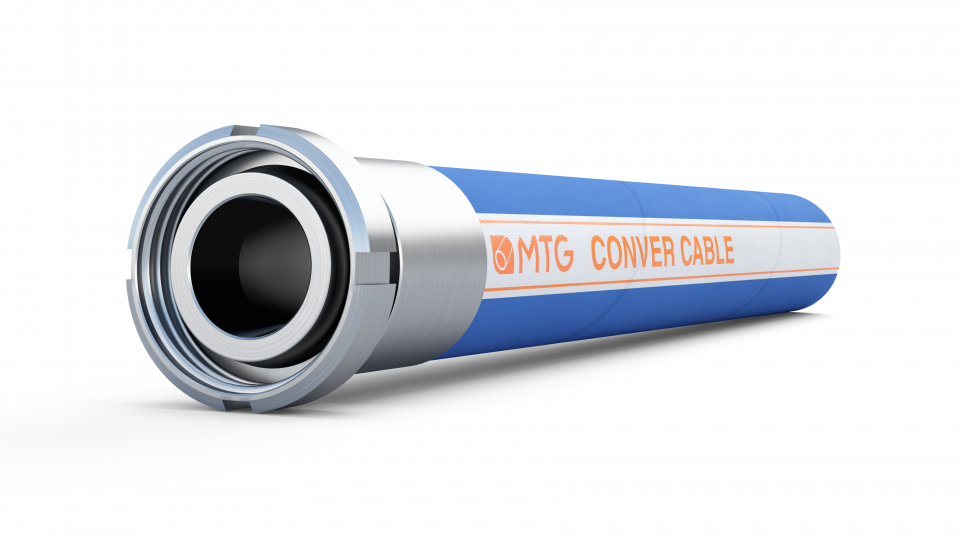

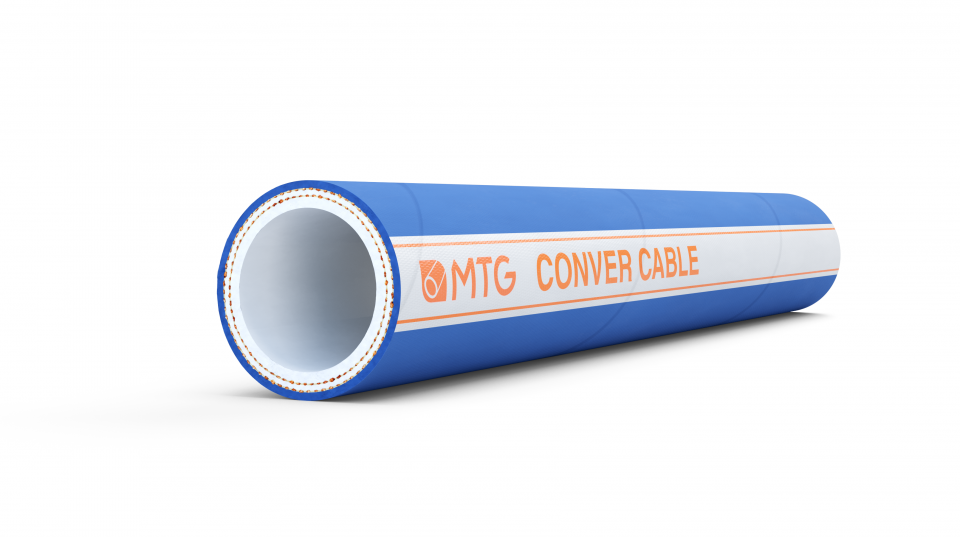

CONVER CABLE

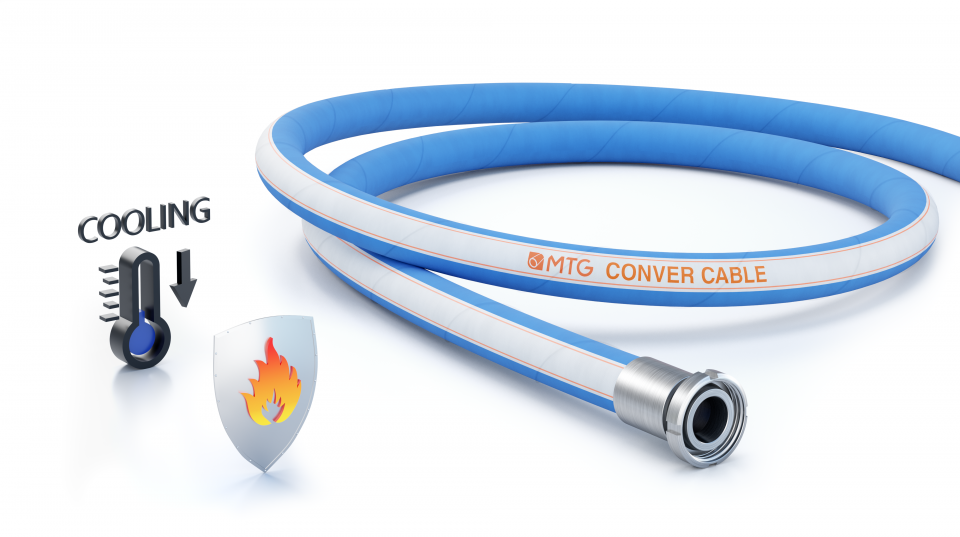

CONVER CABLE is a rubber hose for the delivery of cooling water, demineralized water, and glycol.
Specifically designed to meet the most stringent requirements for waterproofing and electrical insulation, it is used in the electrical industry within the railway and tram sectors
More detailsConstrucion

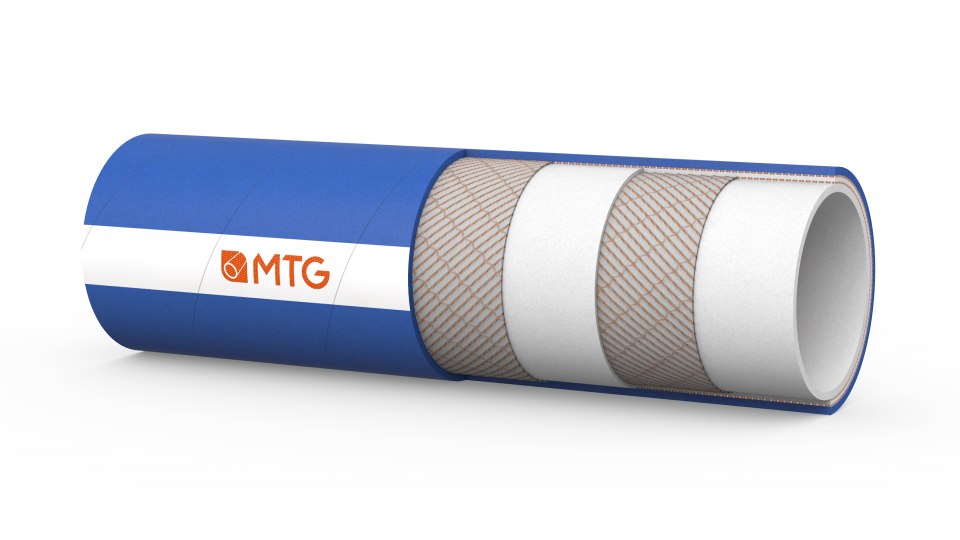

- Hose manufactured with MTG rubber code 46N.
TUBE
- Synthetic rubber, light color.
REINFORCEMENT
- High strength plies of synthetic cord.
COVER
- EPDM rubber, resistant to abrasion, ozone and weather, blue colour,smooth (cloth finish).
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -40°C to +120°C.
Note
FITTING
- By means of clamps, collars, pressed-in couplings or other systems needed by the equipment manufacturers.
Norms compliance and Certifications
- UNI EN 45545-2:2015 (fire protection for railway vehicles): HL3 for R22 and R23.
- UNI CEI 11170-3/05 and FA 2007 (fire behavior): it complies with all risk levels up to LR4.
- DIN 5510-2:2009 (fire behavior).
- NF X 70-100 – 1 and 2 (low toxicity of gases).
- EN 11925-2/2002 (reaction to fire with a single flame source). I
- SO 1307: internal diameter and length tolerance.
- DIN 7715 T4 S2: wall thickness tolerance.
- Certificate "LAPI n°1835.1IS0040/16 dated 02/11/2016", test method: UNI EN 45545-2:2015.
Dimensional tolerance
Inner diameter: ISO 1307 - Wall Thickness: DIN 7715 T4 S2 - Length: ISO 1307
