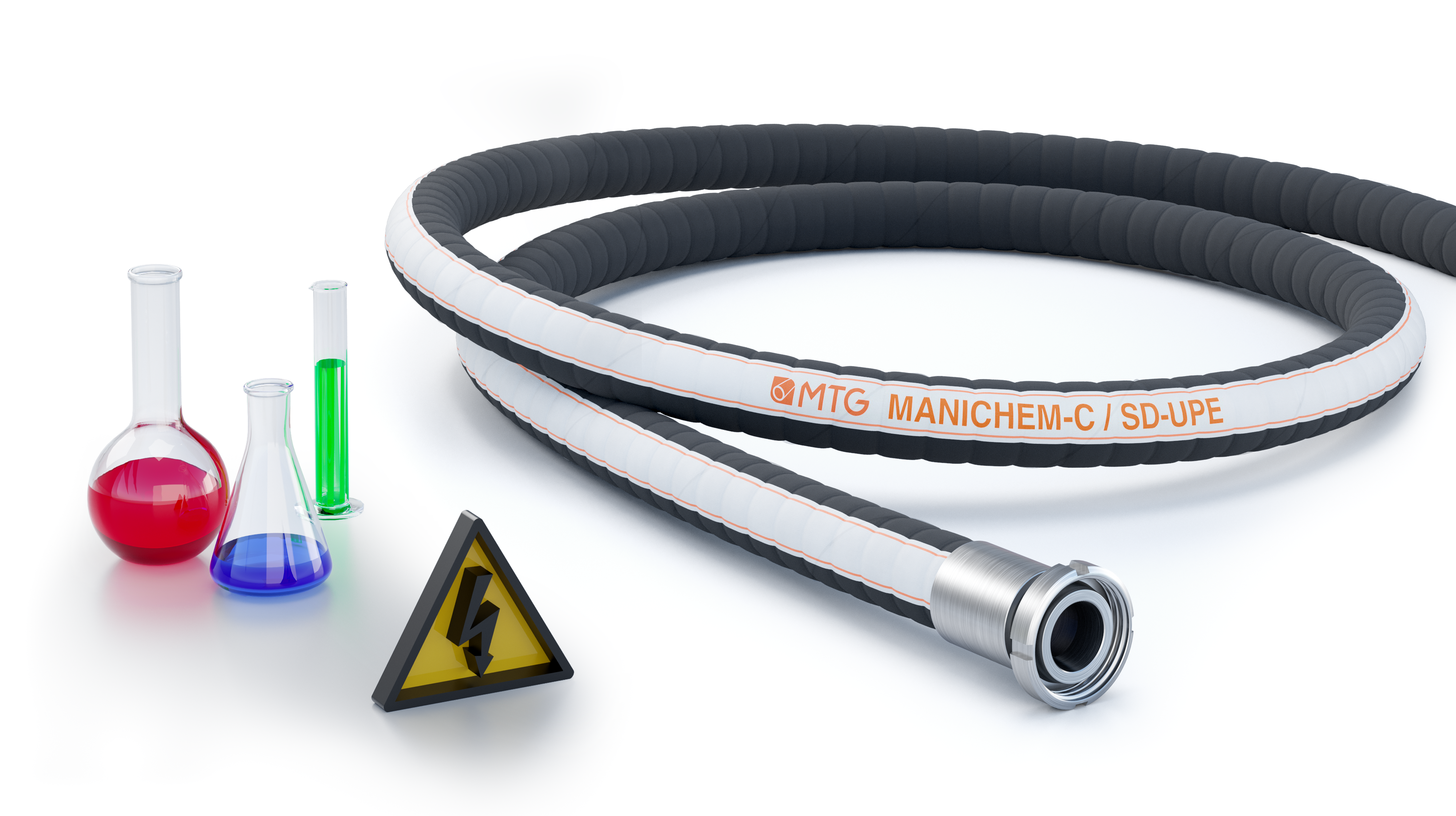

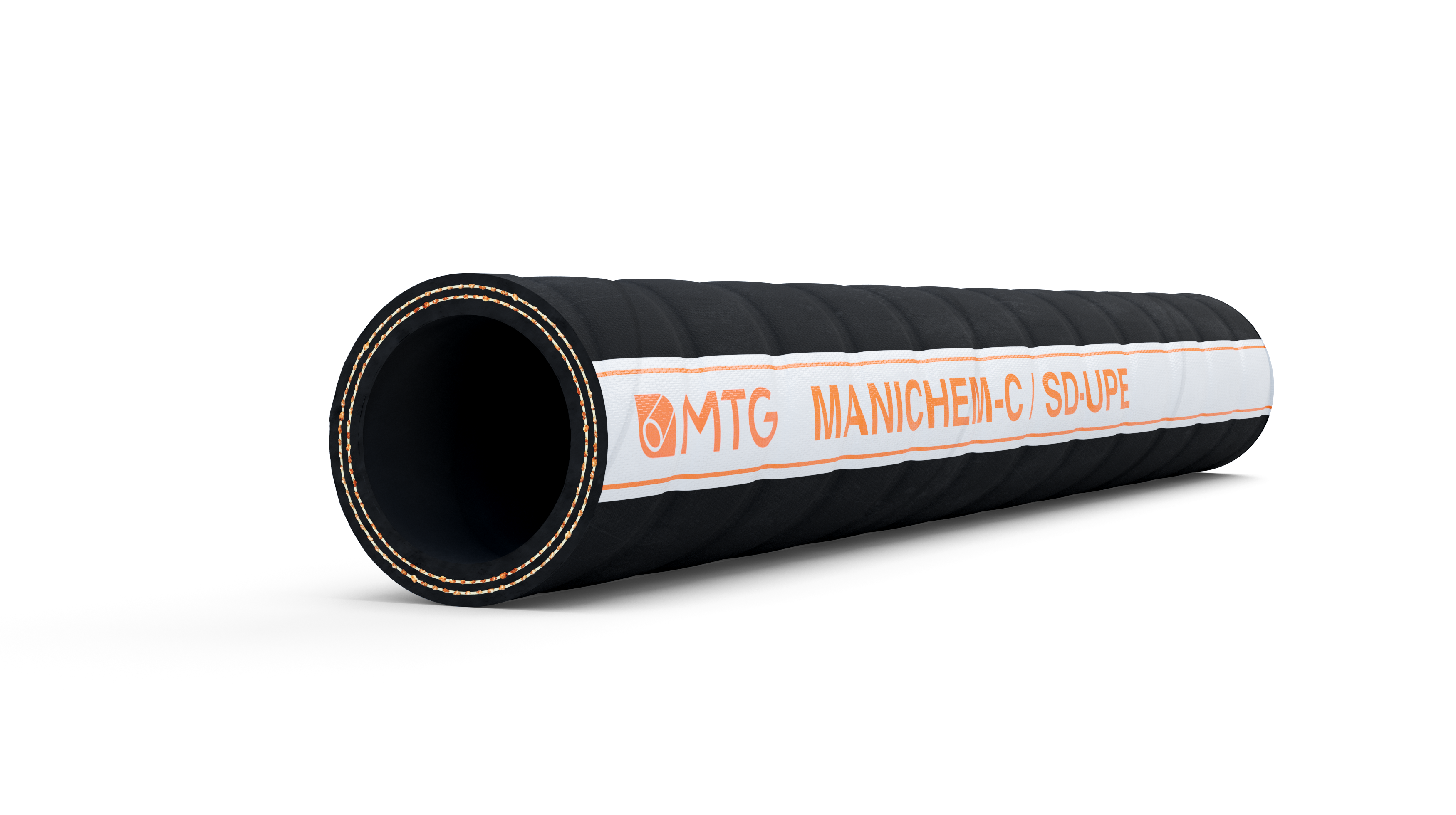

MANICHEM-C/SD-UPE
Multipurpose suction and delivery hose for conveying a wide range of aggressive chemicals.
Engineered to ensure dissipation of electrostatic charges not only on the surface, but also through the hose wall (Electrical resistance: R<10^9 Ω).
Execution in accordance with EN 12115:2011.
More detailsConstrucion

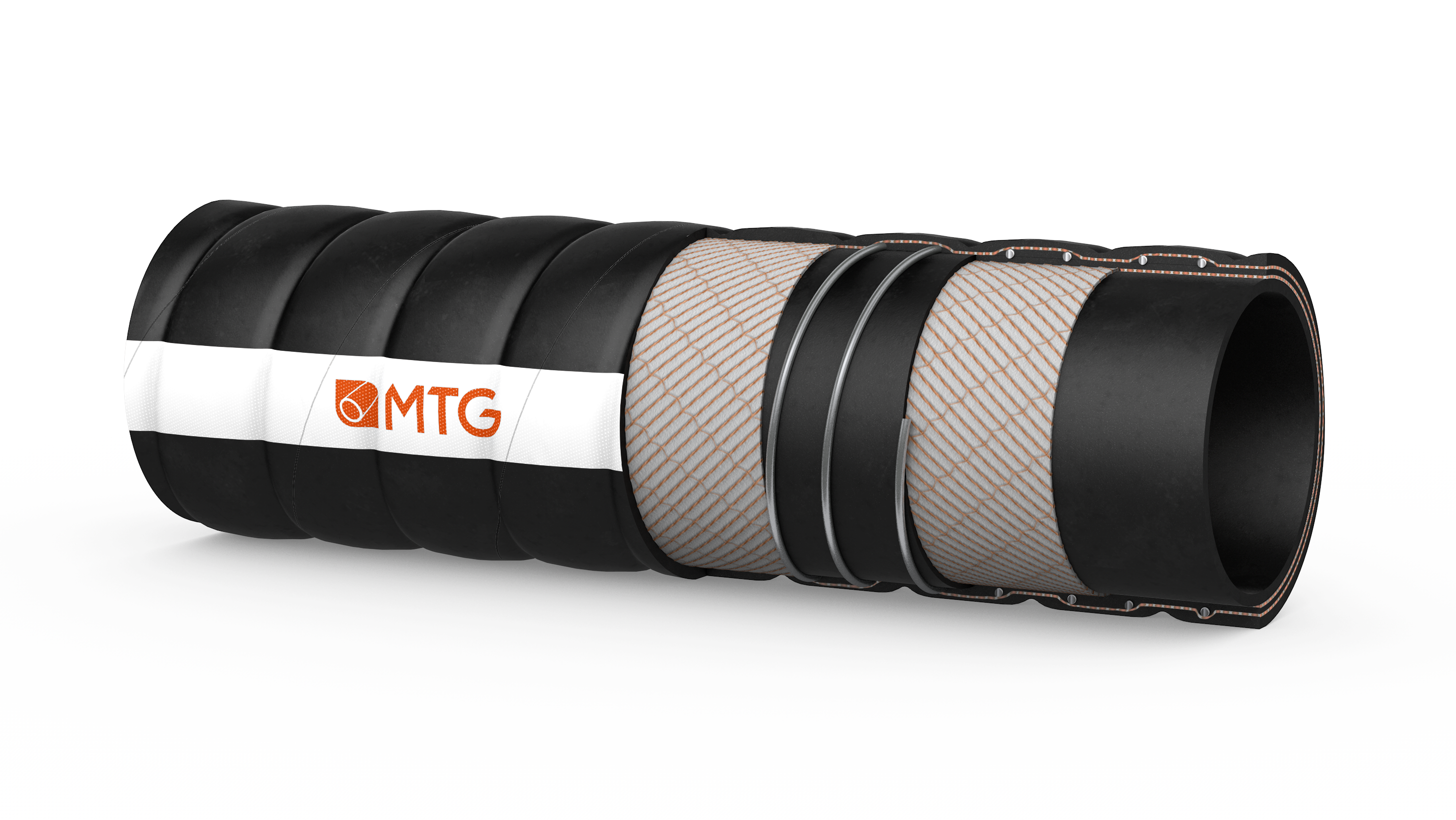

TUBE
- UHMWPE (Ultra High Molecular Weight Polyethylene), antistatic (R<10^6 Ω), black, smooth.
REINFORCEMENT
- High strength plies of synthetic cord.
- Embedded steel helix wires.
- Copper wires on request.
COVER
- EPDM rubber, black, wide corrugated, antistatic (R<10^6 Ohm), resistant to abrasion, ozone and weather, cloth finish.
Safety factors
- ≥ 4 times working pressure.
Temperatures
- In accordance with the standard EN 12115: 2011.
- Resistant to steam up to +130° C for max. 30 minutes.
Note
- The wide corrugation of the outer surface allows an easy and safe installation of the fittings (no cuffs needed).
Electrical properties
- Electrical resistance through the hose wall: R < 10^9 Ω.
- Identification symbol:
– Ω/T for version without copper wires;
– M/T for version with copper wires.
Marking
Dimensional tolerance
I.D.: EN 12115 – Ext.D.: EN 12115 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius. mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 19 | 31 | 6 | 10 | 40 | 125 | -0,9 | 0,65 | 40 |
| 25 | 37 | 6 | 10 | 40 | 150 | -0,9 | 0,8 | 40 |
| 32 | 44 | 6 | 10 | 40 | 175 | -0,9 | 0,95 | 40 |
| 38 | 51 | 6,5 | 10 | 40 | 225 | -0,9 | 1,2 | 40 |
| 50 | 66 | 8 | 10 | 40 | 275 | -0,9 | 1,9 | 40 |
| 63,5 | 79,5 | 8 | 10 | 40 | 300 | -0,9 | 2,6 | 40 |
| 75 | 91 | 8 | 10 | 40 | 350 | -0,8 | 3 | 40 |
| 100 | 116 | 8 | 10 | 40 | 450 | -0,8 | 4,1 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius. inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 3/4 | 1,22 | 150 | 600 | 4,92 | -26,57 | 0,44 | 131,2 |
| 1 | 1,46 | 150 | 600 | 5,91 | -26,57 | 0,54 | 131,2 |
| 1/4 | 1,73 | 150 | 600 | 6,89 | -26,57 | 0,64 | 131,2 |
| 1 1/2 | 2,01 | 150 | 600 | 8,86 | -26,57 | 0,8 | 131,2 |
| 1 31/32 | 2,6 | 150 | 600 | 10,83 | -26,57 | 1,27 | 131,2 |
| 2 1/2 | 3,13 | 150 | 600 | 11,81 | -26,57 | 1,74 | 131,2 |
| 2 61/64 | 3,58 | 150 | 600 | 13,78 | -23,62 | 2,01 | 131,2 |
| 3 15/16 | 4,57 | 150 | 600 | 17,72 | -23,62 | 2,75 | 131,2 |
Other sizes available on request. Above technical data are based on application at room temperature (+20° C).
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
