PROCHIM/10

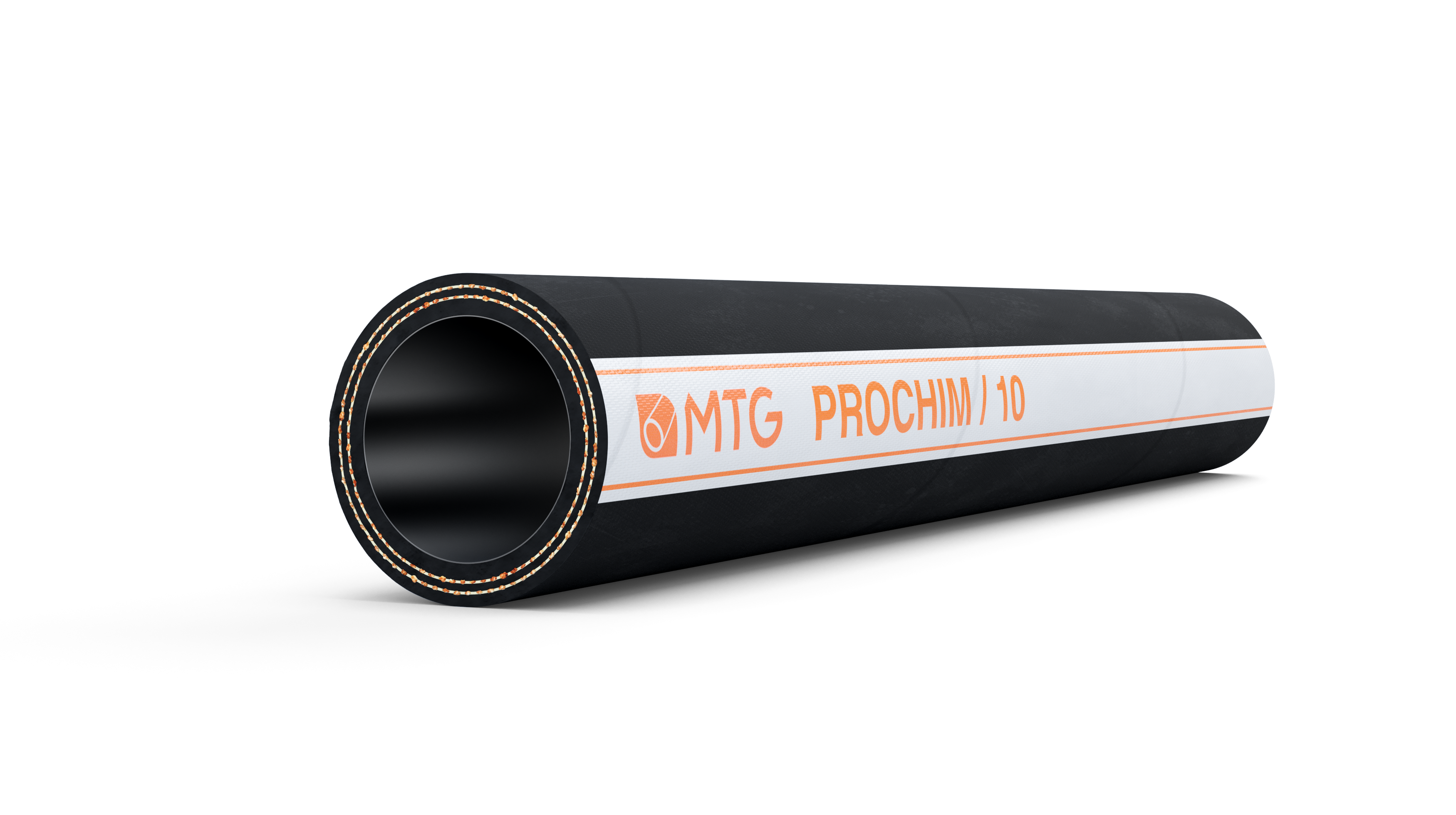

Multipurpose delivery hose for conveying a wide range of aggressive chemicals.
PROCHIM is normally installed on tank trucks and unloading platforms, recommended for applications in chemical laboratories and industries.
More detailsConstrucion

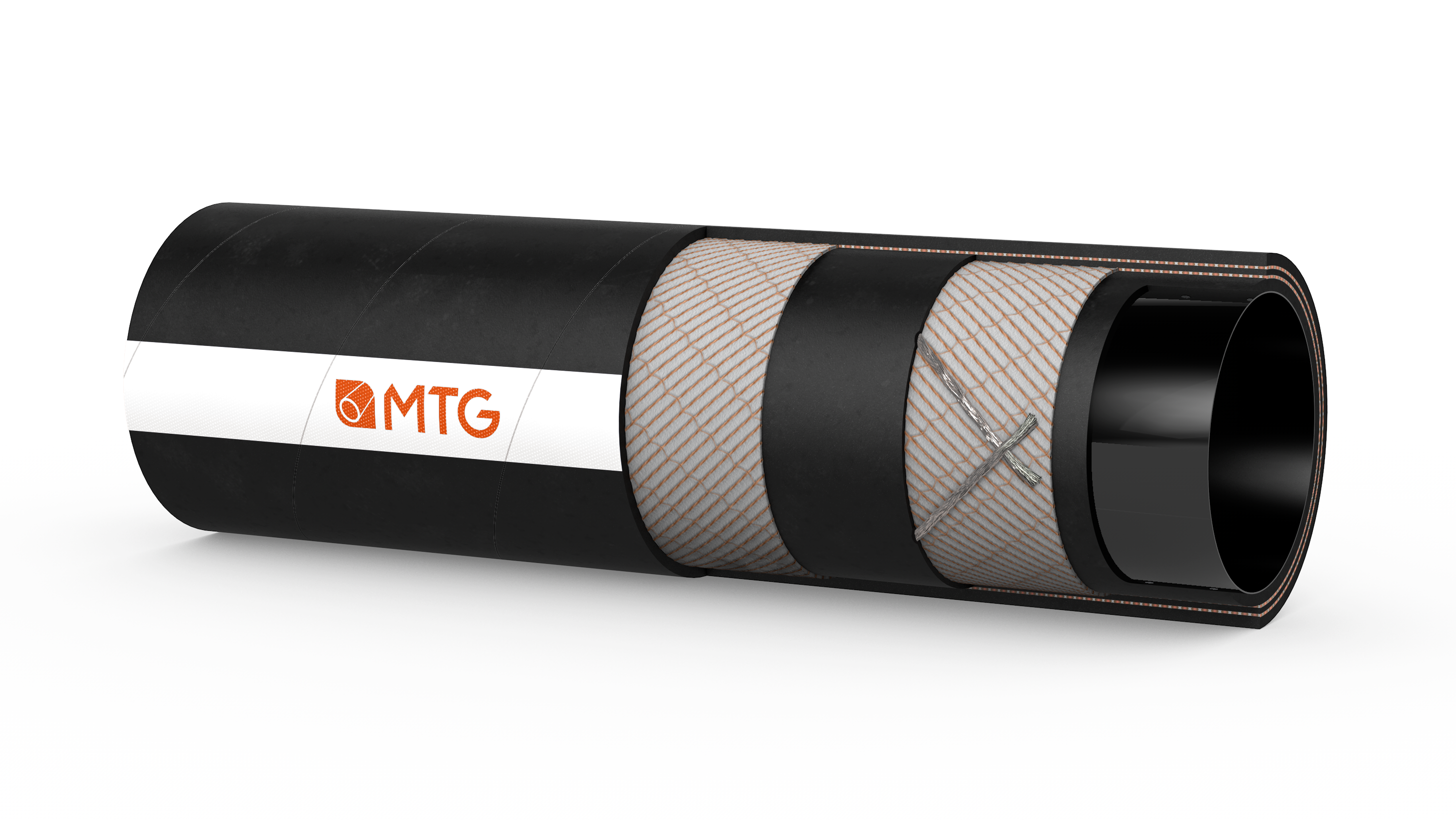

TUBE
- UHMWPE (UPE – Ultra High Molecular Weight Polyethylene), neutral, smooth.
- Resistance: according to MTG Chemical Resistance Chart.
REINFORCEMENT
- High strength plies of synthetic cord.
- Built-in copper wires.
COVER
- EPDM rubber, black, smooth, antistatic (R < 10^6 Ω), resistant to abrasion, ageing and weather, cloth finish.
Safety factors
- ≥ 3 volte la pressione di esercizio.
Temperatures
- From -35°C to +100°C.
- Resistant to steam up to +130°C for a maximum time of 30 minutes.
Note
- A suction and delivery hose with steel helix wire, approved by the Institute Ineris for use in Atex areas, is available: PROCHIM/SPL/10.
Marking
Dimensional tolerance
I.D.: ISO 1307 – Wall Thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Pressione di scoppio BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 10 | 19 | 4,5 | 10 | 30 | 60 | -0,6 | 0,24 | 40 |
| 13 | 22 | 4,5 | 10 | 30 | 80 | -0,6 | 0,29 | 40 |
| 16 | 25 | 4,5 | 10 | 30 | 100 | -0,5 | 0,34 | 40 |
| 19 | 30 | 5,5 | 10 | 30 | 120 | -0,5 | 0,49 | 40 |
| 25 | 37 | 6 | 10 | 30 | 150 | -0,5 | 0,66 | 40 |
| 30 | 42 | 6 | 10 | 30 | 200 | -0,4 | 0,77 | 40 |
| 32 | 44 | 6 | 10 | 30 | 200 | -0,3 | 0,81 | 40 |
| 35 | 48 | 6,5 | 10 | 30 | 240 | -0,3 | 0,98 | 40 |
| 38 | 52 | 7 | 10 | 30 | 240 | -0,3 | 1,05 | 40 |
| 40 | 54 | 7 | 10 | 30 | 240 | -0,3 | 1,1 | 40 |
| 45 | 59 | 7 | 10 | 30 | 280 | -0,2 | 1,21 | 40 |
| 50 | 65 | 7,5 | 10 | 30 | 300 | -0,2 | 1,47 | 40 |
| 60 | 76 | 8 | 10 | 30 | 360 | --- | 1,84 | 40 |
| 63,5 | 79,5 | 8 | 10 | 30 | 390* | --- | 1,93 | 40 |
| 75 | 91 | 8 | 10 | 30 | 450* | --- | 2,20 | 40 |
| 80 | 96 | 8 | 10 | 30 | 480* | --- | 2,30 | 40 |
| 90 | 106 | 8 | 10 | 30 | 540* | --- | 2,60 | 40 |
| 100 | 116 | 8 | 10 | 30 | 600* | --- | 2,82 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Pressione di scoppio BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 3/8 | 0,75 | 150 | 435 | 2,36 | -17,71 | 0,16 | 131,2 |
| 1/2 | 0,87 | 150 | 435 | 3,15 | -17,71 | 0,19 | 131,2 |
| 5/8 | 0,99 | 150 | 435 | 3,94 | -14,76 | 0,23 | 131,2 |
| 3/4 | 1,18 | 150 | 435 | 4,72 | -14,76 | 0,33 | 131,2 |
| 1 | 1,46 | 150 | 435 | 5,91 | -14,76 | 0,44 | 131,2 |
| 1 11/64 | 1,65 | 150 | 435 | 7,87 | -11,81 | 0,52 | 131,2 |
| 1 1/4 | 1,73 | 150 | 435 | 7,87 | -8,85 | 0,54 | 131,2 |
| 1 3/8 | 1,89 | 150 | 435 | 9,45 | -8,85 | 0,66 | 131,2 |
| 1 1/4 | 2,05 | 150 | 435 | 9,45 | -8,85 | 0,7 | 131,2 |
| 1 37/64 | 2,13 | 150 | 435 | 9,45 | -8,85 | 0,74 | 131,2 |
| 1 49/64 | 2,32 | 150 | 435 | 11,02 | -5,9 | 0,81 | 131,2 |
| 1 31/32 | 2,56 | 150 | 435 | 11,81 | -5,9 | 0,99 | 131,2 |
| 2 3/8 | 2,99 | 150 | 435 | 14,17 | --- | 1,23 | 131,2 |
| 2 1/2 | 3,13 | 150 | 435 | 15,35* | --- | 1,29 | 131,2 |
| 2 61/64 | 3,58 | 150 | 435 | 17,72* | --- | 1,48 | 131,2 |
| 3 5/32 | 3,78 | 150 | 435 | 18,89* | --- | 1,54 | 131,2 |
| 3 35/64 | 4,17 | 150 | 435 | 21,26* | --- | 1,74 | 131,2 |
| 3 15//16 | 4,57 | 150 | 435 | 23,62* | --- | 1,89 | 131,2 |
(*) Bending radius at a working pressure of ≥ 1 bar.
Chemical resistance acc. to MTG Chemical Resistance Chart. Above technical data are based on application at room temperature (+20°C). Other sizes are available on request.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
