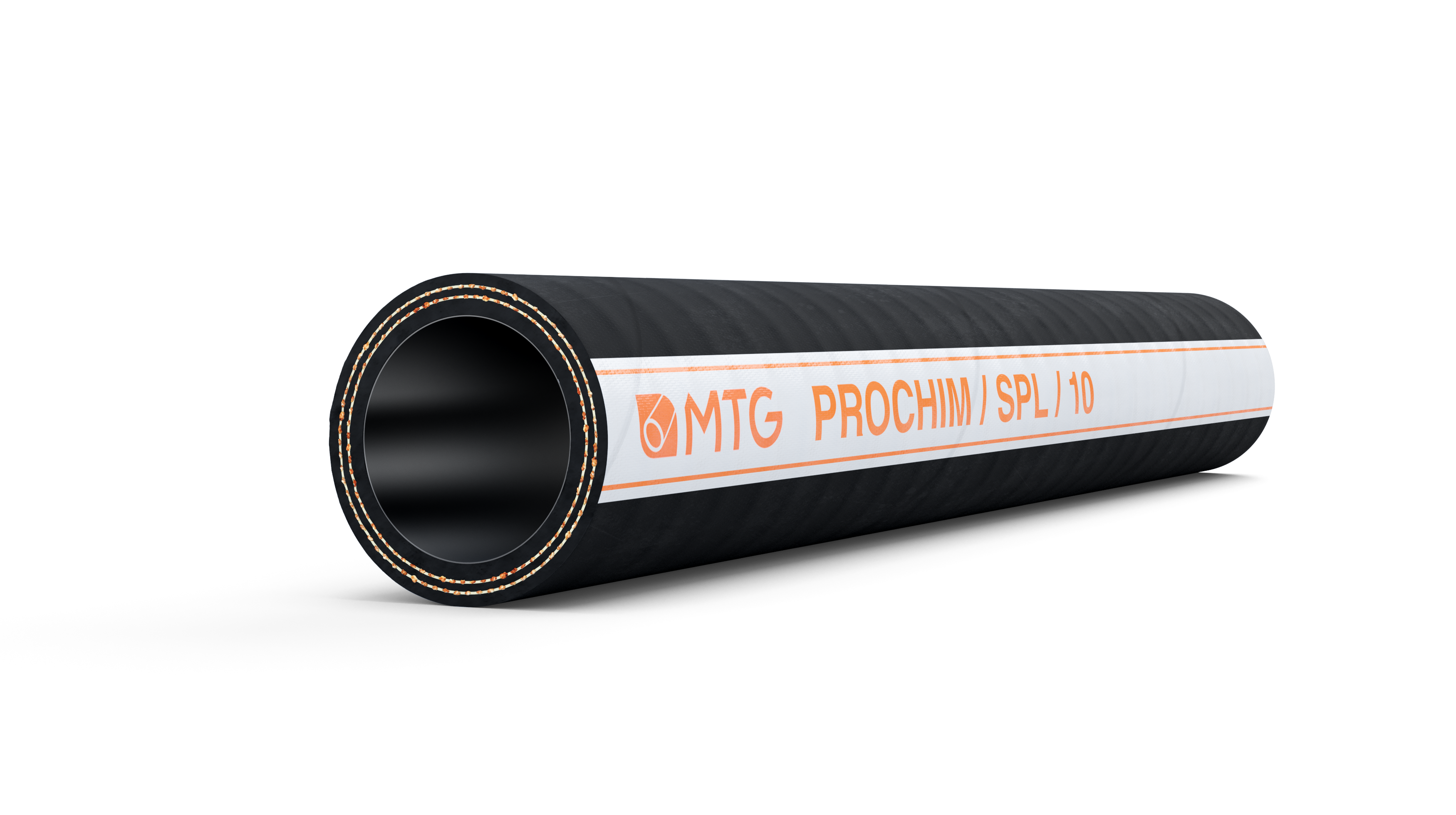

Multipurpose suction and delivery hose for conveying a wide range of aggressive chemicals.
PROCHIM/SPL/10 is normally installed on tank trucks and unloading platforms, recommended for applications in chemical laboratories and industries.
Hose approved by the Institute Ineris, attestation nr. INERIS-16-AM-340, for use in Atex areas.
More detailsConstrucion

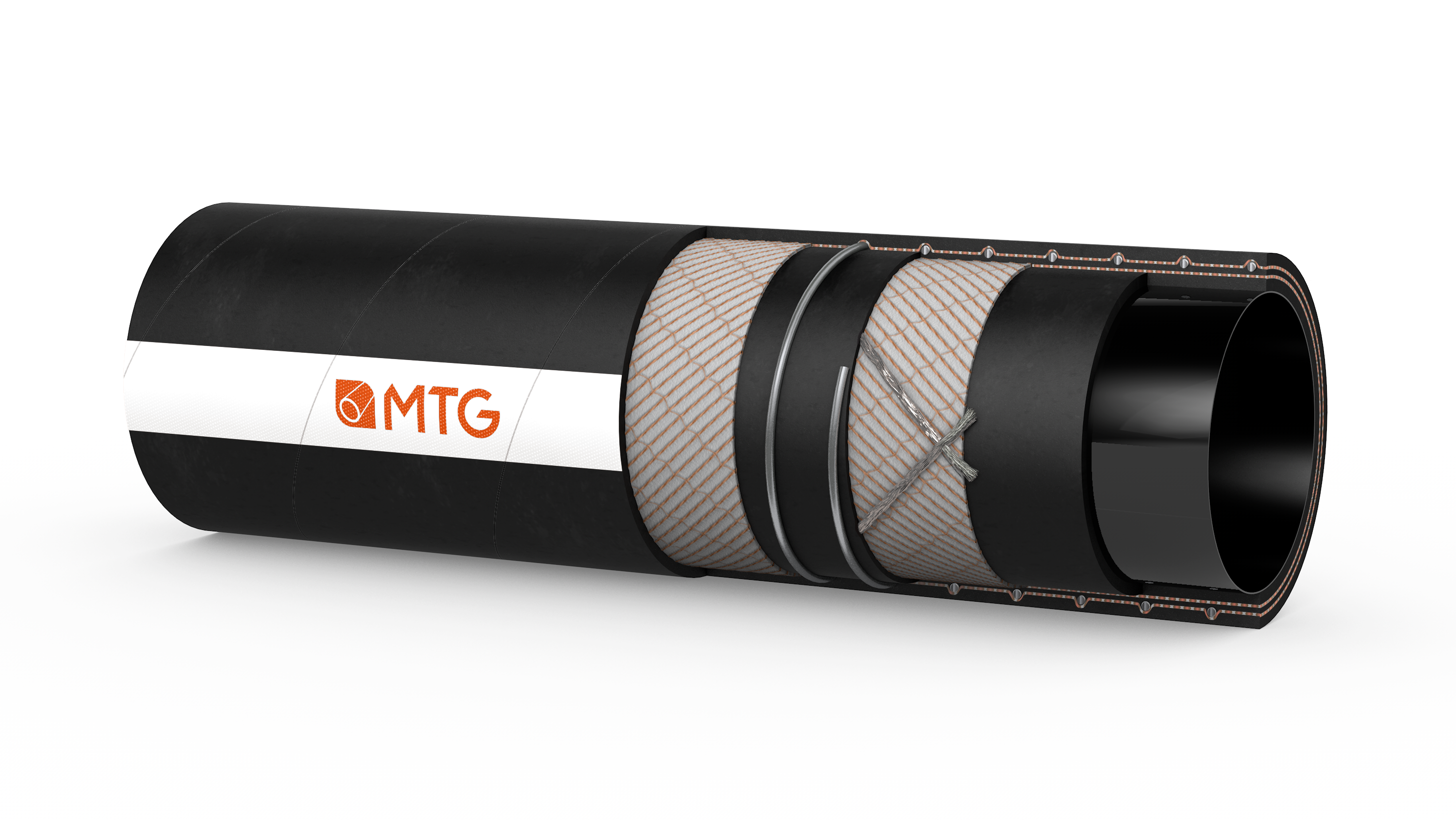

TUBE
- UHMWPE (UPE – Ultra High Molecular Weight Polyethylene), neutral, smooth.
- Resistance: according to MTG Chemical Resistance Chart.
REINFORCEMENT
- High strength plies of synthetic cord.
- Embedded steel helix wires.
- Built-in copper wires.
COVER
- EPDM rubber, black, smooth, antistatic (R< 10^6 Ω), resistant to abrasion, ageing and weather, cloth finish.
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -35°C to +100°C.
- Resistant to steam up to +130°C for a maximum time of 30 minutes.
Marking
Dimensional tolerance
I.D.: ISO 1307 – Wall Thickness: DIN 7715 T4 S2 – Length : ISO 1307.
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 13 | 24 | 5,5 | 10 | 30 | 60 | -0,9 | 0,41 | 40 |
| 16 | 27 | 5,5 | 10 | 30 | 80 | -0,9 | 0,51 | 40 |
| 19 | 31 | 6 | 10 | 30 | 100 | -0,9 | 0,63 | 40 |
| 25 | 37 | 6 | 10 | 30 | 125 | -0,9 | 0,77 | 40 |
| 32 | 44 | 6 | 10 | 30 | 180 | -0,9 | 0,94 | 40 |
| 38 | 51 | 6,5 | 10 | 30 | 225 | -0,9 | 1,3 | 40 |
| 40 | 54 | 7 | 10 | 30 | 225 | -0,9 | 1,42 | 40 |
| 50 | 65 | 7,5 | 10 | 30 | 275 | -0,9 | 1,82 | 40 |
| 60 | 75 | 7,5 | 10 | 30 | 300 | -0,9 | 2,25 | 40 |
| 63,5 | 78,5 | 7,5 | 10 | 30 | 320 | -0,9 | 2,35 | 40 |
| 70 | 86 | 8 | 10 | 30 | 350 | -0,9 | 2,8 | 40 |
| 75 | 91 | 8 | 10 | 30 | 380 | -0,9 | 3 | 40 |
| 80 | 96 | 8 | 10 | 30 | 400 | -0,9 | 3,18 | 40 |
| 90 | 108 | 9 | 10 | 30 | 480 | -0,9 | 4,3 | 40 |
| 100 | 118 | 9 | 10 | 30 | 500 | -0,9 | 4,88 | 40 |
| 102 | 120 | 9 | 10 | 30 | 500 | -0,9 | 4,98 | 40 |
| 125 | 147 | 11 | 10 | 30 | 100 | -0,8 | 7,20 | 20 |
| 150 | 174 | 12 | 10 | 30 | 1200 | -0,8 | 8,60 | 20 |
| 152 | 176 | 12 | 10 | 30 | 1200 | -0,8 | 8,75 | 20 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 1/2 | 0,94 | 150 | 450 | 2,36 | -26,57 | 0,28 | 131,2 |
| 5/8 | 1,06 | 150 | 450 | 3,15 | -26,57 | 0,34 | 131,2 |
| 3/4 | 1,22 | 150 | 450 | 3,94 | -26,57 | 0,42 | 131,2 |
| 1 | 1,46 | 150 | 450 | 4,92 | -26,57 | 0,52 | 131,2 |
| 1 1/4 | 1,73 | 150 | 450 | 7,09 | -26,57 | 0,63 | 131,2 |
| 1 1/2 | 2,01 | 150 | 450 | 8,86 | -26,57 | 0,87 | 131,2 |
| 1 37/64 | 2,13 | 150 | 450 | 8,86 | -26,57 | 0,95 | 131,2 |
| 1 31/32 | 2,56 | 150 | 450 | 10,83 | -26,57 | 1,22 | 131,2 |
| 2 3/8 | 2,95 | 150 | 450 | 11,81 | -26,57 | 1,51 | 131,2 |
| 2 1/2 | 3,09 | 150 | 450 | 12,6 | -26,57 | 1,58 | 131,2 |
| 2 3/4 | 3,39 | 150 | 450 | 13,78 | -26,57 | 1,88 | 131,2 |
| 2 61/64 | 3,58 | 150 | 450 | 14,96 | -26,57 | 2,01 | 131,2 |
| 3 5/32 | 3,78 | 150 | 450 | 15,75 | -26,57 | 2,13 | 131,2 |
| 3 35/64 | 4,25 | 150 | 450 | 18,9 | -26,57 | 2,88 | 131,2 |
| 3 15/16 | 4,65 | 150 | 450 | 19,69 | -26,57 | 3,27 | 131,2 |
| 4 | 4,72 | 150 | 450 | 19,69 | -26,57 | 3,34 | 131,2 |
| 4 29/32 | 5,79 | 150 | 450 | 19,69 | -26,57 | 4,83 | 131,2 |
| 5 57/64 | 6,85 | 150 | 450 | 39,37 | -26,57 | 5,77 | 131,2 |
| 6 | 6,93 | 150 | 450 | 47,24 | -26,57 | 5,87 | 131,2 |
Chemical resistance acc. to MTG Chemical Resistance Chart. Above technical data refer to application at room temperature (+20°C).
Other sizes and colours are available upon request. Please contact our Sales Department.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
