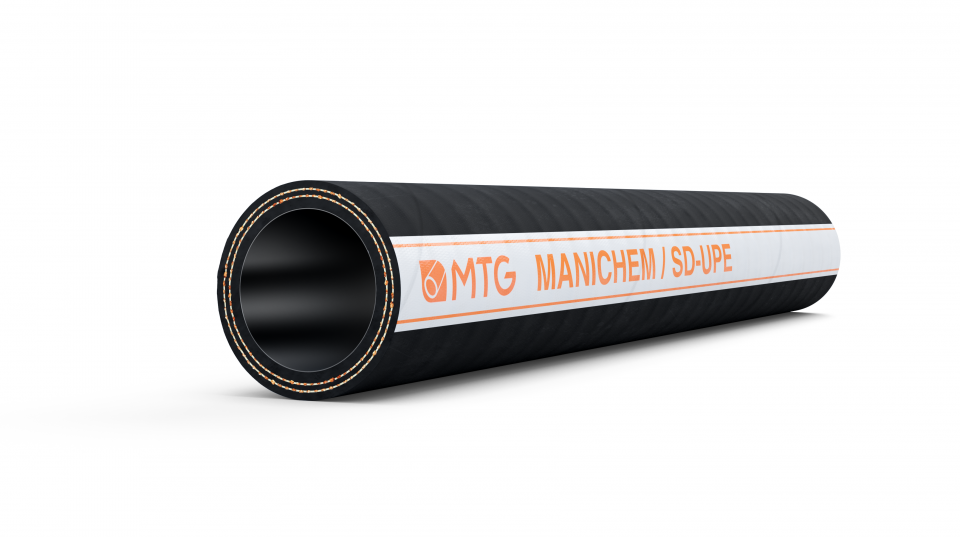

MANICHEM/SD-UPE
MANICHEM/SD-UPE is a multipurpose suction and delivery hose for conveying a wide range of aggressive chemicals.
Execution in accordance with EN 12115:2021.
Engineered to ensure dissipation of electrostatic charges not only on the surface, but also through the hose wall (Electrical resistance: R< 10^9 Ω).

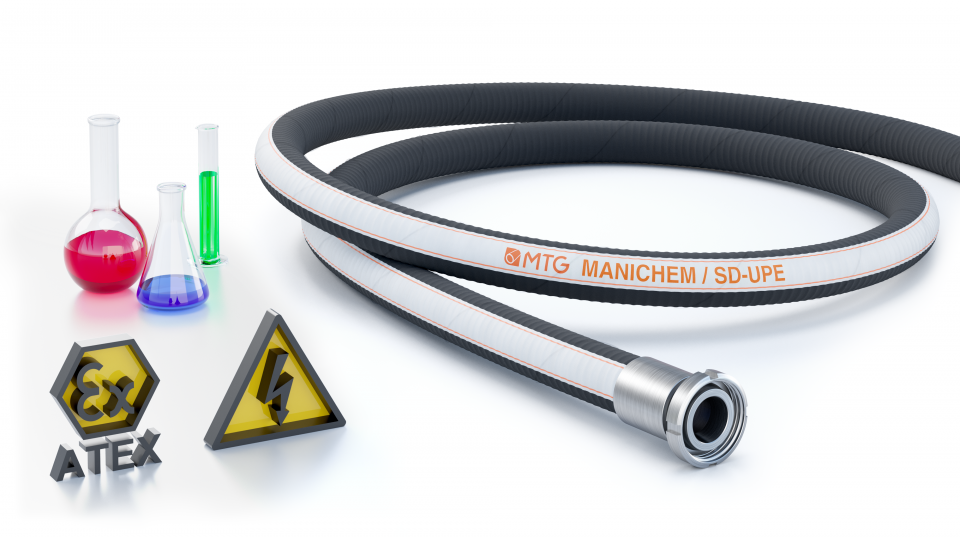

Hose approved by the Institute Ineris, attestation nr. INERIS-16-AM-339, for use in Atex areas.

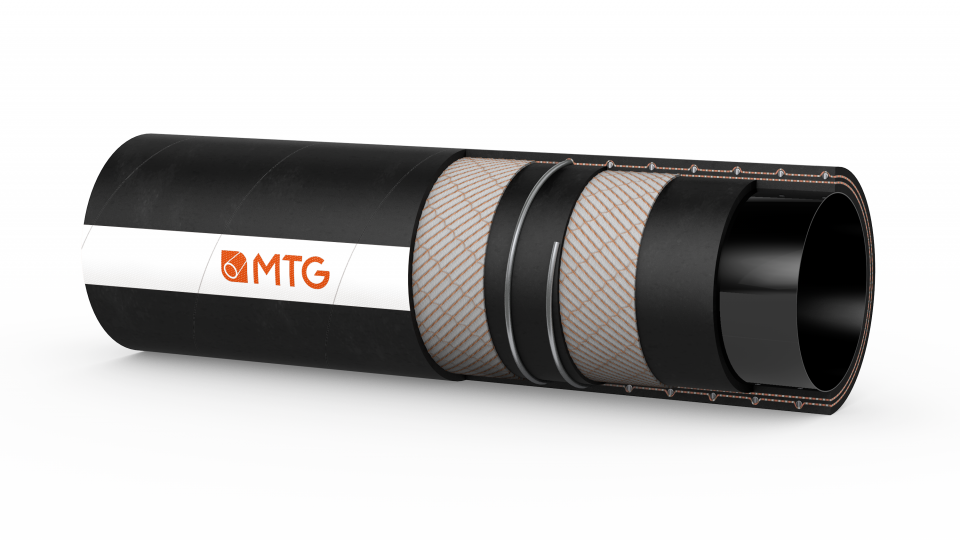

More detailsConstrucion
TUBE
- UHMWPE (UPE – Ultra High Molecular Weight Polyethylene), antistatic (R<10^6 Ω), black, smooth.
REINFORCEMENT
- High strength plies of synthetic cord.
- Embedded steel helix wire.
- Copper wires on request.
COVER
- EPDM rubber (code 104N), black, antistatic (R<10^6 Ω), smooth, cloth finish, resistant to abrasion, ozone and weather.
Safety factors
- ≥ 4 times working pressure up to DN 75 mm.
- ≥ 3 times working pressure over DN 75 mm.
Temperatures
- In accordance with EN 12115:2021.
- Resistance to steam up to +130°C for max. 30 minutes.
Note
- A hose with a special patented marble finish inner tube is available MANICHEM/SD-UPE/Marble.
Marking
Dimensional tolerance
I.D.: EN 12115 – Ext.D.: EN 12115 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 19 | 31 | 6 | 16 | 64 | 125 | -0,9 | 0,6 | 40 |
| 25 | 37 | 6 | 16 | 64 | 150 | -0,9 | 0,8 | 40 |
| 32 | 44 | 6 | 16 | 64 | 175 | -0,9 | 1 | 40 |
| 38 | 51 | 6,5 | 16 | 64 | 225 | -0,9 | 1,3 | 40 |
| 50 | 66 | 8 | 16 | 64 | 275 | -0,9 | 2 | 40 |
| 51 | 67 | 8 | 16 | 64 | 275 | -0,9 | 2,05 | 40 |
| 63,5 | 79,5 | 8 | 16 | 64 | 300 | -0,9 | 2,7 | 40 |
| 75 | 91 | 8 | 16 | 64 | 350 | -0,8 | 3 | 40 |
| 76 | 92 | 8 | 16 | 48 | 350 | -0,8 | 3,05 | 40 |
| 100 | 118 | 9 | 16 | 48 | 450 | -0,8 | 4,9 | 40 |
| 102 | 120 | 9 | 16 | 48 | 450 | -0,8 | 5 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure PSI |
Burst pressure PSI |
Min. bending radius inch |
Vacuum inHg |
Approx. weight lbs/ft |
Max. length ft |
|---|---|---|---|---|---|---|---|
| 3/4 | 1,22 | 240 | 960 | 4,92 | -26,57 | 0,44 | 131,2 |
| 1 | 1,46 | 240 | 960 | 5,91 | -26,57 | 0,54 | 131,2 |
| 1 1/4 | 1,73 | 240 | 960 | 6,89 | -26,57 | 0,67 | 131,2 |
| 1 1/2 | 2,01 | 240 | 960 | 8,86 | -26,57 | 0,87 | 131,2 |
| 1 31/32 | 2,6 | 240 | 960 | 10,83 | -26,57 | 1,44 | 131,2 |
| 2 | 2,64 | 240 | 960 | 10,83 | -26,57 | 1,48 | 131,2 |
| 2 1/2 | 3,13 | 240 | 960 | 11,81 | -26,57 | 1,74 | 131,2 |
| 2 61/64 | 3,58 | 240 | 960 | 13,78 | -23,62 | 2,11 | 131,2 |
| 3 | 3,62 | 240 | 720 | 13,78 | -23,62 | 2,15 | 131,2 |
| 3 15/16 | 4,65 | 240 | 720 | 17,72 | -23,62 | 3,29 | 131,2 |
| 4 | 4,72 | 240 | 720 | 17,72 | -23,62 | 3,35 | 131,2 |
Chemical resistance acc. to MTG Chemical Resistance Chart. Above technical data are based on application at room temperature (+20°C).
Other sizes are available on request.
