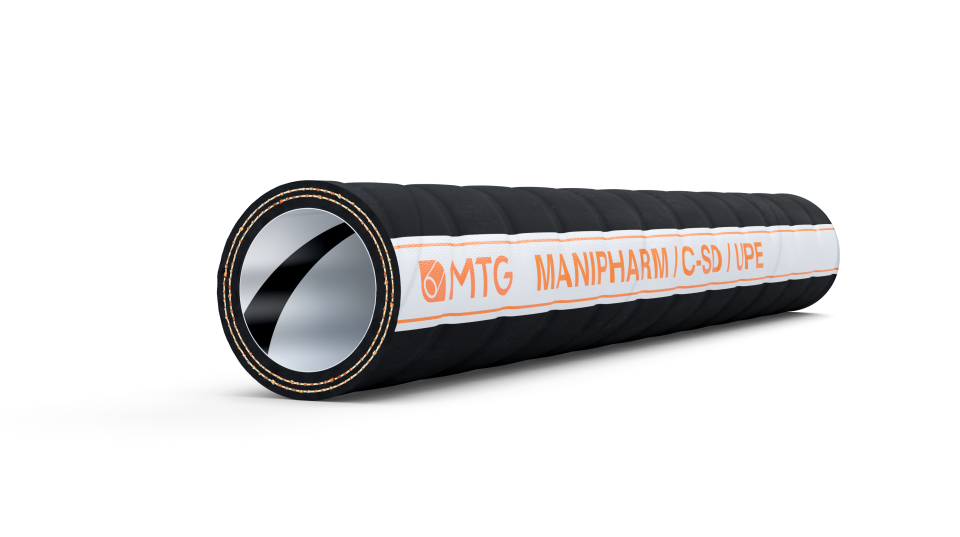

MANIPHARM/C-SD/UPE

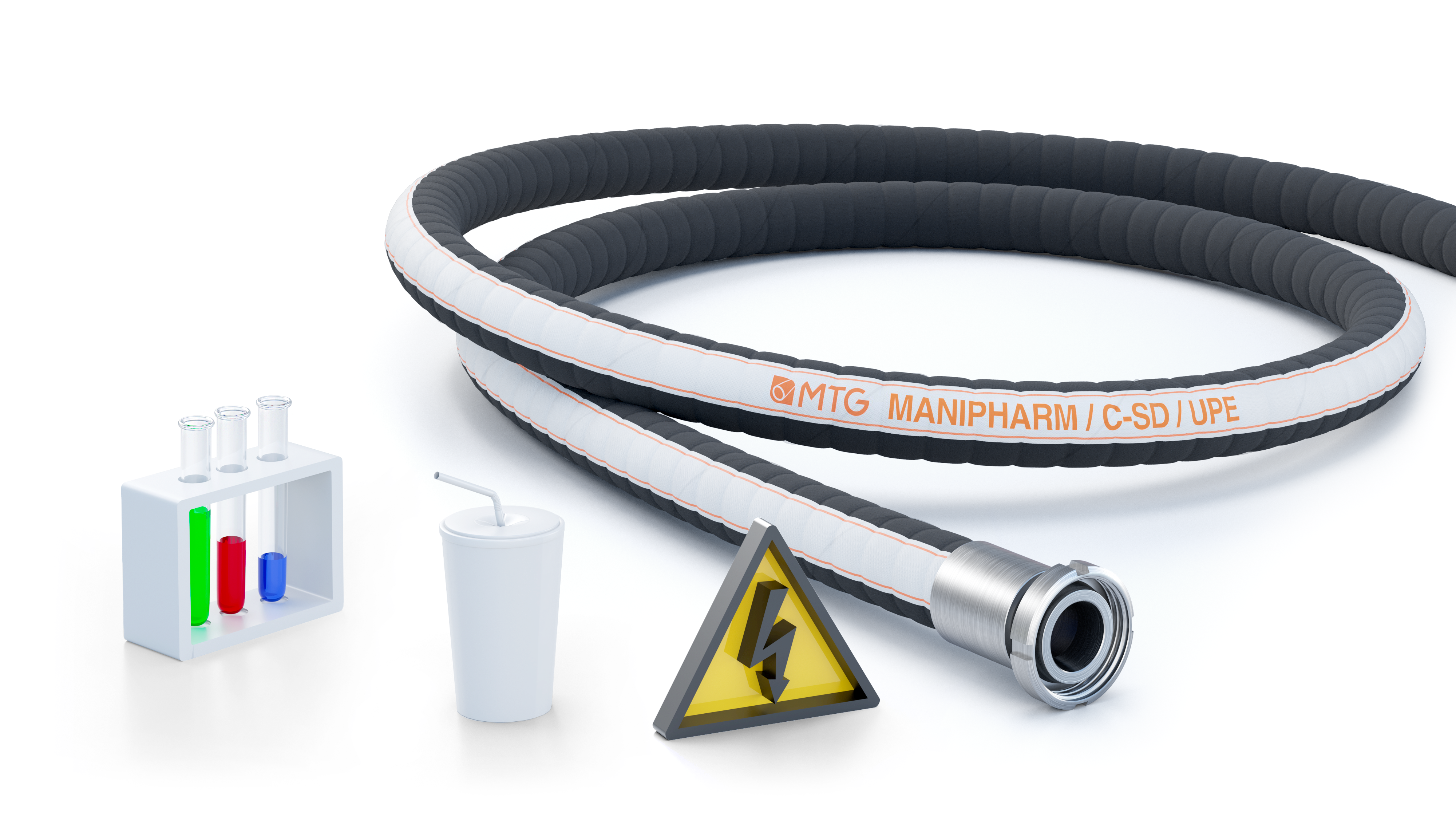

Multipurpose suction and delivery hose for conveying a wide range of chemicals and foodstuff.
Execution in accordance with EN 12115:2011.
More detailsMain benefits
Flexible and lightweight structure designed for applications where reduced bending radia and ease of handling are requested.
Execution in accordance with EN 12115:2011.
Construcion

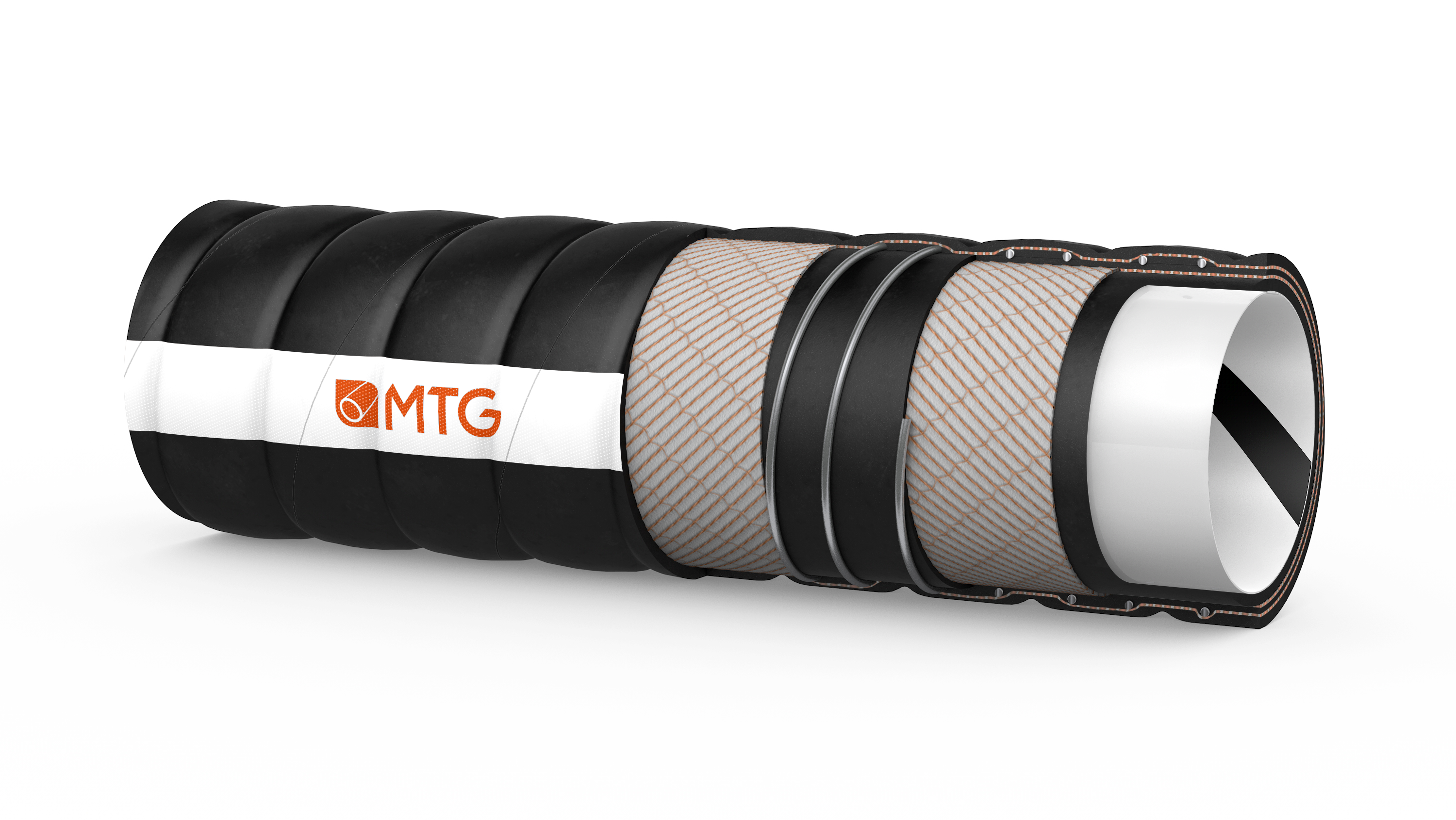

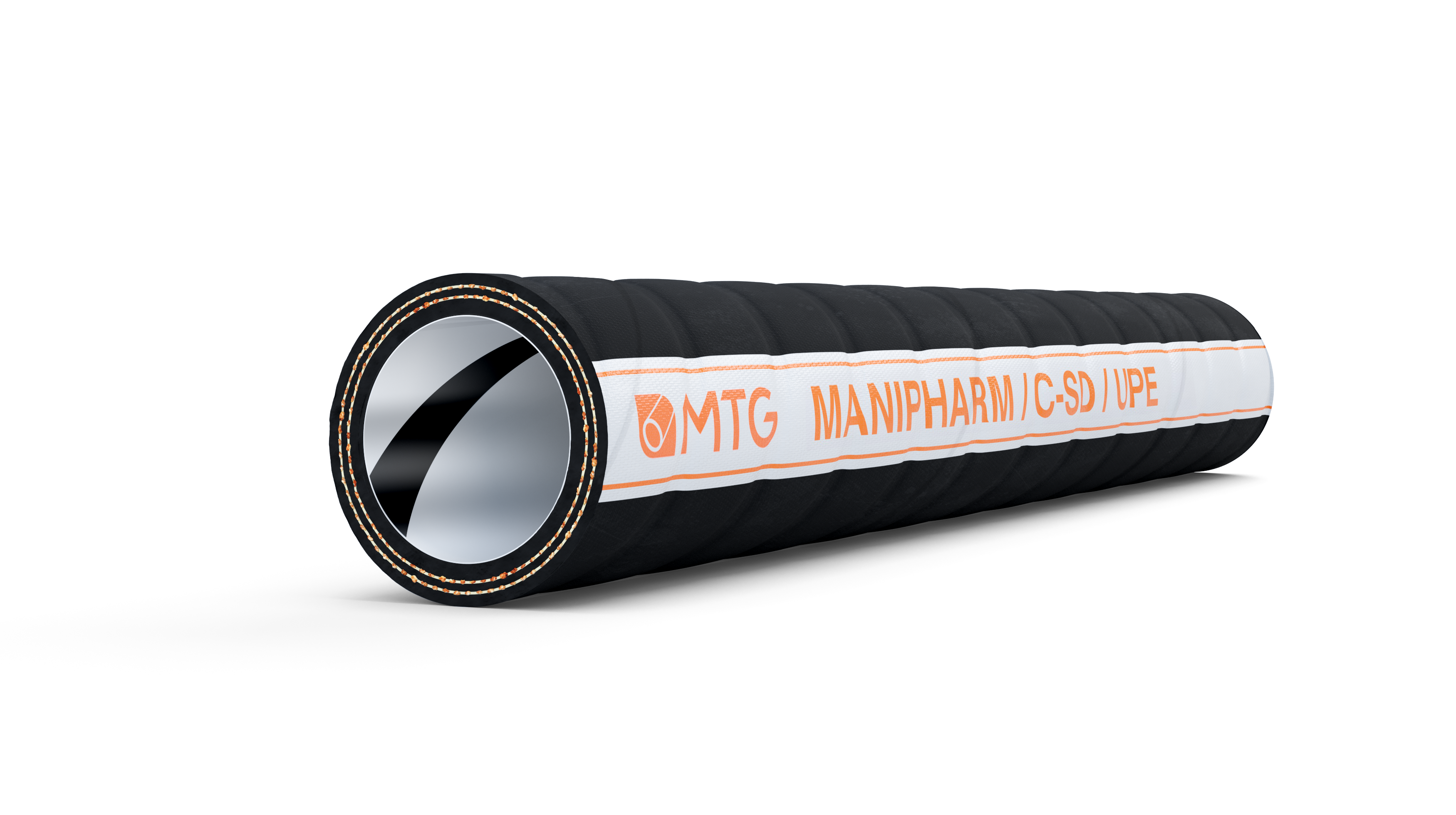

TUBE
- UPE (Ultra High Molecular Weight Polyethylene), light colour, smooth, with black antistatic (R ≤ 10^6 Ω) helical UPE stripe.
- Compliance: BfR, FDA Standards, D.M. 21.03.73 and following amendments, Regulation EU n. 10/2011.
REINFORCEMENT
- High strength plies of synthetic cord.
- Embedded steel helix wire.
- Built-in copper wires on request.
COVER
- EPDM rubber (code 104N), black, antistatic (R < 10^6 Ω), resistant to abrasion, ozone and weather, corrugated, cloth finish.
Safety factors
≥ 4 times working pressure.
Temperatures
- From -35°C to +100°C.
- Resistant to steam up to +130°C for max. 30 minutes.
ELECTRICAL PROPERTIES
- Electrical resistance through the hose wall: R < 10^9 Ω.
- Identification symbol:
- Ω/T for version without copper wires;
- M/T for version with copper wires.
Marking
Dimensional tolerance
SIZE TOLERANCES: Inner diameter: EN 12115 - Outer diameter: EN 12115 - Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 19 | 31 | 6.0 | 10 | 40 | 125 | -0.90 | 0.65 | 40 |
| 25 | 37 | 6.0 | 10 | 40 | 150 | -0.90 | 0.80 | 40 |
| 32 | 44 | 6.0 | 10 | 40 | 175 | -0.90 | 1.10 | 40 |
| 38 | 51 | 6.5 | 10 | 40 | 225 | -0.90 | 1.20 | 40 |
| 50 | 66 | 8.0 | 10 | 40 | 275 | -0.90 | 1.90 | 40 |
| 63.5 | 79.5 | 8.0 | 10 | 40 | 300 | -0.90 | 2.30 | 40 |
| 75 | 91 | 8.0 | 10 | 40 | 350 | -0.80 | 2.80 | 40 |
| 100 | 118 | 9.0 | 10 | 40 | 450 | -0.80 | 4.50 | 40 |
Chemical resistance acc. to MTG Chemical Resistance Chart. Above technical data are based on application at room temperature (+20°C). Other sizes are available on request.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
