Chemical industry

MANICHEM/C-SD/UPE-MARBLE

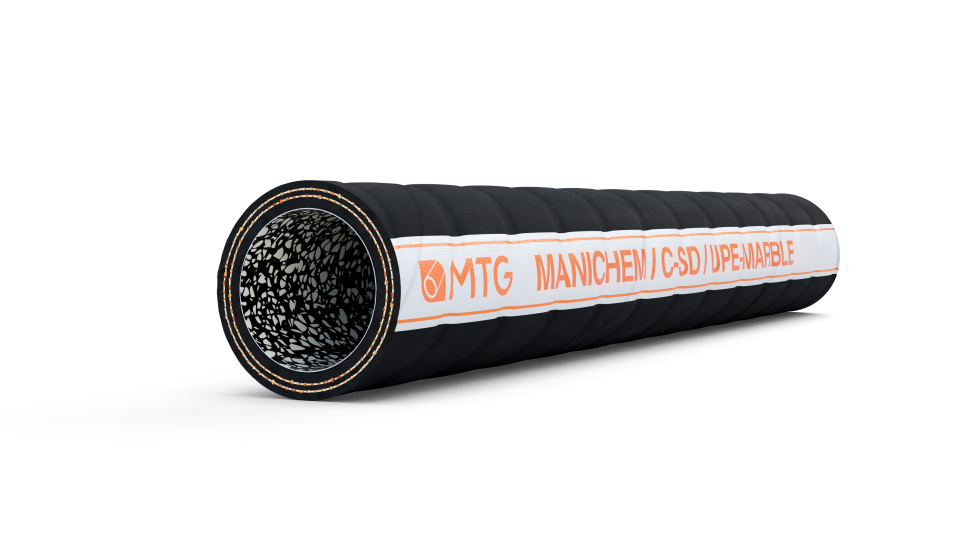

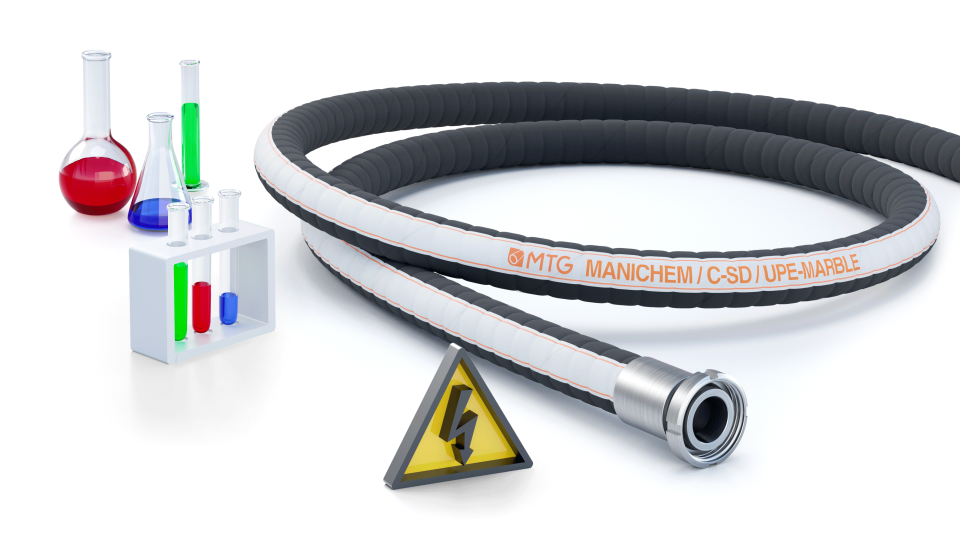

Multipurpose suction and delivery hose for conveying a wide range of aggressive chemicals.
Engineered to ensure dissipation of electrostatic charges not only on the surface, but also through the hose wall (Electrical resistance: R<10^9 Ω).

Execution in accordance with EN 12115:2021.

More details

Construcion

TUBE

  • UPE (Ultra High Molecular Weight Polyethylene), antistatic (R<10^6 Ω), black and white, smooth.
  • Compliance: FDA Standards, Regulation EU n. 10/2011.

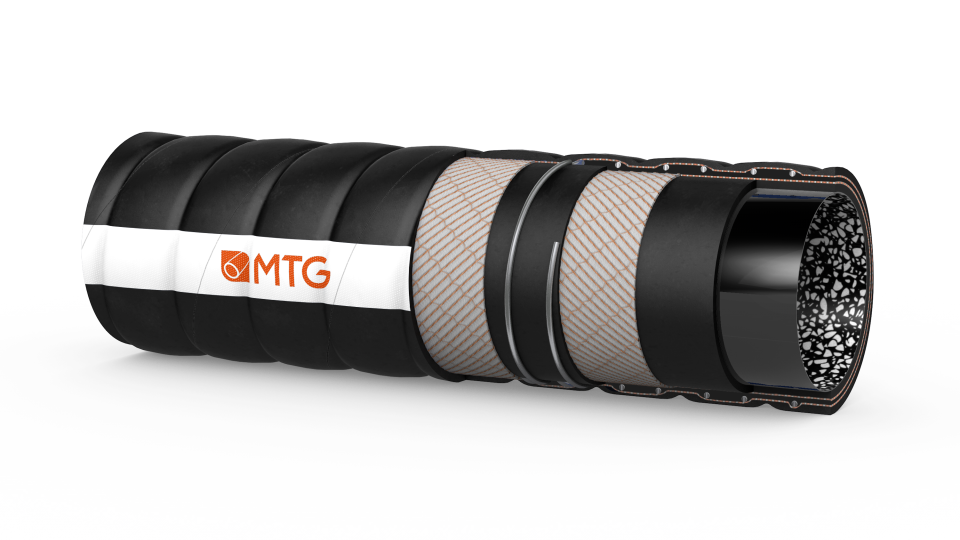

REINFORCEMENT

  • High strength plies of synthetic cord.
  • Embedded steel helix wires.
  • Copper wires on request.

COVER

  • EPDM rubber, black, antistatic (R < 10^6 Ω), resistant to abrasion, ozone and weather, wide corrugated, cloth finish.

Safety factors

≥ 4 times working pressure

Temperatures

  • In accordance with EN 12115:2021.
  • Resistant to steam up to +130°C for max. 30 minutes.

Note

The wide corrugation of the outer surface allows an easy and safe installation of the fittings (no cuffs needed).

ELECTRICAL PROPERTIES

  • Electrical resistance through the hose wall: R < 10^9 Ω.
  • Identification symbol:

    - Ω/T for version without copper wires;
     - M/T for version with copper wires.

Marking

Dimensional tolerance

SIZE TOLERANCES: Inner diameter: EN 12115 - Outer diameter: EN 12115 - Length: ISO 1307

Internal diam.
mm
External diam.
mm
Wall thickness
mm
Working pressure
BAR
Burst pressure
BAR
Min. bending radius
mm
Vacuum
BAR
Approx. weight
kg/m
Max. length
m
19 31 6.0 10 40 125 -0.90 0.65 40
25 37 6.0 10 40 150 -0.90 0.80 40
32 44 6.0 10 40 175 -0.90 0.95 40
38 51 6.5 10 40 225 -0.90 1.20 40
50 66 8.0 10 40 275 -0.90 1.90 40
63.5 79.5 8.0 10 40 300 -0.90 2.60 40
75 91 8.0 10 40 350 -0.80 3.00 40
100 116 8.0 10 40 450 -0.80 4.10 40

Chemical resistance acc. to MTG Chemical Resistance Chart.  Above technical data are based on application at room temperature (+20°C).
Other sizes are available on request.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.

The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
