Chemical industry
FERRARA/SPL/10

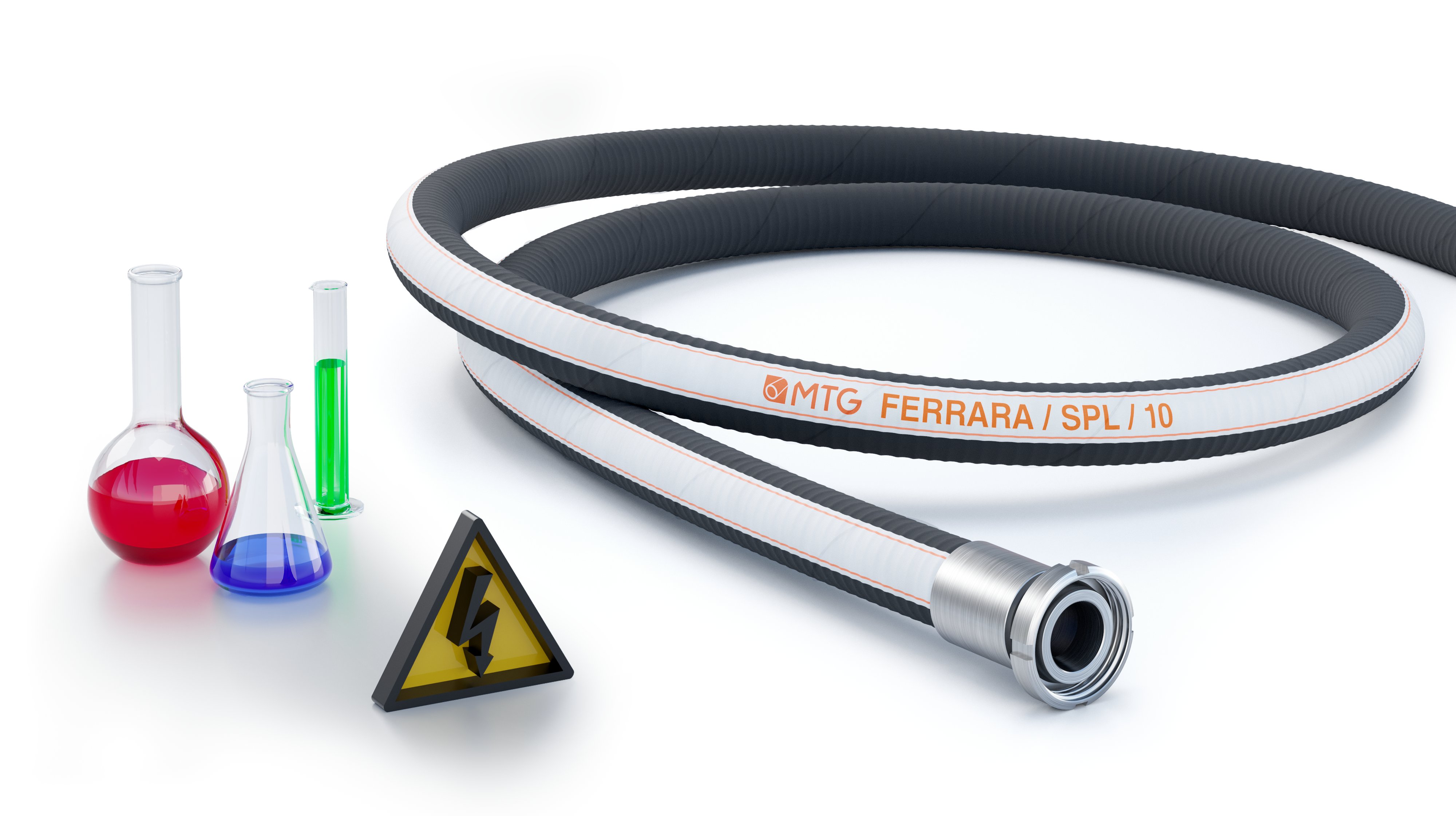

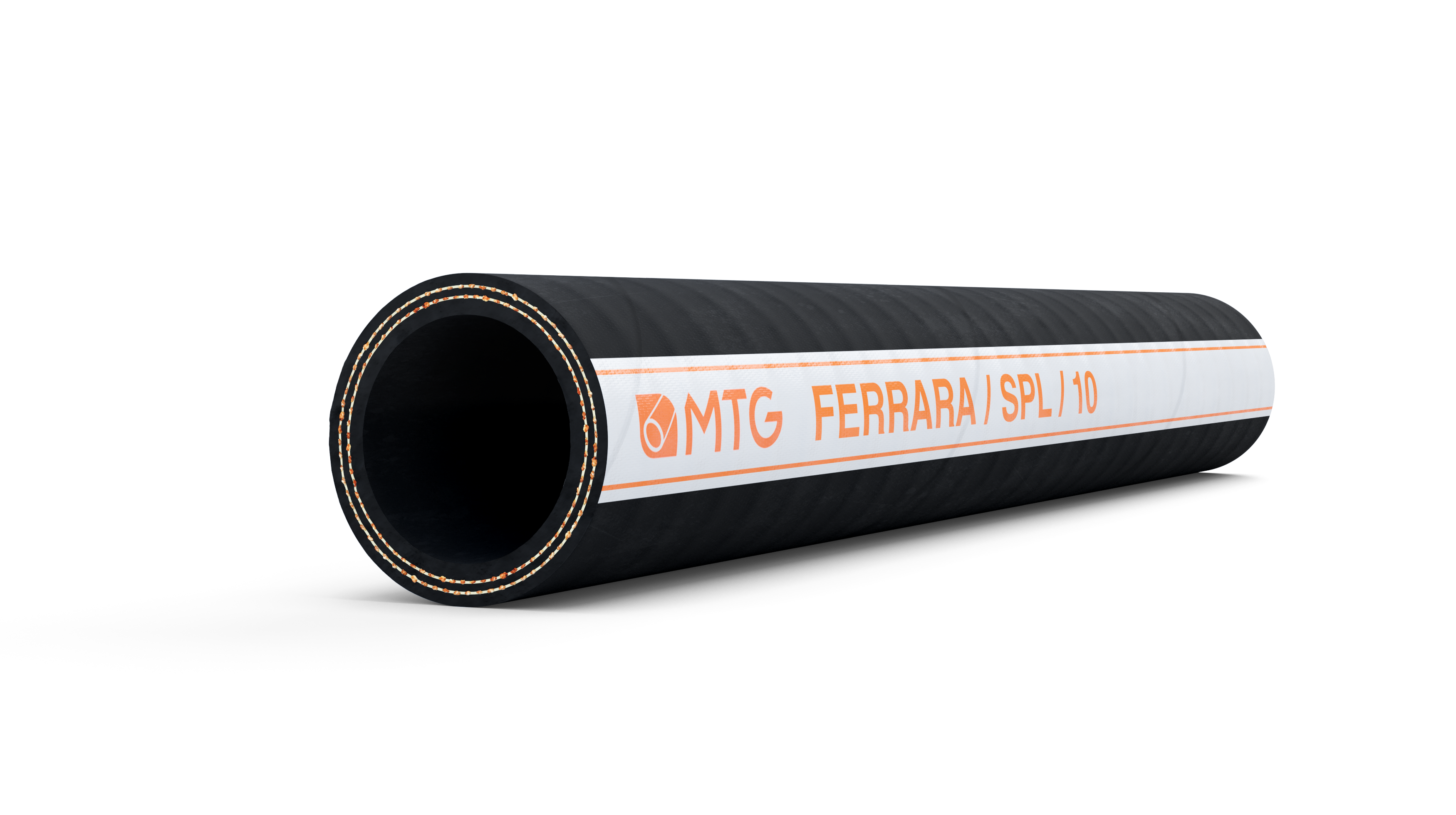

Suction and delivery hose for conveying aggressive chemicals.
More detailsConstrucion

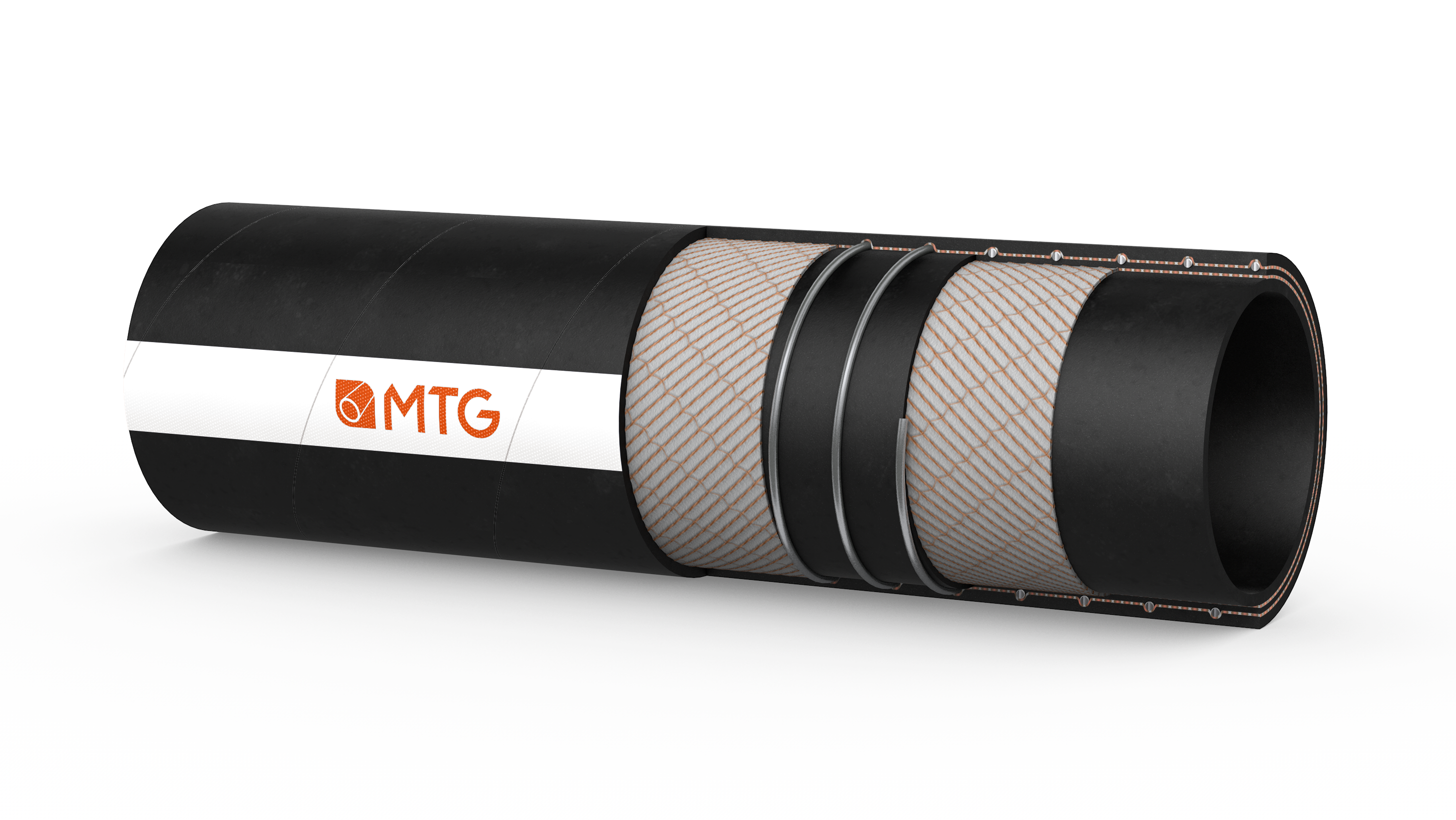

TUBE
- EPM rubber, black, smooth.
- Resistance: according to the MTG Chemical Resistance Chart.
REINFORCEMENT
- Plies of synthetic cord.
- Embedded steel helix wire.
- Copper wires on demand.
COVER
- EPDM rubber, black, smooth, antistatic (R< 10^6 Ω), resistant to abrasion, ozone and weather, cloth finish.
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -40°C to +100°C.
- Resistant to steam up to +130°C for max. 30 minutes.
Marking
Dimensional tolerance
I.D.: ISO 1307 – Wall Thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 13 | 23 | 5 | 10 | 30 | 65 | -0,9 | 0,38 | 40 |
| 16 | 26 | 5 | 10 | 30 | 80 | -0,9 | 0,47 | 40 |
| 19 | 30 | 5,5 | 10 | 30 | 100 | -0,9 | 0,6 | 40 |
| 25 | 37 | 6 | 10 | 30 | 125 | -0,9 | 0,76 | 40 |
| 32 | 44 | 6 | 10 | 30 | 160 | -0,9 | 0,96 | 40 |
| 38 | 51 | 6,5 | 10 | 30 | 200 | -0,9 | 1,28 | 40 |
| 45 | 59 | 7 | 10 | 30 | 230 | -0,9 | 1,56 | 40 |
| 50 | 64 | 7 | 10 | 30 | 250 | -0,9 | 1,7 | 40 |
| 60 | 75 | 7,5 | 10 | 30 | 300 | -0,9 | 2,23 | 40 |
| 63,5 | 78,5 | 7,5 | 10 | 30 | 325 | -0,9 | 2,34 | 40 |
| 70 | 86 | 8 | 10 | 30 | 350 | -0,9 | 2,82 | 40 |
| 75 | 91 | 8 | 10 | 30 | 400 | -0,9 | 3 | 40 |
| 80 | 96 | 8 | 10 | 30 | 430 | -0,9 | 3,17 | 40 |
| 90 | 106 | 8 | 10 | 30 | 500 | -0,9 | 3,60 | 40 |
| 100 | 116 | 8 | 10 | 30 | 550 | -0,9 | 4,18 | 40 |
| 102 | 118 | 8 | 10 | 30 | 550 | -0,9 | 4,26 | 40 |
| 125 | 145 | 10 | 10 | 30 | 750 | -0,9 | 6,30 | 40 |
| 150 | 172 | 11 | 10 | 30 | 900 | -0,9 | 8,70 | 20 |
| 152 | 174 | 11 | 10 | 30 | 900 | -0,9 | 8,80 | 20 |
| 203 | 227 | 12 | 10 | 30 | 1400 | -0,9 | 13,70 | 12 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 1/2 | 0,91 | 150 | 450 | 2,56 | -26,57 | 0,25 | 0,8 |
| 5/8 | 1,02 | 150 | 450 | 3,15 | -26,57 | 0,32 | 131,2 |
| 3/4 | 1,18 | 150 | 450 | 3,94 | -26,57 | 0,4 | 131,2 |
| 1 | 1,46 | 150 | 450 | 4,92 | -26,57 | 0,51 | 131,2 |
| 1 1/4 | 1,73 | 150 | 450 | 6,3 | -26,57 | 0,64 | 131,2 |
| 1 1/2 | 2,01 | 150 | 450 | 7,87 | -26,57 | 0,86 | 131,2 |
| 1 49/64 | 2,32 | 150 | 450 | 9,06 | -26,57 | 1,05 | 131,2 |
| 1 31/32 | 2,52 | 150 | 450 | 9,84 | -26,57 | 1,14 | 131,2 |
| 2 3/8 | 2,95 | 150 | 450 | 11,81 | -26,57 | 1,5 | 131,2 |
| 2 1/2 | 3,09 | 150 | 450 | 12,8 | -26,57 | 1,57 | 131,2 |
| 2 3/4 | 3,39 | 150 | 450 | 13,78 | -26,57 | 1,89 | 131,2 |
| 2 61/64 | 3,58 | 150 | 450 | 15,75 | -26,57 | 2,01 | 131,2 |
| 3 5/32 | 3,78 | 150 | 450 | 16,93 | -26,57 | 2,13 | 131,2 |
| 3 35/64 | 4,17 | 150 | 450 | 19,69 | -26,57 | 2,41 | 131,2 |
| 3 15/16 | 4,57 | 150 | 450 | 21,65 | -26,57 | 2,80 | 131,2 |
| 4 | 4,65 | 150 | 450 | 21,65 | -26,57 | 2,86 | 131,2 |
| 4 29/32 | 5,71 | 150 | 450 | 29,53 | -23,62 | 4,23 | 131,2 |
| 5 57/64 | 6,77 | 150 | 450 | 35,43 | -23,62 | 5,84 | 65,6 |
| 6 | 6,85 | 150 | 450 | 35,43 | -23,62 | 5,90 | 65,6 |
| 8 | 8,94 | 150 | 450 | 55,12 | -23,62 | 9,19 | 39,56 |
Above technical data are referring to application at room temperature (+20°C). Other sizes are available upon request.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
