Chemical industry
MANIPHARM/SD-UPE

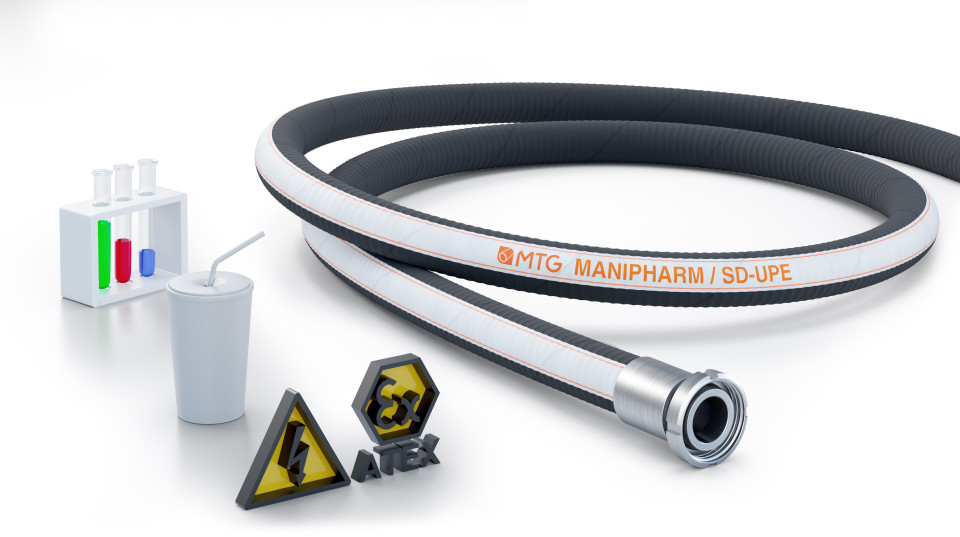

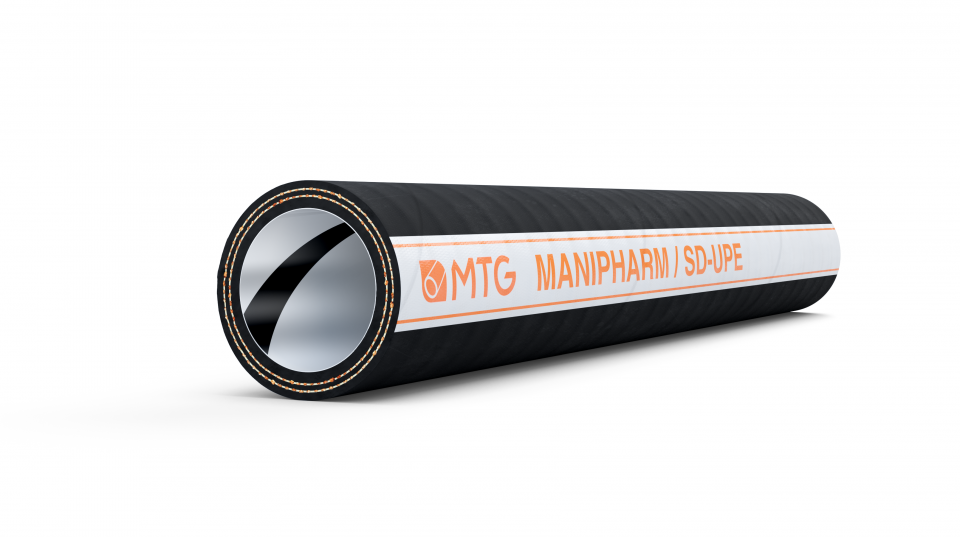

MANIPHARM/SD-UPE is a multipurpose suction and delivery hose for conveying a wide range of chemicals and food products.
Execution acc. to EN 12115:2011.
Hose approved by the Institute Ineris, attestation nr. INERIS-16-AM-341, for use in Atex areas.

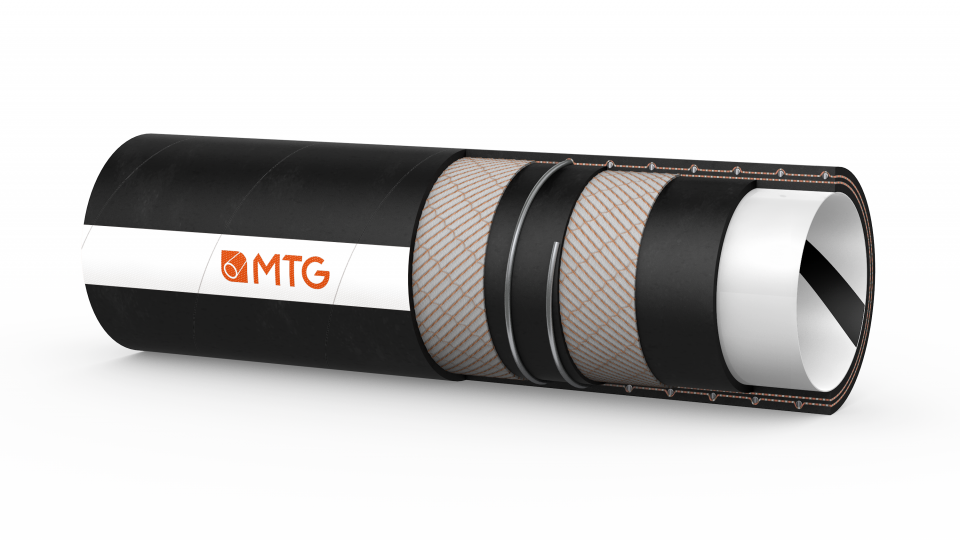

More detailsConstrucion
INNER TUBE
- UHMWPE (UPE – Ultra High Molecular Weight Polyethylene), light colour, smooth, with black antistatic (R ≤ 10^6Ω) helical UHMWPE stripe.
- Compliance: FDA Standards, D.M. 21.03.73 and following amendments, Regulation EU n. 10/2011.
REINFORCEMENT
- High strength plies of synthetic cord.
- Embedded steel helix wire.
- Built-in copper wires on request.
COVER
- EPDM rubber (code 104N), black, antistatic (R ≤ 10^6Ω), smooth, cloth finish, resistant to abrasion, ozone and weather.
Safety factors
- ≥ 4 times working pressure up to DN 75 mm.
- ≥ 3 times working pressure over DN 75 mm.
Temperatures
- In accordance with EN 12115:2011.
- Resistance to steam up to +130°C for max. 30 minutes.
Electrical properties
- Electrical resistance through the hose wall: R <10^9 Ω.
- Identification symbol::
– Ω/T for version without copper wires.
– M/T for version with copper wires.
Marking
Dimensional tolerance
Inner diameter: EN 12115 – Outer diameter: EN 12115 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 19 | 31 | 6 | 16 | 64 | 125 | -0,9 | 0,65 | 40 |
| 25 | 37 | 6 | 16 | 64 | 150 | -0,9 | 0,75 | 40 |
| 32 | 44 | 6 | 16 | 64 | 175 | -0,9 | 1 | 40 |
| 38 | 51 | 6,5 | 16 | 64 | 225 | -0,9 | 1,3 | 40 |
| 50 | 66 | 8 | 16 | 64 | 275 | -0,9 | 2,1 | 40 |
| 51 | 67 | 8 | 16 | 64 | 275 | -0,9 | 2,15 | 40 |
| 63,5 | 79,5 | 8 | 16 | 64 | 300 | -0,9 | 2,6 | 40 |
| 75 | 91 | 8 | 16 | 64 | 350 | -0,9 | 3,1 | 40 |
| 76 | 92 | 8 | 16 | 48 | 350 | -0,9 | 3,15 | 40 |
| 100 | 118 | 8 | 16 | 48 | 450 | -0,9 | 4,9 | 40 |
| 102 | 120 | 9 | 16 | 48 | 450 | -0,9 | 5 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 45019 | 1,22 | 240 | 960 | 4,92 | -26,57 | 0,44 | 131,2 |
| 1 | 1,46 | 240 | 960 | 5,91 | -26,57 | 0,5 | 131,2 |
| 1,25 | 1,73 | 240 | 960 | 6,89 | -26,57 | 0,67 | 131,2 |
| 1,5 | 2,01 | 240 | 960 | 8,86 | -26,57 | 0,87 | 131,2 |
| 1,96875 | 2,6 | 240 | 960 | 10,83 | -26,57 | 1,41 | 131,2 |
| 2 | 2,64 | 240 | 960 | 10,83 | -26,57 | 1,44 | 131,2 |
| 2,5 | 3,13 | 240 | 960 | 11,81 | -26,57 | 1,74 | 131,2 |
| 2,953125 | 3,58 | 240 | 960 | 13,78 | -26,57 | 2,08 | 131,2 |
| 3 | 3,62 | 240 | 720 | 13,78 | -26,57 | 2,11 | 131,2 |
| 3,9375 | 4,65 | 240 | 720 | 17,72 | -26,57 | 3,29 | 131,2 |
| 4 | 4,72 | 240 | 720 | 17,72 | -26,57 | 3,35 | 131,2 |
Chemical resistance acc. to MTG Chemical Resistance Chart. Above technical data are based on application at room temperature (+20°C). Other sizes are available on request.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
