Dredging and abrasive materials
DRAGA/5/ASP-S.10

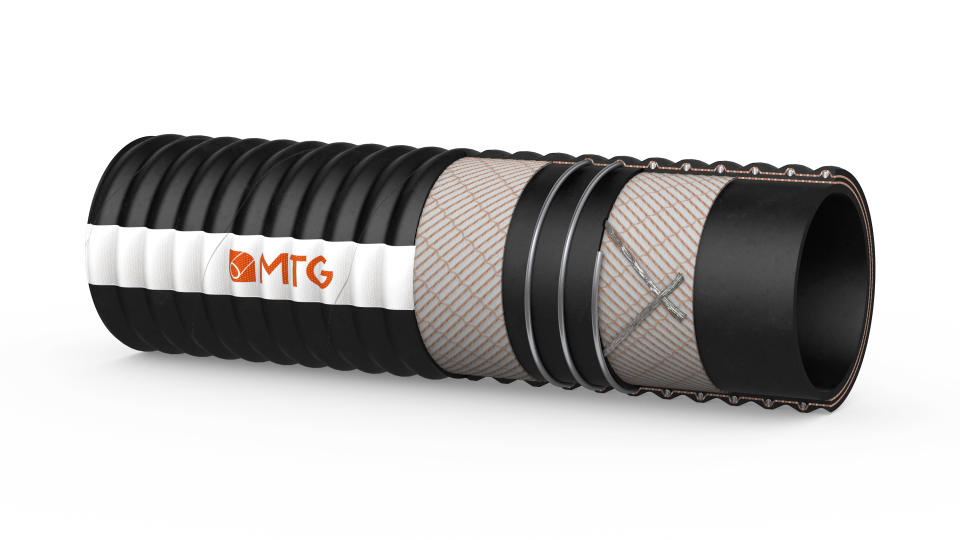

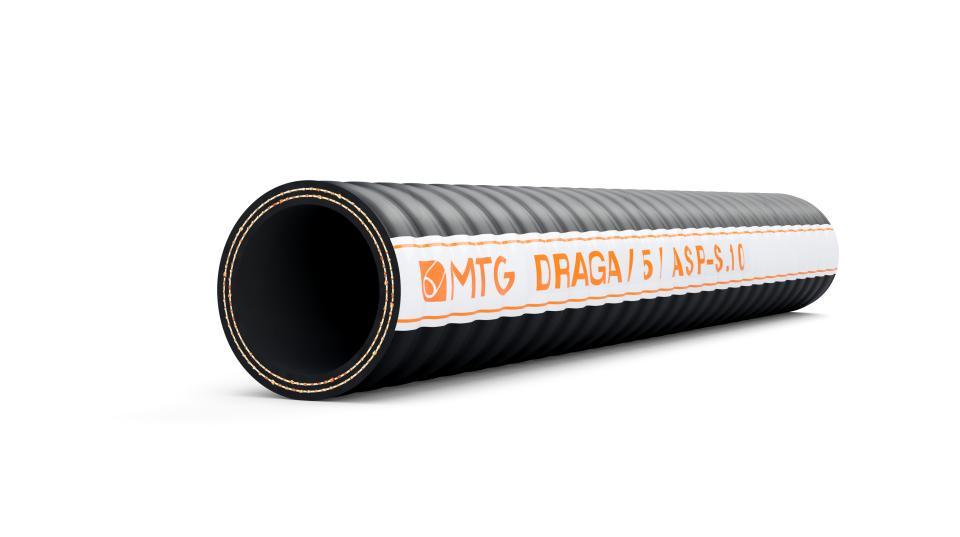

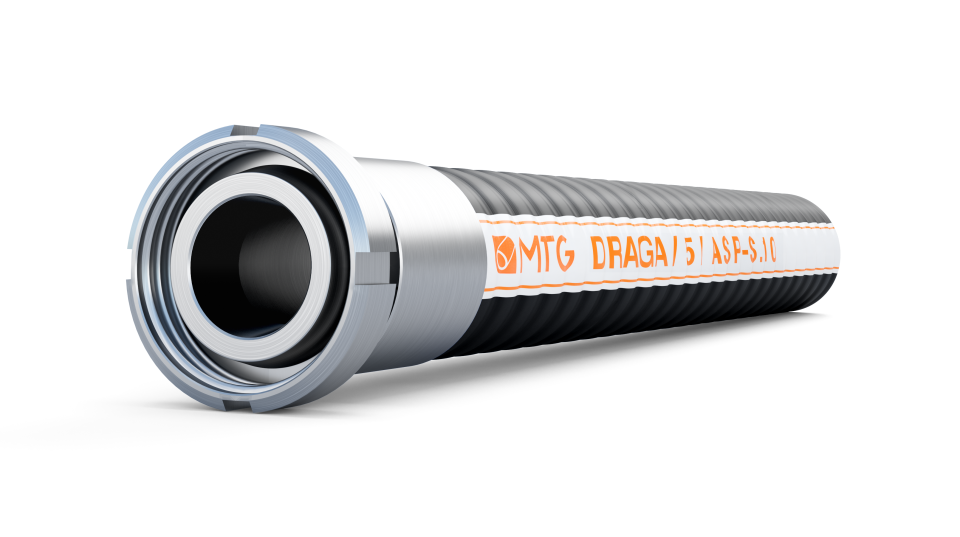

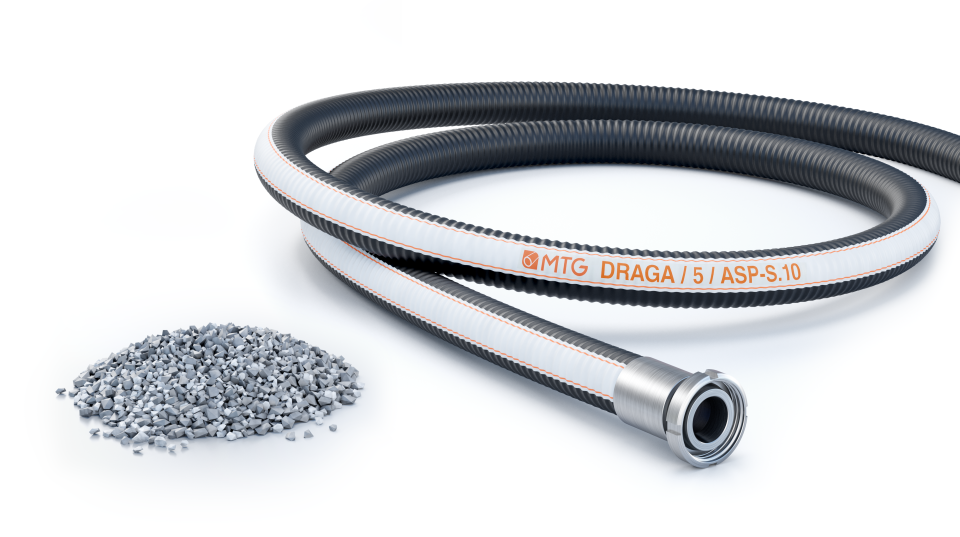

DRAGA/5/ASP-S.10 is a flexible connection hose for suction of sand, gravel and crushed materials during dredging operations.
More detailsConstrucion
TUBE
- NR/BR rubber, resistant to abrasion, smooth, black colour.
- Thickness: 10 mm.
REINFORCEMENT
- High strength textile plies.
- Embedded steel helix wire.
COVER
- Synthetic rubber, resistant to abrasion, ozone and weather. Black, corrugated, cloth finish.
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -30°C to +70°C.
Note
- It is only supplied in fixed lengths with couplings at the ends.
Fitting
- By means of clamps, collars, crimping or other systems required by the equipment manufacturers.
Dimensional tolerance
Inner diameter: ISO 1307 – Wall Thickness: DIN 7715 T4 S2 – Length: ISO 1307
For sizes and colours available, please contact our Sales Department.
Above technical data refer to application at room temperature (+20°C).
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
