Dredging and abrasive materials

DRAGA/5/ASP-S.16/RACC

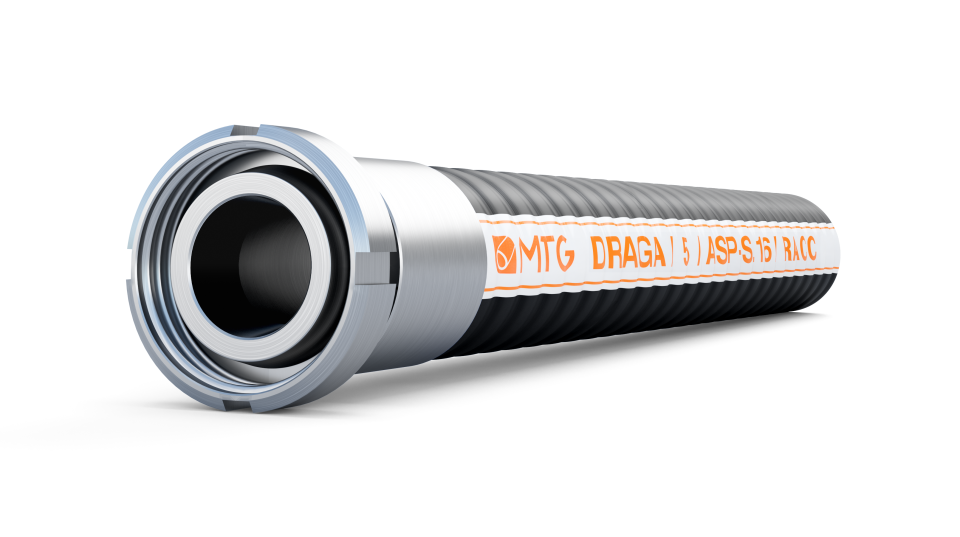

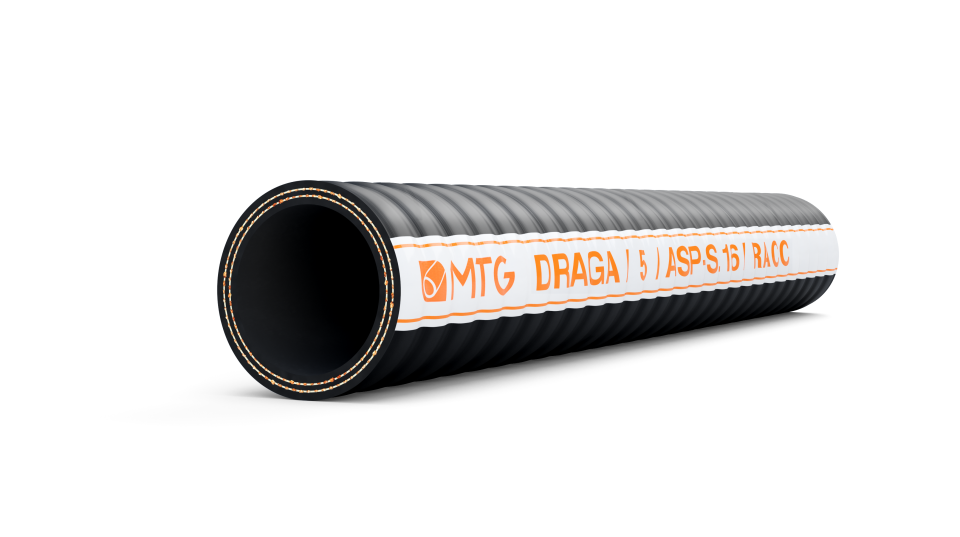

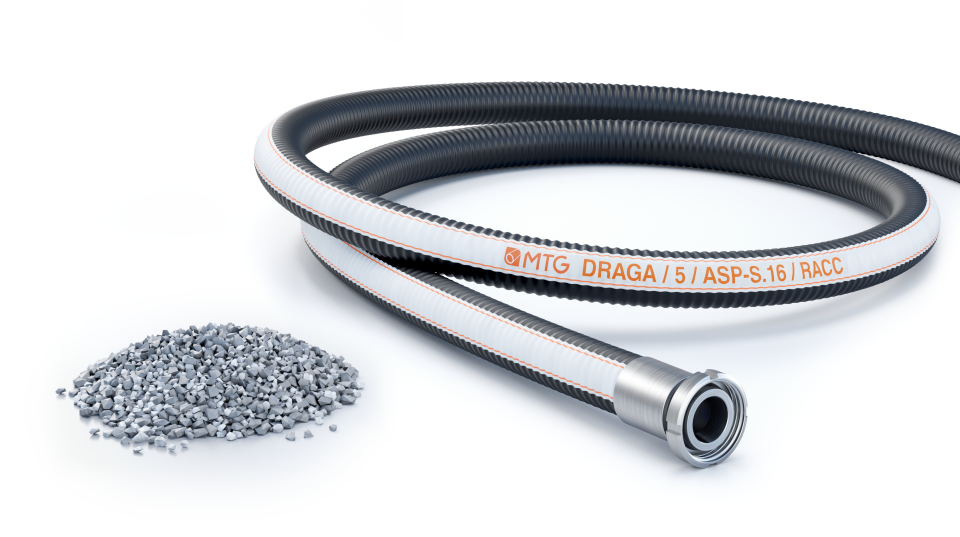

DRAGA/5/ASP-S.16/RACC is a flexible connection hose for suction of sand, gravel and crushed materials during dredging operations.

More details

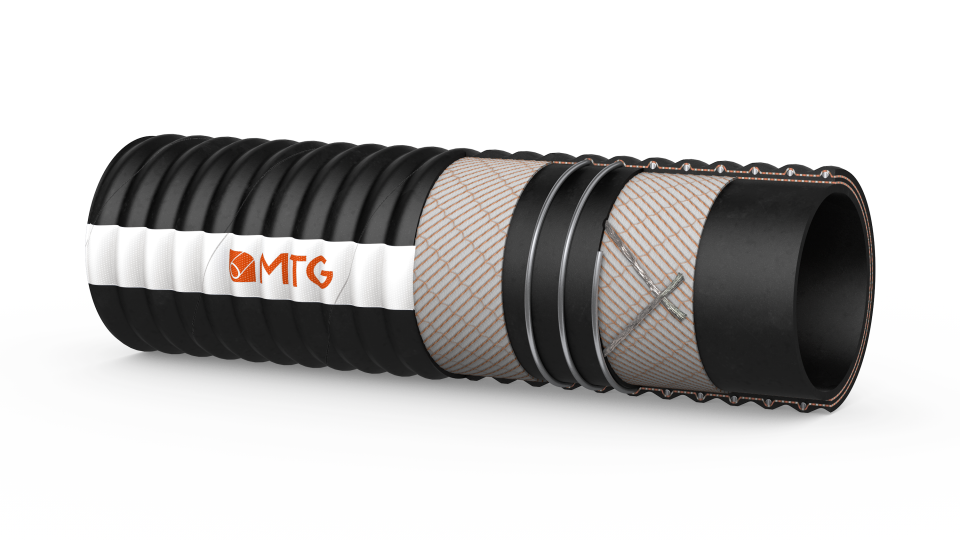

Construcion

TUBE

  • NR/BR rubber, resistant to abrasion, smooth, black colour.
  • Thickness: 16 mm.

REINFORCEMENT

  • High strength textile plies.
  • Embedded steel helix wire.

COVER

  • Synthetic rubber, resistant to abrasion, ozone and weather. Black, corrugated, cloth finish.

Safety factors

  • ≥ 3 times working pressure.

Temperatures

  • From -30°C to +70°C depending on the fluids conveyed.

Note

  • It is only available in service lengths with couplings at the ends.
  • The type of connections is to be agreed with our Technical Department.

Fitting

  • Vulcanized stems or beaded rubber ends with trapezoidal section.

Dimensional tolerance

Inner diameter: ISO 1307 – Wall Thickness: DIN 7715 T4 S2 – Length: ISO 1307

For sizes and colours available, please contact our Sales Department.
Above technical data refer to application at room temperature (+20°C).
