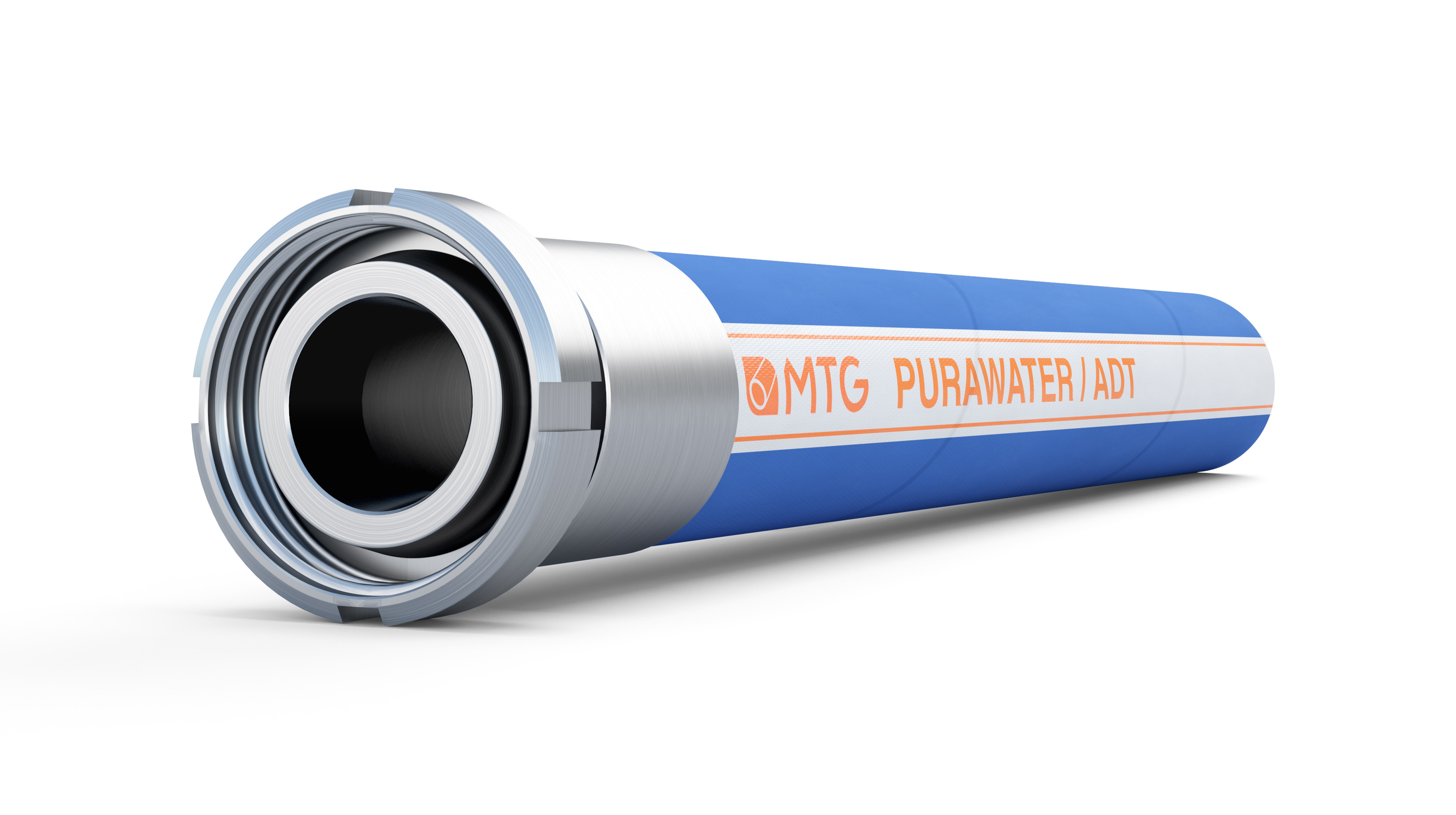

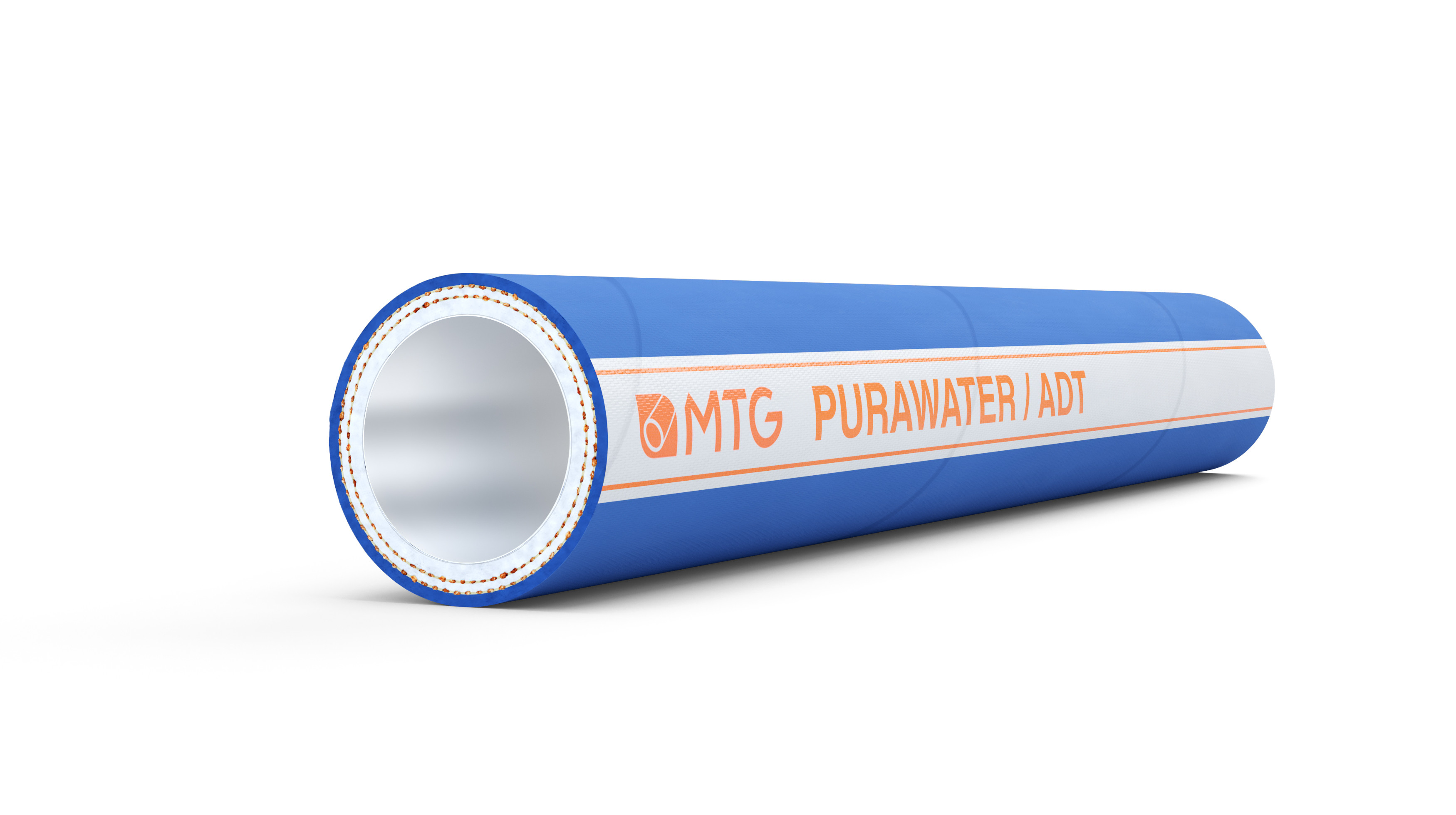

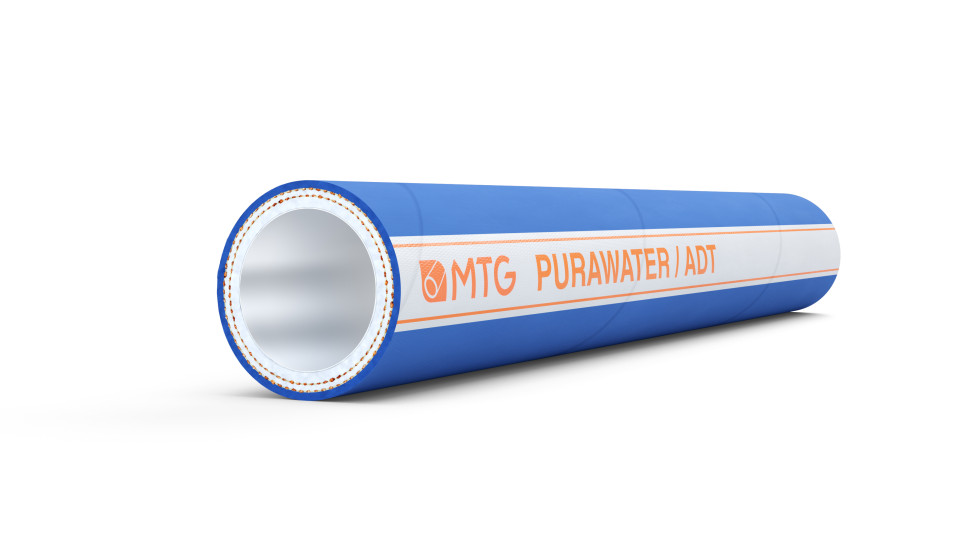

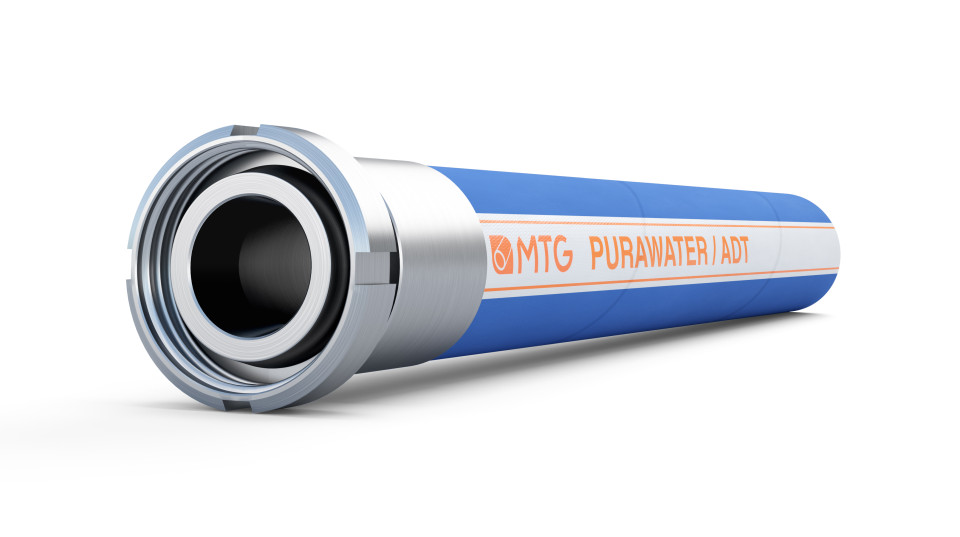

MTG PURAWATER/ADT

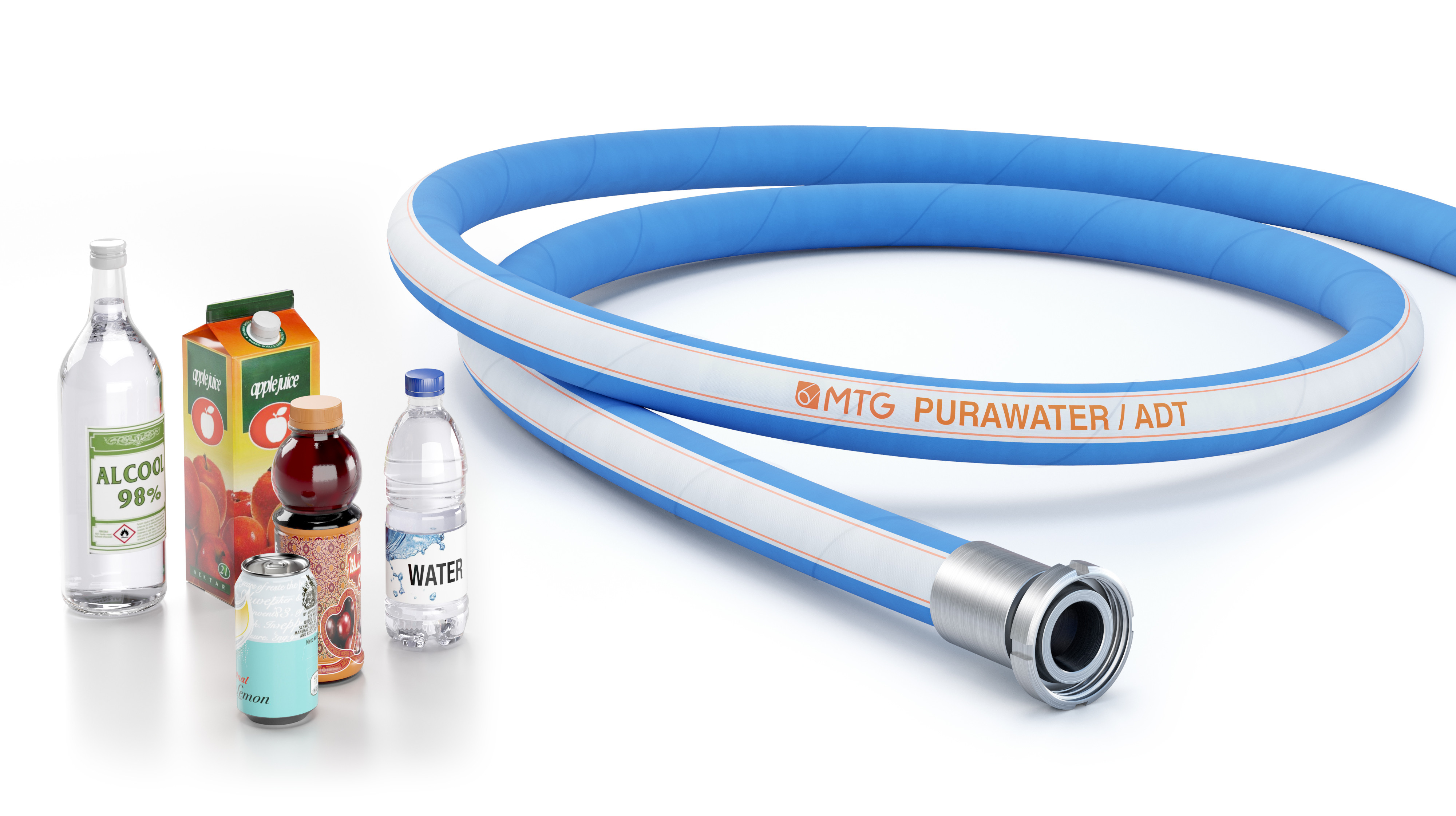

Rubber hose for the delivery of drinking water, alcoholic beverages up
to a concentration of 98%, fruit juices and soft drinks.
Main benefits
- Hose approved by the Institute "Technische Universität München WEIHENSTEPHAN" to respect the organoleptic characteristics of beer, hose certified according to WRAS-BS 6920 Part 1:2014 for delivery of drinking water.
- The hose complies with the Regulations EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions according to the current European Regulation EC 1907/2006 (REACH).

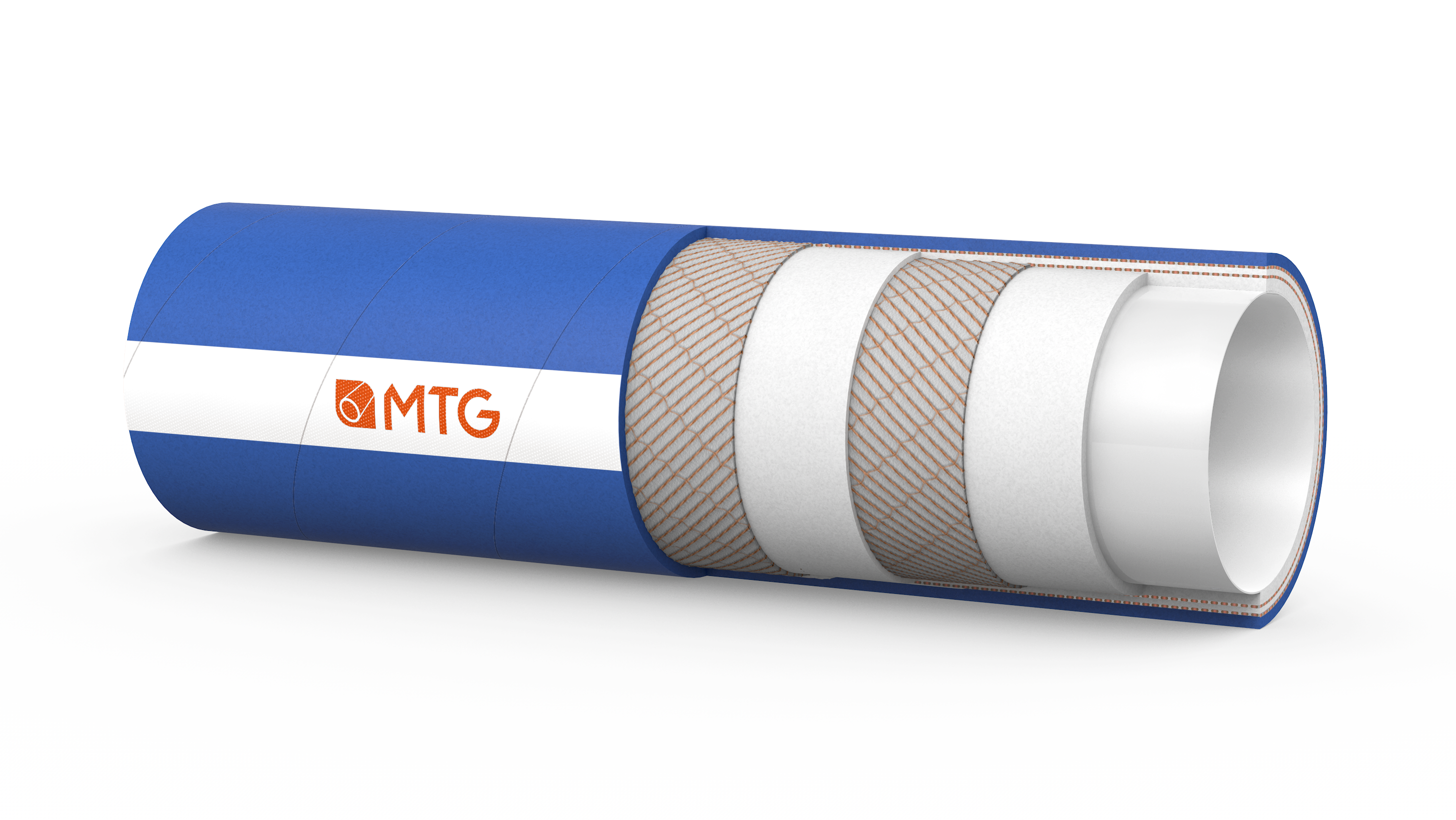

Construcion
TUBE
- Technopolymer, neutral, mirror-like, smooth. No microbiological contamination.
- Fully odourless and tasteless.
- Food compliance in accordance with FDA Standards and Reg. EU 10/2011.
REINFORCEMENT
- High strength textile plies.
COVER
- Rubber compound resistant to abrasion, ageing, ozone and weather, blue, smooth, cloth finish.
Safety factors
≥ 3 times working pressure.
Temperatures
From -30°C to +90°C.
Sterilization
Sterilisation with steam up to +130°C for maximum 30 minutes or standard chlorine-based detergents (also concentrated). Hot water cleaning is allowed up to a max. temperature of +95°C for maximum 30 minutes.
Marking
Dimensional tolerance
Inner diameter: ISO 1307 - Wall thickness: DIN 7715 T4 S2 - Length: ISO 1307
| Internal diam. mm |
Wall thickness mm |
Working pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|
| 10 | 3,5 | 25 | 50 | - | 0,15 | 40 |
| 13 | 3,5 | 20 | 70 | - | 0,20 | 40 |
| 13 | 5 | 20 | 70 | - | 0,22 | 40 |
| 16 | 3,5 | 16 | 90 | - | 0,24 | 40 |
| 19 | 4 | 16 | 120 | - | 0,33 | 40 |
| 19 | 6 | 16 | 1120 | - | 0,36 | 40 |
| 25 | 4,5 | 16 | 150 | - | 0,46 | 40 |
| 25 | 6 | 16 | 150 | - | 0,55 | 40 |
| 32 | 6 | 14 | 190 | - | 0,82 | 40 |
| 38 | 6,5 | 12 | 240 | - | 1,10 | 40 |
| 45 | 7 | 10 | 270 | - | 1,30 | 40 |
| 50 | 7 | 10 | 300 | - | 1,40 | 40 |
| 65 | 8 | 10 | 450 | - | 2 | 40 |
| 75 | 8 | 10 | 600 | - | 2,30 | 40 |
| 100 | 8 | 10 | 800 | - | 3,20 | 40 |
Chemical resistance acc. to MTG Chemical Resistance Chart. Other sizes are available upon request. Above technical data are based on application at room temperature (+20°C).
