Food industry

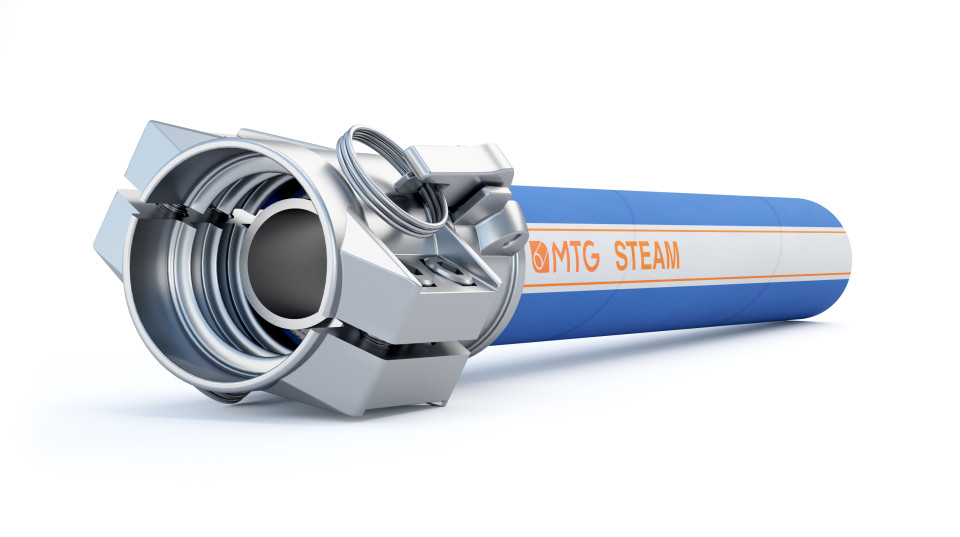

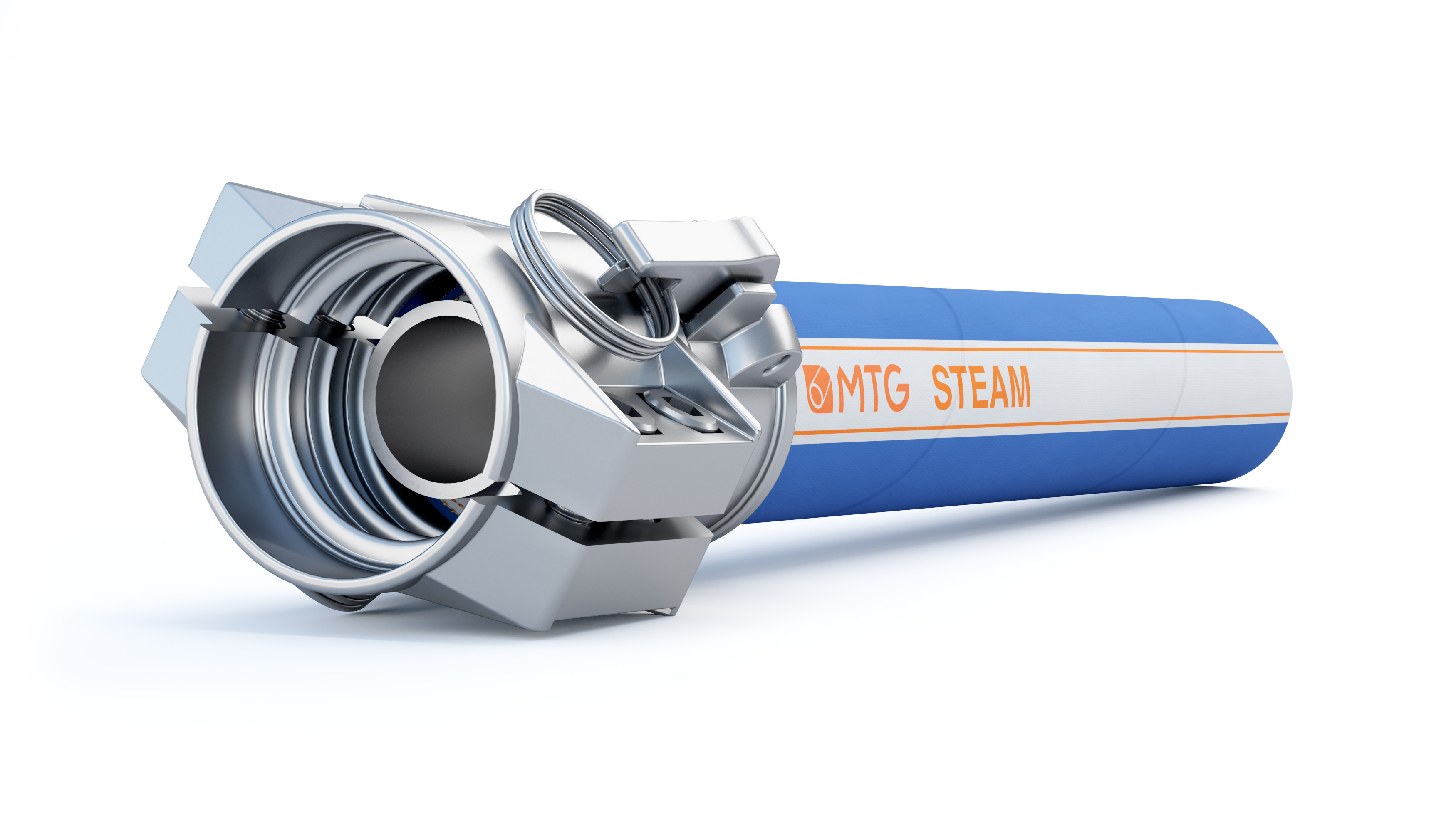

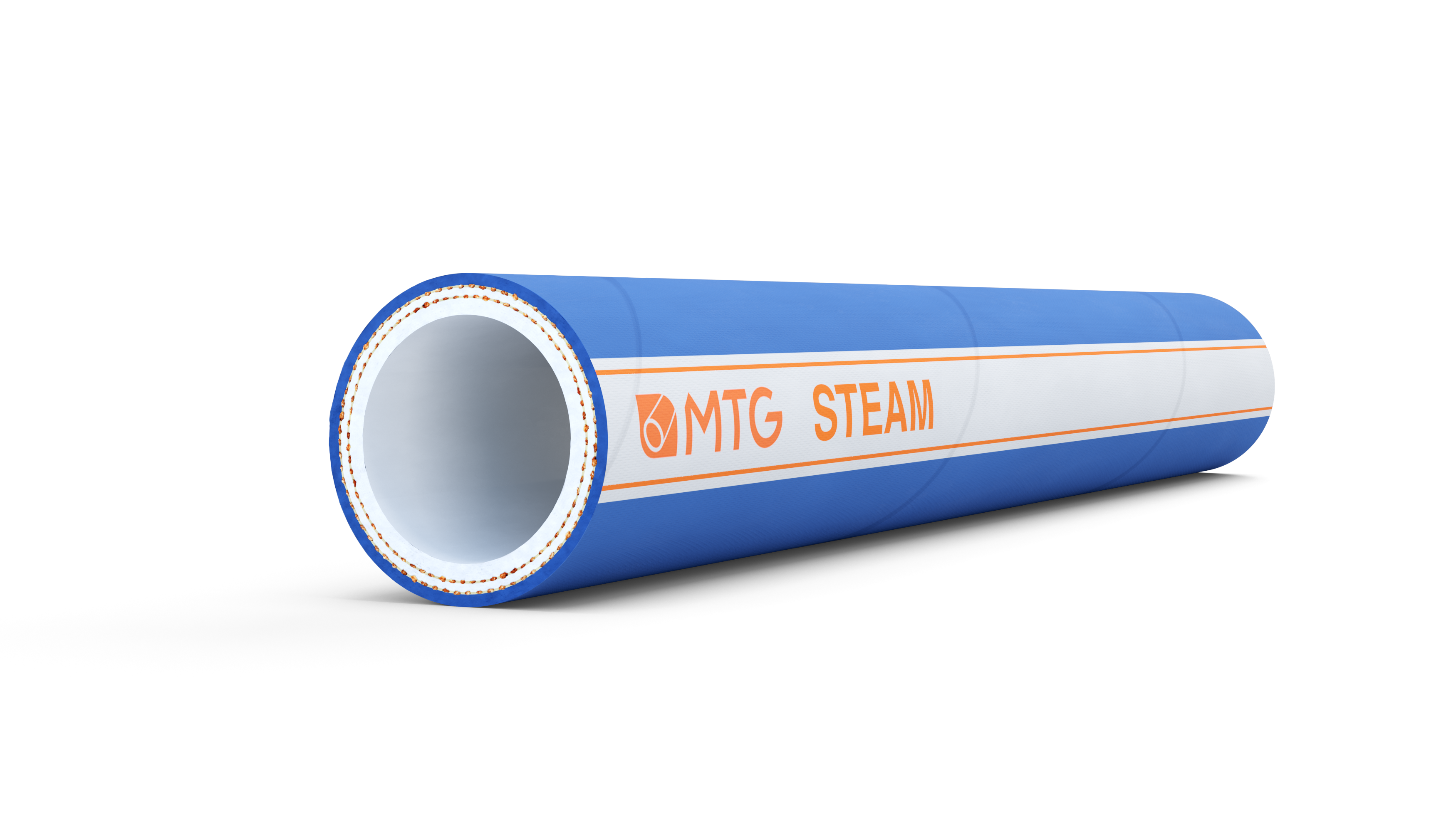

MTG STEAM

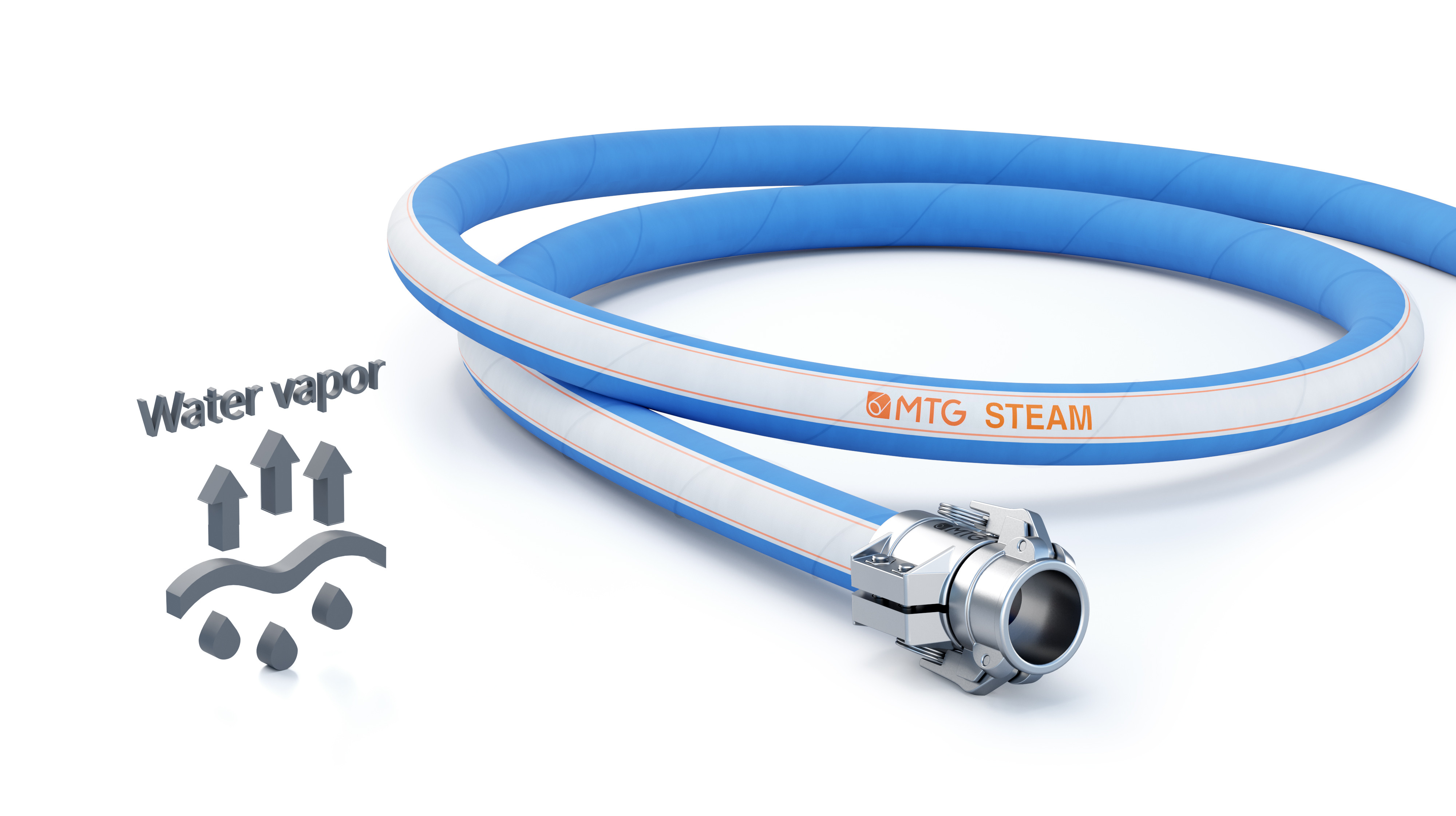

Food quality rubber hose, specifically designed for cleaning operations with saturated steam (up to +164°C) and hot water washdown services.
Normally used in dairy industries, creameries and food processing facilities for safe operations during cleaning processes with hot water and steam.
Suitable for transfer of saturated steam only for discontinuous use.
Delivery hose.
Main benefits
- The inner liner, specifically designed for conveying hot water and steam (up to +164°C), allows safe cleaning and disinfection processes.
- The cover provides good heat resistance and withstands short contact with animal and vegetable fats.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).

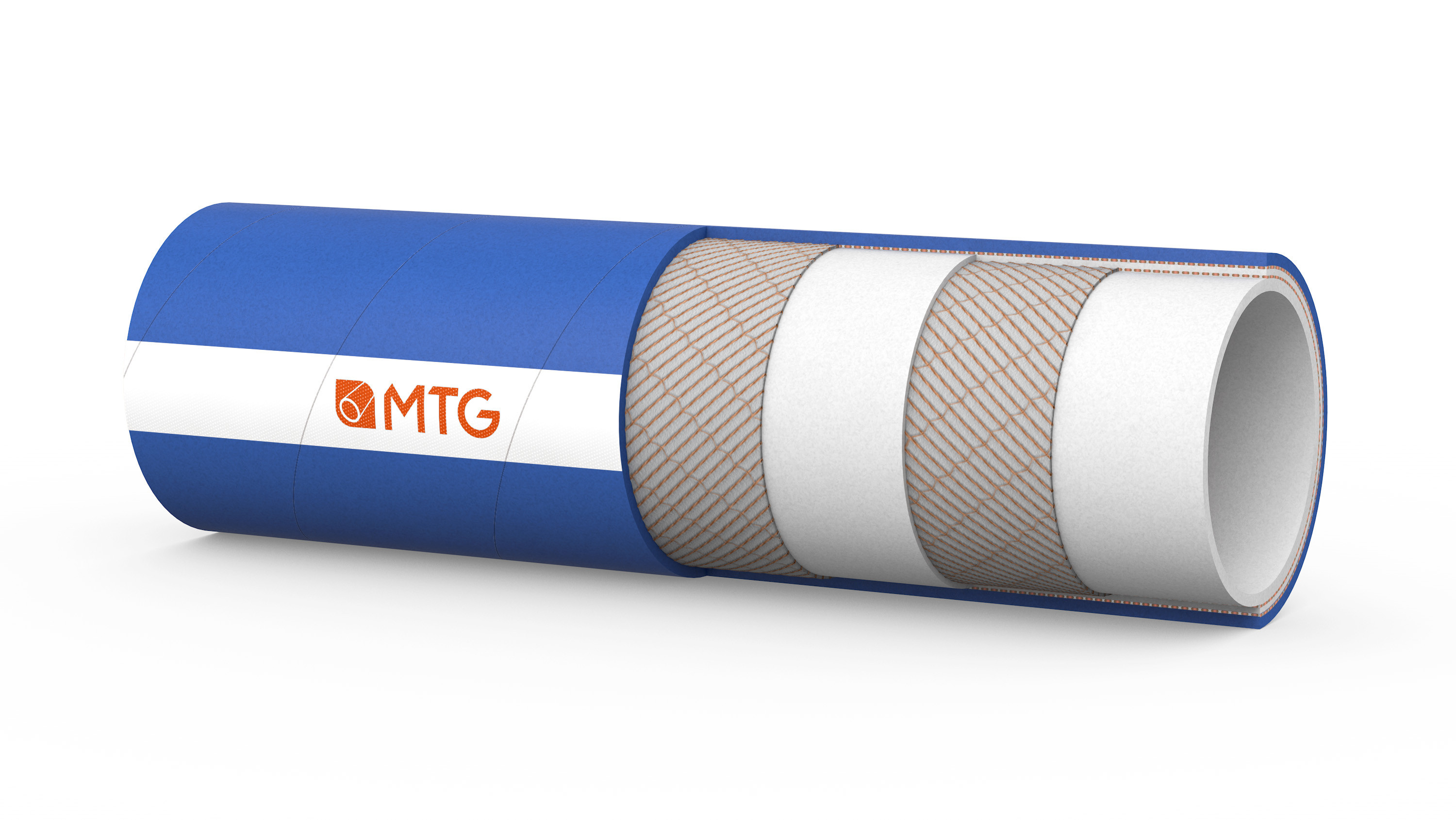

Construcion
TUBE
- EPDM rubber (Code 140 BI), light colour, mirror-smooth.
- Complying with FDA standards, D.M. 21/03/73 and following amendments.
REINFORCEMENT
- Plies of synthetic cord.
COVER
- EPDM rubber, blue colour, smooth, abrasion and weather resistant, cloth finish.
- Resistant to traces of animal and vegetable fats, pin pricked cover.
Safety factors
- Working pressure at +95°C: 20 bar; Safety factor ≥ 3.
- Working pressure at +164°C: 6 bar; Safety factor ≥ 10.
Temperatures
- From -40° to +164°C.
Note
- Version complying with BfR standards available upon request (reference: Vapore/6-BBL).
- If required, all our products may be supplied in ‘TXI’ version (embedded stainless steel wire braids).
Marking
Dimensional tolerance
I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure at +164°C BAR |
Burst pressure at + 95°C BAR |
Min. bending radius mm |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 10 | 20 | 5 | 6 | 20 | 75 | 0,27 | 40 |
| 13 | 23 | 5 | 6 | 20 | 100 | 0,32 | 40 |
| 16 | 28 | 6 | 6 | 20 | 120 | 0,48 | 40 |
| 19 | 31 | 6 | 6 | 20 | 160 | 0,54 | 40 |
| 25 | 39 | 7 | 6 | 20 | 200 | 0,82 | 40 |
| 32 | 46 | 7 | 6 | 20 | 260 | 1,04 | 40 |
| 38 | 54 | 8 | 6 | 20 | 300 | 1,4 | 40 |
| 50 | 67 | 8,5 | 6 | 20 | 380 | 1,76 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure at +164°C BAR |
Burst pressure at + 95°C BAR |
Min. bending radius inch |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|
| 3/8 | 0,79 | 90 | 300 | 2,95 | 0,18 | 131,2 |
| 1/2 | 0,91 | 90 | 300 | 3,94 | 0,21 | 131,2 |
| 5/8 | 1,1 | 90 | 300 | 4,72 | 0,32 | 131,2 |
| 3/4 | 1,22 | 90 | 300 | 6,3 | 0,36 | 131,2 |
| 1 | 1,54 | 90 | 300 | 7,87 | 0,55 | 131,2 |
| 1 1/4 | 1,81 | 90 | 300 | 10,24 | 0,7 | 131,2 |
| 1 1/2 | 2,13 | 90 | 300 | 11,81 | 0,94 | 131,2 |
| 2 | 2,64 | 90 | 300 | 14,96 | 1,18 | 131,2 |
Above technical data refer to application at room temperature (+20°C).
Other sizes and colours available upon request. Please contact our Sales Department.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
