MTG-CLEARSIL/PFA-Antistatic
Silicone hose for suction and delivery of foodstuff, cosmetic products and fluids with alcohol content up to 100%.
Reinforced version suitable for process applications requiring a tight bending radius and a high vacuum resistance.
Normally used in food and cosmetic industries.
Hose suitable for working in explosive environments (ATEX).
More detailsPodotto in Cleanroom ISO 14644-1 Classe 8.
Copertura in silicone catalizzato al platinto, anti-aderente.
Main benefits
- Hose suitable for use in ATEX zones 0, 1 ,2 and 20, 21, 22.
- Platinum-cured silicone hose.
- Hose free from any potentially dangerous additives or chemical components.
- From raw material to packaged product, the hose is manufactured in a cleanroom class 8, certified In Operation according to the ISO 14644-1 standard. MTG guarantees full traceability of the production process.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP).
- The MTG production cycle is free from animal derived ingredients, phthalates, adipates, nitrosamines, and materials subject to restrictions acc. to EC 1907/2006 (REACH).

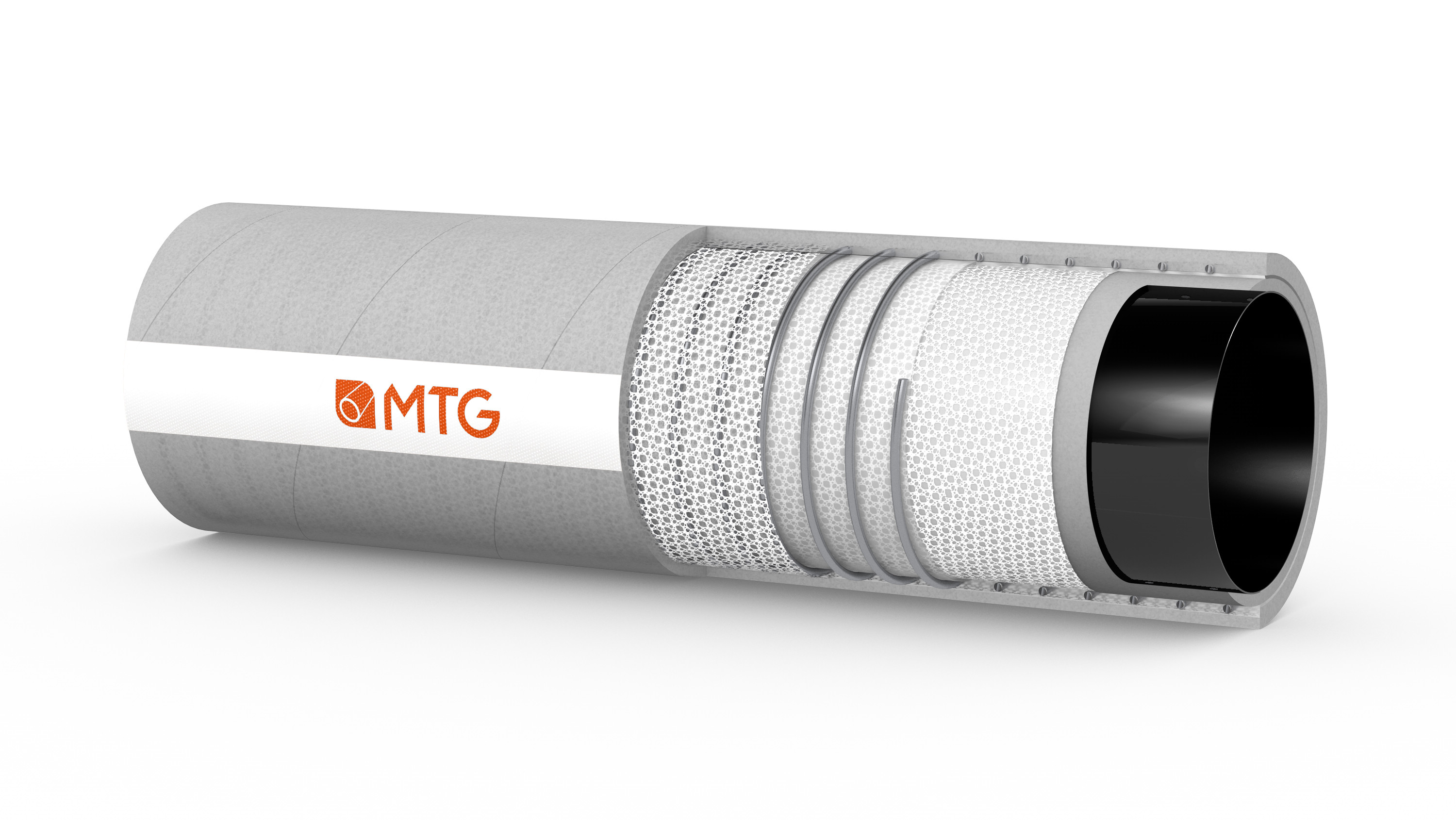

Construcion
TUBE
- PFA (Perfluoralcoxy), fully fluorinated, mirror-smooth, black colour, antistatic (R<10^6 Ω), patented.
- Compliant with USP Class VI, FDA CFR 21 item 177.1550, EU 10/2011, EC Regulation 1935/2004 and EC Regulation 2023/2006.
REINFORCEMENT
- High strength synthetic plies.
- Embedded stainless steel helix wire.
COVER
- Silicone rubber, gray (code 3362PTGR), antistatic (R<10^8 Ohm), food quality, odourless and tasteless, smooth with glossy finish.
- It may easily be cleaned with any mild detergent.
- Compliance: EC Regulation 1935/2004 and 2023/2006, DM 21/03/1973; Arrete de 25/11/1992; Bfr XV section III e XXI, FDA cfr 21 parts 170 to 199 item 177.2600, EU 10/2011.
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -60°C to +150°C, depending on the liquids conveyed.
Note
- Hose approved by the Ineris Institute for use in Atex zones: certificate no. INERIS-IDE 208760-2739065.
ELECTRICAL PROPERTIES
- Electrical resistance through wall: R < 10^9 Ω.
Marking
Dimensional tolerance
I.D.: ISO 1307 - Wall thickness: ± 0.8 mm - Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius STATIC mm |
Min. bending radius DYNAMIC mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|---|
| 13 | 23 | 5 | 10 | 30 | 45 | 60 | -0,9 | 0,38 | 20 |
| 16 | 28 | 6 | 10 | 30 | 55 | 75 | -0,9 | 0,51 | 20 |
| 19 | 31 | 6 | 10 | 30 | 65 | 90 | -0,9 | 0,57 | 30 |
| 25 | 37 | 6 | 10 | 30 | 85 | 140 | -0,9 | 0,8 | 30 |
| 32 | 44 | 6 | 10 | 30 | 120 | 200 | -0,9 | 1 | 30 |
| 38 | 51 | 6,5 | 10 | 30 | 140 | 250 | -0,9 | 1,35 | 30 |
| 51 | 67 | 8 | 10 | 30 | 180 | 300 | -0,9 | 1,86 | 30 |
| 63,5 | 79,5 | 8 | 8 | 24 | 320 | 380 | -0,9 | 2,69 | 20 |
| 76 | 92 | 8 | 6 | 18 | 380 | 460 | -0,9 | 3,18 | 20 |
| Internal diam. inch |
External diam. inch |
Working Pressure PSI |
Burst Pressure PSI |
Min. bending radius STATIC inch |
Min. bending radius DYNAMIC inch |
Vacuum inHg |
Approx. weight lbs/ft |
Max. length ft |
|---|---|---|---|---|---|---|---|---|
| 0,51 | 0,91 | 147 | 441 | 1,77 | 2,36 | -27,57 | 0,26 | 65,6 |
| 0,63 | 1,1 | 147 | 441 | 2,17 | 2,95 | -27,57 | 0,34 | 65,6 |
| 0,75 | 1,22 | 147 | 441 | 2,56 | 3,54 | -27,57 | 0,38 | 98,4 |
| 0,98 | 1,46 | 147 | 441 | 3,35 | 5,51 | -27,57 | 0,54 | 98,4 |
| 1,26 | 1,73 | 147 | 441 | 4,72 | 7,87 | -27,57 | 0,67 | 98,4 |
| 1,5 | 2,01 | 147 | 441 | 5,51 | 9,84 | -27,57 | 0,91 | 98,4 |
| 2,01 | 2,64 | 147 | 441 | 7,09 | 11,81 | -27,57 | 1,25 | 98,4 |
| 2,5 | 3,13 | 118 | 353 | 12,6 | 14,96 | -27,57 | 1,81 | 65,6 |
| 2,99 | 3,62 | 88 | 265 | 14,96 | 18,11 | -27,57 | 2,14 | 65,6 |
