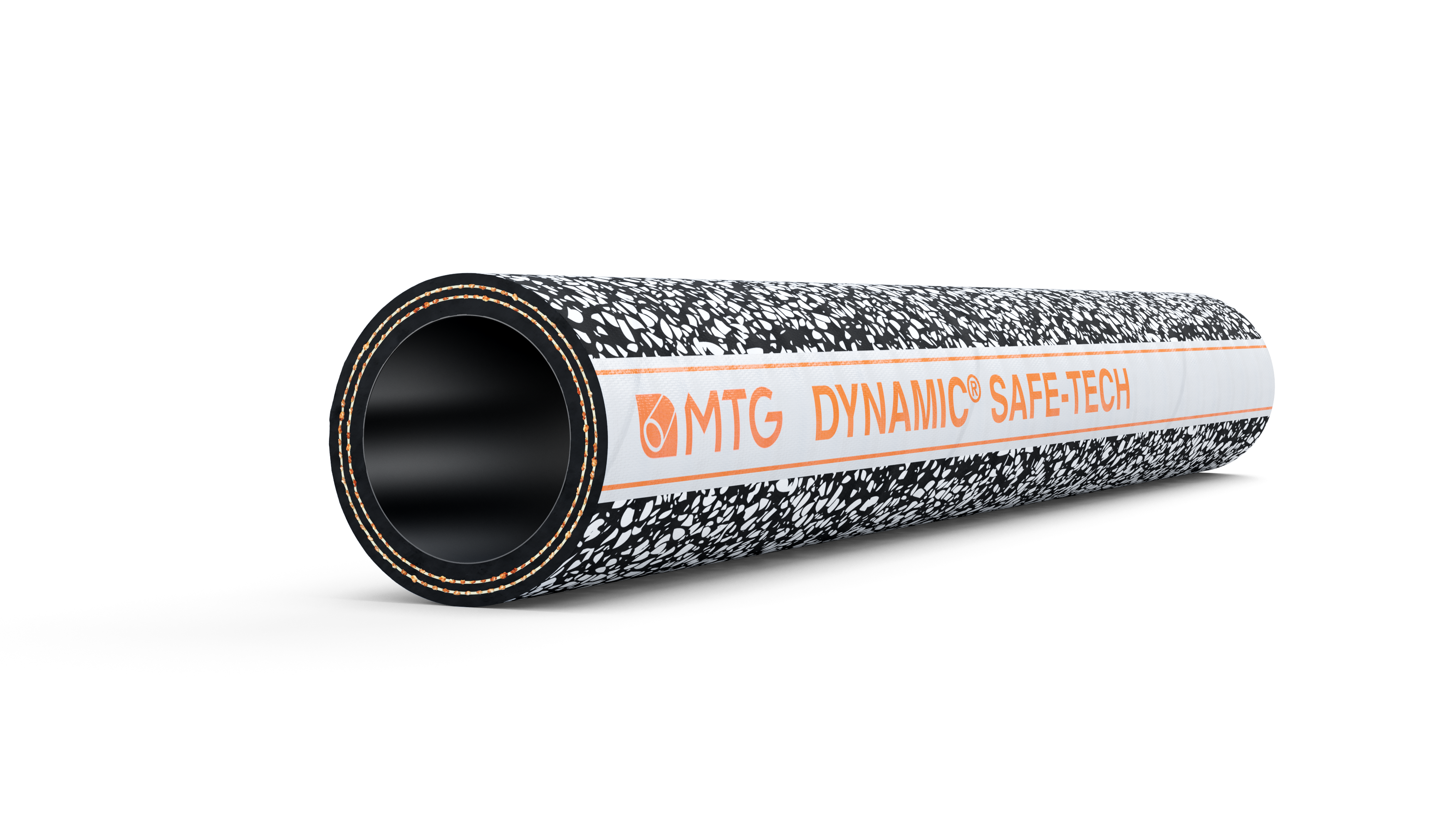

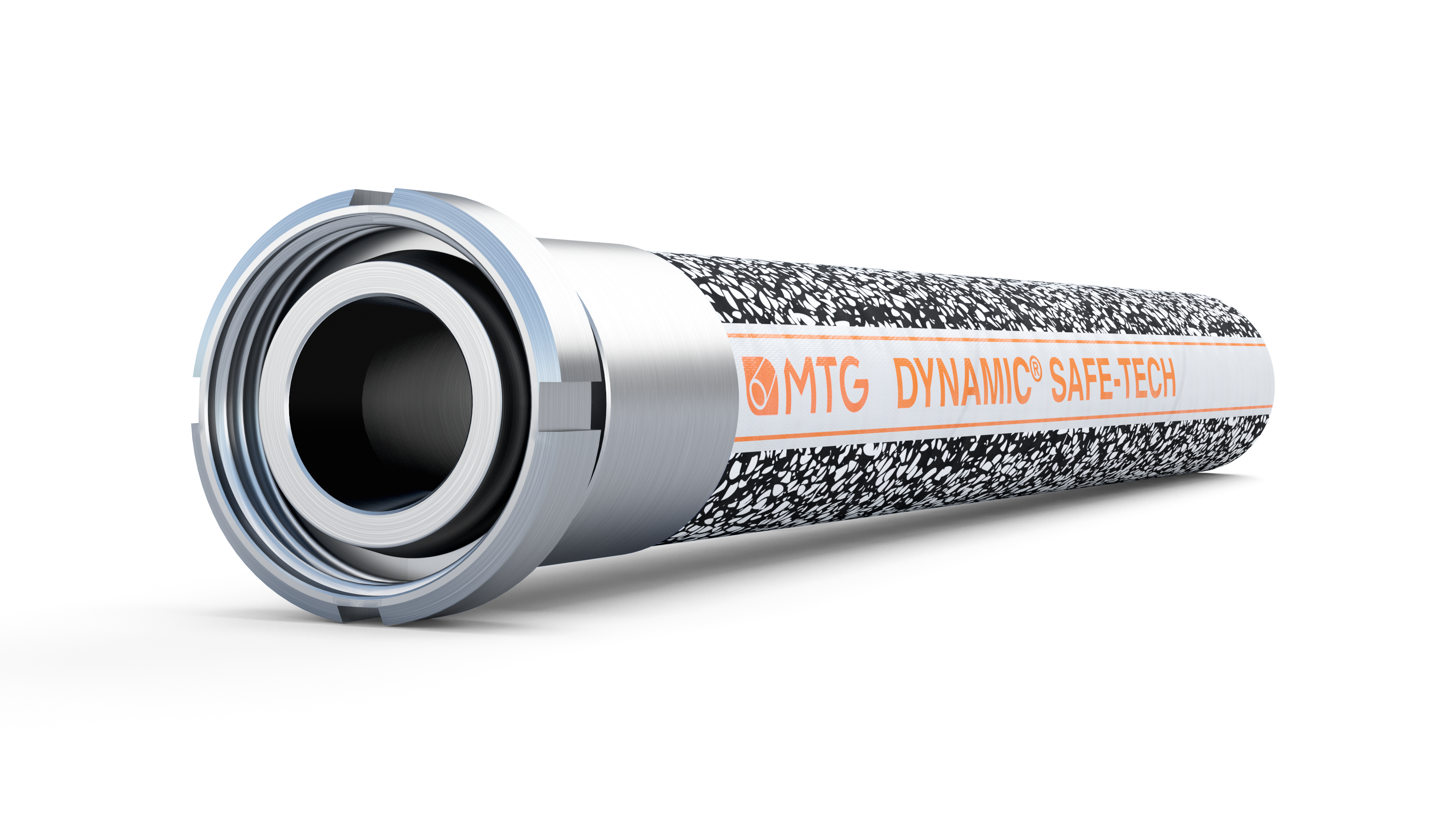

MTG DYNAMIC® SAFE-TECH

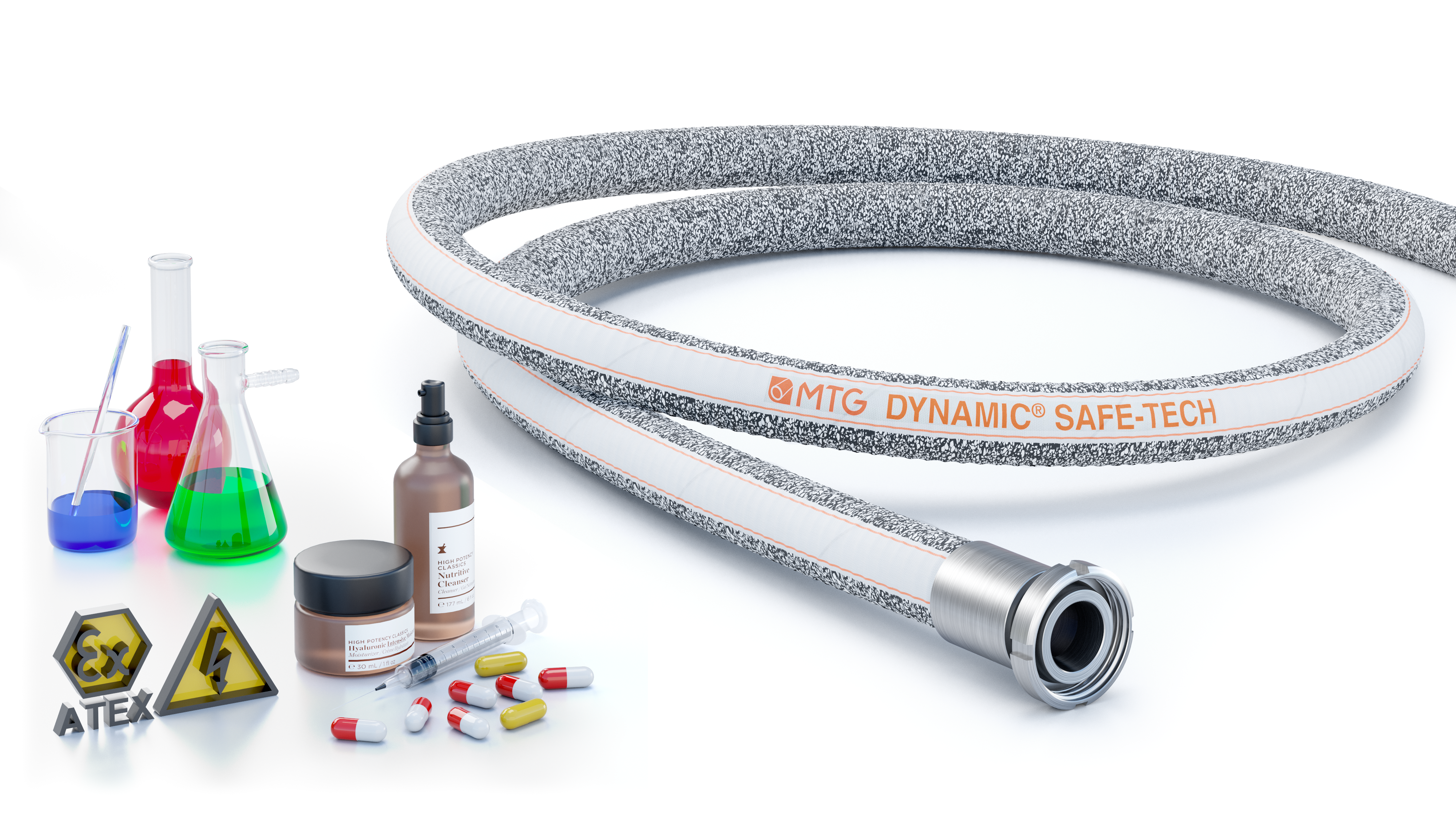

MTG DYNAMIC® SAFE-TECH is a multipurpose hose “Full Ohm”, designed for conveying cosmetic, pharmaceutical and highly flammable chemical products in working areas requiring utmost safety.

Execution complying with EN 12115: 2011.

Engineered to ensure dissipation of electrostatic charges not only on the surfaces (tube and cover R< 10^6 Ω) but also through the hose wall (R< 10^9 Ω).

PATENTS:       EP 1450092    –   EP 1580475    –    US Patent 7,389,799

More details

Main benefits

  • The fluorinated inner liner ensures utmost chemical and temperature resistance, an excellent impermeability, and contamination-free transport of the fluid.
  • Marble finish cover, smooth and easy to clean. Resistant to mild chemicals and aggressive acids for short time.
  • Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP).
  • The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).
  • Non-plasticized inner tube.

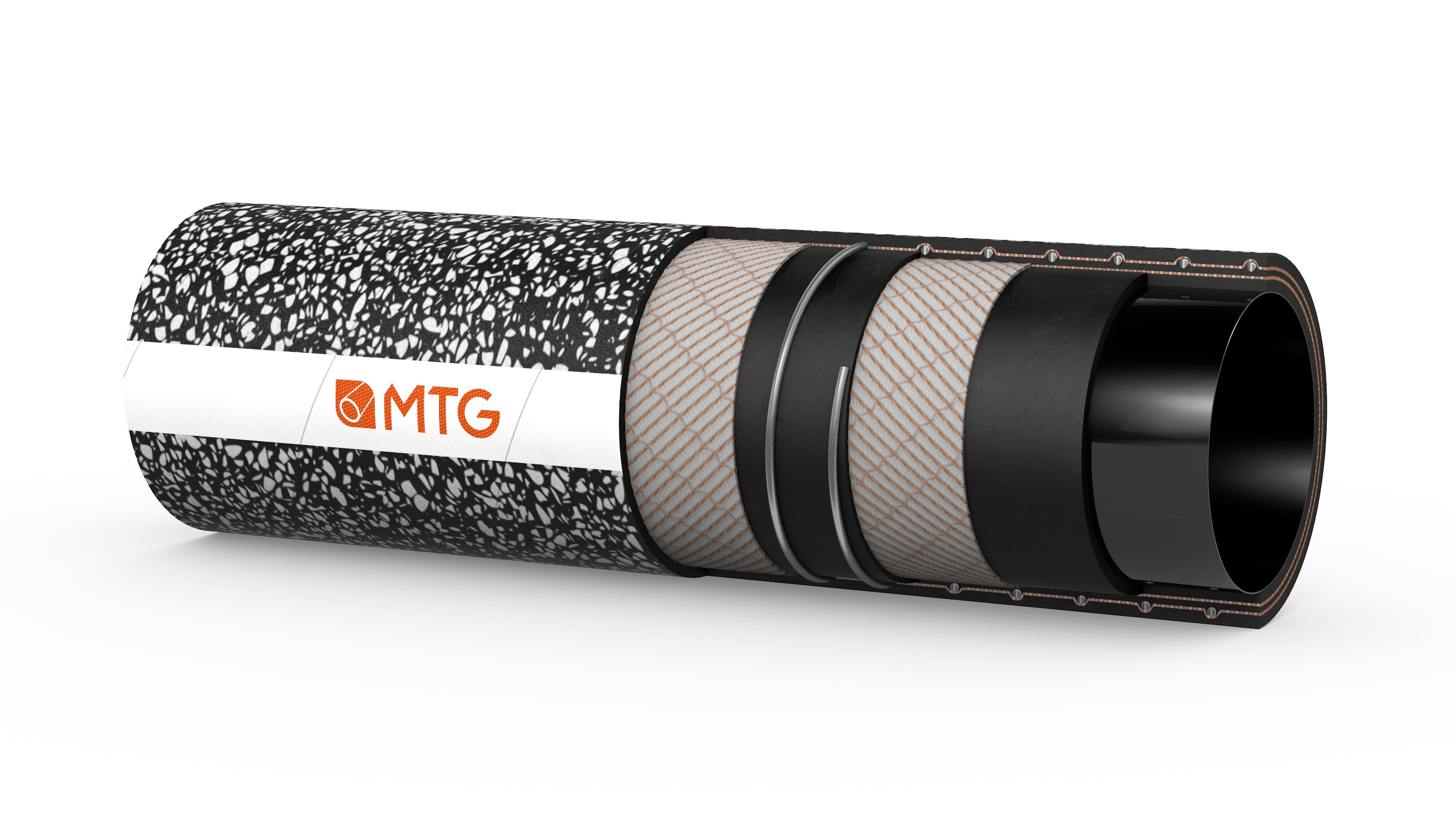

Construcion

TUBE

  • PFA (Perfluoralcoxy), fully fluorinated, mirror-smooth, black colour, antistatic (R< 10^6  Ω), patented.
  • Compliance: USP Class VI, FDA Standards, Regulation EU n. 10/2011, ISO 10993-4, -10, -11, non-cytotoxic according to ISO 10993-Part 5.

REINFORCEMENT

  • High strength plies of synthetic cord.
  • Embedded steel helix wire.
  • Copper wires on request.

COVER

  • Marble finish (UPE), black and white, patented, smooth; resistant to abrasion, ozone and ageing. The special marble finish with a low coefficient of friction complies with FDA Standards, odourless and tasteless.
  • The cover does not stain the contact surfaces.
  • Antistatic: Electrical resistance R< 10^6 Ω.

Safety factors

  • ≥ 4 times working pressure.

Temperatures

  • In accordance with EN 12115: 2011.

Note

  • Hose approved by the Institute Ineris for use in Atex areas, attestation nr. INERIS-DRA-20-200870-02408A available up to DN 3’’.

Electrical properties

  • Electrical resistance through the hose wall: R < 10^9 Ω.
  • Identification symbol:
    – Ω/T for version without copper wires;
    – M/T for version with copper wires.

Marking

Dimensional tolerance

I.D.: EN 12115 – Wall thickness: EN 12115 – Length: ISO 1307

Internal diam.
mm
External diam.
mm
Wall thickness
mm
Working pressure
BAR
Burst pressure
BAR
Min. bending radius
mm
Vacuum
BAR
Approx. weight
kg/m
Max. length
m
13 25 6 10 40 135 -0,9 0,55 20
19 31 6 10 40 188 -0,9 0,72 30
25 37 6 10 40 225 -0,9 0,89 30
32 45 6,5 10 40 262 -0,9 1,16 30
38 51 6,5 10 40 338 -0,9 1,47 30
51 65,5 7,25 10 40 412 -0,9 2,08 30
63,5 79,5 8 10 40 450 -0,9 2,8 20
76 92 8 10 40 525 -0,9 3,48 20
100 117 8.5 10 40 700 -0,9 4,7 20
Internal diam.
inch
External diam.
inch
Working pressure
BAR
Burst pressure
BAR
Min. bending radius
inch
Vacuum
BAR
Approx. weight
kg/m
Max. length
m
1/2 0,98 150 600 5,31 -26,57 0,37 65,6
374 1,22 150 600 7,4 -26,57 0,48 98,4
1 1,46 150 600 8,86 -26,57 0,6 98,4
1 1/4 1,77 150 600 10,31 -26,57 0,78 98,4
1 1/2 2,01 150 600 13,31 -26,57 0,99 98,4
2 2,58 150 600 16,22 -26,57 1,4 98,4
2 1/2 3,13 150 600 17,72 -26,57 1,88 65,6
3 3,62 150 600 20,67 -26,57 2,33 65,6
4 4,6 150 600 27,55 -26,57 3,16 65,6

(*) In case of dynamic application please contact our Technical Dept.
Above technical data are referring to application at room temperature (+20°C).
Other sizes and colours are available upon request. Please contact our Sales Department.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.

The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
