MANIFLON/SD-PHARMA

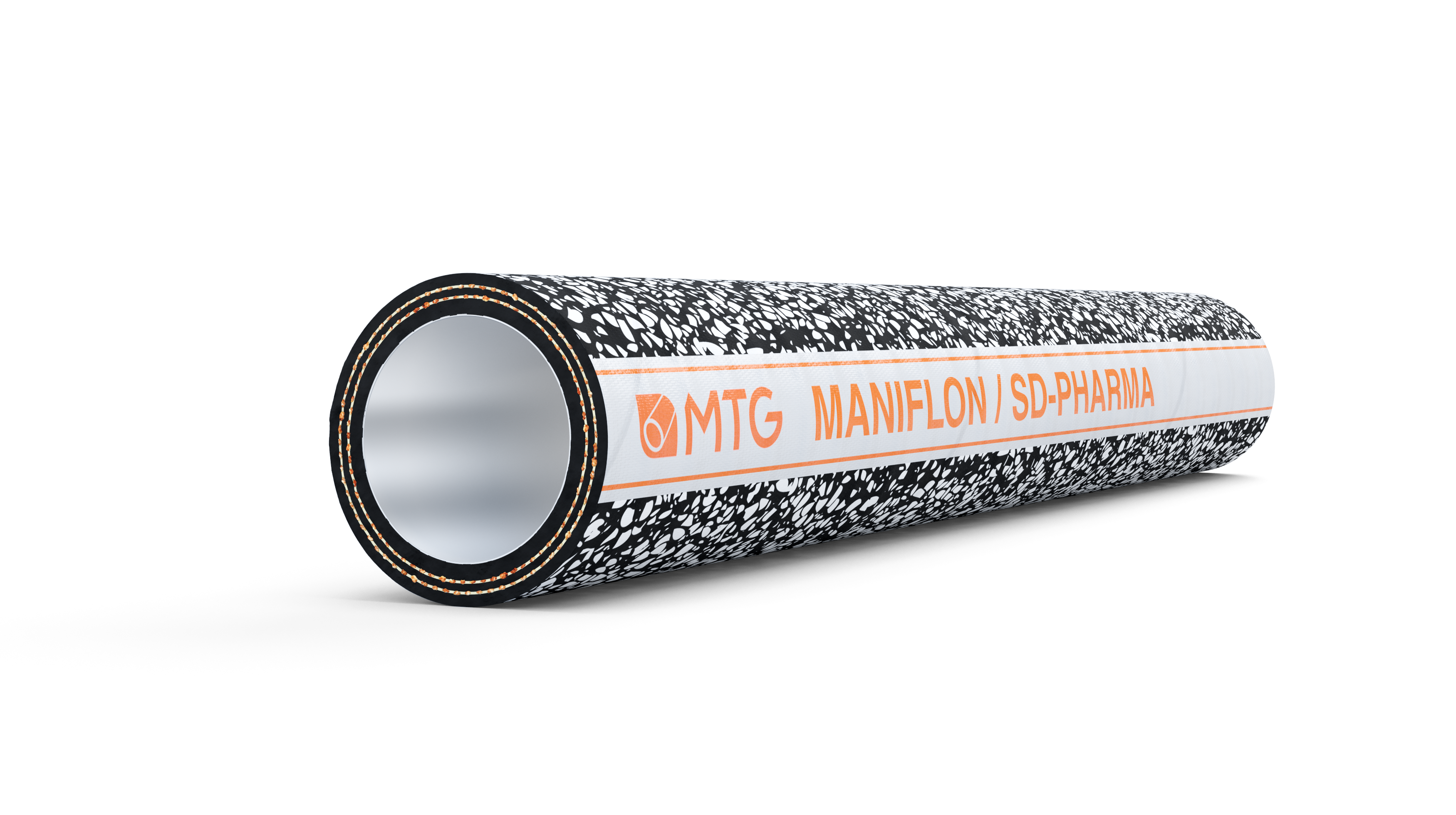

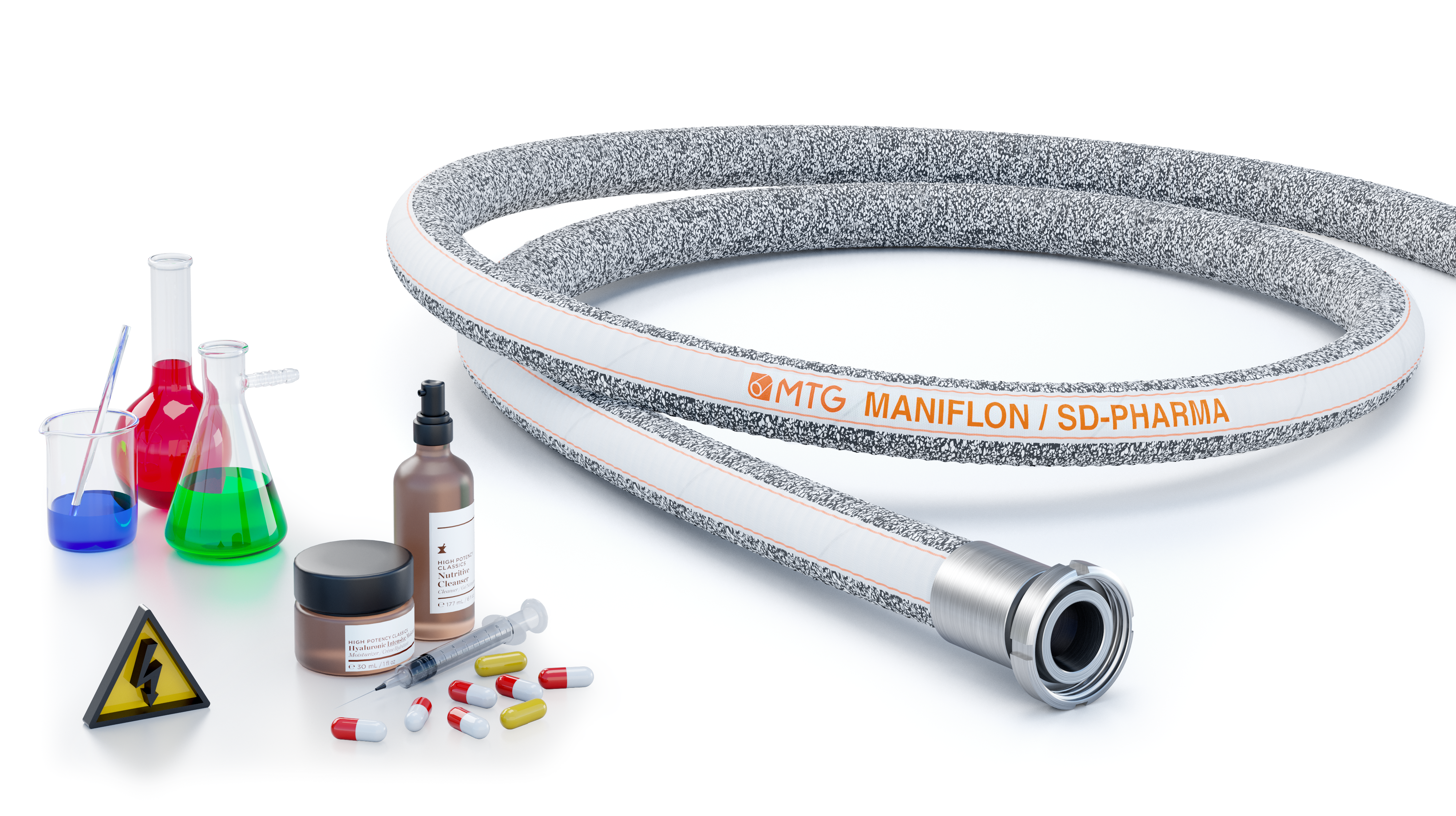

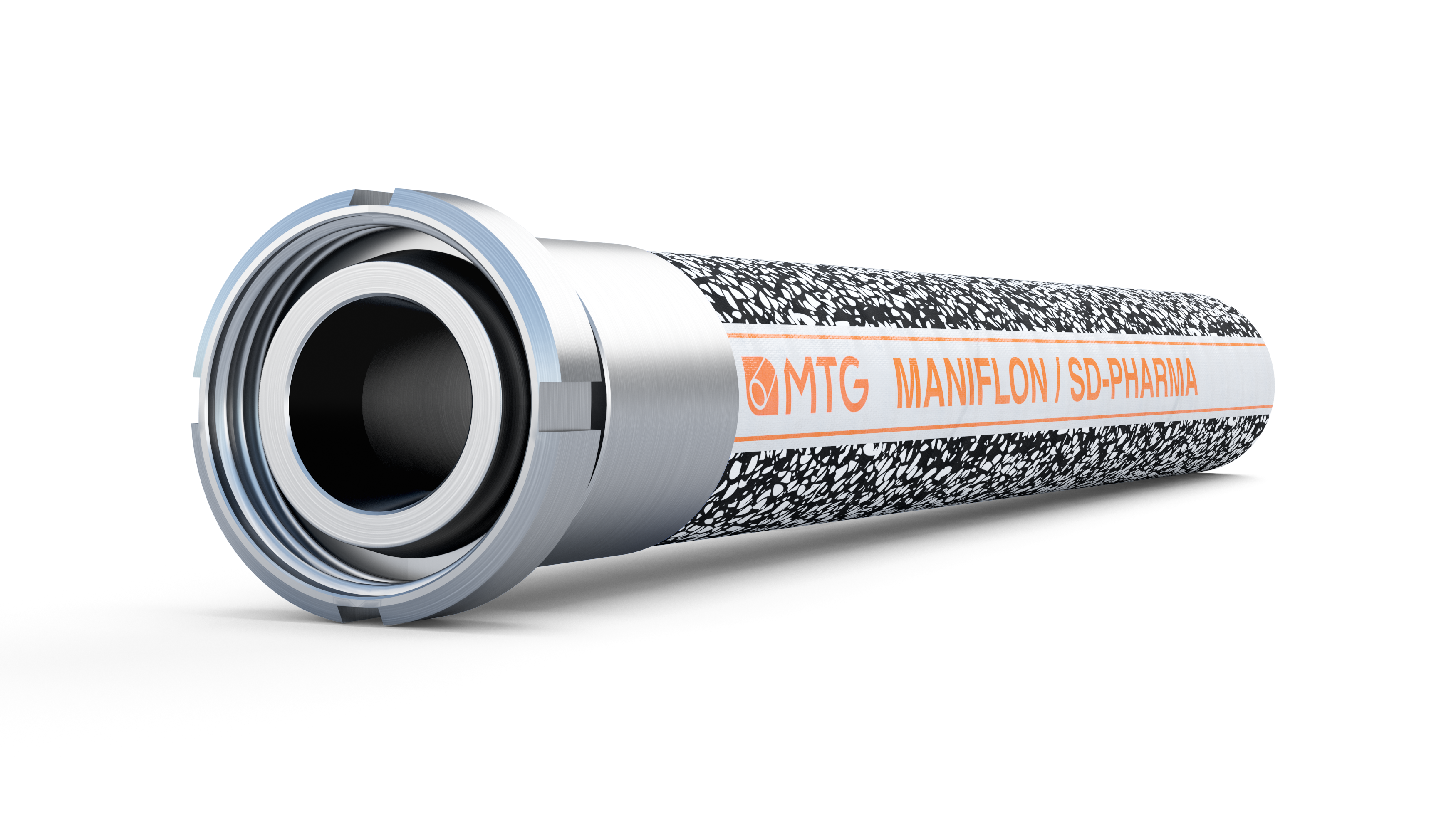

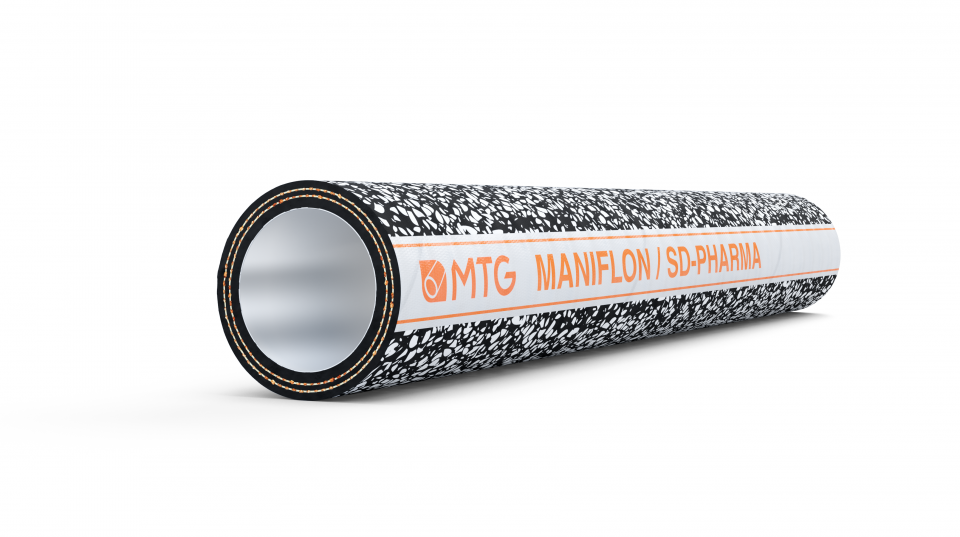

MANIFLON/SD-PHARMA is a multipurpose suction and delivery hose for conveying solvents and chemicals with high concentration.
Execution in accordance with regulation EN 12115:2011.
PATENTS: EP 1450092 – EP 1580475 B1 – US Patent 7,389,799.
More detailsMain benefits
- The fluorinated inner liner ensures an excellent impermeability and resistance to oxidation, temperature and mechanical stress, thus avoiding cracks.
- The special marble cover with a low coefficient of friction does not stain the contact surfaces; it is odourless, tasteless and especially suitable for application in pharmaceutical environments and productions requiring the use of inert, contamination-free materials. Also it may easily be washed with the most common cleaning products and withstands incidental contact even with aggressive chemicals conveyed in the hose.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).

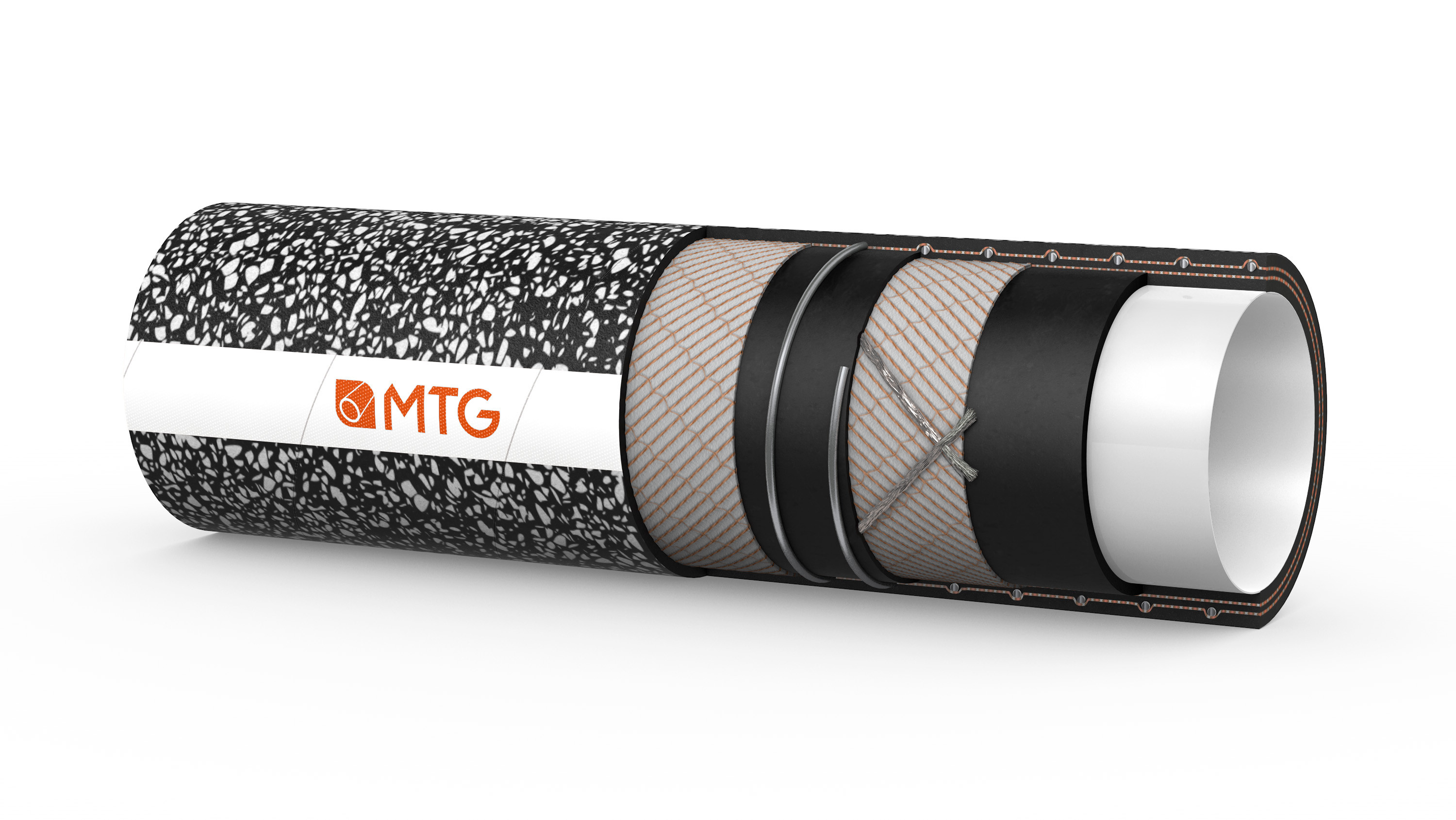

Construcion
TUBE
- MFA (Perfluoralkoxy Polymer, MFA), fully fluorinated, light colour, mirror-smooth, odourless and tasteless.
- Compliance: USP Class VI, FDA Standards, D.M. 21/03/73 and following amendments, Regulation EU n. 10/2011.
REINFORCEMENT
- High strength plies of synthetic cord and embedded steel helix wire.
- Two copper wires are built in.
COVER
- Marble finish (UPE), black and white, patented, smooth; resistant to abrasion, ozone and weather.
- Antistatic in accordance with EN 12115:2011. Electric resistance R< 10^6 Ω.
Safety factors
≥ 4 times working pressure up to DN 75 mm.
≥ 3 times working pressure over DN 75 mm.
Temperatures
- In accordance with EN 12115:2011.
- Resistance to steam up to +130°C for max. 30 minutes.
Note
We suggest you to follow the instructions mentioned in the MTG “Use and maintenance guide for PFA/MFA hoses”.
Electrical properties
- Identification symbol: M.
- Model without copper wires available upon request; identification symbol: Ω.
Marking
Dimensional tolerance
I.D.: EN 12115 – Wall thickness: EN 12115 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 13 | 25 | 6 | 16 | 64 | 90 | -0,9 | 0,55 | 20 |
| 19 | 32 | 6,5 | 16 | 64 | 125 | -0,9 | 0,75 | 30 |
| 25 | 38 | 6,5 | 16 | 64 | 150 | -0,9 | 0,95 | 30 |
| 32 | 45 | 6,5 | 16 | 64 | 190 | -0,9 | 1,15 | 30 |
| 38 | 51 | 6,5 | 16 | 64 | 230 | -0,9 | 1,5 | 30 |
| 51 | 66 | 7,5 | 16 | 64 | 300 | -0,9 | 2,2 | 30 |
| 63,5 | 79,5 | 8 | 16 | 64 | 390 | -0,9 | 3 | 20 |
| 76 | 93 | 8,5 | 16 | 48 | 450 | -0,9 | 3,7 | 20 |
| 100 | 118 | 9 | 16 | 48 | 500 | -0,9 | 5 | 20 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 1/2 | 0,98 | 240 | 960 | 3,54 | -26,57 | 0,37 | 65,6 |
| 3/4 | 1,26 | 240 | 960 | 4,92 | -26,57 | 0,5 | 98,4 |
| 1 | 1,5 | 240 | 960 | 5,91 | -26,57 | 0,64 | 98,4 |
| 1 1/4 | 1,77 | 240 | 960 | 7,48 | -26,57 | 0,76 | 98,4 |
| 1 1/2 | 2 | 240 | 960 | 9,06 | -26,57 | 1,01 | 98,4 |
| 2 | 2,6 | 240 | 960 | 11,81 | -26,57 | 1,48 | 98,4 |
| 2 1/2 | 3,13 | 240 | 960 | 15,36 | -26,57 | 2,02 | 65,6 |
| 3 | 3,66 | 240 | 720 | 17,72 | -26,57 | 2,49 | 65,6 |
| 4 | 4,65 | 240 | 720 | 19,69 | -26,57 | 3,36 | 65,6 |
Chemical resistance acc. to MTG Chemical Resistance Chart.
Above technical data refer to application at room temperature (+20°C).
Other sizes and colours are available upon request. Please contact our Sales Department.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
