Pharmaceutical industry

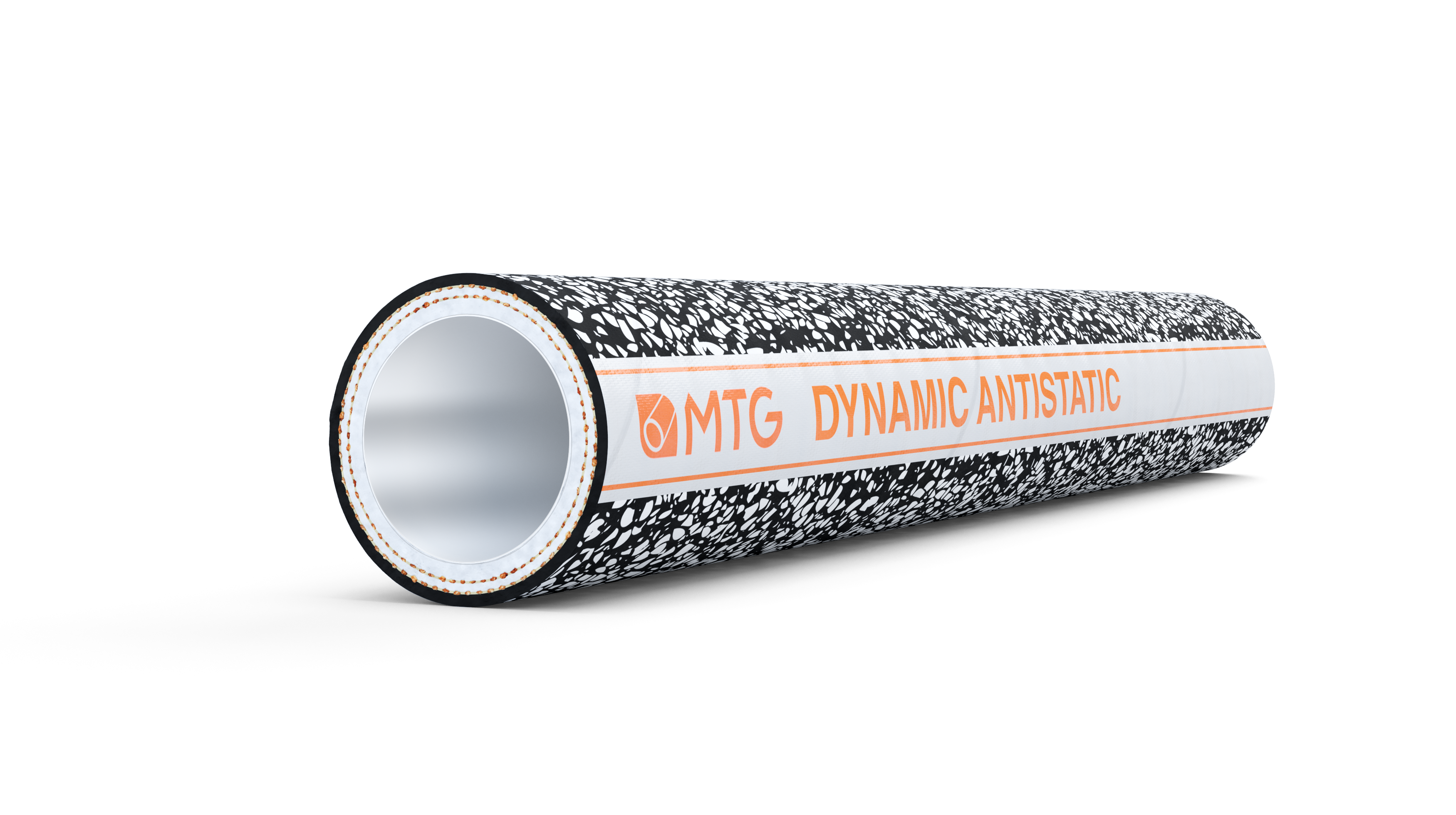

DYNAMIC® ANTISTATIC
Dynamic Antistatic is a multipurpose hose, specifically designed to convey pharmaceutical, cosmetic and chemical substances.
Especially suitable for application in pharmaceutical environments and production processes requiring the use of inert, contamination-free materials.
Execution according to EN 12115:2011, upon request.
PATENTS: EP 1450092 – EP 1580475 – US Patent 7,389,799
More detailsMain benefits
- The fluorinated tube ensures an excellent impermeability and absolutely contamination-free transport of the fluid.
- Dynamic Antistatic provides excellent resistance to repeated bending cycles according to ASTM D 2176.
- Marble finish cover, smooth and easy to clean. Resistant to mild chemicals and aggressive acids for short time.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).
- Non-plasticized inner tube.

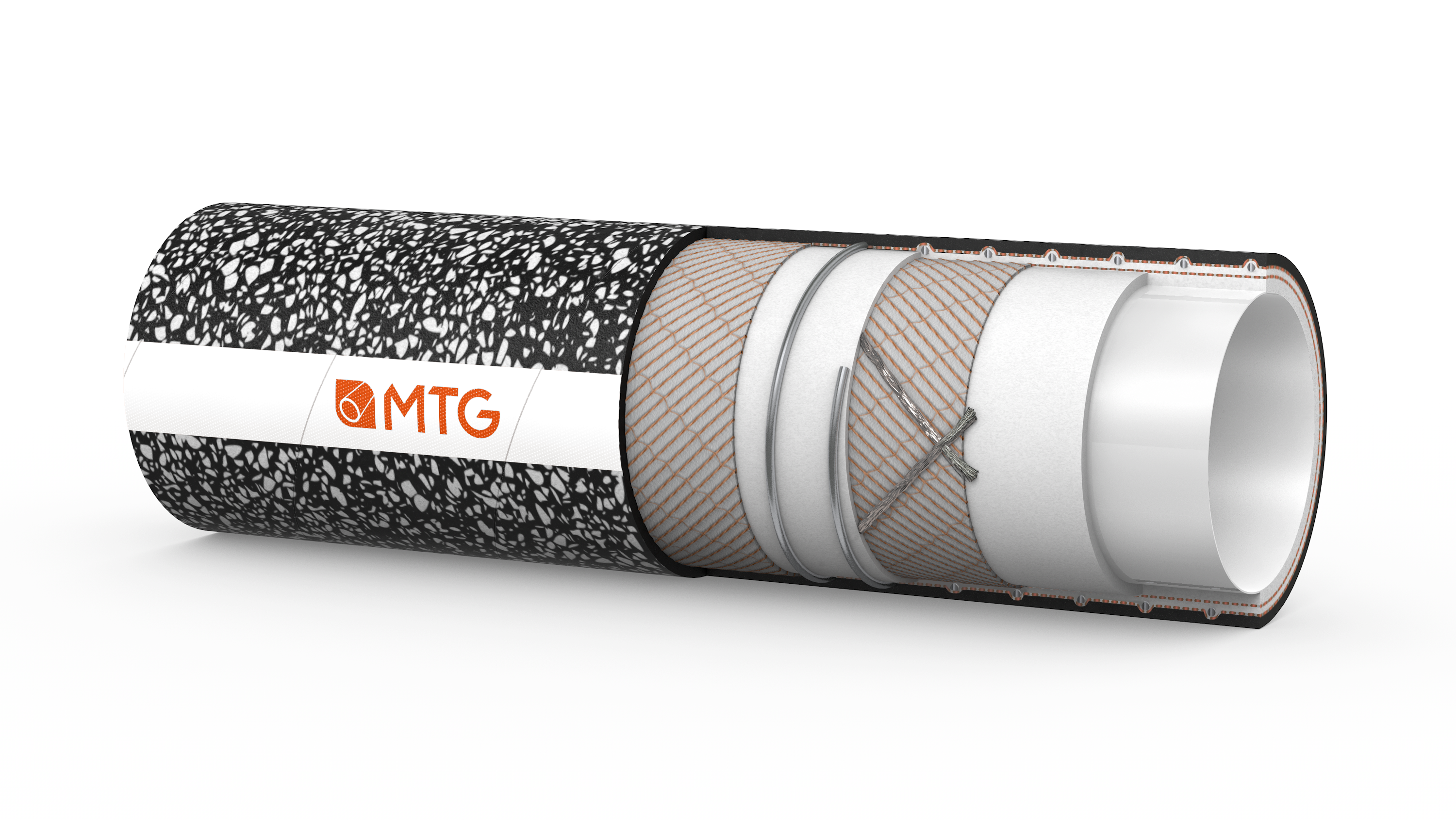

Construcion
TUBE
- PFA (Perfluoroalkoxy), white colour, fully fluorinated, mirror-smooth.
- Odourless and tasteless.
- Compliance: USP Class VI, 3A, FDA Standards, D.M. 21/03/73 and following amendments, Regulation EU n. 10/2011, ISO 10993-4, -10, -11, non-cytotoxic according to ISO 10993-Part 5.
REINFORCEMENT
- High strength plies of synthetic cord.
- Embedded steel helix wire.
- Two copper wires are embedded.
COVER
- Marble finish (UPE), black and white, patented, smooth, restistant to abrasion, ozone and ageing.
- Antistatic: Electrical resistance R< 10^6 Ω.
- The special marble finish with a low coefficient of friction complies with FDA Standards, odourless and tasteless. The cover does not stain the contact surfaces.
Safety factors
- ≥ 4 times working pressure.
Temperatures
- From -40°C to +130°C depending on the fluids conveyed and on use.
- Sterilization up to +150°C for max. 30 minutes.
- In case of dynamic application : from +10°C to +40°C.
Note
We suggest you to follow the instructions mentioned in the MTG “Use and maintenance guide for PFA/MFA hoses”.
Marking
Dimensional tolerance
I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius (Static)mm |
Min. bending radius (Dynamic)mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|---|
| 13 | 25 | 6 | 10 | 40 | 45 | 60 | -0,9 | 0,55 | 20 |
| 19 | 31 | 6 | 10 | 40 | 65 | 90 | -0,9 | 0,72 | 30 |
| 25 | 37 | 6 | 10 | 40 | 85 | 140 | -0,9 | 0,89 | 30 |
| 32 | 45 | 6,5 | 10 | 40 | 120 | 200 | -0,9 | 1,16 | 30 |
| 38 | 51 | 6,5 | 10 | 40 | 140 | 250 | -0,9 | 1,47 | 30 |
| 51 | 65,5 | 7,25 | 10 | 40 | 180 | 300 | -0,9 | 2,08 | 30 |
| 63,5 | 79,5 | 8 | 10 | 40 | 250 | 380 | -0,9 | 2,8 | 20 |
| 76 | 92 | 8 | 10 | 40 | 350 | 500 | -0,9 | 3,48 | 20 |
| 100 | 117 | 8 | 10 | 40 | 700 | 700 | -0,9 | 4,77 | 20 |
| Internal diam. inch |
External diam. inch |
Working pressure PSI |
Burst pressure PSI |
Min. bending radius (Static)inch |
Min. bending radius (Dynamic)inch |
Vacuum inHg |
Approx. weight lbs/ft |
Max. length ft |
|---|---|---|---|---|---|---|---|---|
| 1/2 | 0,98 | 150 | 600 | 1,77 | 2,36 | -26,57 | 0,37 | 65,6 |
| 3/4 | 1,22 | 150 | 600 | 2,56 | 3,54 | -26,57 | 0,49 | 98,4 |
| 1 | 1,46 | 150 | 600 | 3,35 | 5,51 | -26,57 | 0,6 | 98,4 |
| 1 1/4 | 1,77 | 150 | 600 | 4,73 | 7,88 | -26,57 | 0,78 | 98,4 |
| 1 1/2 | 2 | 150 | 600 | 5,51 | 9,8 | -26,57 | 0,99 | 98,4 |
| 2 | 2,58 | 150 | 600 | 7,09 | 11,81 | -26,57 | 1,4 | 98,4 |
| 2 1/2 | 3,13 | 150 | 600 | 9,8 | 14,96 | -26,57 | 1,88 | 65,6 |
| 3 | 3,62 | 150 | 600 | 13,78 | 19,69 | -26,57 | 2,34 | 65,6 |
| 4 | 4,6 | 150 | 600 | 27,55 | 27,55 | -26,57 | 3,2 | 65,6 |
Chemical resistance acc. to MTG Chemical Resistance Chart. Above technical data refer to application at room temperature (+20°C).
Other sizes and colours available upon request. Please contact our Sales Department.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
