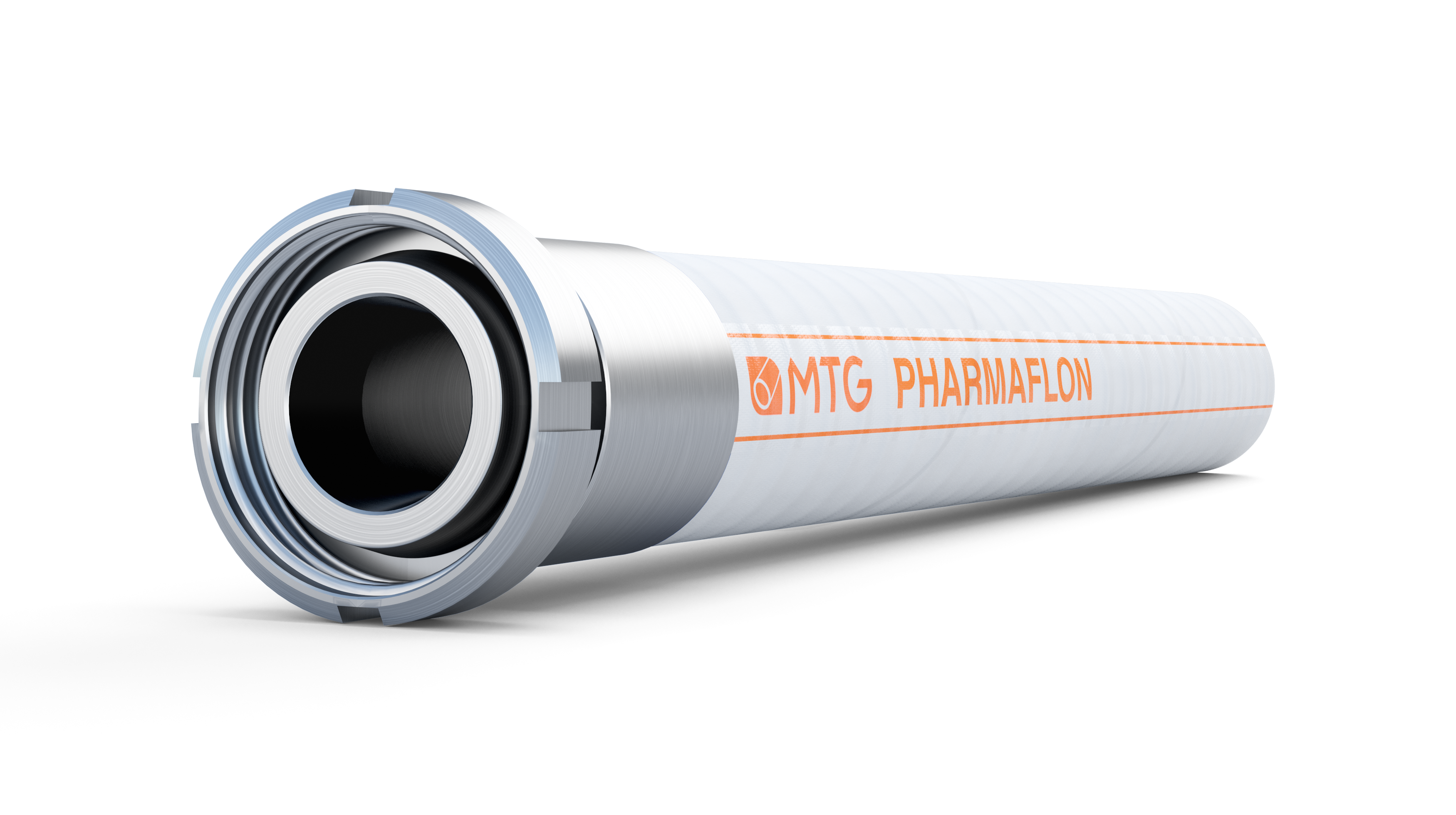

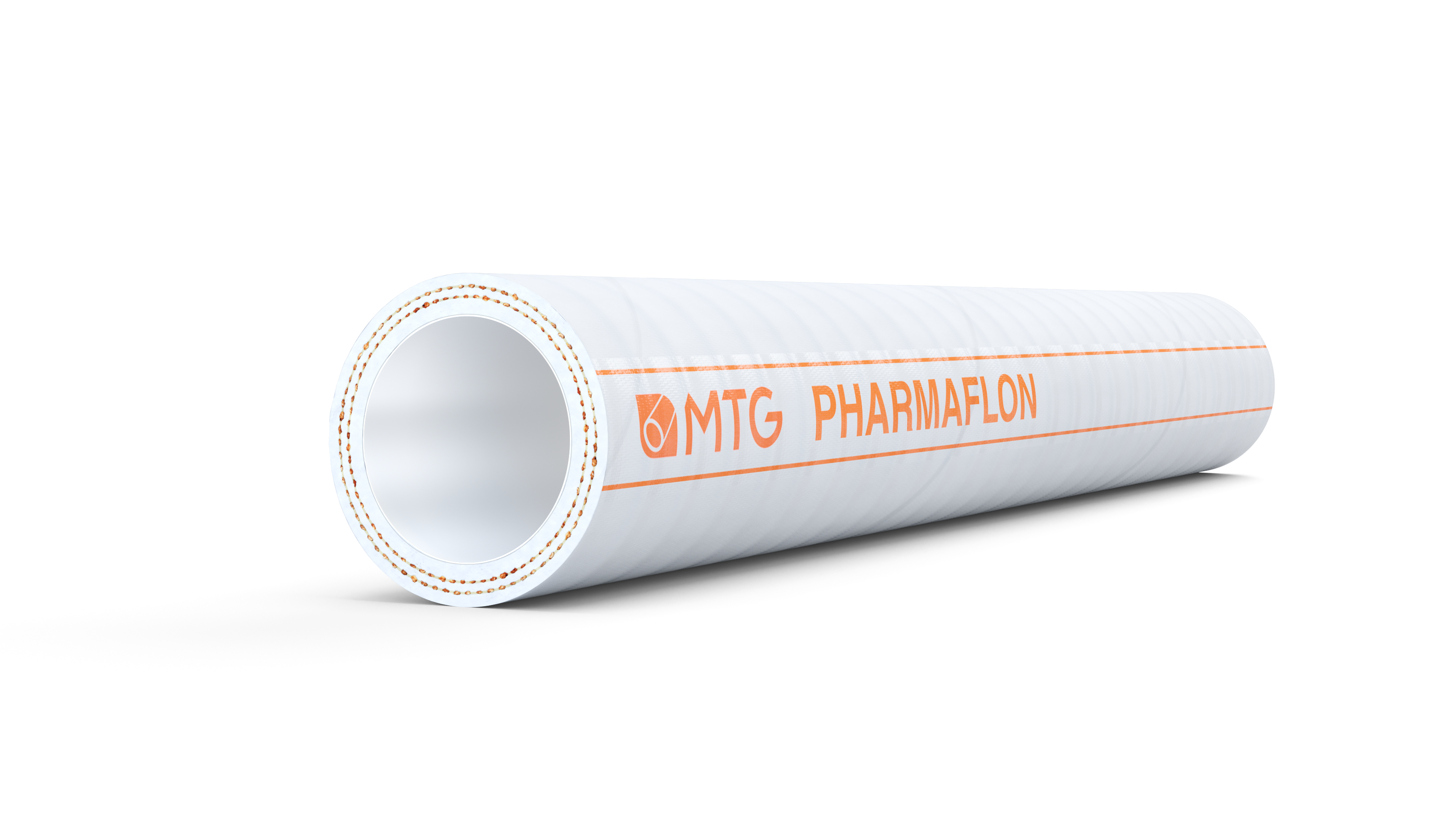

MTG PHARMAFLON

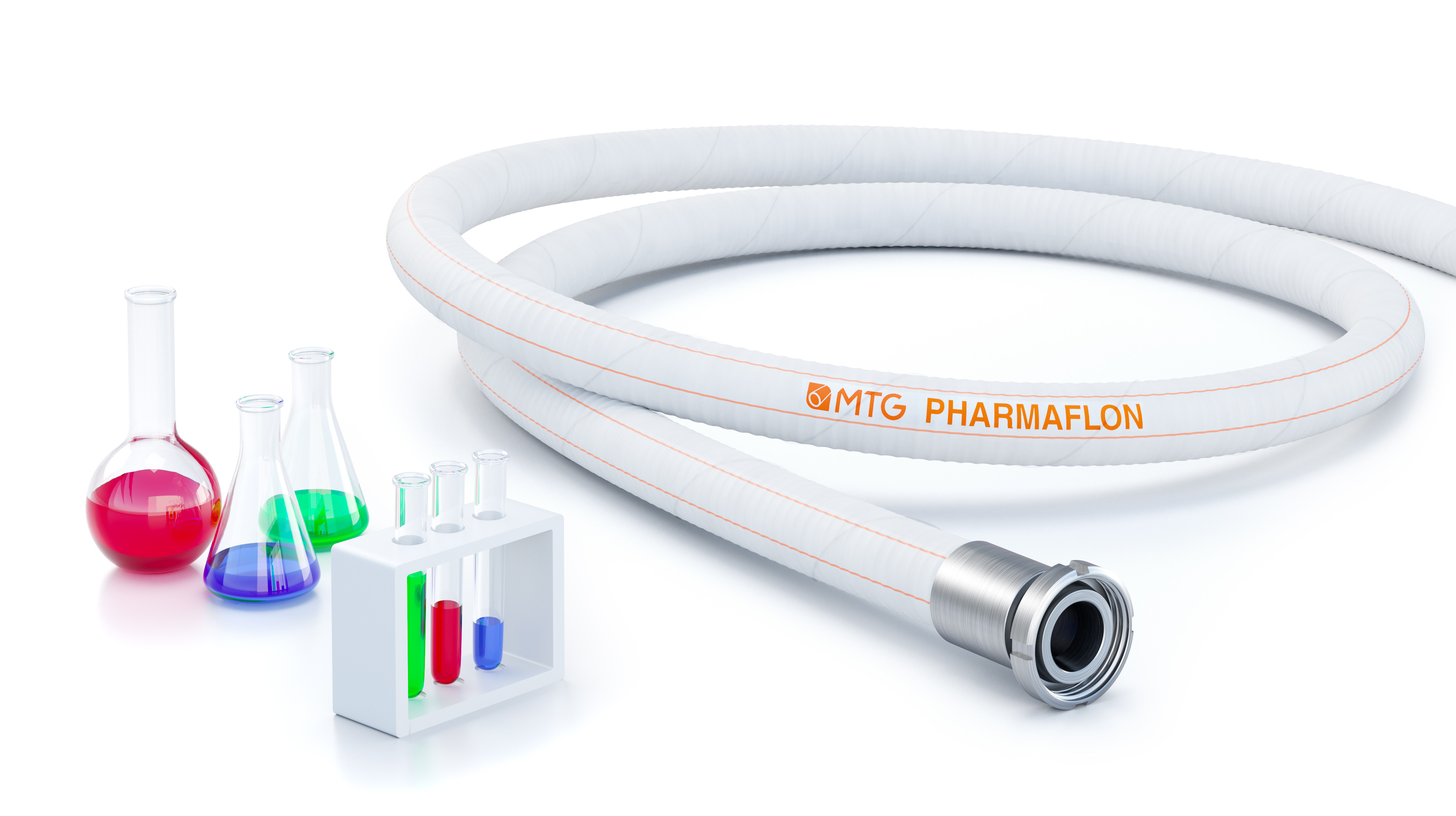

Multipurpose hose, specifically designed for conveying chemical, pharmaceutical, cosmetic and food products in pharma-cosmetic, biotech and food industries.
Excellent solution for processing industries requiring utmost safety during the transfer of high purity products.
Suction and delivery hose.
PATENTS: EP 1450092.
More detailsMain benefits
- It provides an excellent resistance to extreme temperatures and a good resistance to mechanical stress.
- The cover prevents any potential risk of contamination of the working environments.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).

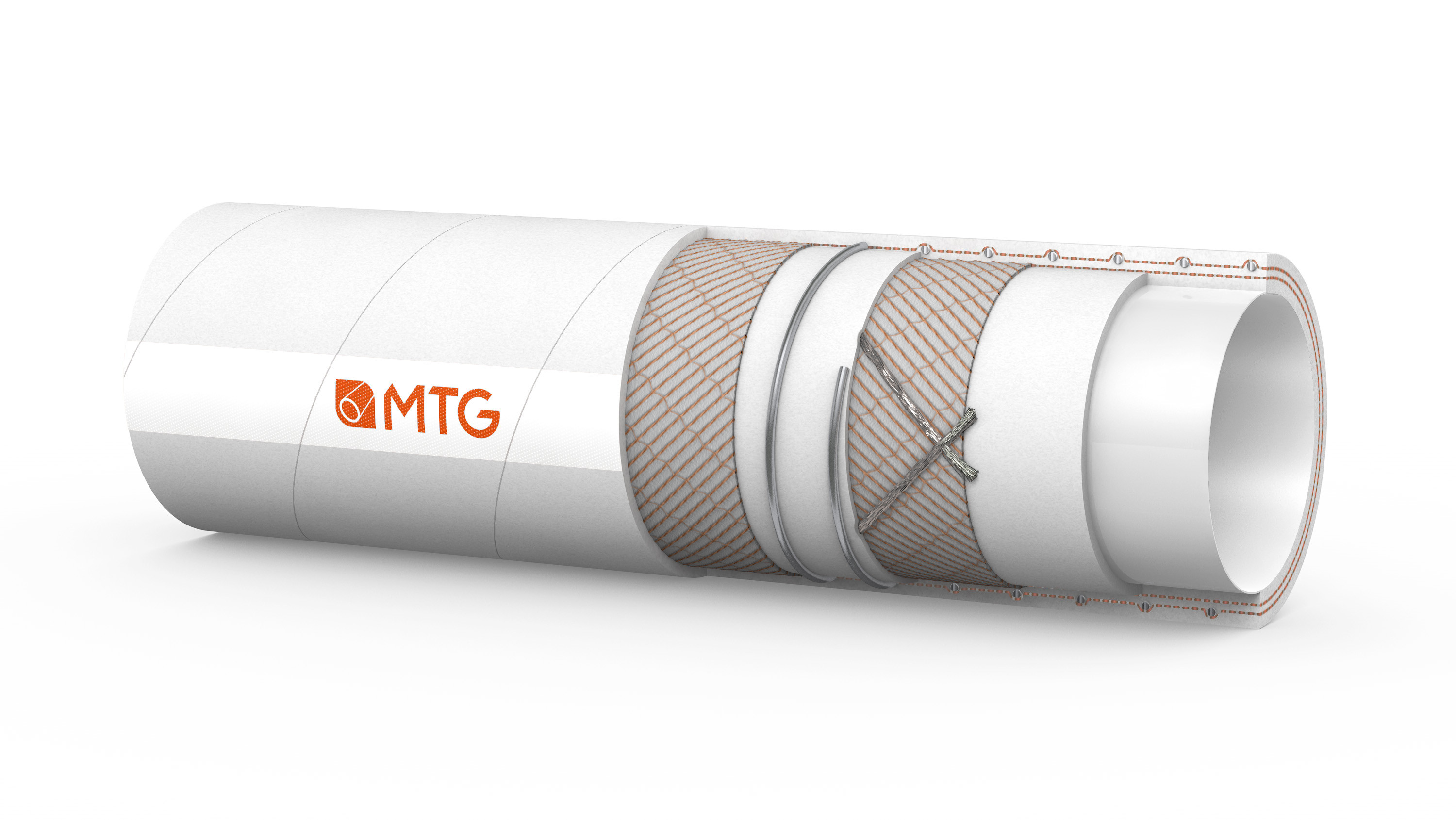

Construcion
TUBE
- MFA (Perfluoralkoxy), light colour, fully fluorinated, mirror-smooth.
- Compliance: USP Class VI, FDA Standards, D.M. 21/03/73 and following amendments and Regulation EU n. 10/2011.
- Absolute and long-term resistance to heat, cracking under stress, and bending.
REINFORCEMENTS
- High strength plies of synthetic cord and embedded steel wire helix.
- Two copper wires.
COVER
- EPDM rubber (code 140BI), light colour, smooth, food quality, abrasion, ozone and weather resistant, cloth finish.
- Compliance acc. to FDA Standards.
Safety factors
- ≥ 4 volte la pressione di esercizio.
Temperatures
From -50°C to +170°C depending on the fluids conveyed.
The a.m. temperature range has to be considered as a rough indication referring to most chemicals; however it does not include the most aggressive product combinations and conditions of use. For specific applications please contact our Technical Department.
Note
We suggest you to follow the instructions mentioned in the MTG “Use and maintenance guide for PFA/MFA hoses”.
Sterilization
Sterilization up to +130°C for max. 30 minutes.
Marking
Dimensional tolerance
I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 13 | 25 | 6 | 10 | 40 | 60 | -0,9 | 0,55 | 20 |
| 19 | 31 | 6 | 10 | 40 | 90 | -0,9 | 0,72 | 30 |
| 25 | 37 | 6 | 10 | 40 | 140 | -0,9 | 0,89 | 30 |
| 32 | 45 | 6,5 | 10 | 40 | 200 | -0,9 | 1,2 | 30 |
| 38 | 51 | 6,5 | 10 | 40 | 250 | -0,9 | 1,47 | 30 |
| 51 | 65,5 | 7,25 | 10 | 40 | 300 | -0,9 | 2,08 | 30 |
| 63,5 | 79,5 | 8 | 10 | 40 | 380 | -0,9 | 3 | 20 |
| 76 | 92 | 8 | 10 | 40 | 500 | -0,9 | 3,48 | 20 |
| 100 | 116 | 8 | 10 | 40 | 550 | -0,9 | 4,9 | 20 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 1/2 | 0,98 | 150 | 600 | 2,36 | -26,57 | 0,37 | 65,6 |
| 3/4 | 1,22 | 150 | 600 | 3,54 | -26,57 | 0,49 | 98,4 |
| 1 | 1,46 | 150 | 600 | 5,51 | -26,57 | 0,6 | 98,4 |
| 1 1/4 | 1,77 | 150 | 600 | 7,88 | -26,57 | 0,81 | 98,4 |
| 1 1/2 | 2 | 150 | 600 | 9,84 | -26,57 | 0,99 | 98,4 |
| 2 | 2,58 | 150 | 600 | 11,81 | -26,57 | 1,4 | 98,4 |
| 2 1/2 | 3,13 | 150 | 600 | 14,96 | -26,57 | 2,02 | 65,6 |
| 3 | 3,62 | 150 | 600 | 19,69 | -26,57 | 2,34 | 65,6 |
| 3 15/16 | 4,57 | 150 | 600 | 21,65 | -26,57 | 3,29 | 65,6 |
Chemical resistance acc. to MTG Chemical Resistance Chart.
Above technical data refer to application at room temperature (+20°C).
Other sizes and colours available upon request. Please contact our Sales Department.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
