Pharmaceutical industry

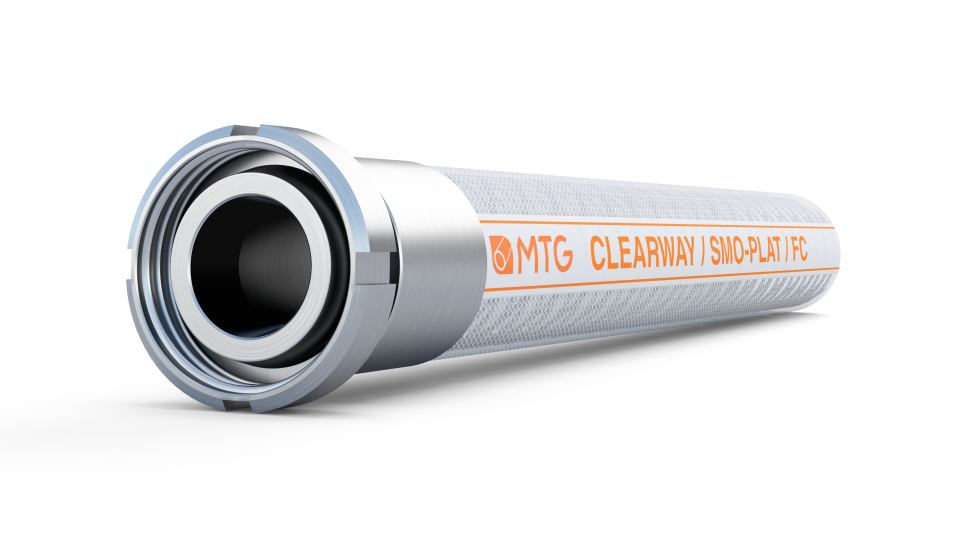

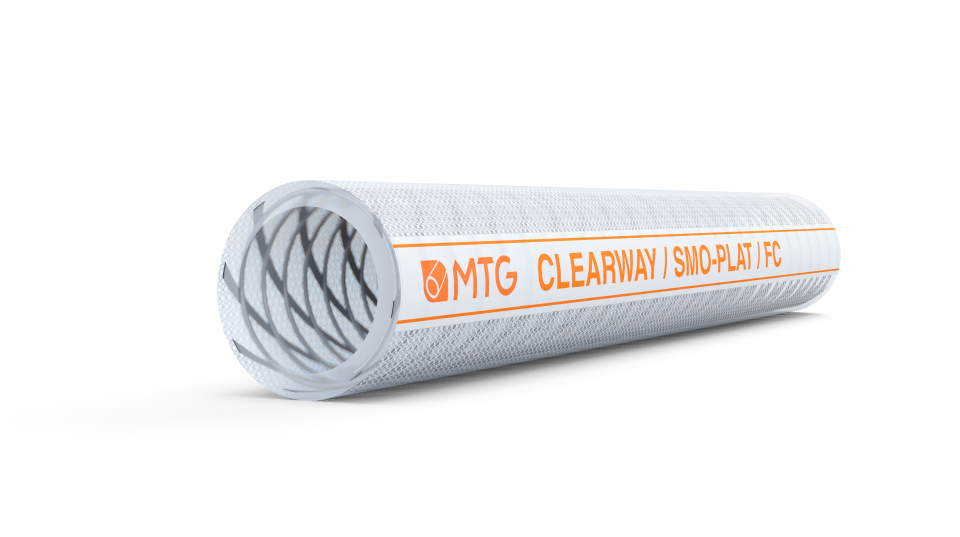

MTG CLEARWAY/SMO-PLAT/FC

Silicone hose for suction of air mixed with non-abrasive high purity powders.

Suitable for process applications requiring a tight bending radius and easy handling.

Normally used for vacuum cleaners in pharmaceutical and cosmetic industries.

Special version made with carbon fiber fabric to dissipate the electrostatic charges created by the friction of the powders on the hose walls.

More details

Main benefits

  • Platinum-cured silicone hose with non-stick properties.
  • Made in Cleanroom ISO 14644-1 Class 8.
  • Safe solution for use in the aseptic environments and sanitary applications: utmost care is used starting from the choice of high-purity ingredients, production and storing procedures.
  • Pharma-grade validation: the advanced MTG CLEARWAY/SMO-PLAT/FC design has been tested in accordance with USP Class VI, EU Pharmacopoeia and FDA Standards.
  • Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates, nitrosamines and materials subject to restrictions according to EC 1907/2006 (REACH).
  • Non-plasticized hose.

Construcion

TUBE

  • Translucent silicone rubber (code 3362PT), pharmaceutical and food quality, odourless and tasteless, mirror-smooth.

REINFORCEMENT

  • Carbon fiber fabric.
  • Embedded stainless steel helix wire AISI 304 and high strength polyester plies.

COVER

  • Translucent silicone rubber (code 3362PT), pharmaceutical and food quality.

Temperatures

  • From -0°C to +50°C.

Note

  • To dissipate any electrostatic charges, the hose must be grounded with the installation.

Norms

  • Compliance: US Pharmacopoeia Class VI, FDA Standards, BfR Recommendations, European Pharmacopoeia 3.1.9, ISO 10993-4, -10, -11, non-cytotoxic acc. to ISO 10993-Part 5.

Marking

Dimensional tollerance

I.D.: ISO 1307– Wall thickness: +1/-0.5 mm – Length: ISO 1307

Internal diam
mm
External diam.
mm
Wall thickness
mm
Min. bending radius
mm
Vacuum
BAR
Approx. weight
kg/m
Max. length
m
25 30 2,5 50 -0,7 0,214 10
38 43 2,5 80 -0,7 0,317 10
50 56 3 125 -0,7 0,482 10
63,5 70,1 3 190 -0,7 0,708 10
Internal diam
inch
External diam.
inch
Min. bending radius
inch
Vacuum
BAR
Approx. weight
kg/m
Max. length
m
1 1,18 1,97 -20,67 0,14 32,8
1,5 1,69 3,15 -20,67 0,21 32,8
1,96875 2,2 4,92 -20,67 0,32 32,8
2,5 2,76 7,48 -20,67 0,47 32,8

Chemical resistance acc. to MTG Chemical Resistance Chart. Above technical data refer to application at room temperature (+20°C).
Other sizes are available upon request. Please contact our Sales Department.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
