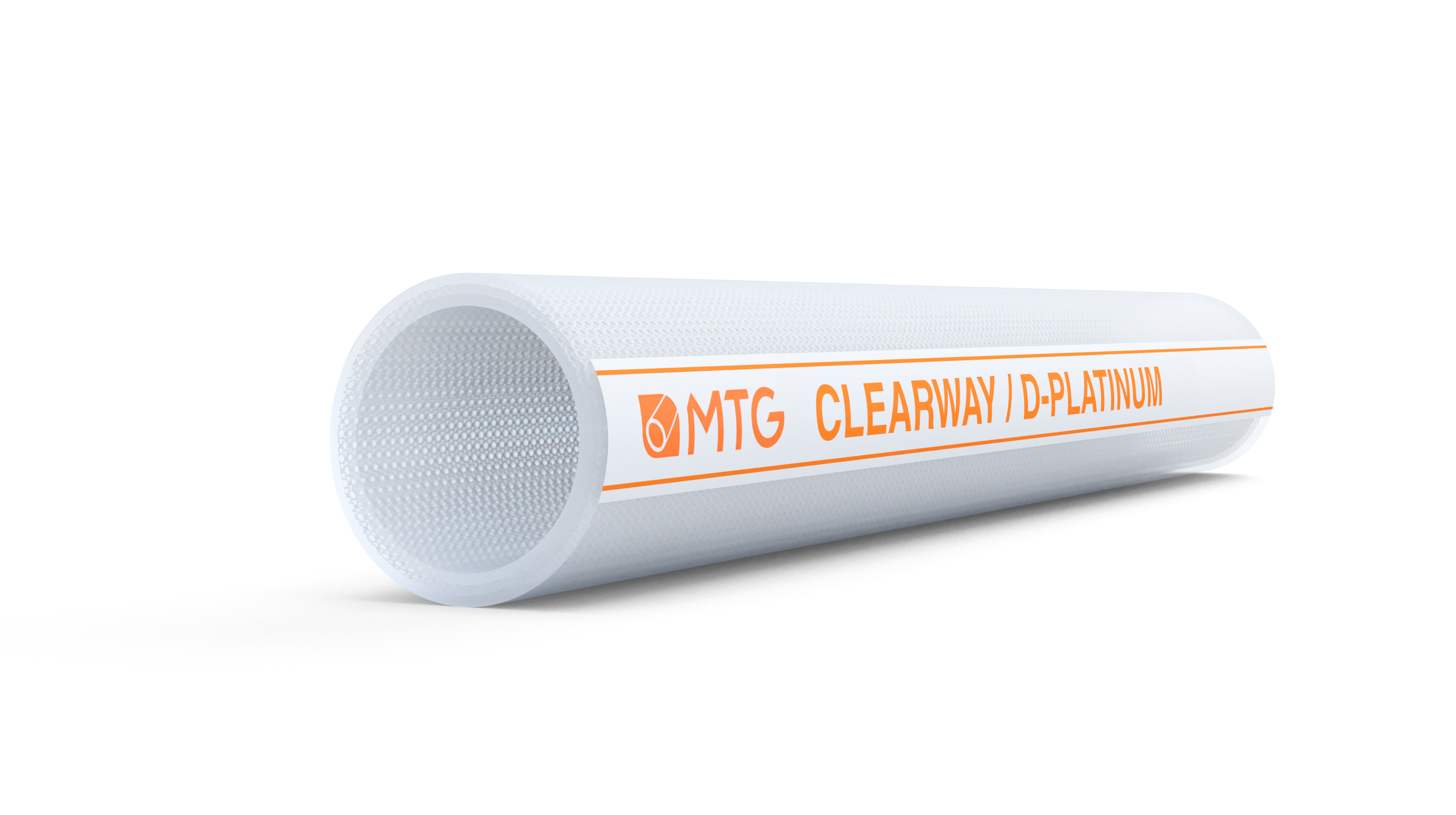

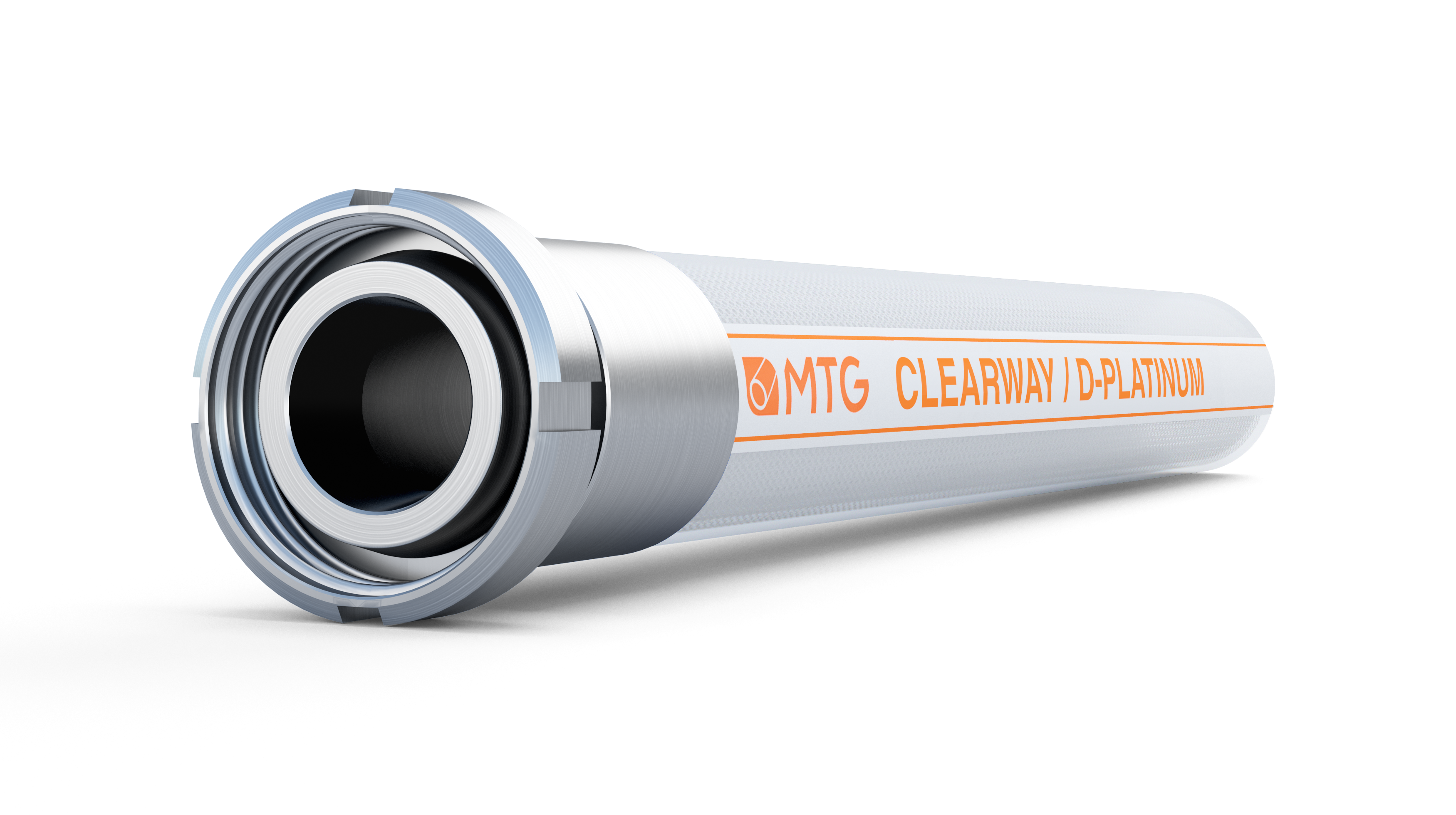

MTG CLEARWAY/D-PLATINUM

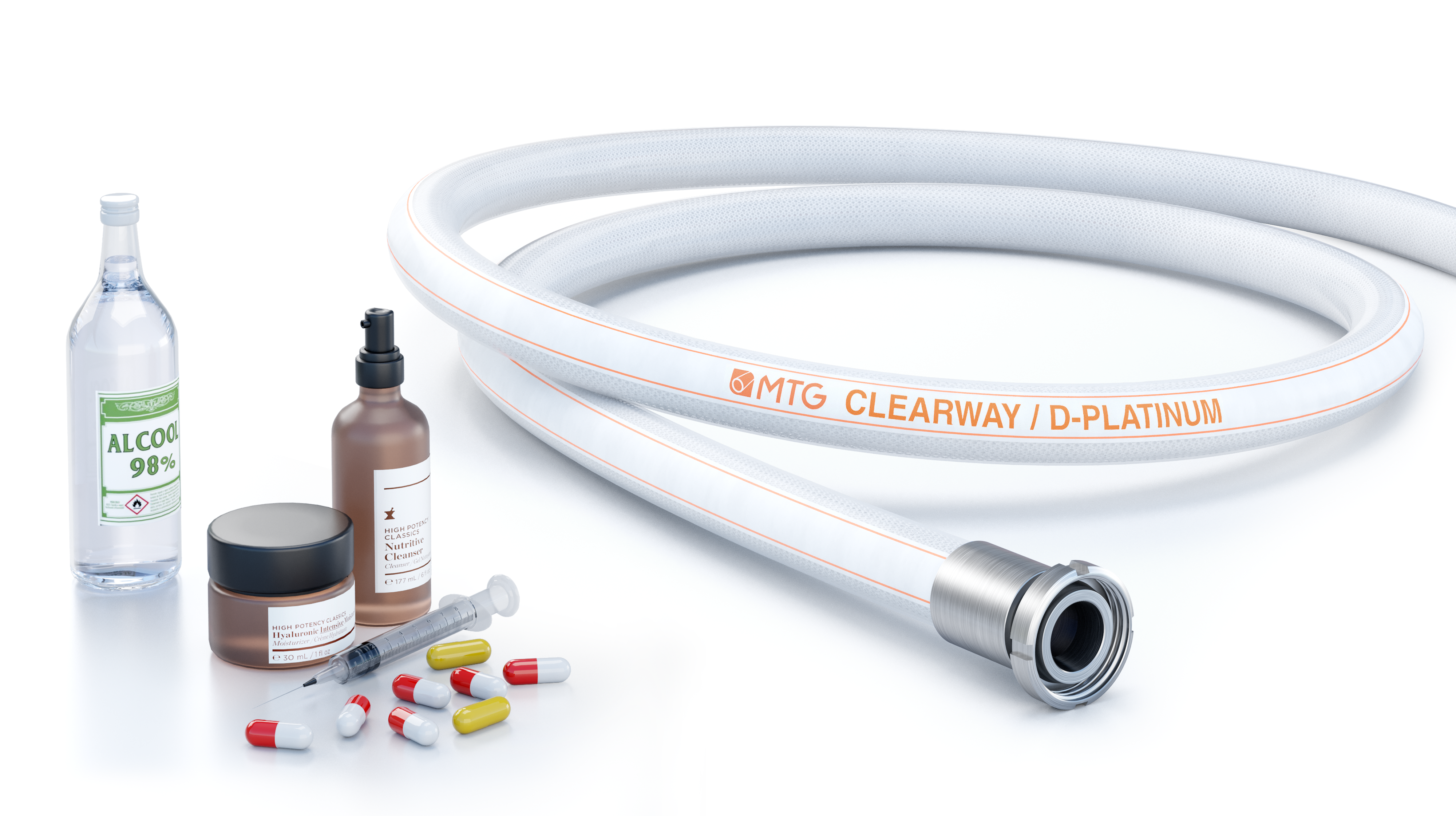

Silicone hose for delivery of high purity products, foodstuff and fluids with alcohol content up to 96%.
Normally used in food, pharmaceutical and cosmetic industries.
Main benefits
- Platinum-cured silicone hose with non-stick properties.
- Made in cleanroom ISO 14644-1 class 8.
- Used in aseptic environments and sanitary applications: produced with the utmost care, from the choice of high-purity ingredients to production and storing procedures.
- Pharma grade validation: tested in accordance with USP Class VI and EU Pharmacopoeia.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP).
- The MTG production cycle is free from animal derived ingredients, phthalates, adipates, nitrosamines, and materials subject to restrictions acc. to EC 1907/2006 (REACH).
- Non-plasticized hose.

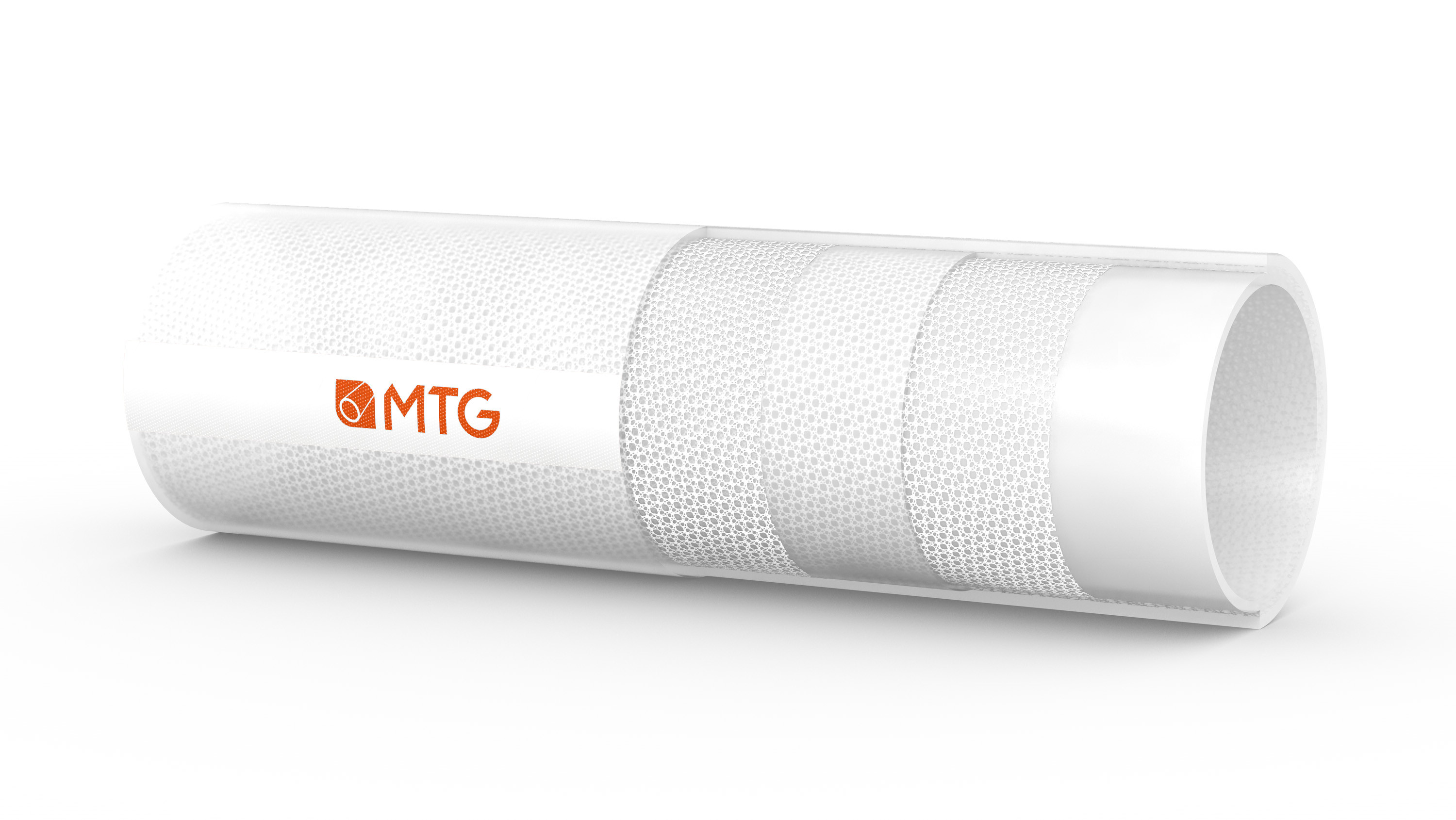

Construcion
TUBE
- Silicone rubber, translucent (code silicone 3362PT), food and pharmaceutical quality, odourless and tasteless, smooth, glossy finish.
REINFORCEMENT
- High-strength plies of synthetic cord.
COVER
- Silicone rubber, translucent (code silicone 3362PT), food and pharmaceutical quality, odourless and tasteless. Smooth with glossy finish.
- It may easily be washed with any mild detergents.
Safety factors
- ≥ 4 times working pressure.
Temperatures
- From -60°C up to +200°C.
Sterilization
- Sterilization with steam up to +135°C , at 3.5 bar for max 90 minutes.
- Sterilization with hot air up to +200°C for max 30 minutes.
- Sterilizations repeated at intervals of less than 1 hour may seriously affect the mechanical features of the hose.
Norms
- US Pharmacopoeia Class VI, non-cytotoxic acc. to ISO 10993-Part 5.
- Compliance: 3-A Sanitary Standards n.18-03-Class I, FDA Standards, BfR, European Pharmacopoeia 3.1.9, ISO 10993-4, -10, -11.
Marking
Dimensional tolerance
I.D.: ISO 1307 – Wall thickness: +1/-0.5mm – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 13 | 24 | 5.5 | 10 | 40 | --- | --- | 0.374 | 20 |
| 19 | 30 | 5.5 | 10 | 40 | --- | --- | 0.490 | 20 |
| 25 | 37 | 6.0 | 10 | 40 | --- | --- | 0.602 | 20 |
| 38 | 49 | 5.5 | 10 | 40 | --- | --- | 0.862 | 20 |
| 51 | 62 | 5.5 | 7 | 28 | --- | --- | 1,222 | 20 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 1/2 | 0,94 | 150 | 600 | --- | --- | 0,251 | 65,6 |
| 3/4 | 1,18 | 150 | 600 | --- | --- | 0,329 | 65,6 |
| 1 | 1,46 | 150 | 600 | --- | --- | 0,404 | 65,6 |
| 1 1/2 | 1,93 | 150 | 600 | --- | --- | 0,578 | 65,6 |
| 2 | 2,44 | 150 | 420 | --- | --- | 0,820 | 65,6 |
(*) At a temperature of +100°C the W.P. decreases by 20%
Chemical resistance acc. to MTG Chemical Resistance Chart. Above technical data refer to application at room temperature (+20°C).
Other sizes available upon request. Please contact our Sales Department.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
