Railway sector

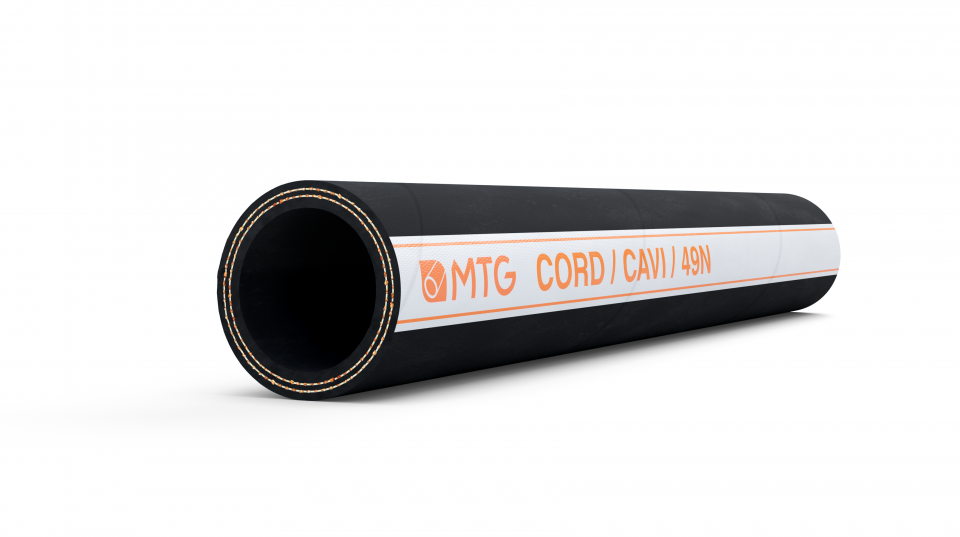

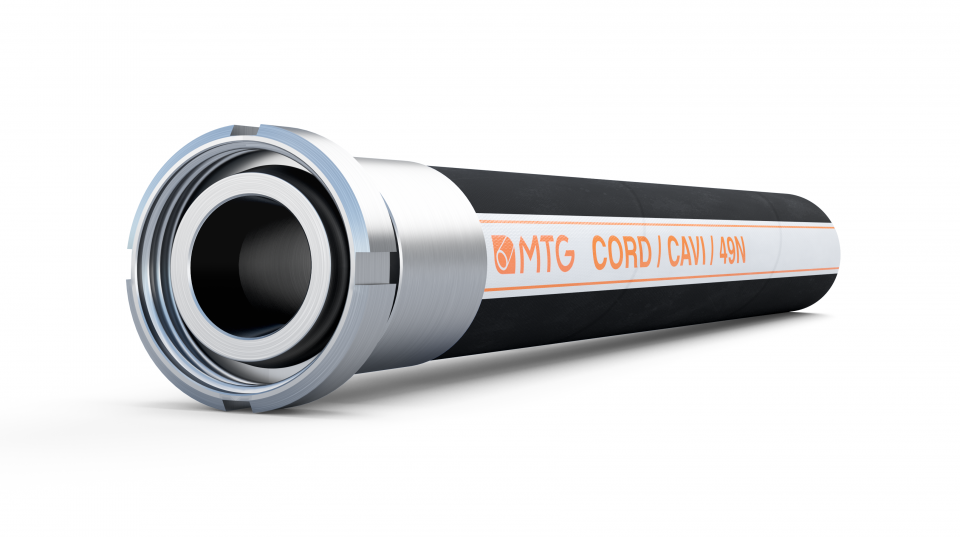

CORD/CAVI/49N

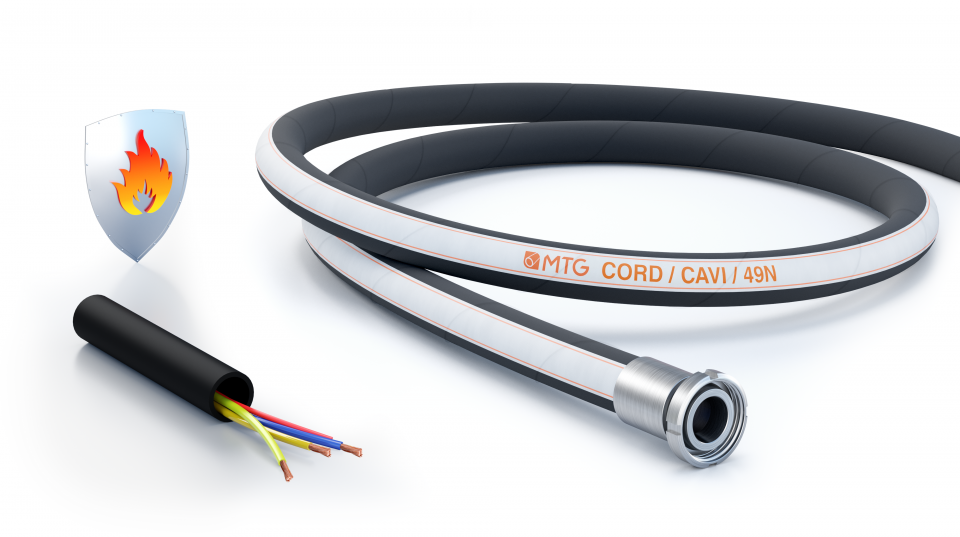

CORD/CAVI/49N is a cable protection hose, flame retardant, low opacity of fumes, low emission of halogen gases.
Self-extinguishing ability – flame resistance – low emission of halogen gases – low opacity of smokes.
Excellent insulation properties – excellent resistance to ageing and weather conditions.
More detailsConstrucion

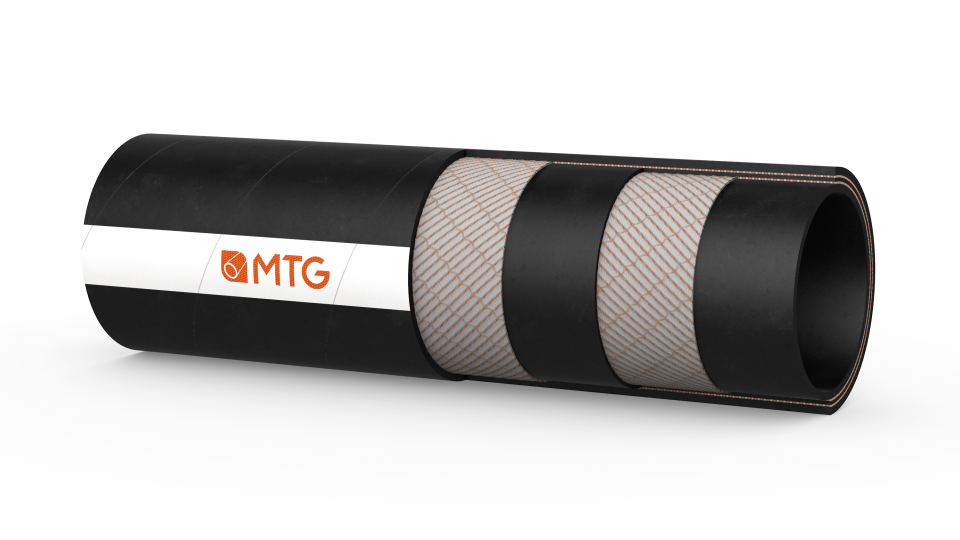

TUBE
- Synthetic rubber, self-extinguishing, black, smooth.
REINFORCEMENT
- Plies of synthetic cord.
COVER
- Synthetic rubber, self-extinguishing, black colour, cloth finish, resistant to ozone and weather.
Temperatures
- From -30°C up to +90°C.
Note
DIELECTRIC RIGIDITY
- ≥ 5000 V/mm.
Norms and certifications
- UNI EN 45545-2:2015 (fire testing of materials and components for trains): HL3 for R22 and R23.
- Italian Railway Standards S.T. FS 304188.3.
- Elettromeccanica Parizzi 00440004NM.
- UNI CEI 11170-3/05 (Reaction to fire): complies with all risk levels up to LR4 included.
- ASTM C 542 and CEI 20-35 (Reaction to fire).
- NF X 10-702 – 1 and 2 (Low opacity of fumes).
- NF X 70-100 – 1 and 2 (Low toxicity of gases).
- EN 11925-2/2002 (fire reaction with a single ignition source).
- Certificate “LAPI n°: 315.1IS0040/15 dated 20/03/2015”, test method: UNI EN 45545-2:2015.
Dimensional tolerance
As indicated in the S.T. FS 304188.3.
Chemical resistance acc. to MTG Chemical Resistance Chart.
Other sizes and colours available upon request.
Please contact our Sales Department.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
