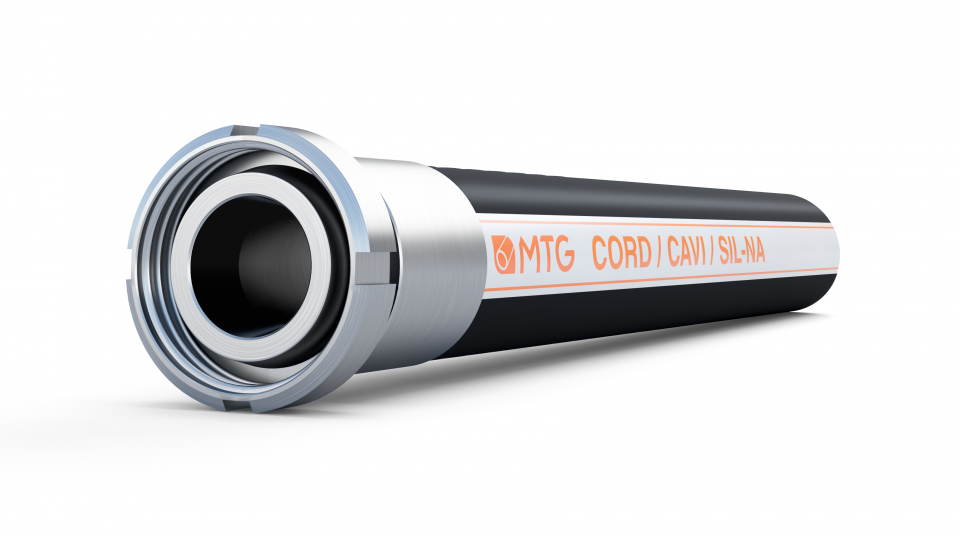

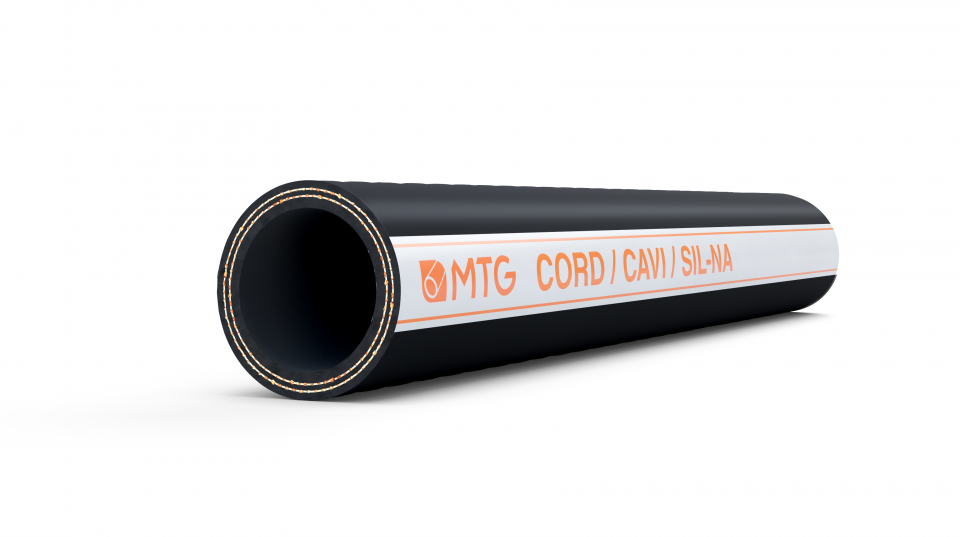

CORD/CAVI/SIL-NA
CORD/CAVI/SIL-NA is an electric cable protection hose, flame retardant, low emission of halogen gases, suitable for use under extreme temperature conditions.
More detailsMain benefits
- Good resistance to mineral oil mist.
- Self-extinguishing ability – flame resistance – low emission of halogen gases – low opacity of smokes.
- Excellent insulation properties – excellent resistance to ageing and weather conditions.

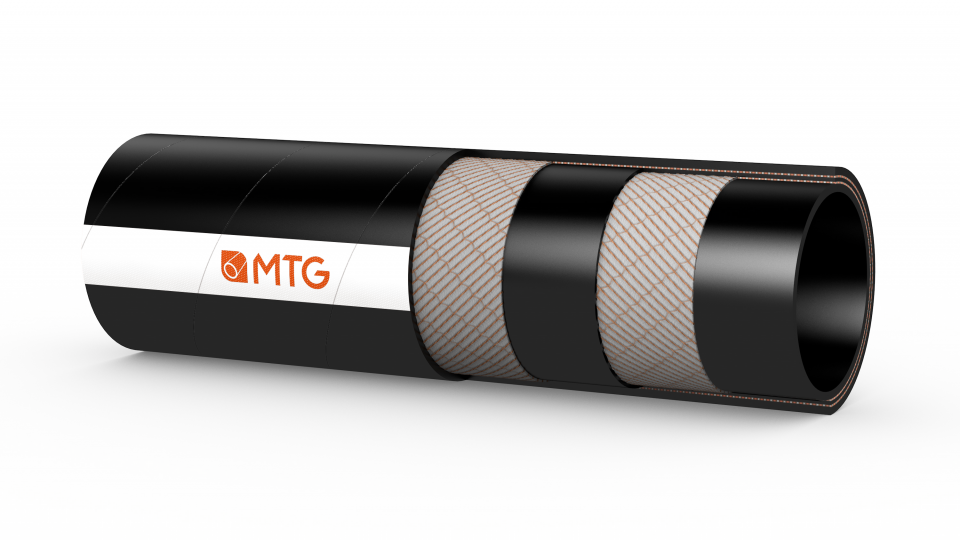

Construcion
Hose made of MTG rubber code 3362NA.
TUBE
- Silicone rubber, self-extinguishing, black colour, smooth.
REINFORCEMENTS
- Tear resistant plies of synthetic cord.
COVER
- Silicone rubber, smooth, self-extinguishing, black colour, cloth finish, resistant to ozone and weather.
Temperatures
- From -50°C up to +180°C.
Note
DIELECTRIC STRENGTH
- ≥ 5000 V/mm.
Norms compliance and Certifications
- UNI EN 45545-2:2015 (fire testing of materials and components for trains): HL2 for R22 and HL3 for R23.
- Italian Railway Standards S.T. FS 304188.3.
- UNI CEI 11170-3/05 (Reaction to fire): complies with all risk levels up to LR4 included.
- ASTM C 542 and CEI 20-35 (Reaction to fire).
- NF X 10-702 – 1 and 2 (Low opacity of fumes).
- NF X 70-100 – 1 and 2 (Low toxicity of gases).
- EN 11925-2/2002 (fire reaction with a single ignition source).
- Certificate “LAPI n°: 595.1IS0040/13 dated 28/05/2013”, test method: EN 45545-2:2015.
Dimensional tolerance
Inner diameter: ISO 1307. Wall Thickness: DIN 7715 T4 S2. Length: ISO 1307
Chemical resistance acc. to MTG Chemical Resistance Chart.
Other sizes and colours are available upon request. Please contact our Sales Department
