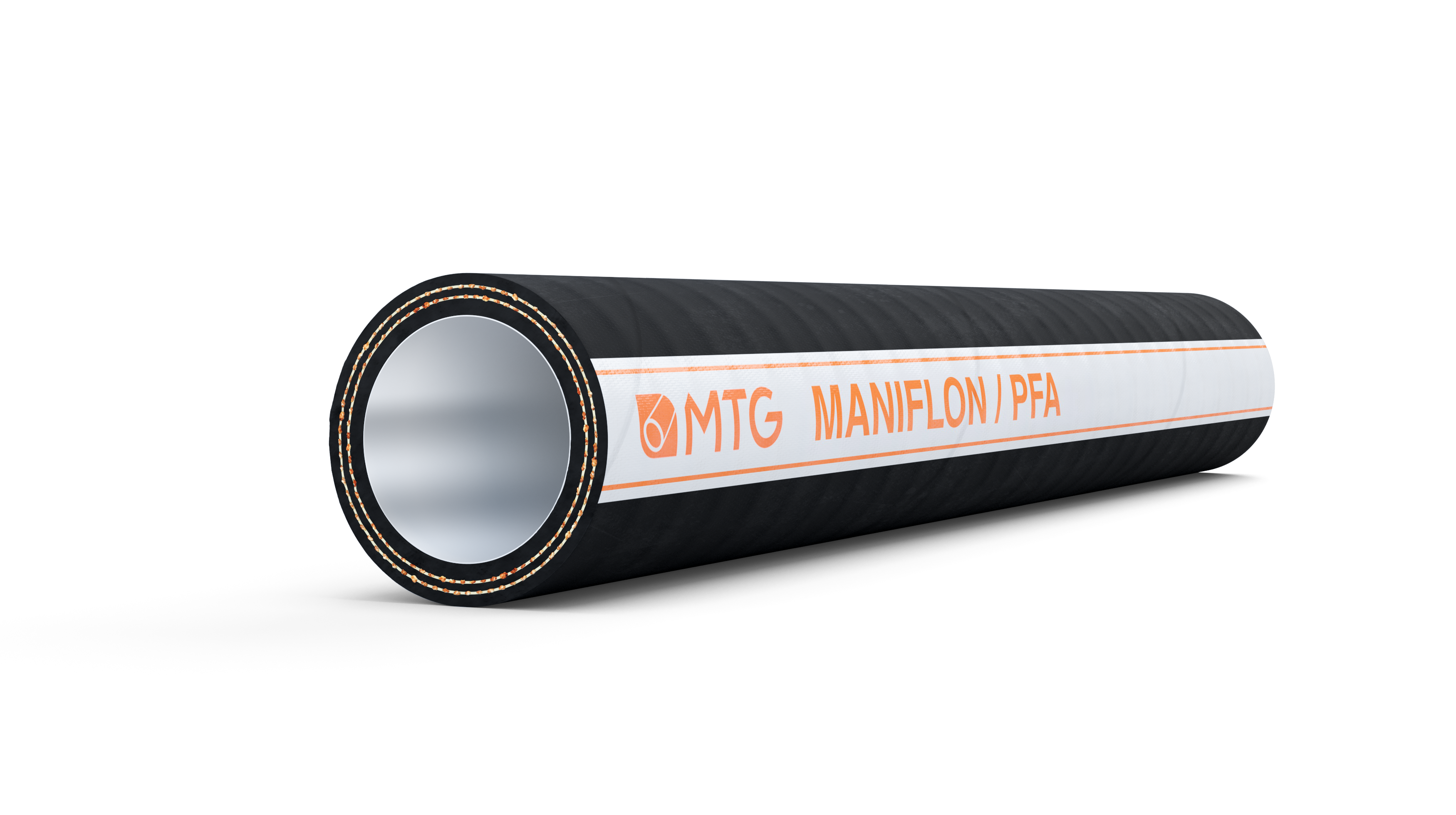

MANIFLON/SD-PFA

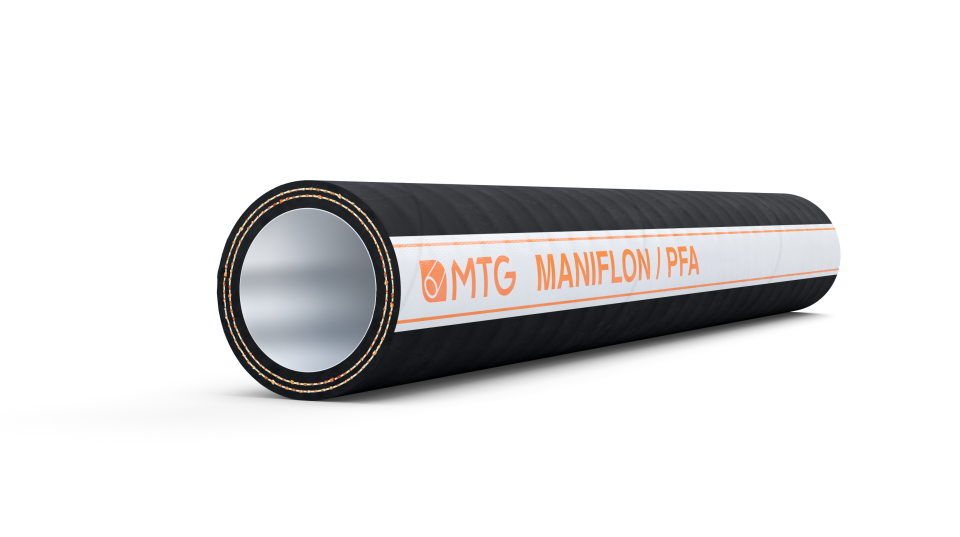

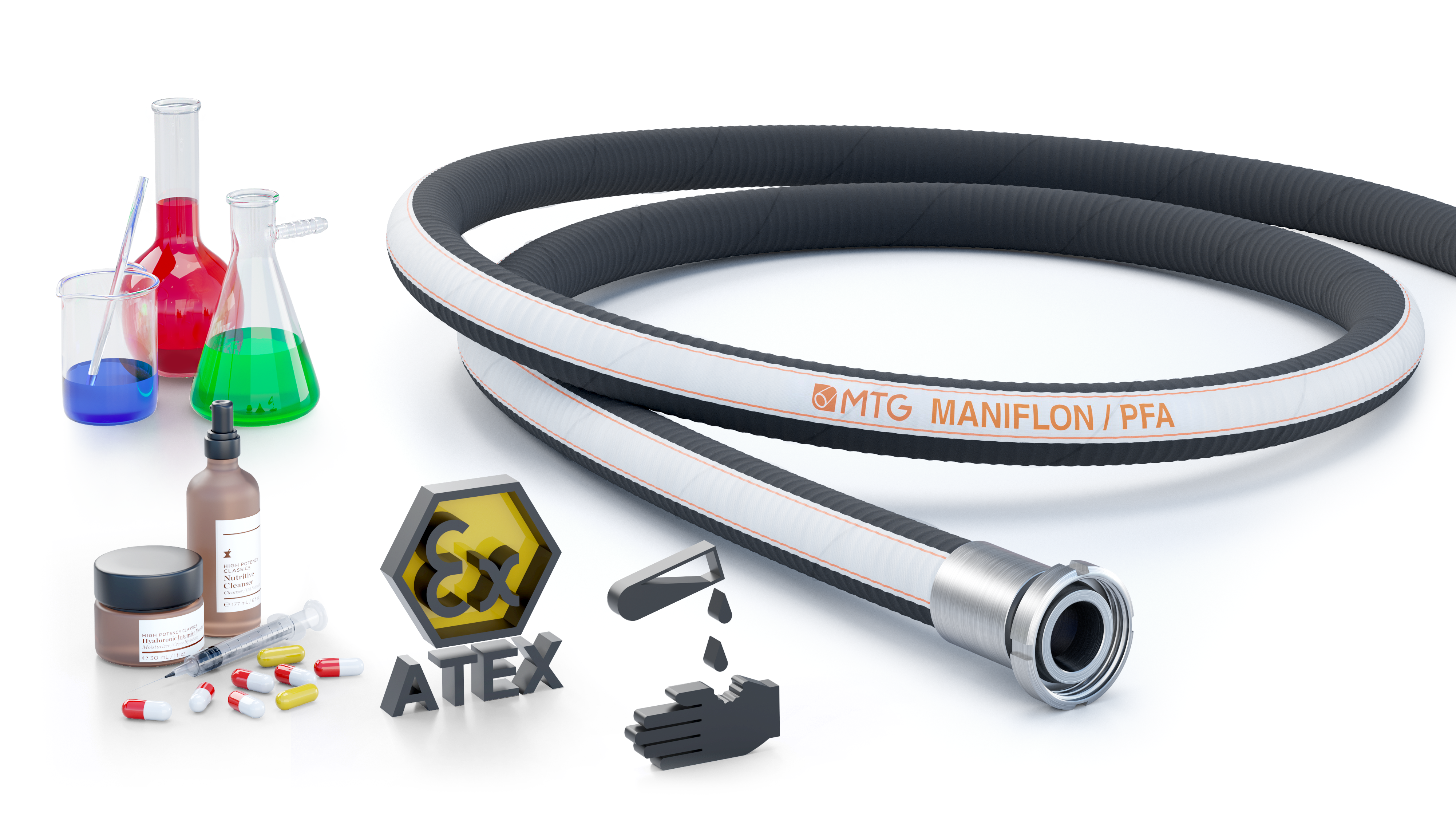

Universal hose for the transfer in delivery and suction of solvents and high concentration chemical products. Executed in accordance with the standard EN 12115:2021. MANIFLON/SD-PFA is approved by the Ineris Institute for use in ATEX zones. Certificate no. IDE-229936-2803516-v2.0.
PATENT: E.P. 1450092
More detailsMain benefits
- The fluorinated inner liner ensures an excellent impermeability and resistance to oxidation, temperature and mechanical stress, thus avoiding cracks.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).
Construcion

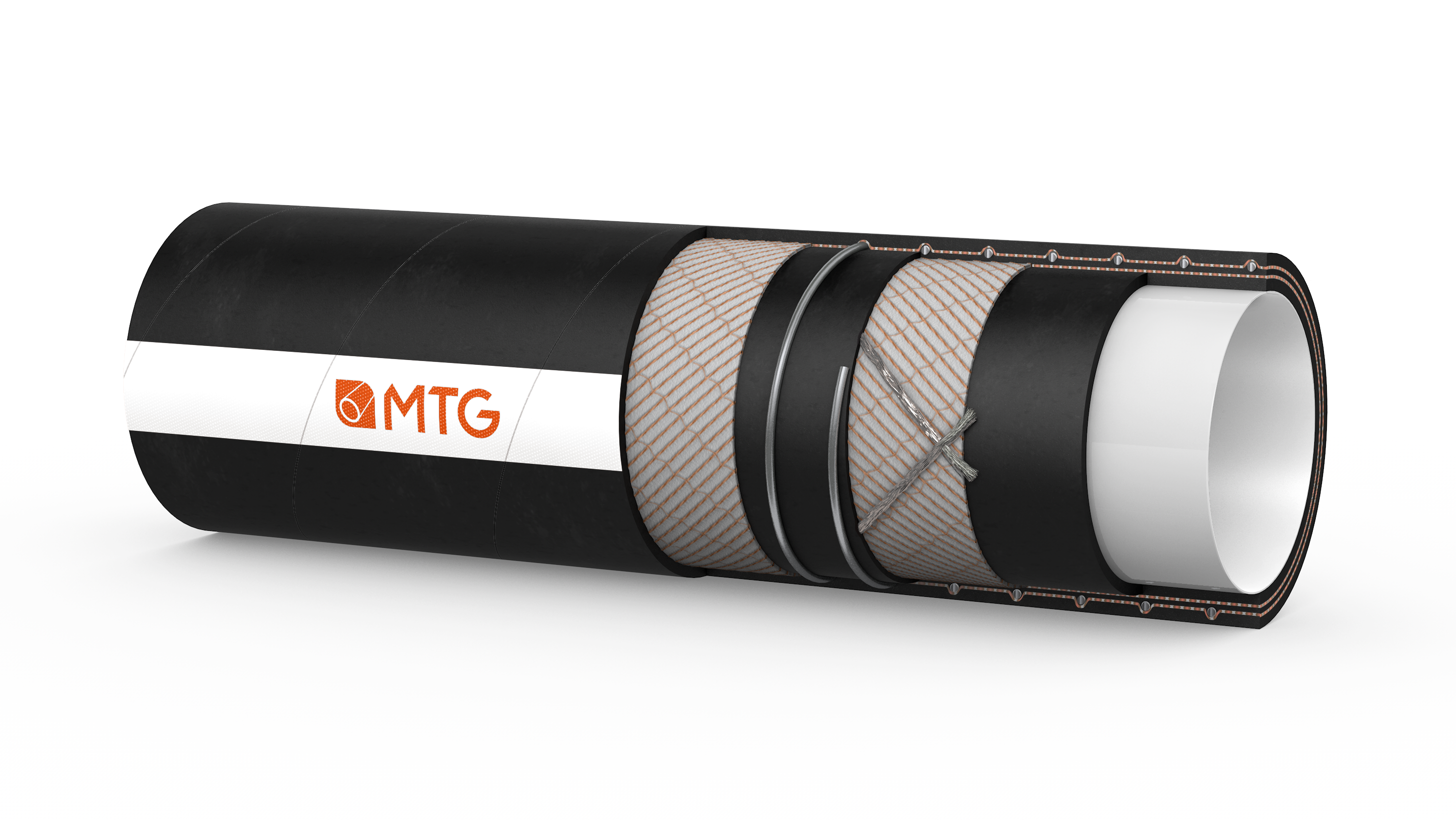

TUBE
- PFA (Perfluoralkoxy), white colour, fully fluorinated, mirror-smooth.
- Compliance: USP Class VI, 3-A Sanitary Standards n.20-27, FDA Standards, D.M. 21/03/73 and following amendments, Regulation EU n. 10/2011, ISO 10993-4, -10, -11, non-cytotoxic according to ISO 10993-Part 5.
REINFORCEMENT
- High strength plies of synthetic cord and embedded steel helix wire.
- Two copper wires are built in.
COVER
- EPDM rubber (code 104N), black colour, smooth, resistant to abrasion, ozone and weather, cloth finish.
- Antistatic in acc. with EN 12115:2021. Electric resistance R < 10^6 Ω.
Safety factors
- ≥ 4 times working pressure up to ID 75 mm.
- ≥ 3 times working pressure over ID 75 mm.
Temperatures
- In accordance with EN 12115:2021.
- Steam disinfection, in an open circuit, up to +130°C for max. 30 minutes.
Note
We suggest you to follow the instructions mentioned in the MTG “Use and maintenance guide for PFA/MFA hoses”.
ELECTRICAL PROPERTIES
- Identification symbol: M.
- Model without copper wires available upon request; identification symbol: Ω.
Marking
Dimensional tolerance
SIZE TOLERANCES: I.D.: EN 12115 - O.D.: EN 12115 - Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 13 | 25 | 6 | 16 | 64 | 90 | -0,9 | 0,55 | 20 |
| 19 | 32 | 6 | 16 | 64 | 125 | -0,9 | 0,75 | 30 |
| 25 | 38 | 6,5 | 16 | 64 | 150 | -0,9 | 0,95 | 30 |
| 32 | 44 | 6,5 | 16 | 64 | 175 | -0,9 | 1,15 | 30 |
| 38 | 51 | 6,5 | 16 | 64 | 225 | -0,9 | 1,5 | 30 |
| 51 | 66 | 7,5 | 16 | 64 | 275 | -0,9 | 2,2 | 30 |
| 63,5 | 79,5 | 8 | 16 | 64 | 300 | -0,9 | 3 | 20 |
| 76 | 93 | 8,5 | 16 | 48 | 350 | -0,9 | 3,7 | 20 |
| 100 | 118 | 9 | 16 | 48 | 500 | -0,9 | 5 | 20 |
| Internal diam. inch |
External diam. inch |
Working pressure PSI |
Burst pressure PSI |
Min. bending radius inch |
Vacuum inHg |
Approx. weight lbs/ft |
Max. length ft |
|---|---|---|---|---|---|---|---|
| 1/2 | 0,98 | 240 | 960 | 3,54 | -26,57 | 0,37 | 65,6 |
| 3/4 | 1,26 | 240 | 960 | 4,92 | -26,57 | 0,5 | 98,4 |
| 1 | 1,5 | 240 | 960 | 5,91 | -26,57 | 0,64 | 98,4 |
| 1 1/4 | 1,73 | 240 | 960 | 6,89 | -26,57 | 0,77 | 98,4 |
| 1 1/2 | 2,01 | 240 | 960 | 8,86 | -26,57 | 1,01 | 98,4 |
| 2 | 2,6 | 240 | 960 | 10,83 | -26,57 | 1,48 | 98,4 |
| 2 1/2 | 3,13 | 240 | 960 | 11,81 | -26,57 | 2,01 | 65,6 |
| 3 | 3,66 | 240 | 720 | 13,78 | -26,57 | 2,48 | 65,6 |
| 3 15/16 | 4,65 | 240 | 720 | 19,69 | -26,57 | 3,35 | 65,6 |
Chemical resistance acc. to MTG Chemical Resistance Chart. Above technical data refer to application at room temperature (+20°C).
Other sizes and colours are available upon request. Please contact our Sales Department.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
