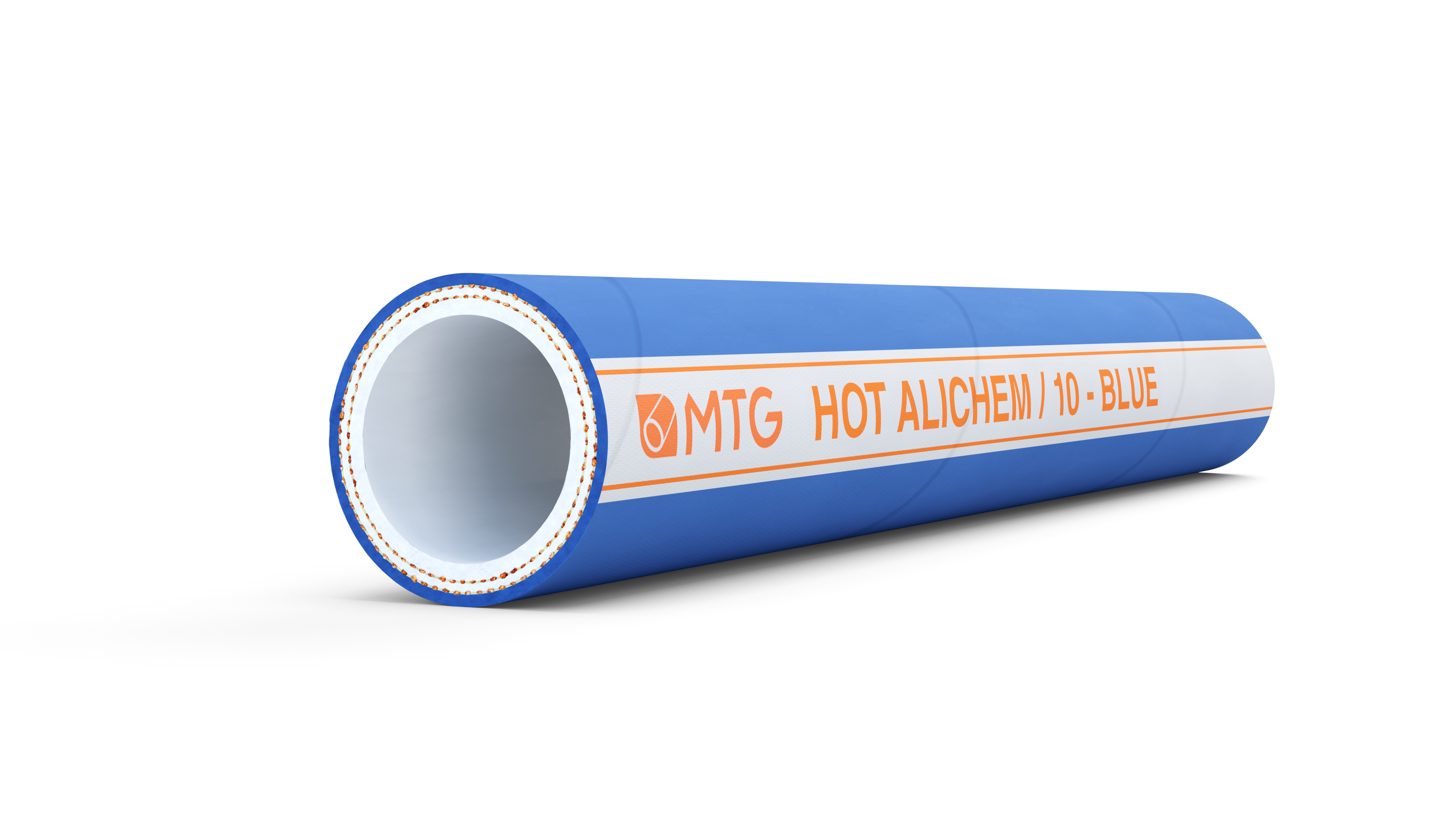

HOT ALICHEM/10-BLUE

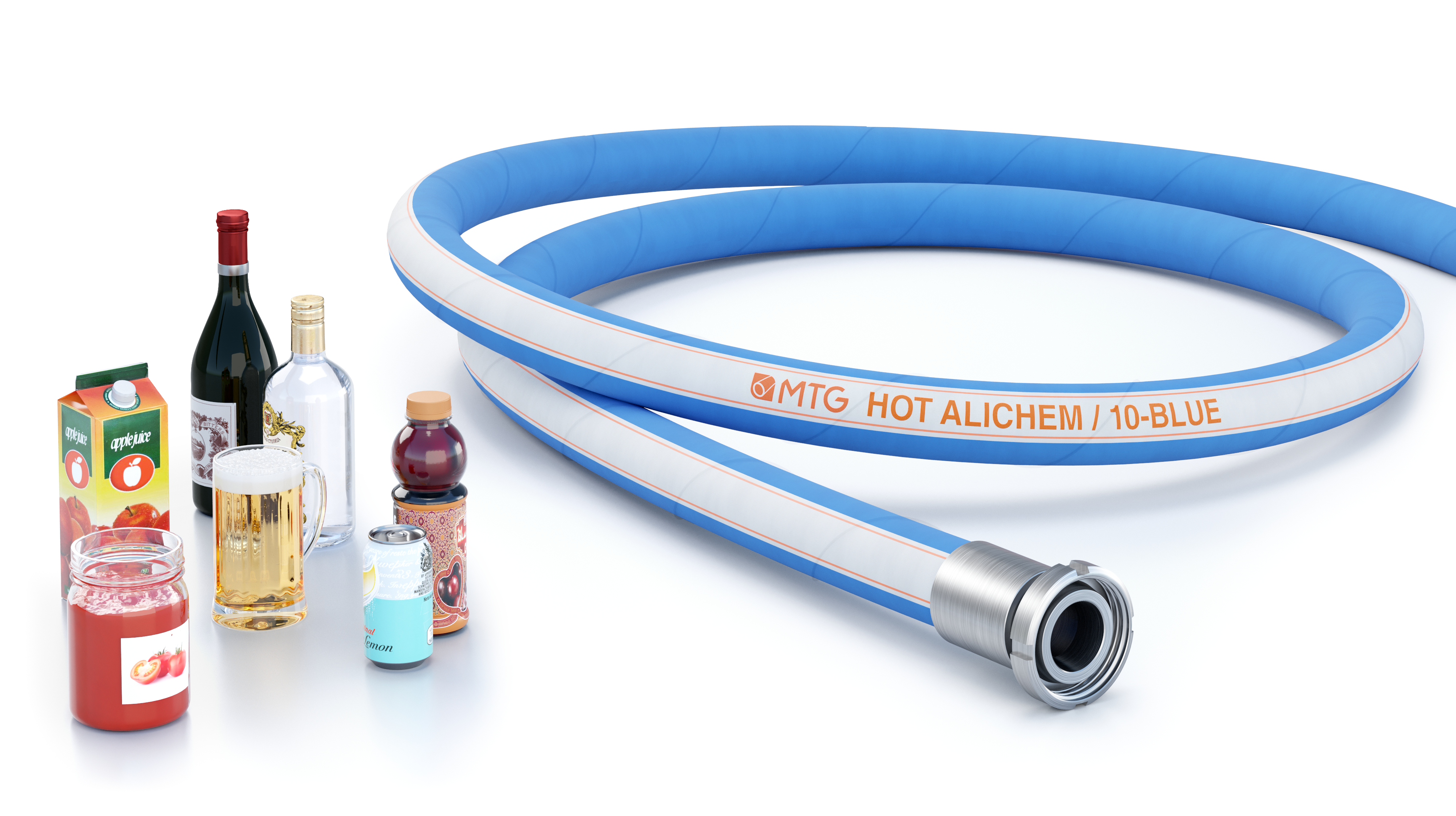

Beverage hose of latest generation, suitable for conveying a wide range of liquid foodstuffs such as wine, fruit juice, tomato juice, beer, drinking water and soft drinks.
Delivery hose.

More details

Main benefits

  • Due to the heat resistant structure, the hose HOT-ALICHEM/10-BLUE is the perfect solution for high temperature applications and long lasting sterilizations.
  • The composition of the inner liner makes it highly resistant to acids and bases with medium concentration.
  • HOT-ALICHEM/10-BLUE provides a high resistance to chemical cleaning and disinfection products used in food sanitation processes.
  • Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).

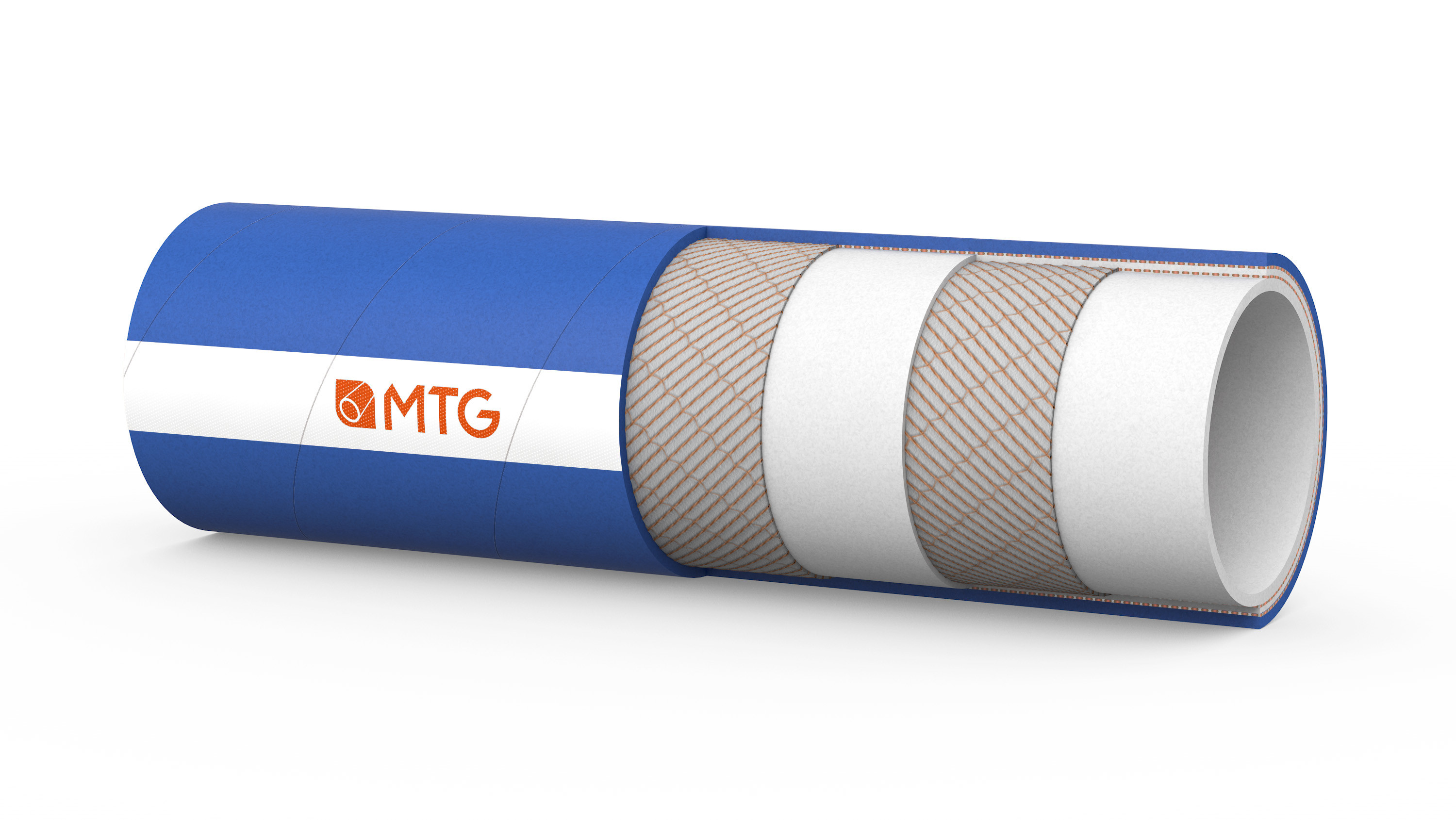

Construcion

TUBE

  • EPDM rubber (code 58BI), light colour, odourless and tasteless, mirror-smooth.
  • Compliance: 3A, FDA standards, BfR Recommendations Cat. II (German food legislation), D.M. 21/03/73 and following amendments.

REINFORCEMENTS

  • Heat resistant plies of synthetic cord.

COVER

  • Synthetic rubber, blue colour, abrasion and weather resistant, smooth, cloth finish.

Safety factors

  • ≥ 3 times working pressure.

Temperatures

  • From -40°C a +120°C.

Sterilization

  • Sterilization up to +150°C for max. 30 minutes.

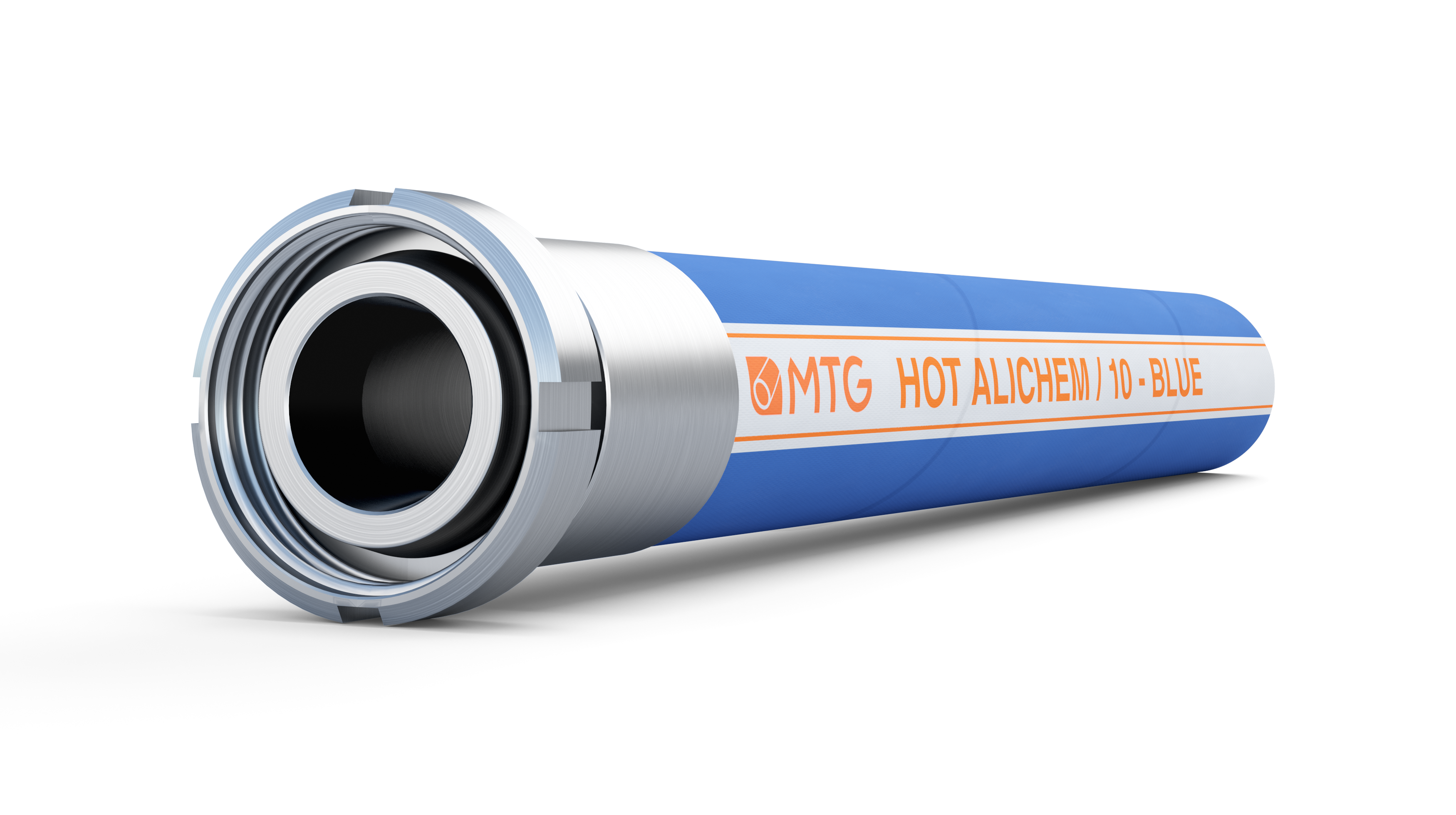

  • In case of long lasting sterilizations we suggest to use the model with vulcanized couplings at the ends.

Marking

Dimensional tolerance

I.D.: ISO 1307 – Spessore parete: DIN 7715 T4 S2 – Length: ISO 1307

Internal diam.
mm
External diam.
mm
Wall thickness
mm
Working pressure
BAR
Burst pressure
BAR
Min. bending radius
mm
Approx. weight
kg/m
Max. length
m
13 23 5 10 30 80 0,35 40
16 26 5 10 30 95 0,4 40
19 31 6 10 30 115 0,55 40
25 37 6 10 30 150 0,68 40
32 48 8 10 30 190 1,2 40
38 56 9 10 30 240 1,5 40
50 70 10 10 30 300 2,2 40
65 87 11 10 30 390 3,1 40
75 99 12 10 30 450 3,9 40
100 130 15 10 30 600 6,3 40
Internal diam.
inch
External diam.
inch
Working pressure
PSI
Burst pressure
PSI
Min. bending radius
inch
Approx. weight
lbs/ft
Max. length
ft
1/2 0,91 150 450 3,15 0,23 131,2
5/8 1,02 150 450 3,74 0,27 131,2
3/4 1,22 150 450 4,53 0,37 131,2
1 1,46 150 450 5,91 0,46 131,2
1 1/4 1,89 150 450 7,48 0,8 131,2
1 1/2 2,2 150 450 9,45 1,01 131,2
1 31/32 2,76 150 450 11,81 1,48 131,2
2 9/16 3,43 150 450 15,35 2,08 131,2
2 61/64 3,9 150 450 17,72 2,62 131,2
3 15/16 5,12 150 450 23,62 4,23 131,2

(**) The bending radius can be reached at a working pressure of ≥ 1 bar.

Above technical data refer to application at room temperature (+20°C).
Other sizes and colours are available upon request. Please contact our Sales Dept.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.

The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
