DRINKS/SPL/10

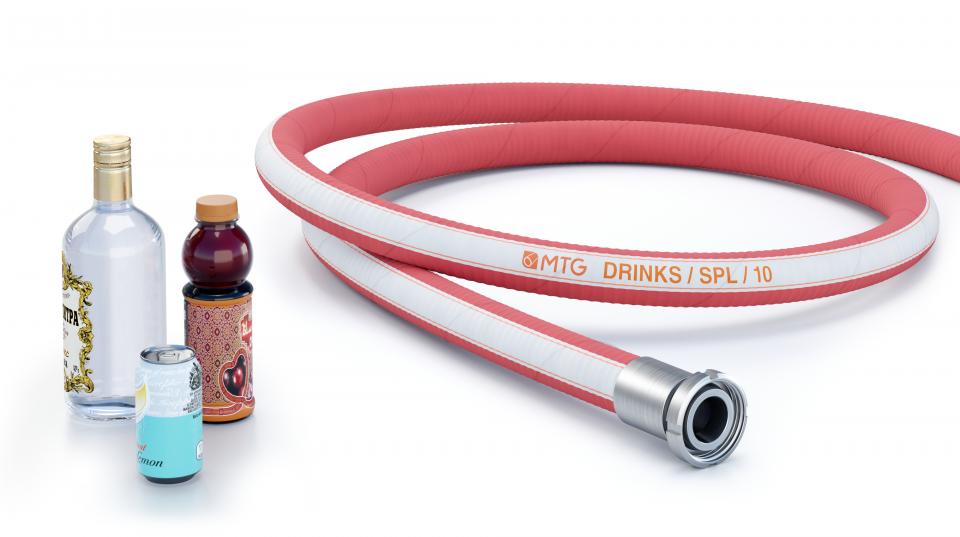

DRINKS/SPL/10 is a food quality hose designed for conveying high quality alcoholic beverages (such as beer, cider, wine) and soft drinks.
Suction and delivery hose.
More detailsMain benefits
- The inner tube is free from plasticizers, phthalates and animal derived ingredients, thus reducing the risk of bacterial growth and contamination of the product conveyed.
- The composition of the hose cover ensures excellent resistance to ageing.
- DRINKS/SPL/10 complies with the Regulations EC 1935/2004 and 2023/2006/EC (GMP).
- The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions according to the current European Regulation EC 1907/2006 (REACH).

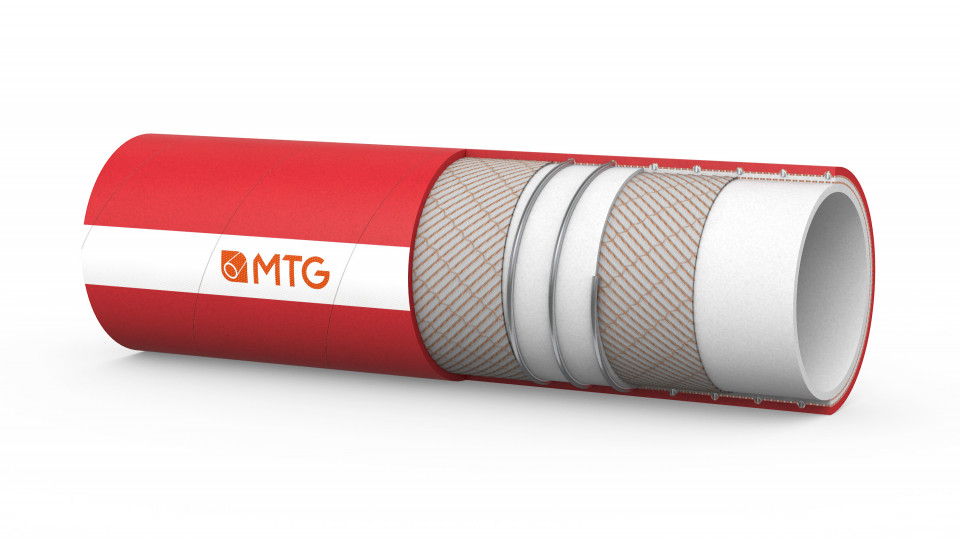

Construcion
TUBE
- BIIR rubber (code 90FDA), light colour, food quality, odourless, tasteless, mirror smooth.
- Compliance: 3A, FDA Standards, D.M. 21/03/73 and following amendments.
REINFORCEMENT
- Plies of synthetic cord.
- Embedded steel helix wire.
COVER
- EPDM based rubber, red colour, resistant to abrasion and ozone, weatherproof, smooth (cloth finish).
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -40°C to +120°C.
Sterilization
- Sterilization up to +130°C for max. 30 minutes.

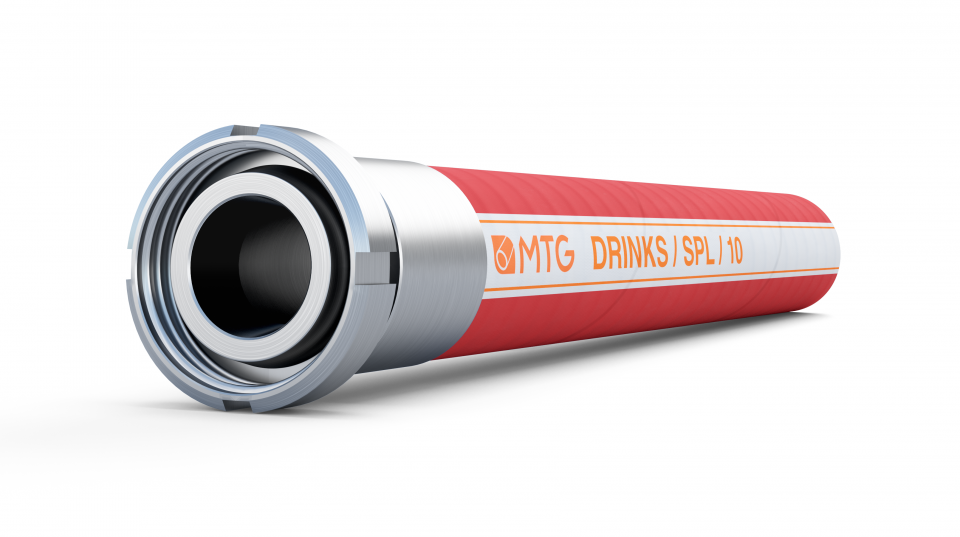

- For longer sterilizations you should use the version with vulcanized fittings at the ends.

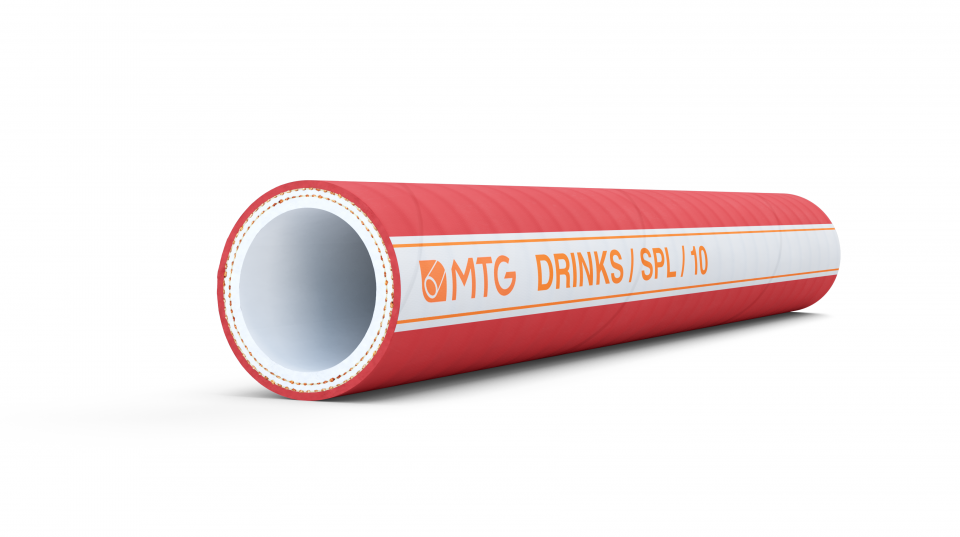

Marking
Dimensional tolerance
I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 19 | 31 | 6,0 | 10 | 30 | 80 | -0,9 | 0,60 | 40 |
| 25 | 37 | 6,0 | 10 | 30 | 120 | -0,9 | 0,74 | 40 |
| 25 | 38 | 6,5 | 10 | 30 | 120 | -0,9 | 0,82 | 40 |
| 32 | 44 | 6,0 | 10 | 30 | 150 | -0,9 | 0,90 | 40 |
| 32 | 45 | 6,5 | 10 | 30 | 150 | -0,9 | 1,00 | 40 |
| 38 | 51 | 6,5 | 10 | 30 | 200 | -0,9 | 1,25 | 40 |
| 38 | 52 | 7,0 | 10 | 30 | 200 | -0,9 | 1,38 | 40 |
| 50 | 66 | 8,0 | 10 | 30 | 250 | -0,9 | 1,95 | 40 |
| 51 | 66 | 7,5 | 10 | 30 | 250 | -0,9 | 1,80 | 40 |
| 63,5 | 79,5 | 8,0 | 10 | 30 | 360 | -0,9 | 2,60 | 40 |
| 63,5 | 80,5 | 8,5 | 10 | 30 | 360 | -0,9 | 2,70 | 40 |
| 75 | 91 | 8,0 | 10 | 30 | 450 | -0,9 | 3,18 | 40 |
| 76 | 92 | 8,0 | 10 | 30 | 450 | -0,9 | 3,23 | 40 |
| 100 | 116 | 8,0 | 10 | 30 | 600 | -0,9 | 3,90 | 40 |
| 100 | 118 | 9,0 | 10 | 30 | 600 | -0,9 | 4,60 | 40 |
| 102 | 118 | 8,0 | 10 | 30 | 600 | -0,9 | 4,00 | 40 |
| 102 | 120 | 9,0 | 10 | 30 | 600 | -0,9 | 4,70 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure PSI |
Burst pressure PSI |
Min. bending radius inch |
Vacuum inHg |
Approx. weight lbs/ft |
Max. length inch |
|---|---|---|---|---|---|---|---|
| 3/4 | 1,22 | 150 | 450 | 3,15 | -26,57 | 0,40 | 131,2 |
| 1 | 1,46 | 150 | 450 | 4,72 | -26,57 | 0,50 | 131,2 |
| 1 | 1,50 | 150 | 450 | 4,72 | -26,57 | 0,55 | 131,2 |
| 1 1/4 | 1,73 | 150 | 450 | 5,91 | -26,57 | 0,60 | 131,2 |
| 1 1/4 | 1,77 | 150 | 450 | 5,91 | -26,57 | 0,67 | 131,2 |
| 1 1/2 | 2,01 | 150 | 450 | 7,87 | -26,57 | 0,84 | 131,2 |
| 1 1/2 | 2,05 | 150 | 450 | 7,87 | -26,57 | 0,93 | 131,2 |
| 1 31/32 | 2,60 | 150 | 450 | 9,84 | -26,57 | 1,31 | 131,2 |
| 2 | 2,60 | 150 | 450 | 9,84 | -26,57 | 1,21 | 131,2 |
| 2 1/2 | 3,13 | 150 | 450 | 14,17 | -26,57 | 1,74 | 131,2 |
| 2 1/2 | 3,17 | 150 | 450 | 14,17 | -26,57 | 1,81 | 131,2 |
| 2 61/64 | 3,58 | 150 | 450 | 17,72 | -26,57 | 2,13 | 131,2 |
| 3 | 3,62 | 150 | 450 | 17,72 | -26,57 | 2,17 | 131,2 |
| 3 15/16 | 4,57 | 150 | 450 | 23,62 | -26,57 | 2,62 | 131,2 |
| 3 15/16 | 4,65 | 150 | 450 | 23,62 | -26,57 | 3,09 | 131,2 |
| 4 | 4,65 | 150 | 450 | 23,62 | -26,57 | 2,68 | 131,2 |
| 4 | 4,72 | 150 | 450 | 23,62 | -26,57 | 3,15 | 131,2 |
Other sizes and colours are available upon request. Please contact our Sales Department.
Above technical data refer to application at room temperature (+20°C).
