MTG DRINKS

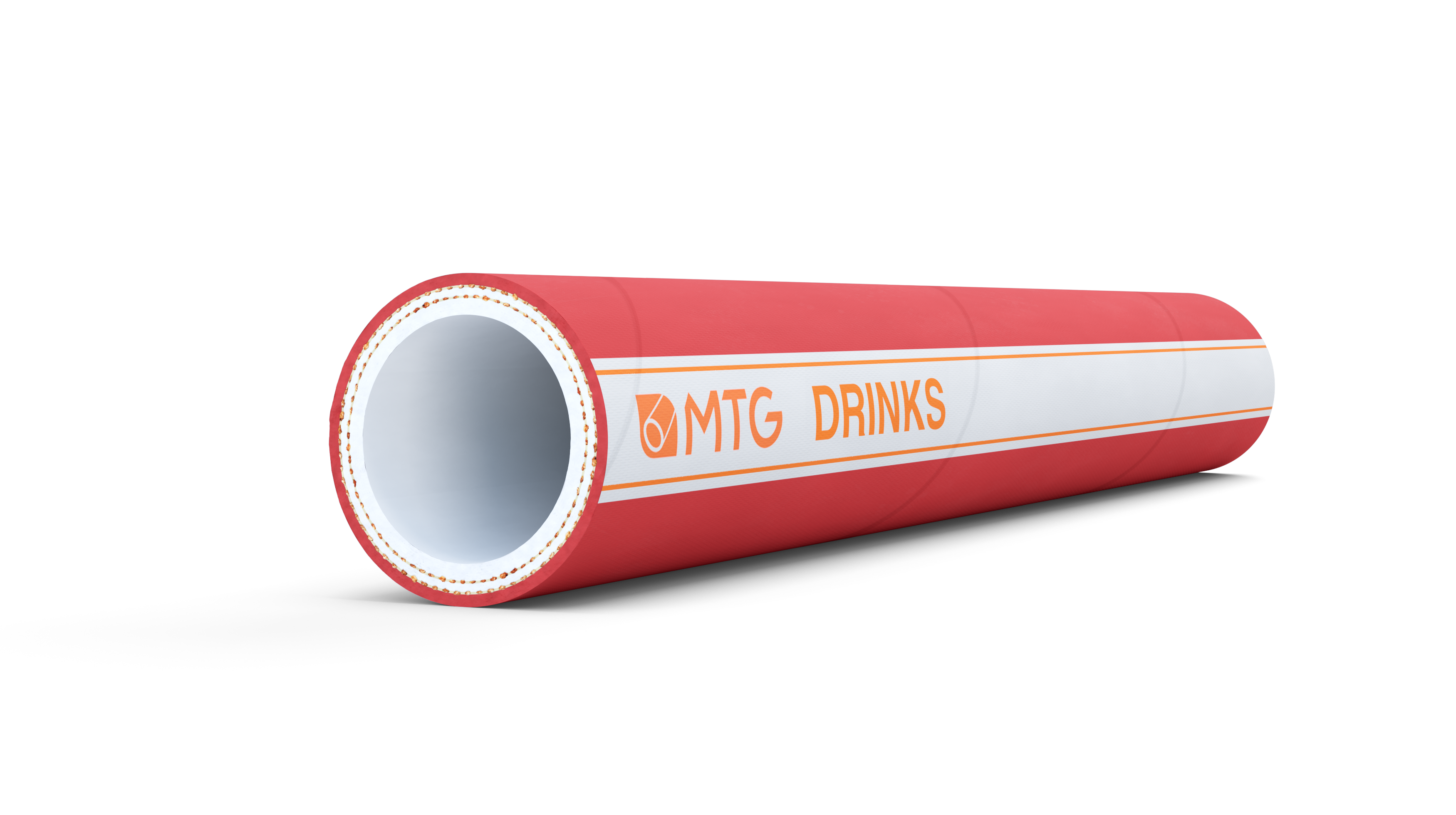

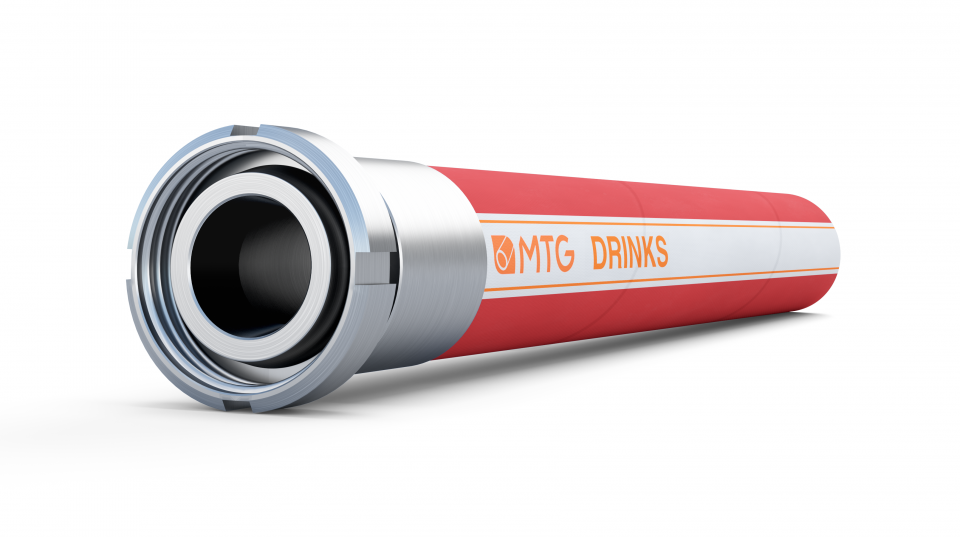

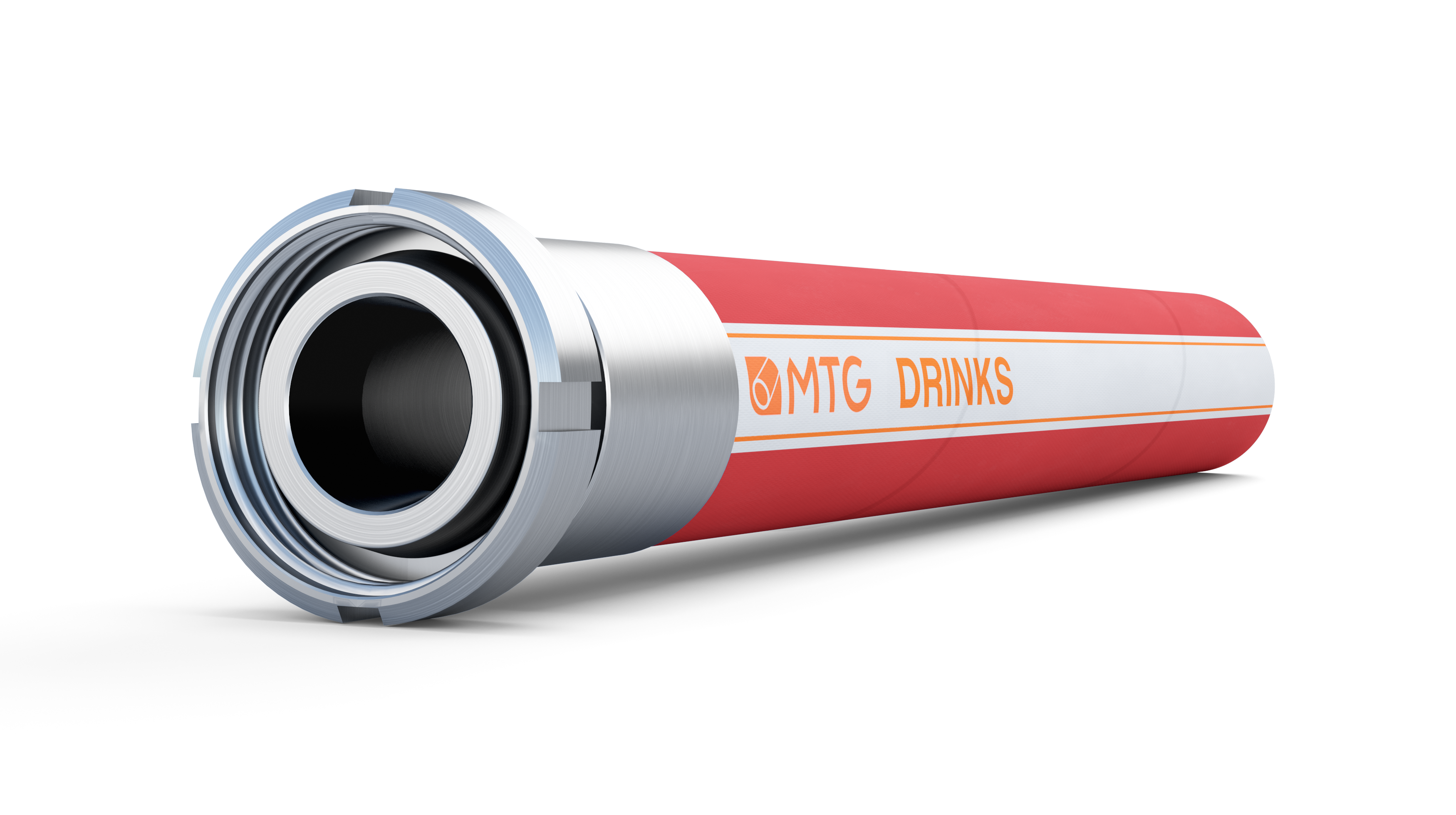

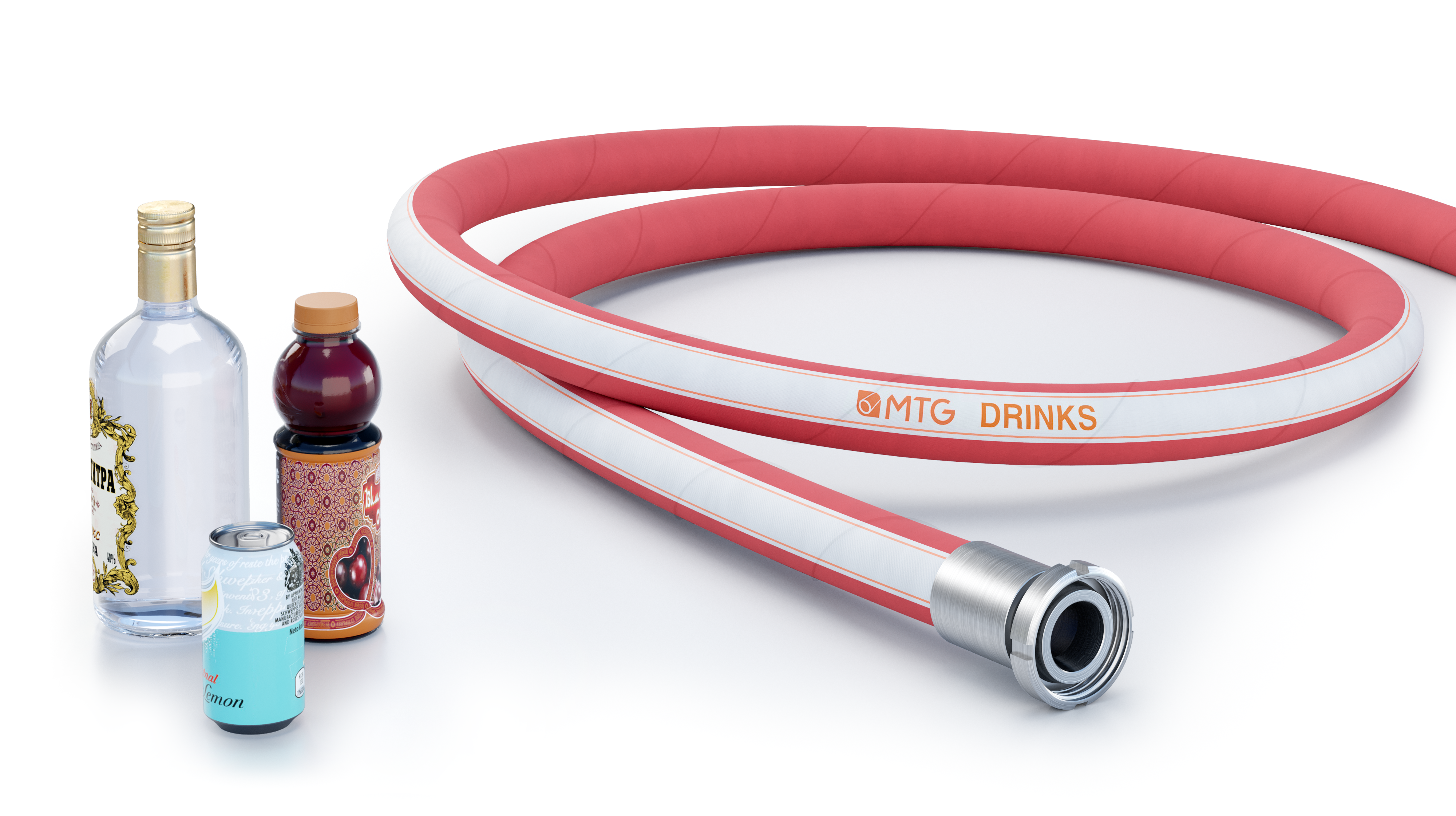

MTG DRINKS is a food grade hose designed for conveying high quality alcoholic beverages (such as beer, cider, wine and spirits with an alcohol content up to 50%) and soft drinks.
Delivery hose.
More detailsMain benefits
- The inner tube is totally free from plasticizers, phthalates and animal derived ingredients, thus reducing the risk of bacterial growth and contamination of the product conveyed.
- The composition of the hose cover ensures excellent resistance to ageing.
- MTG DRINKS complies with the Reg. EC 1935/2004 and Reg. EC 2023/2006 (GMP).
- The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions according to the current European Regulation EC 1907/2006 (REACH).

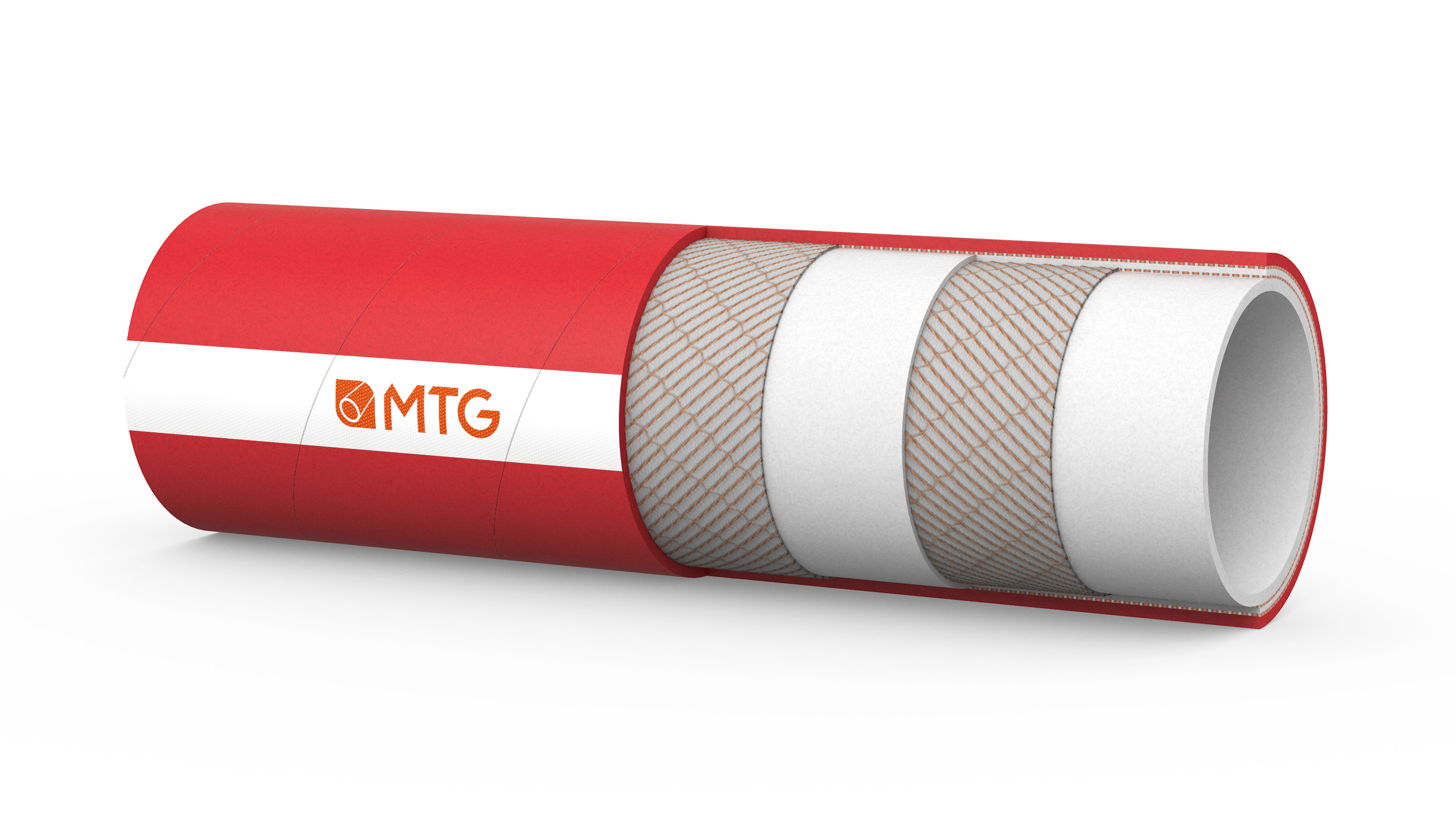

Construcion
TUBE
- BIIR rubber (code 90FDA), light colour, food quality, odourless, tasteless, mirror smooth.
- Compliance: 3A, FDA Standards, D.M. 21/03/73 and following amendments.
REINFORCEMENTS
- Plies of synthetic cord.
COVER
- EPDM based rubber, red colour, resistant to abrasion and ozone, weatherproof, smooth (cloth finish).
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -40°C to +120°C.
Sterilization
- Sterilization up to +130°C for max. 30 minutes.
Marking
Dimensional tolerance
I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 19 | 31 | 6,0 | 10 | 30 | 120 | -0,6 | 0,52 | 40 |
| 25 | 37 | 6,0 | 10 | 30 | 150 | -0,6 | 0,65 | 40 |
| 32 | 48 | 8,0 | 10 | 30 | 190 | -0,6 | 1,10 | 40 |
| 38 | 56 | 9,0 | 10 | 30 | 240 | -0,6 | 1,44 | 40 |
| 50 | 70 | 10,0 | 10 | 30 | 350 | -0,5 | 2,07 | 40 |
| 65 | 87 | 11,0 | 10 | 30 | 500 | -0,3 | 2,95 | 40 |
| 75 | 100 | 12,5 | 10 | 30 | 600 | -0,3 | 3,80 | 40 |
| 100 | 130 | 15,0 | 10 | 30 | 750 | -0,3 | 6,15 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure PSI |
Burst pressure PSI |
Min. bending radius inch |
Vacuum inHg |
Approx. weight lbs/ft |
Max. length inch |
|---|---|---|---|---|---|---|---|
| 3/4 | 1,22 | 150 | 450 | 4,72 | -17,71 | 0,35 | 131,2 |
| 1 | 1,46 | 150 | 450 | 5,91 | -17,71 | 0,44 | 131,2 |
| 1 1/4 | 1,89 | 150 | 450 | 7,48 | -17,71 | 0,74 | 131,2 |
| 1 1/2 | 2,20 | 150 | 450 | 9,45 | -17,71 | 0,97 | 131,2 |
| 1 31/32 | 2,76 | 150 | 450 | 13,78 | -14,76 | 1,39 | 131,2 |
| 2 9/16 | 3,43 | 150 | 450 | 19,69 | -8,85 | 1,98 | 131,2 |
| 2 61/64 | 3,94 | 150 | 450 | 23,62 | -8,85 | 2,55 | 131,2 |
| 3 15/16 | 5,12 | 150 | 450 | 29,53 | -8,85 | 4,13 | 131,2 |
The a.m. technical data refer to room temperature (+20°C).
Other diameters and colours are available on request: please contact our Sales Office.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
