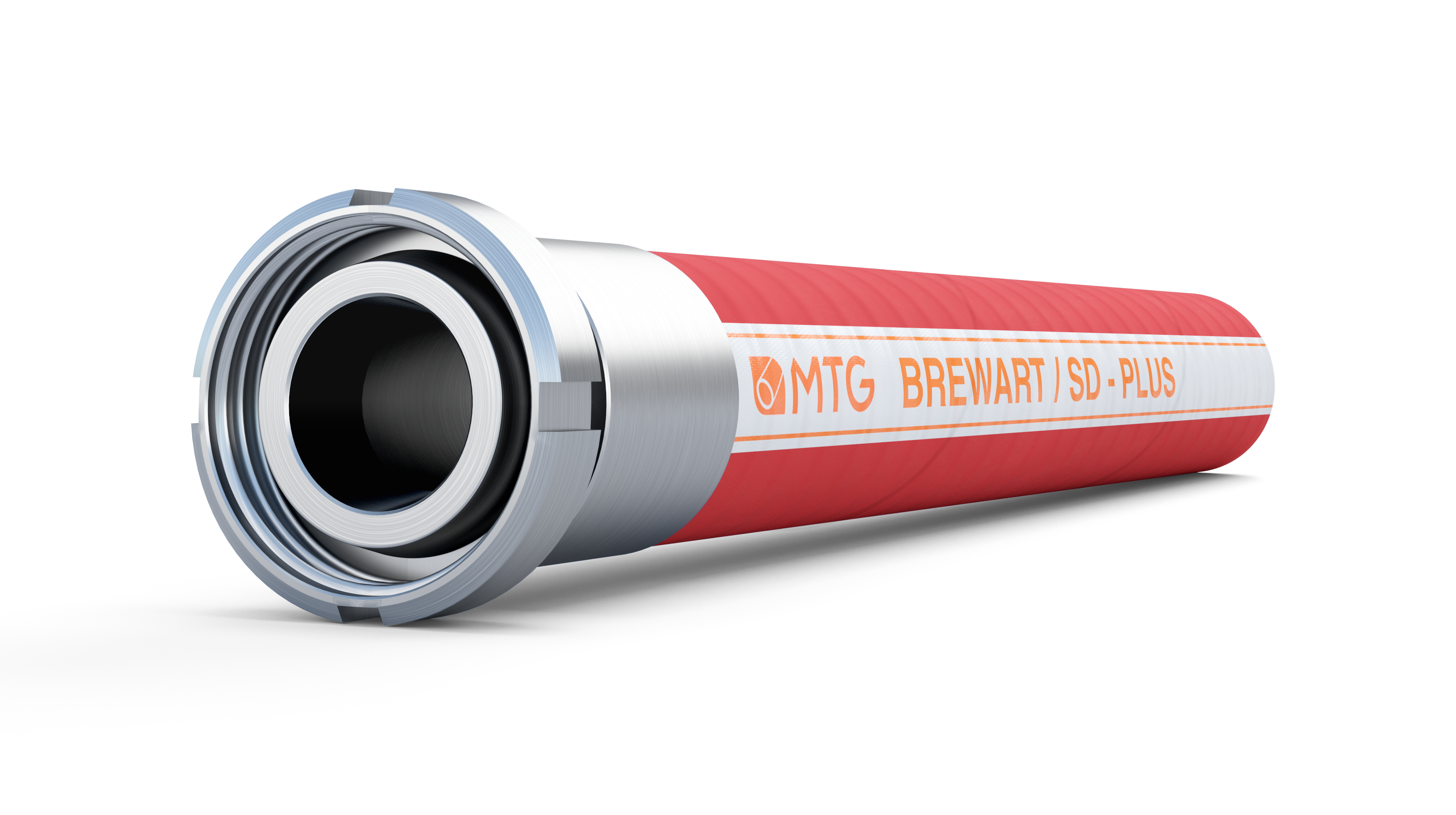

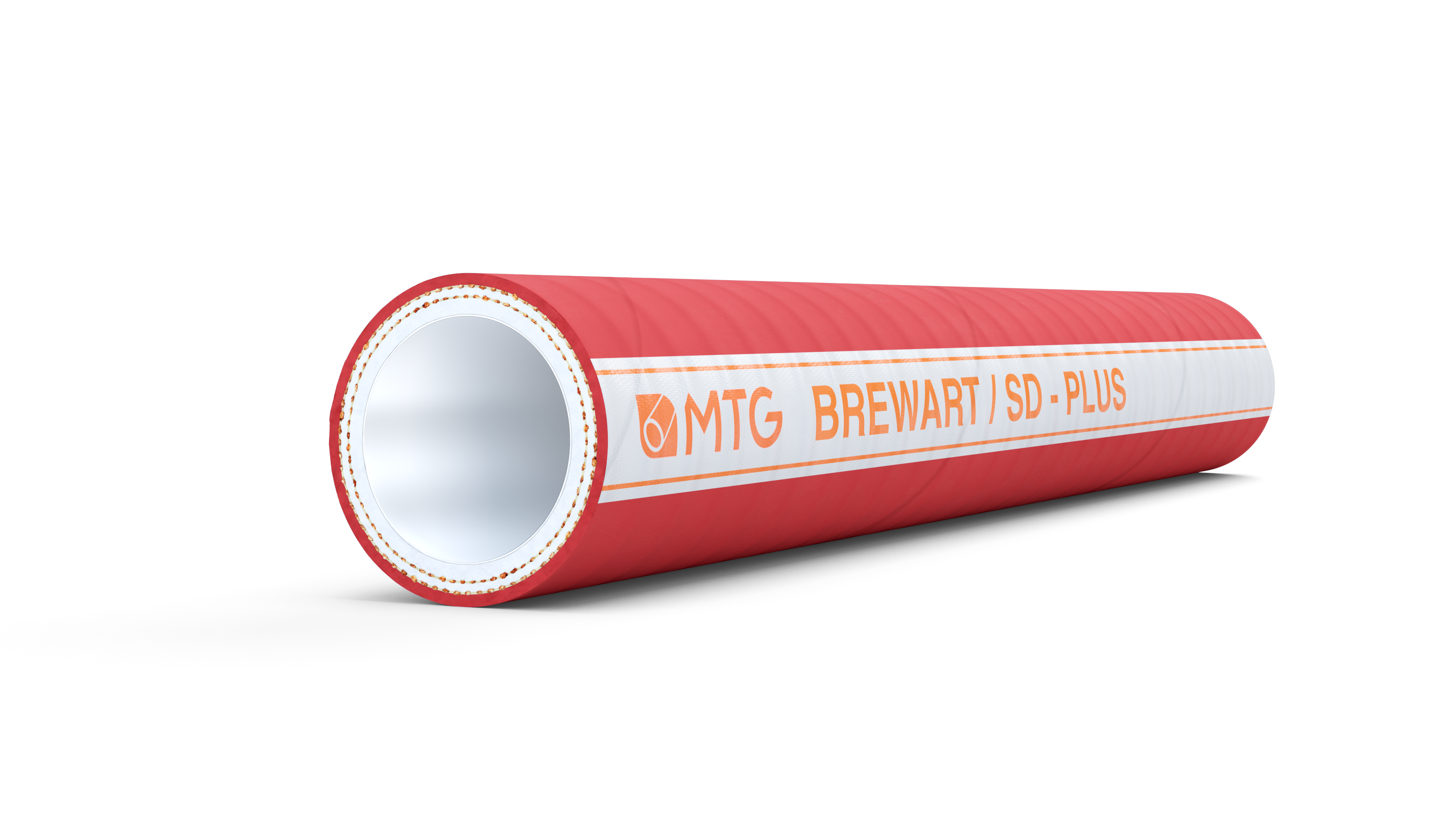

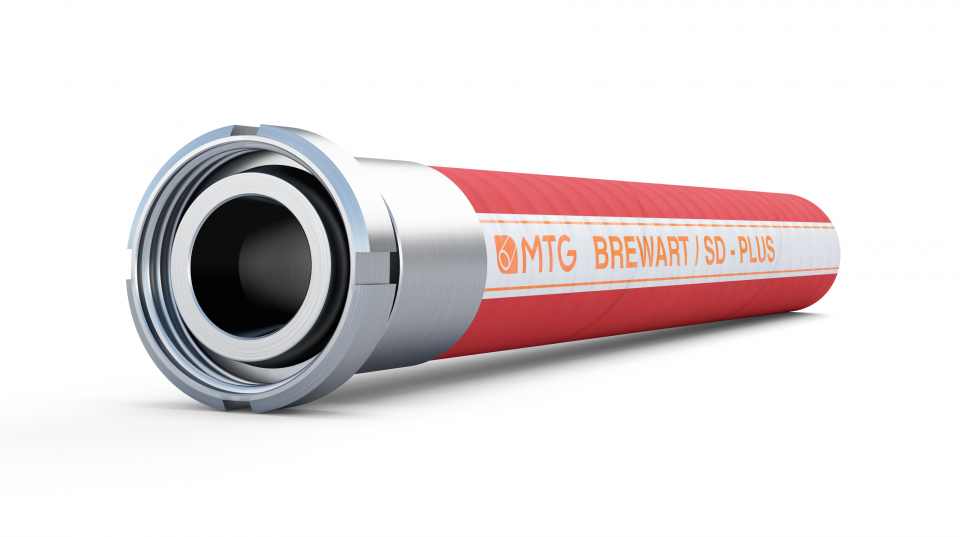

MTG BREWART/SD-PLUS
Food hose of latest generation, specifically designed to meet the demanding requirements of the beer processing industry.

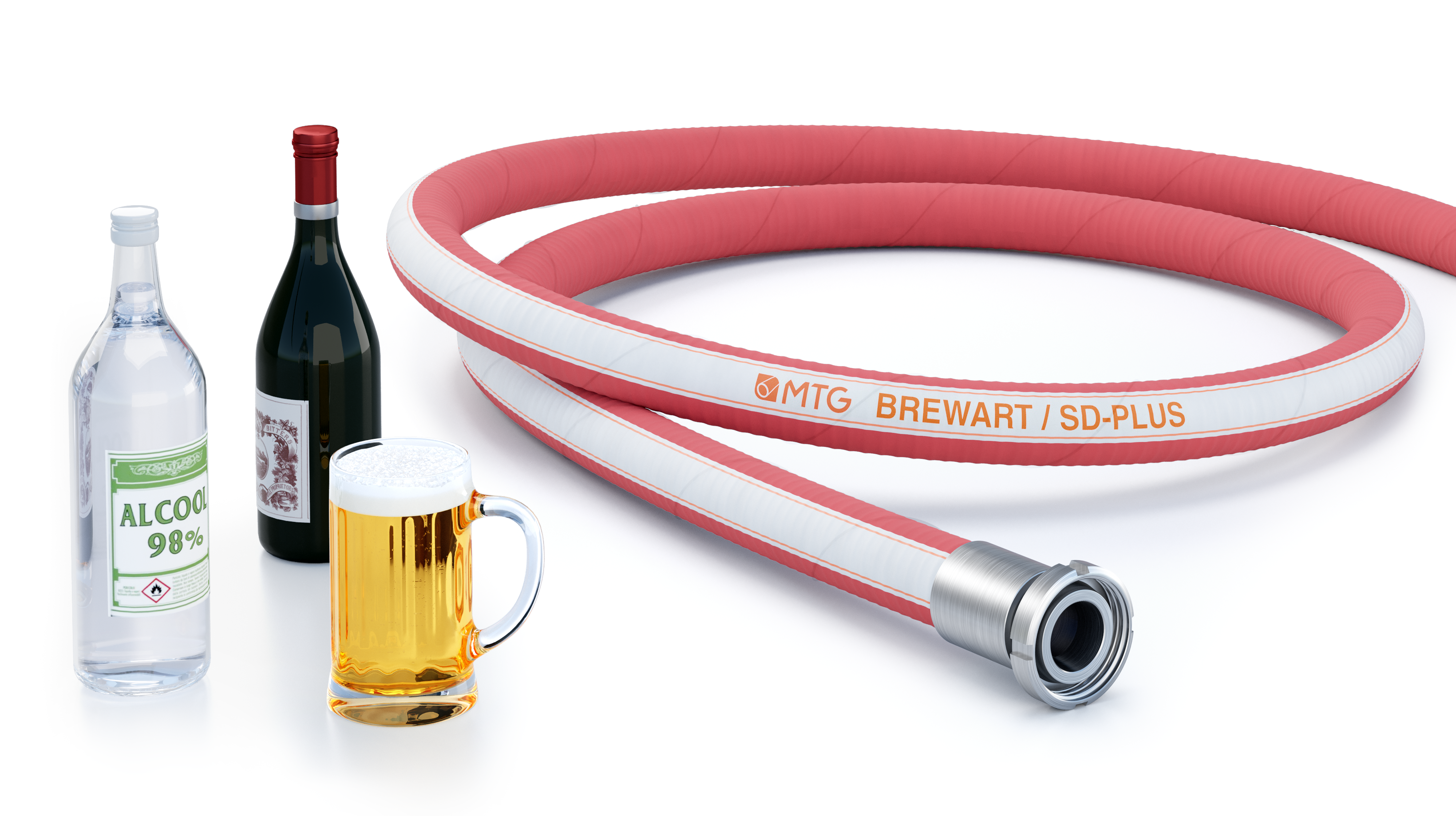

MTG BREWART/SD-PLUS is suitable for conveying high quality raw, pasteurized and organic beer, alcoholic beverages (alcohol content limit at room temperature: 96%), soft drinks and wine.
Suction and delivery hose.
It is also suitable for conveying fatty liquid foodstuffs.
More detailsMain benefits
- The special structure is free from plasticizers, phthalates and animal derived ingredients, thus reducing the risk of bacterial growth and contamination of the product conveyed.
- The special reinforced structure makes the hose strong and resistant, even for heavy-duty applications.
- The composition of the cover ensures utmost resistance to aging.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).

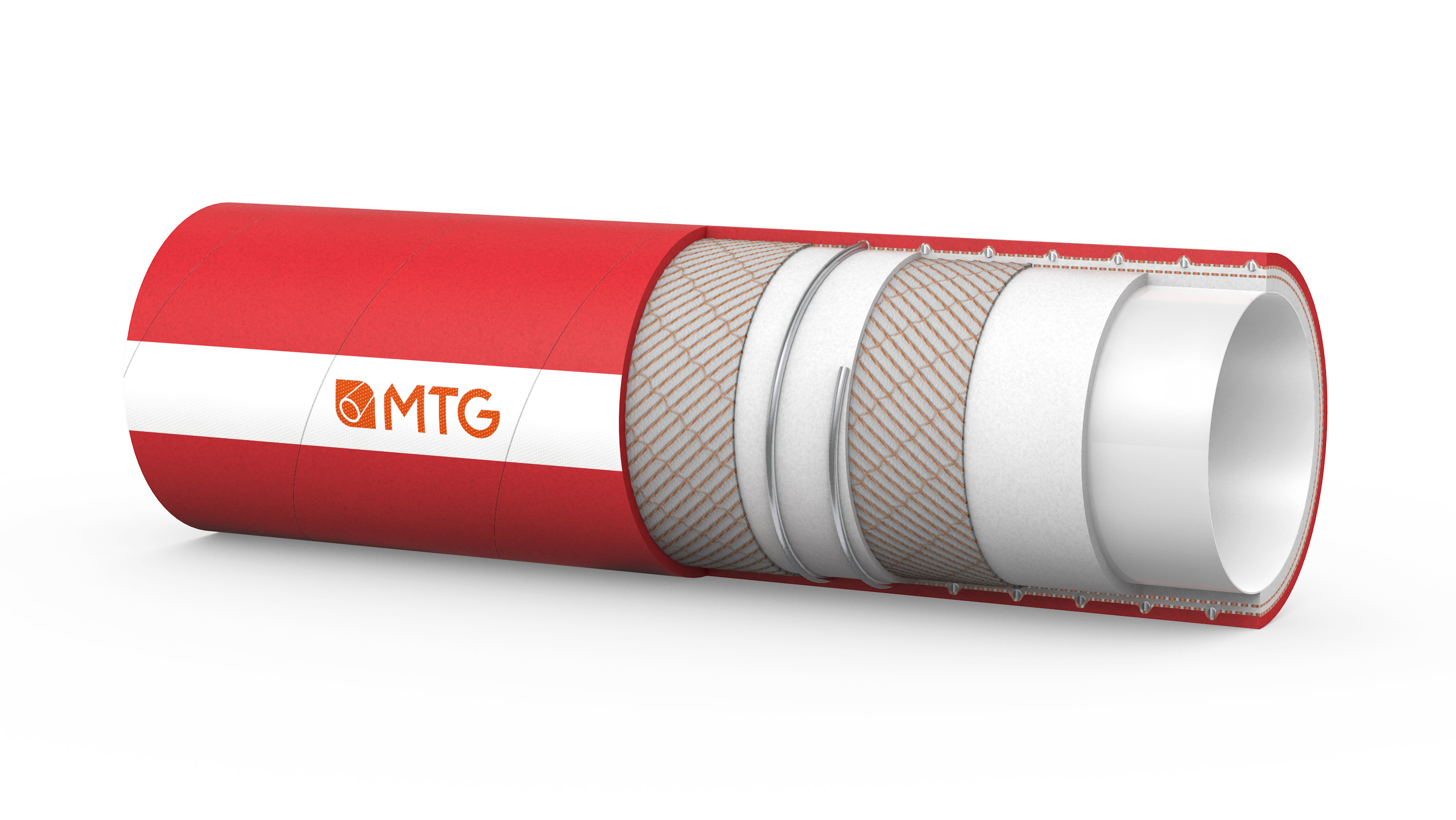

Construcion
TUBE
- UPE (UHMWPE – Ultra High Molecular Weight Polyethylene), light colour, food grade, odourless and tasteless, mirror smooth.
- It complies with FDA Standards, D.M. 21/03/73 and following amendments, Reg. EU 10/2011.
REINFORCEMENT
- Plies of synthetic cord.
- Embedded steel helix wire.
COVER
- CR rubber, red colour, resistant to abrasion, ozone and weather, smooth, cloth finish.
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -30°C to +90°C.
Sterilization
Sterilization up to +130°C for max. 30 minutes.
Marking
Dimensional tolerance
I.D.: ISO 1307– Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 25 | 38 | 6,5 | 15 | 45 | 150 | -0,9 | 0,95 | 40 |
| 32 | 45 | 6,5 | 15 | 45 | 210 | -0,9 | 1,15 | 40 |
| 38 | 52 | 7,0 | 15 | 45 | 250 | -0,9 | 1,49 | 40 |
| 40 | 54 | 7,0 | 15 | 45 | 250 | -0,9 | 1,56 | 40 |
| 50 | 66 | 8,0 | 15 | 45 | 400 | -0,9 | 2,12 | 40 |
| 51 | 67 | 8,0 | 15 | 45 | 400 | -0,9 | 2,15 | 40 |
| 63,5 | 82 | 9,25 | 15 | 45 | 520 | -0,9 | 3,10 | 40 |
| 75 | 94 | 9,50 | 15 | 45 | 600 | -0,9 | 3,75 | 40 |
| 76 | 95 | 9,50 | 15 | 45 | 600 | -0,9 | 3,78 | 40 |
| 100 | 123 | 11,50 | 15 | 45 | 800 | -0,9 | 6,20 | 40 |
| 102 | 125 | 11,50 | 15 | 45 | 800 | -0,9 | 6,25 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure PSI |
Burst pressure PSI |
Min. bending radius inch |
Vacuum inHg |
Approx. weight lbs/ft |
Max. length inch |
|---|---|---|---|---|---|---|---|
| 1 | 1,50 | 225 | 675 | 5,91 | -26,57 | 0,64 | 131,2 |
| 1 1/4 | 1,77 | 225 | 675 | 8,27 | -26,57 | 0,77 | 131,2 |
| 1 1/2 | 2,05 | 225 | 675 | 9,84 | -26,57 | 1,00 | 131,2 |
| 1 37/64 | 2,13 | 225 | 675 | 9,84 | -26,57 | 1,05 | 131,2 |
| 1 31/32 | 2,60 | 225 | 675 | 15,75 | -26,57 | 1,42 | 131,2 |
| 2 | 2,64 | 225 | 675 | 15,75 | -26,57 | 1,44 | 131,2 |
| 2 1/2 | 3,23 | 225 | 675 | 20,47 | -26,57 | 2,08 | 131,2 |
| 2 61/64 | 3,70 | 225 | 675 | 23 | -26,57 | 2,52 | 131,2 |
| 3 | 3,74 | 225 | 675 | 62 | -26,57 | 2,54 | 131,2 |
| 3 15/16 | 4,84 | 225 | 675 | 23,62 | -26,57 | 4,16 | 131,2 |
| 4 | 4,92 | 225 | 675 | 31,50 | -26,57 | 4,19 | 131,2 |
The table with ID 1 not exists.
Other diameters and colours of the cover are available upon request. Please contact our Sales Offices. The a.m. technical data are referring to room temperature (+20°C).
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
