Food industry

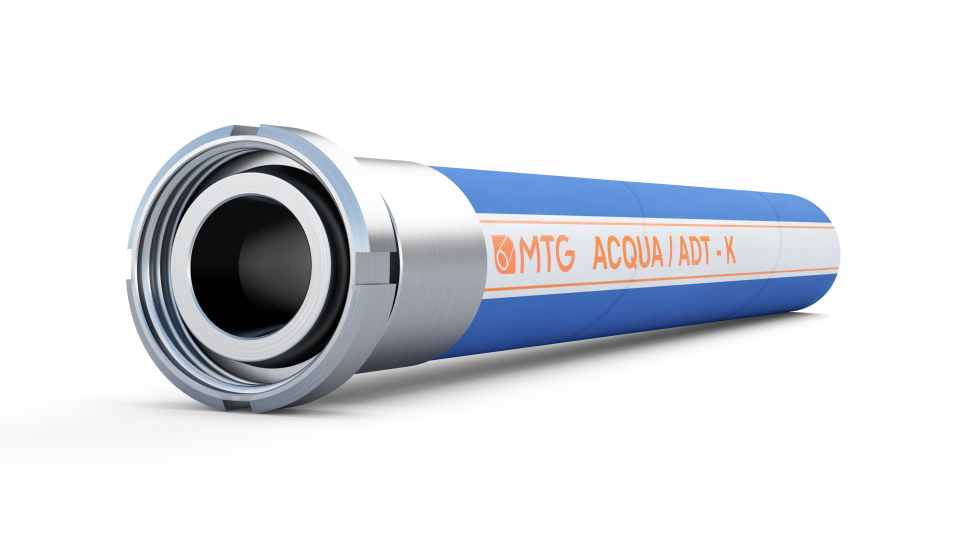

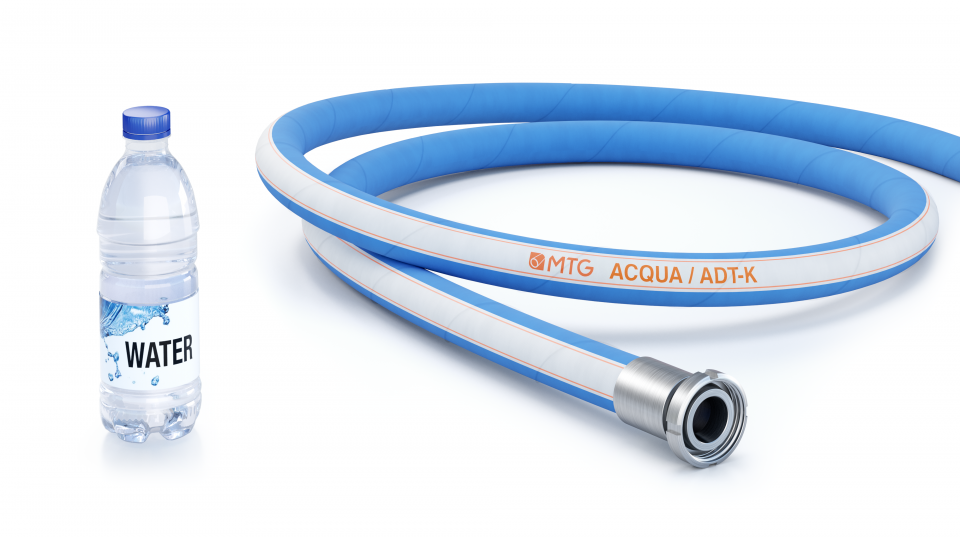

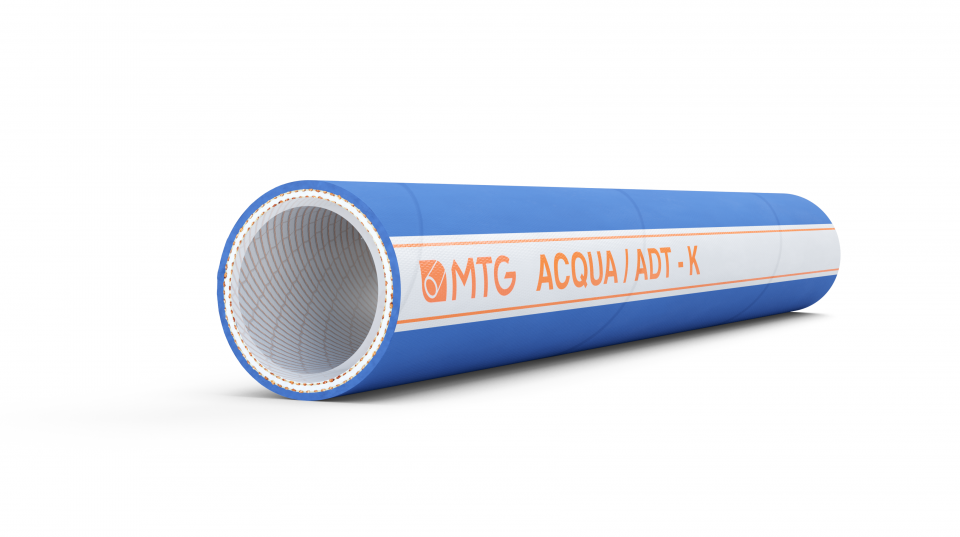

ACQUA/ADT-K
ACQUA/ADT-K is a flexible hose for conveying drinking water, specifically designed to meet the highest quality requirements. Compliance: UBA KTW-BWGL, DIN EN 16421 and Regulation EU 10/2011.
More detailsMain benefits
- Validation according to DIN EN 16421 - KTW-BWGL and KTW evaluation criteria, Annex A "Plastics" and Annex E "Thermoplastic Elastomers" in cold water at +23°C and hot water at +60°C.
- The validation for warm water ensures the original properties of the water, purity, contamination-free handling and organoleptic properties (smell and taste) to be preserved even in case of high temperatures up to +60°C.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP).
- The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions according to EC 1907/2006 (REACH).

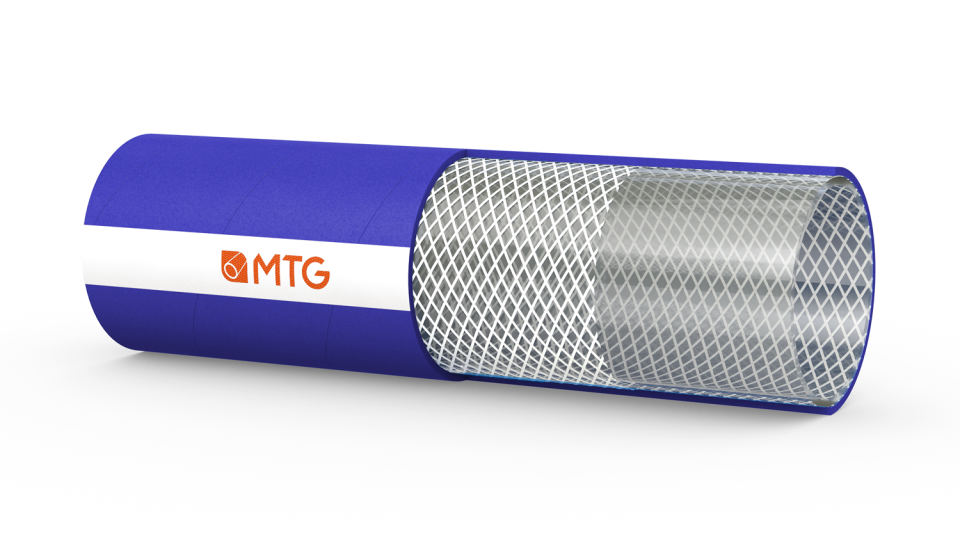

Construcion
TUBE
- Technopolymer, translucent, mirror-smooth.
- No microbiological contamination in case the drinking water warms up.
- Odourless and tasteless.
- Compliance: UBA KTW-BWGL, DIN EN 16421 and Regulation EU 10/2011.
REINFORCEMENT
- High resistance textile plies.
COVER
- Technopolymer, resistant to abrasion, ageing, ozone and weather.
- Blue colour, smooth (cloth finish).
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -30°C to +90°C, depending on the products conveyed.
Note
- We suggest to clean the hoses carefully before each single application and before storing them.
- A specific version for the railway sector is available on request with cover compliant with UNI EN 45545-2:2015 (ACQUA/ADT-K/RW).
Sterilization
- Sterilization up to +120°C for max. 30 minutes (open circuit).
- Hose suitable for CIP cleaning.
Marking
Dimensional tolerance
I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 13 | 20 | 3,5 | 20 | 60 | 70 | 0,19 | 40 |
| 16 | 23 | 3,5 | 16 | 48 | 90 | 0,23 | 40 |
| 19 | 27 | 4 | 16 | 48 | 120 | 0,31 | 40 |
| 25 | 34 | 4,5 | 14 | 42 | 150 | 0,44 | 40 |
| 32 | 44 | 6 | 12 | 36 | 190 | 0,78 | 40 |
| 38 | 51 | 6,5 | 10 | 30 | 240 | 1,05 | 40 |
| 45 | 59 | 7 | 10 | 30 | 270 | 1,23 | 40 |
| 50 | 64 | 7 | 10 | 30 | 300 | 1,33 | 40 |
| 65 | 81 | 8.0 | 10 | 30 | 390 | 1.48 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure PSI |
Burst pressure PSI |
Min. bending radius inch |
Approx. weight| Max. length |
ft |
|---|---|---|---|---|---|---|
| 1/2 | 0,79 | 300 | 900 | 2,76 | 0,13 | 131,2 |
| 5/8 | 0,91 | 240 | 720 | 3,54 | 0,15 | 131,2 |
| 3/4 | 1,06 | 240 | 720 | 4,72 | 0,21 | 131,2 |
| 1 | 1,34 | 210 | 630 | 5,91 | 0,3 | 131,2 |
| 1 1/4 | 1,73 | 180 | 540 | 7,48 | 0,52 | 131,2 |
| 1 1/2 | 2,01 | 150 | 450 | 9,45 | 0,71 | 131,2 |
| 1 49/64 | 2,32 | 150 | 450 | 10,63 | 0,83 | 131,2 |
| 2,52 | 150 | 450 | 11,81 | 0,89 | 131,2 | |
| 81 | 8.0 | 10 | 30 | 390 | 1.48 |
For other sizes and colours available, please contact our Sales Office.
Above technical data refer to application at room temperature (+20°C).
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
