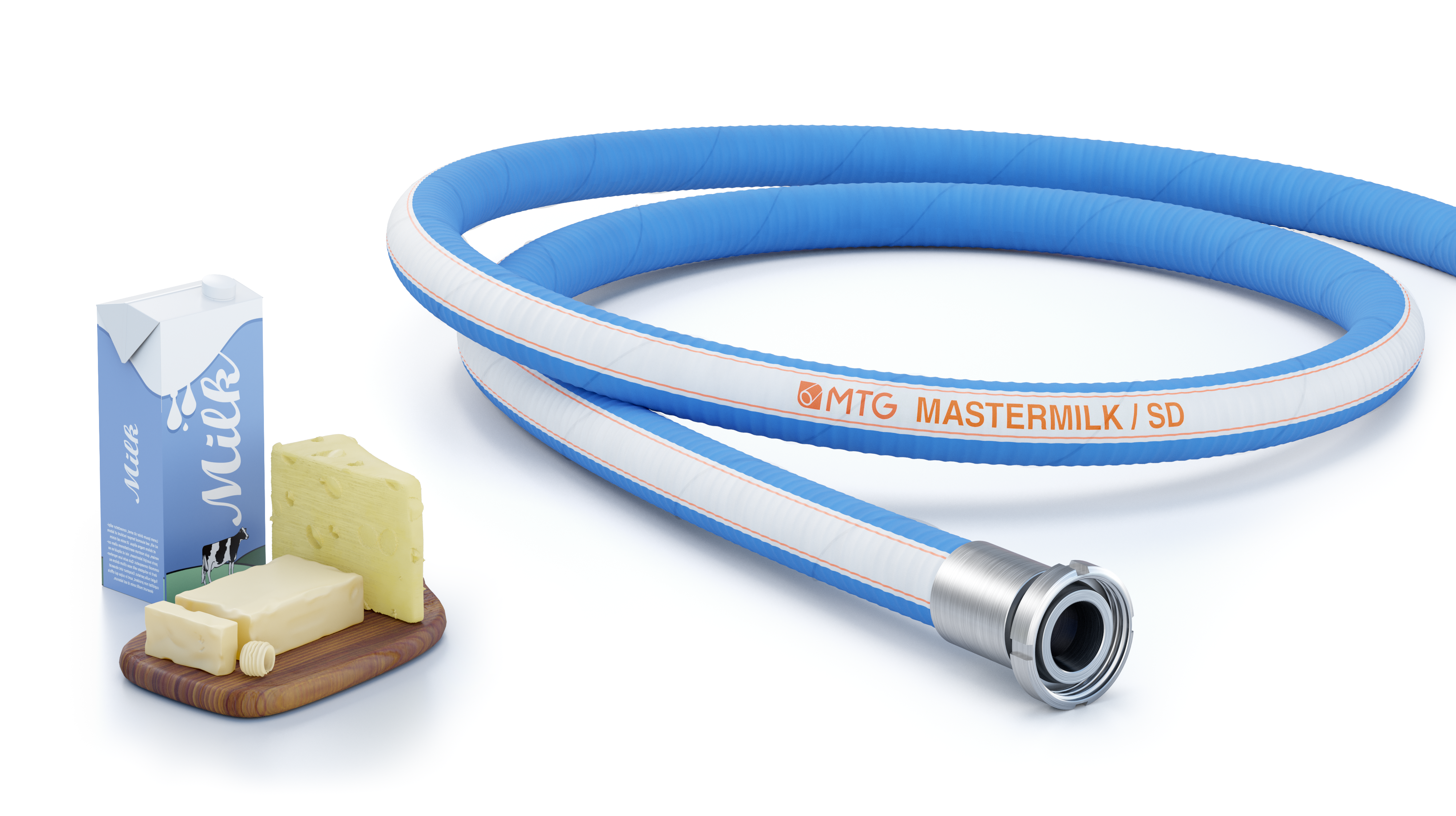

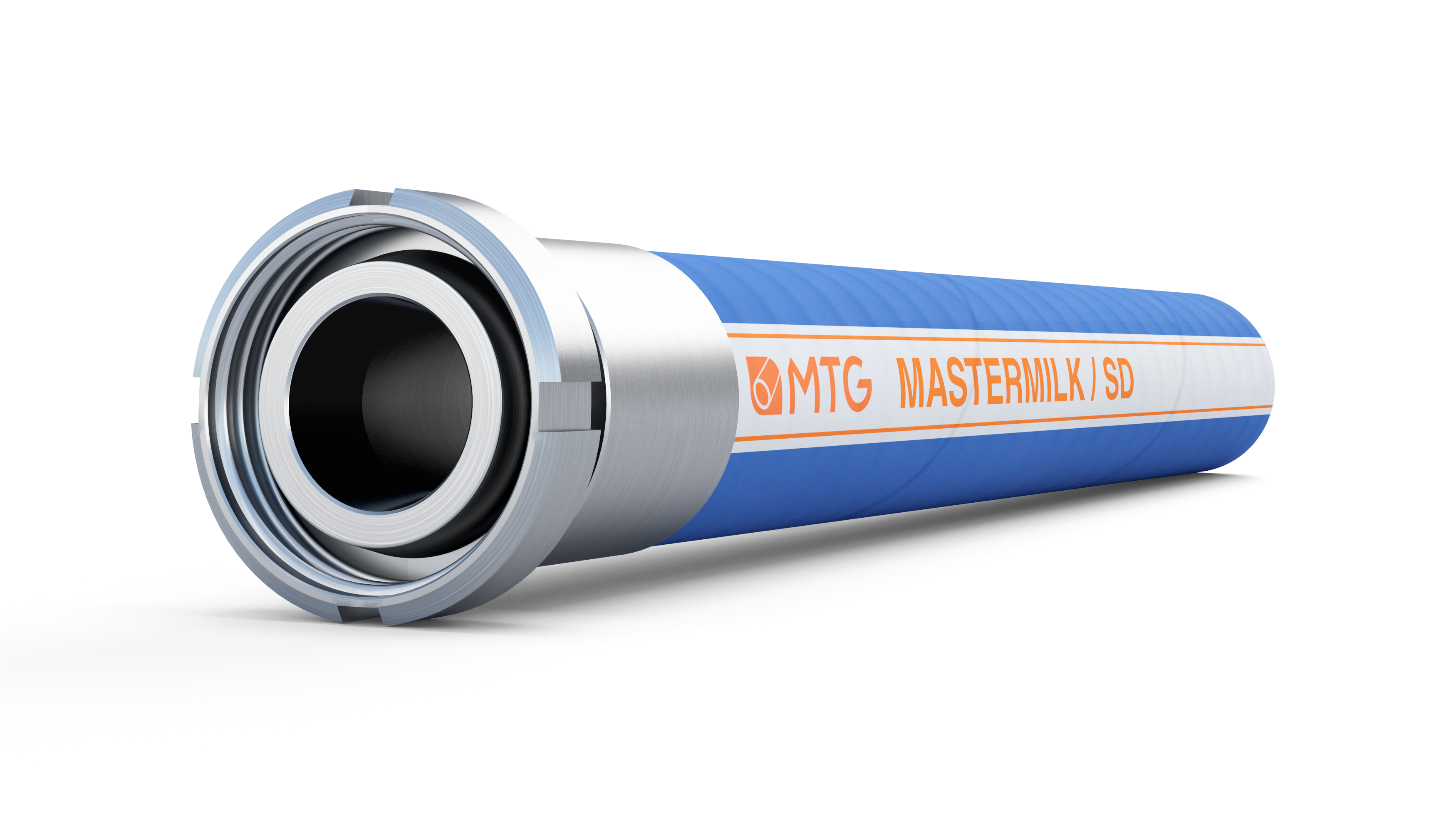

MASTERMILK/SD
Rubber hose suitable for conveying fatty and fat-free foodstuff.
Perfect solution for use in dairy equipments and unloading platforms requiring flexibility and resistance to light and medium-duty applications.
Suction and delivery hose.
Main benefits
- Especially suitable for applications with a small bending radius, with the advantage of providing a handy and highly flexible structure.
- The tube is resistant to chemical cleaning products and to the most common disinfection processes used in the food industry.
- The cover provides a good resistance to ageing and short contact with animal and vegetable fats.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP).
- The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).
- Non plasticized hose.

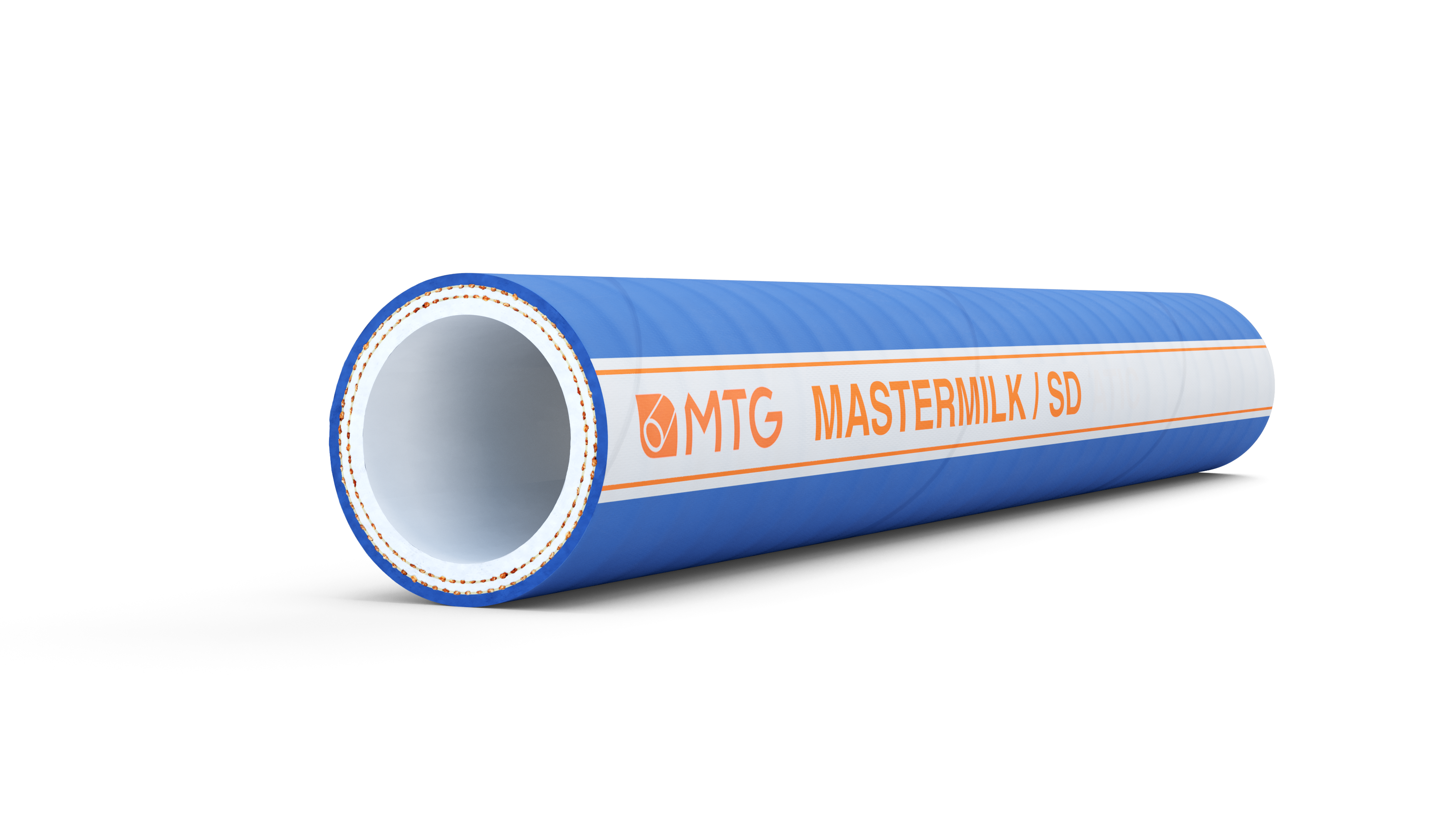

Construcion
TUBE
- NBR rubber (code NAB90), light colour, food quality, odourless and tasteless, mirror-smooth.
- Compliance: 3-A Sanitary Standards n.18-03-Class II, FDA Standards, Recommendations (XXI Cat. 2), D.M. 21/03/73 and following amendments.
REINFORCEMENT
- Plies of synthetic cord.
- Embedded steel helix wire.
COVER
- Synthetic rubber, blue colour, resistant to abrasion, weather and ageing, smooth, cloth finish.
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -20°C to +90°C depending on the product conveyed and on use.
Note
- Softwall version type MASTERMILK/D (W.P. 15 bar) available upon request.
Sterilization
- Please refer to the MTG cleaning and sterilization guidlines.
Marking
Dimensional tolerance
I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 19 | 30 | 5,5 | 10 | 30 | 50 | -0,9 | 0,6 | 40 |
| 25 | 36 | 5,5 | 10 | 30 | 75 | -0,9 | 0,74 | 40 |
| 32 | 43 | 5,5 | 10 | 30 | 80 | -0,9 | 0,9 | 40 |
| 38 | 50 | 6 | 10 | 30 | 110 | -0,9 | 1,2 | 40 |
| 40 | 52 | 6 | 10 | 30 | 120 | -0,9 | 1,25 | 40 |
| 45 | 57 | 6 | 10 | 30 | 130 | -0,9 | 1,5 | 40 |
| 50 | 62 | 6 | 10 | 30 | 150 | -0,9 | 1,55 | 40 |
| 65 | 78 | 6,5 | 10 | 30 | 190 | -0,9 | 2,2 | 40 |
| 75 | 89 | 7 | 10 | 30 | 220 | -0,9 | 2,55 | 40 |
| 100 | 115 | 7,5 | 10 | 30 | 500 | -0,9 | 4,25 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 3/4 | 1,18 | 150 | 450 | 1,97 | -26,57 | 0,4 | 131,2 |
| 1 | 1,42 | 150 | 450 | 2,95 | -26,57 | 0,5 | 131,2 |
| 1 1/4 | 1,69 | 150 | 450 | 3,15 | -26,57 | 0,6 | 131,2 |
| 1 1/2 | 1,97 | 150 | 450 | 4,33 | -26,57 | 0,8 | 131,2 |
| 1 37/64 | 2,05 | 150 | 450 | 4,72 | -26,57 | 0,84 | 131,2 |
| 1 49/64 | 2,24 | 150 | 450 | 5,12 | -26,57 | 1,01 | 131,2 |
| 1 31/32 | 2,44 | 150 | 450 | 5,91 | -26,57 | 1,04 | 131,2 |
| 2 9/16 | 3,07 | 150 | 450 | 7,48 | -26,57 | 1,48 | 131,2 |
| 2 61/64 | 3,5 | 150 | 450 | 8,66 | -26,57 | 1,71 | 131,2 |
| 3 15/16 | 4,53 | 150 | 450 | 19,69 | -27,57 | 2,85 | 131,2 |
Other sizes and colours are available upon request. Please contact our Sales Department.
Above technical data refer to application at room temperature (+20°C).
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.
The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
