Food industry

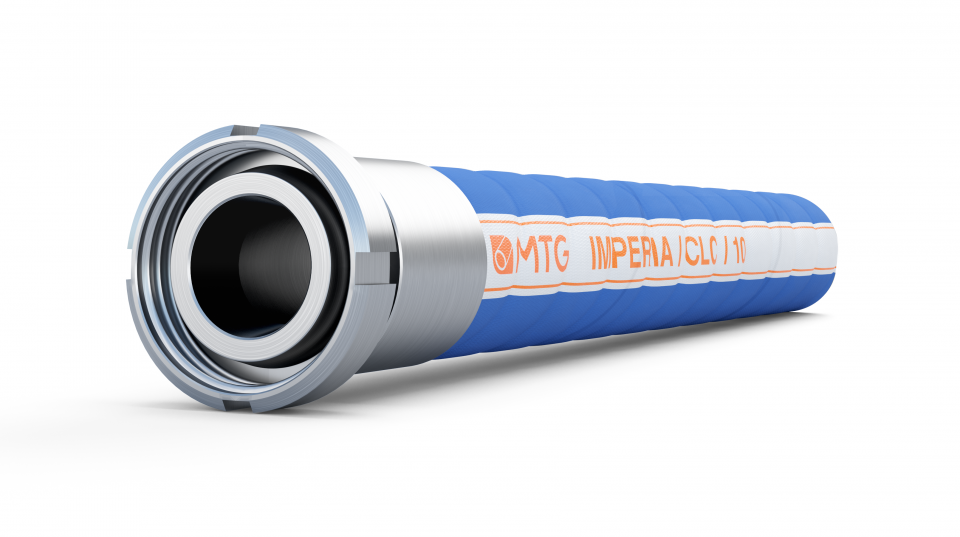

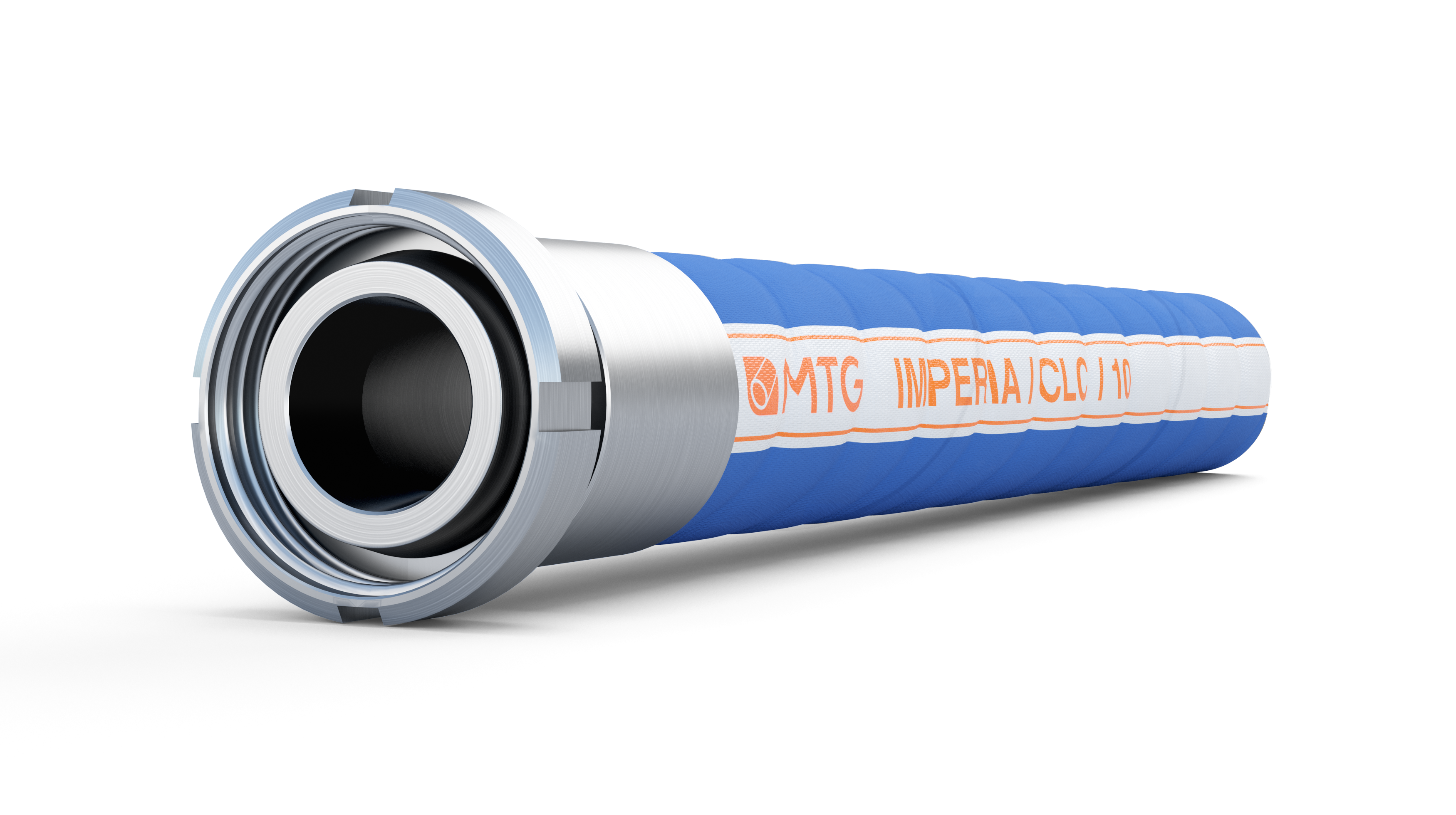

IMPERIA/CLC/10

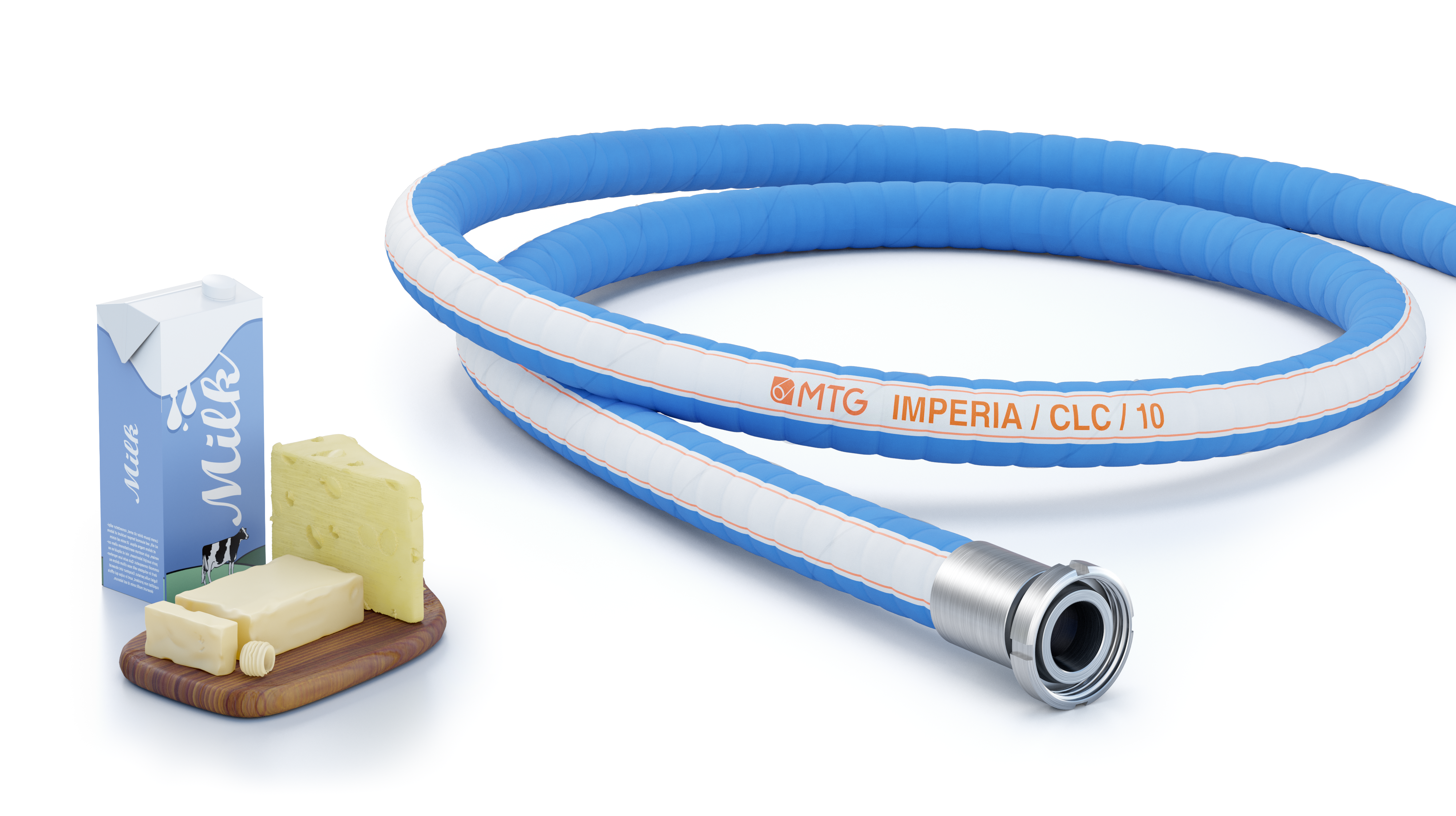

Rubber hose specifically designed to convey milk, milk products and fatty liquid foodstuffs.
Normally used in dairies, edible oil mills and food processing industries.
Suction and delivery hose.

More details

Main benefits

  • The special wide-corrugated cover makes this hose flexible and easy to handle, especially by hand, thus ensuring a tight bending radius when needed.
  • The structure, totally free from plasticizers and animal derived ingredients, reduces the risk of bacterial growth and contamination of the product conveyed.
  • Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).

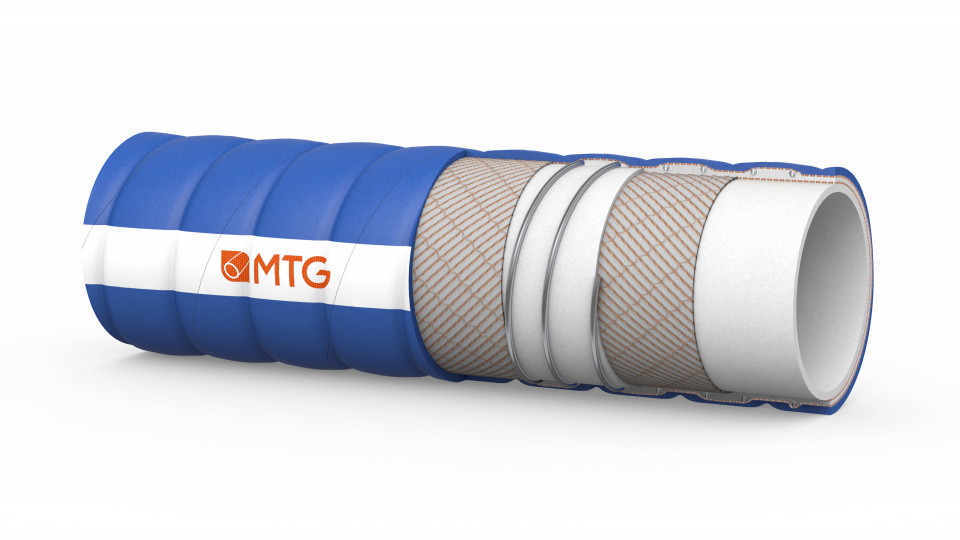

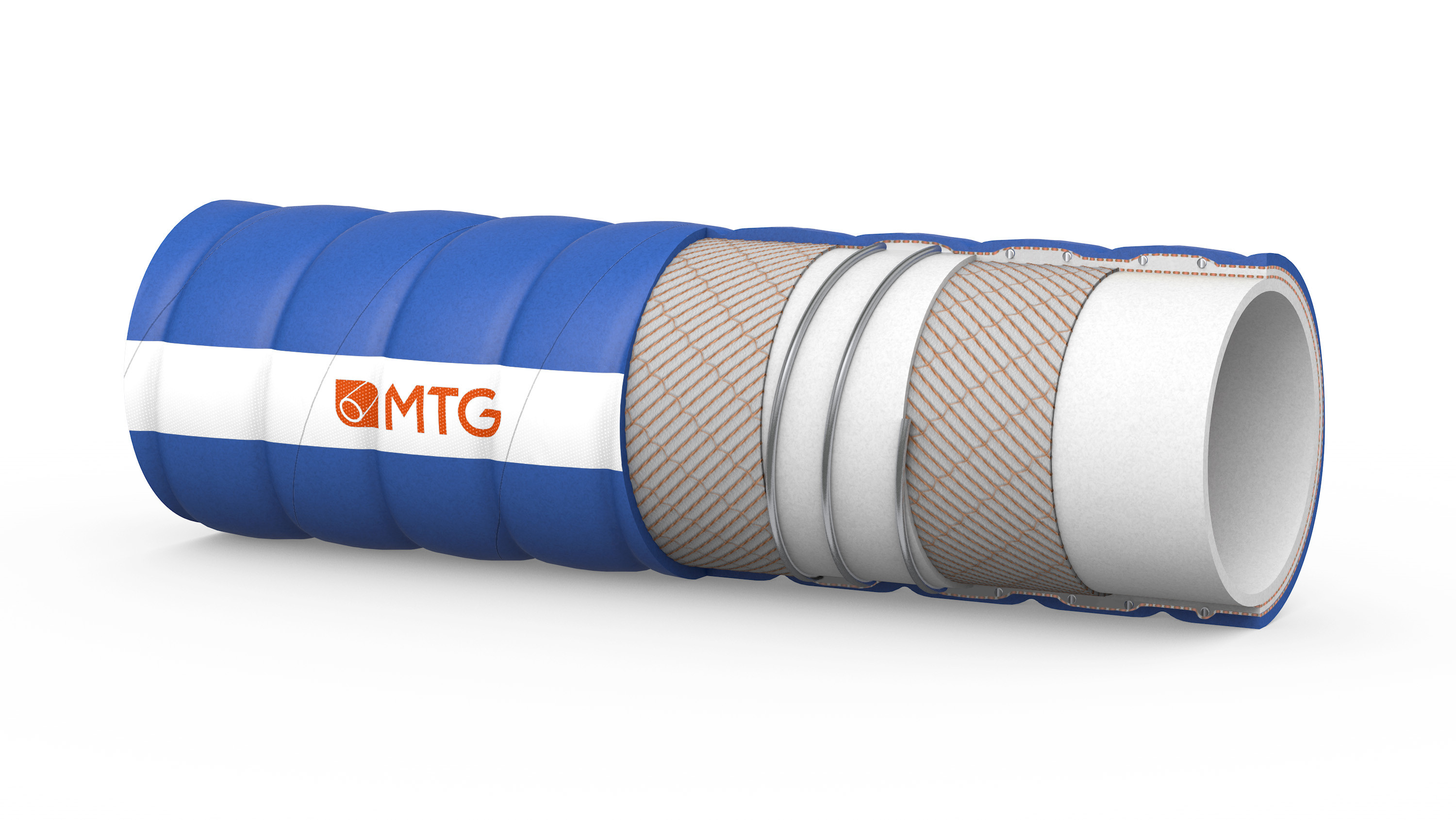

Construcion

TUBE

  • NBR rubber (code NAB90), light colour, food quality, odourless and tasteless, mirror-smooth.
  • Compliance: 3A, FDA Standards, BfR recommendations, D.M. 21/03/73 and following amendments.

REINFORCEMENT

  • Plies of synthetic cord.
  • Embedded steel helix wires.

COVER

  • CR rubber, blue colour, wide corrugated, resistant to abrasion, ozone, weather; also it resists to the contact with animal and vegetable fats; cloth finish.

Safety factors

≥ 3 times working pressure

Temperatures

  • From -20°C to +90°C.
  • Sterilization up to +130°C for max. 30 minutes.

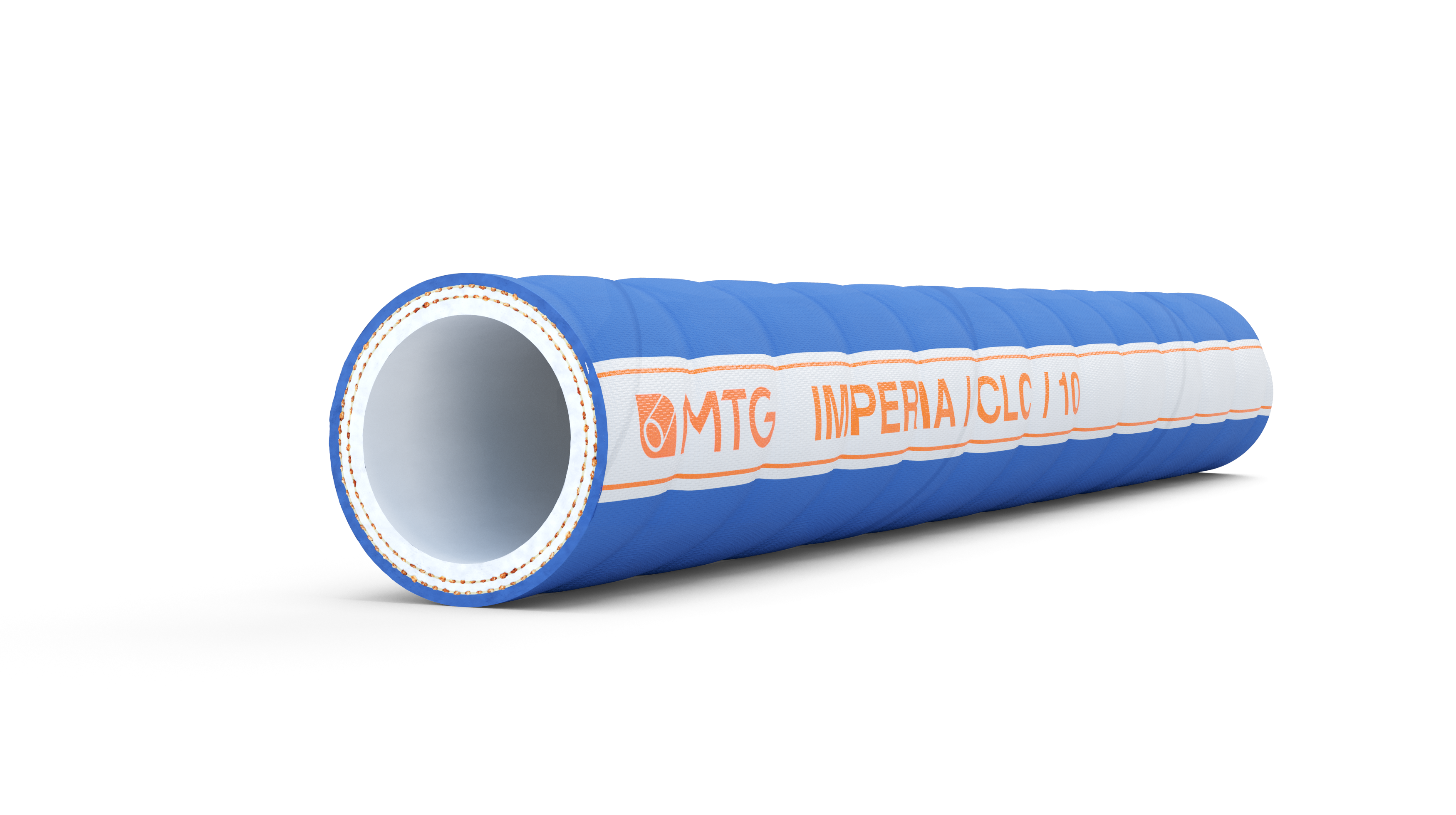

Marking

Dimensional tolerance

I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307

Internal diam.
mm
External diam.
mm
Wall thickness
mm
Working pressure
BAR
Burst pressure
BAR
Min. bending radius
mm
Vacuum
BAR
Approx. weight
kg/m
Max. length
m
38 51 6,5 10 30 120 -0,8 1,35 40
51 65 7 10 30 150 -0,8 1,85 40
63,5 78,5 7,5 10 30 220 -0,8 2,35 40
76 91 7,5 10 30 260 -0,8 2,75 40
76 92 8 10 30 260 -0,8 3,2 40
102 118 8 10 30 350 -0,8 4 40
102 120 9 10 30 350 -0,8 4,5 40
Internal diam.
inch
External diam.
inch
Working pressure
BAR
Burst pressure
BAR
Min. bending radius
inch
Vacuum
BAR
Approx. weight
kg/m
Max. length
m
1 1/2 2,01 150 450 4,72 -23,62 0,91 131,2
2 2,56 150 450 5,91 -23,62 1,24 131,2
2 1/2 3,09 150 450 8,66 -23,62 1,58 131,2
3 3,58 150 450 10,24 -23,62 1,84 131,2
3 3,62 150 450 10,24 -23,62 2,15 131,2
4 4,65 150 450 13,78 -23,62 2,68 131,2
4 4,72 150 450 13,78 -23,62 3,02 131,2

Other sizes and colours are available upon request. Please contact our Sales Department.
Above technical data refer to application at room temperature (+20°C).

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.

The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
