Food industry

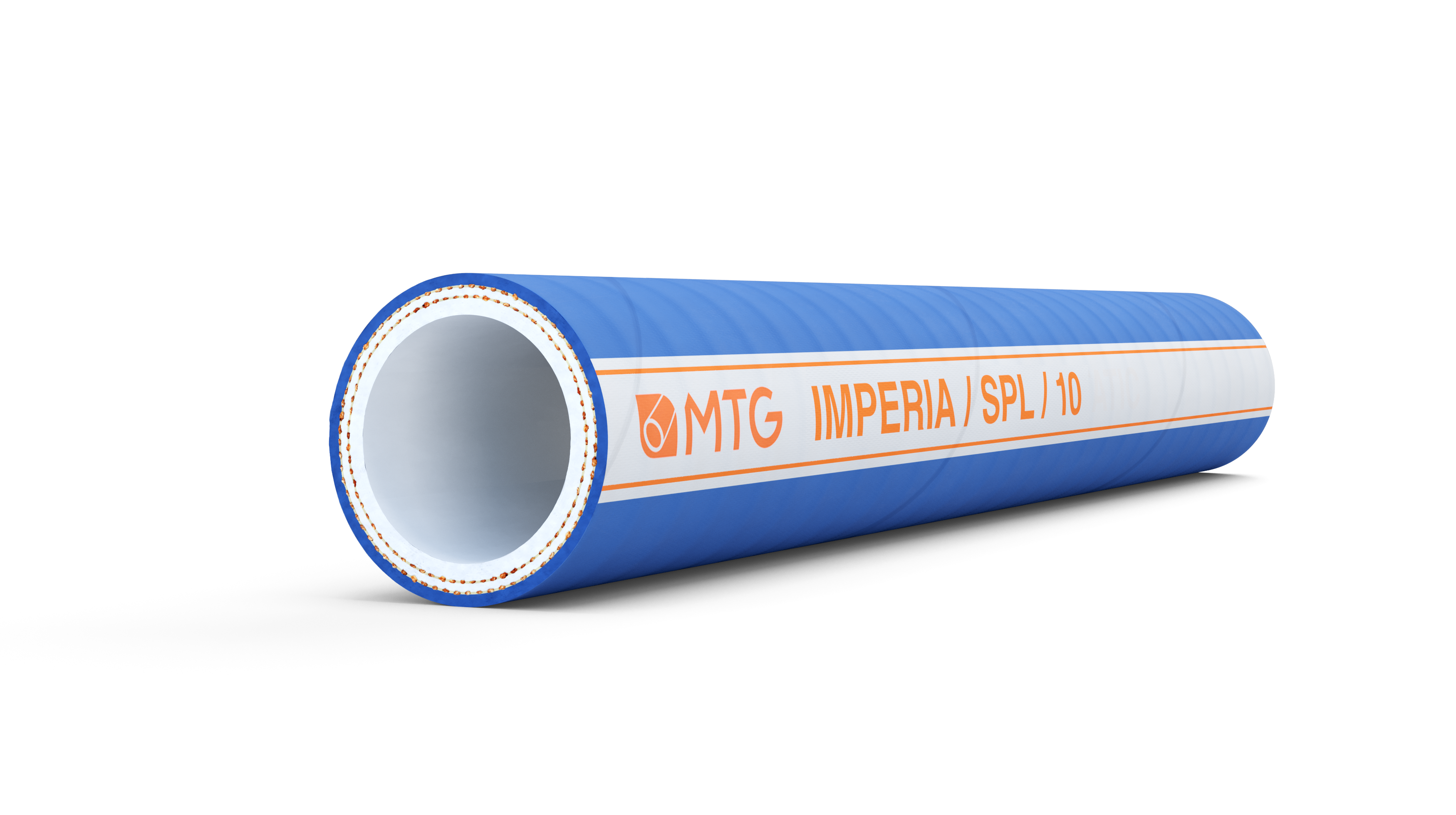

IMPERIA/SPL/10

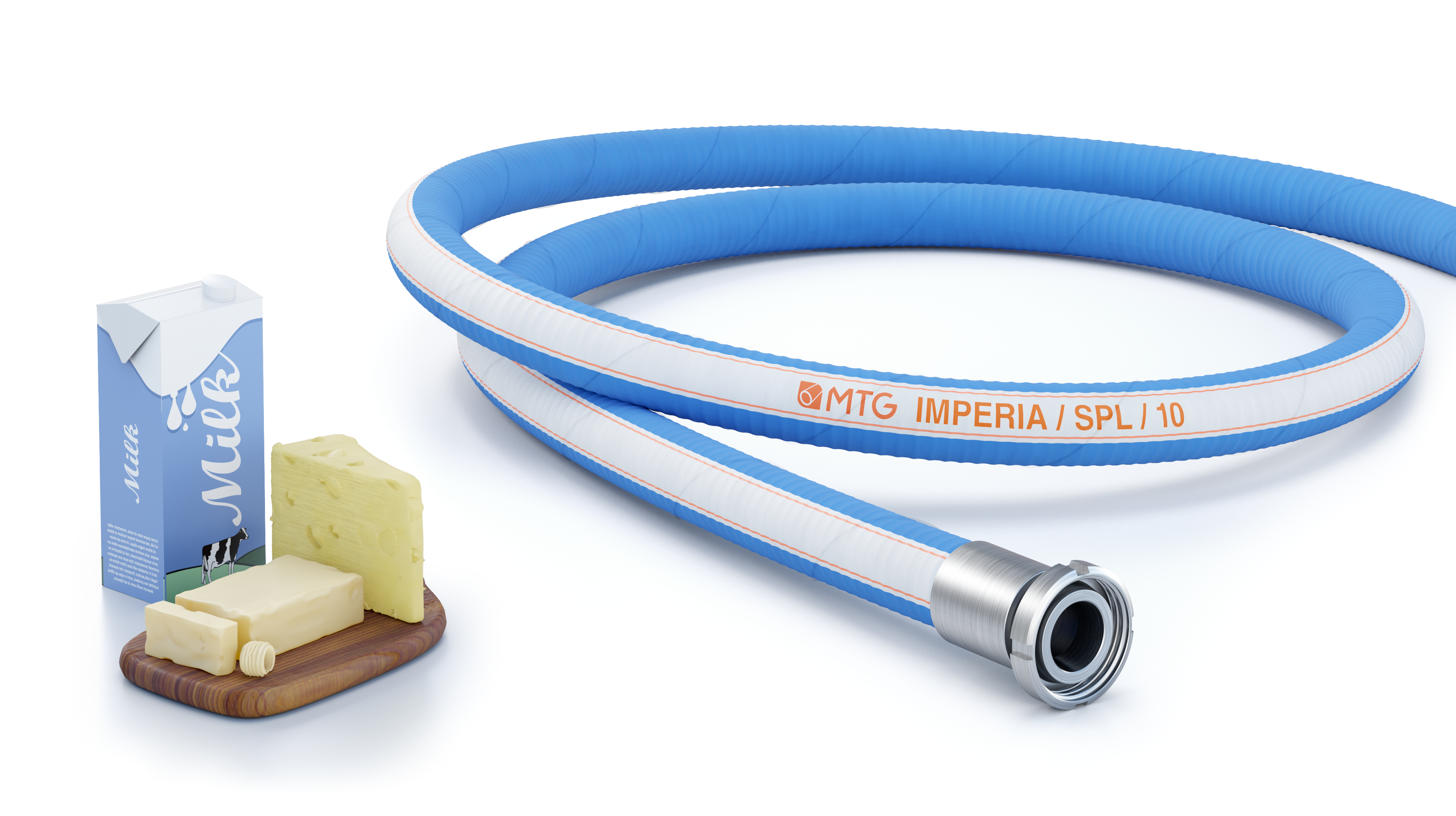

Rubber hose specifically designed to convey milk and milk products, milk whey and fatty foodstuffs in general.
Normally used in dairies, edible oil mills and food processing industries.
Suction and delivery hose.

More details

Main benefits

  • The high-strength structure makes it perfect for unloading operations of milk and milk products, as well as for heavy-duty applications.
  • Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP).
  • The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).
  • Non-plasticized hose.

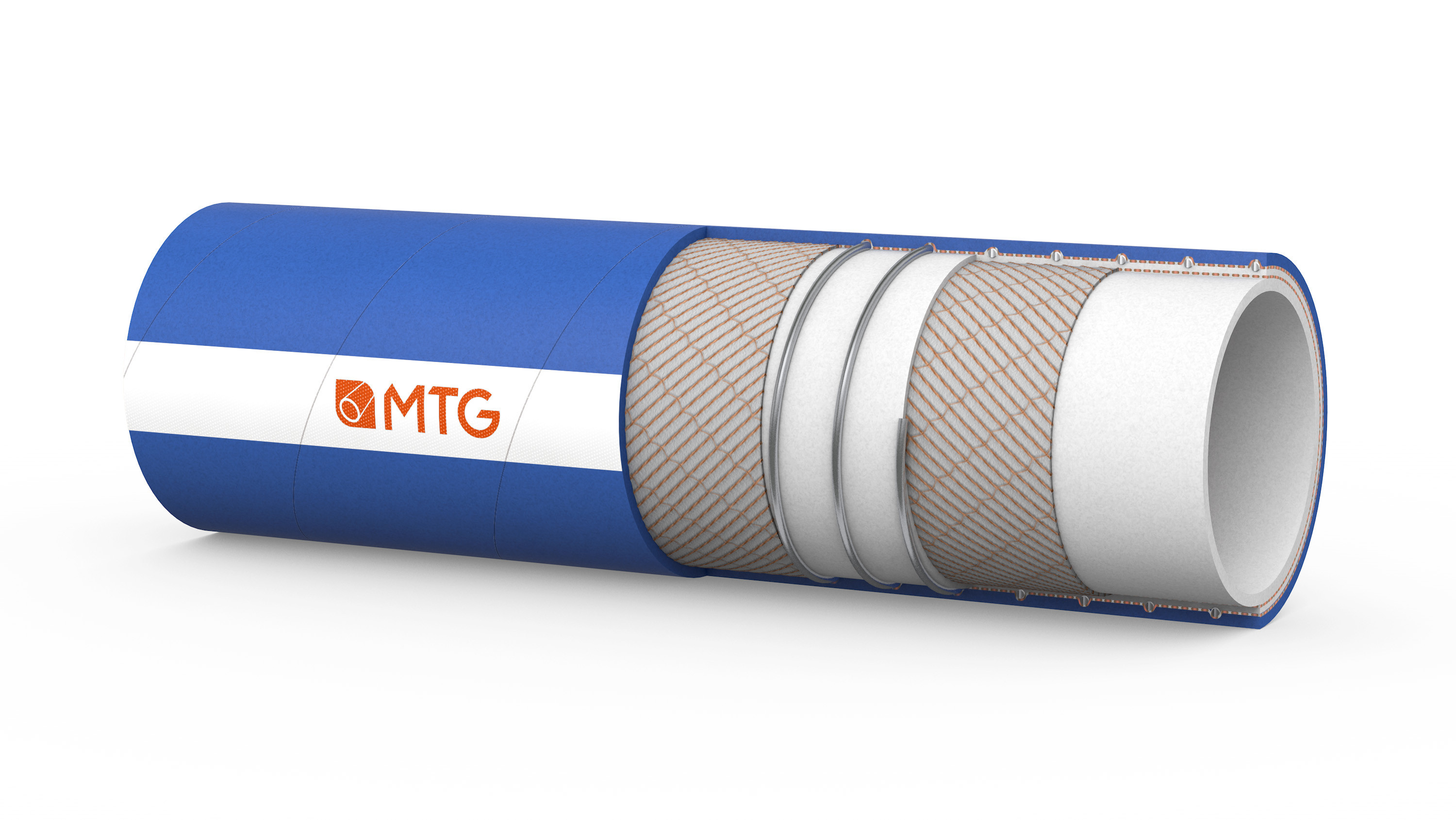

Construcion

TUBE

  • NBR rubber (code NAB90), light colour, food quality, odourless and tasteless, mirror-smooth.
  • Compliance: FDA Standards, 3-A Sanitary Standards n.18-03-Class II, BfR Recommendations (XXI Cat. 2), D.M. 21/03/73 and following amendments.

REINFORCEMENTS

  • Plies of synthetic cord.
  • Embedded steel helix wire.

COVER

  • CR rubber, blue colour, abrasion and weather resistant, smooth, cloth finish.
  • Good resistance to ageing and short contact with animal and vegetable fats.

Safety factors

  • ≥ 3 times working pressure.

Temperatures

  • From -20°C to +90°C depending on the product conveyed and on use.

Sterilization

Fitting

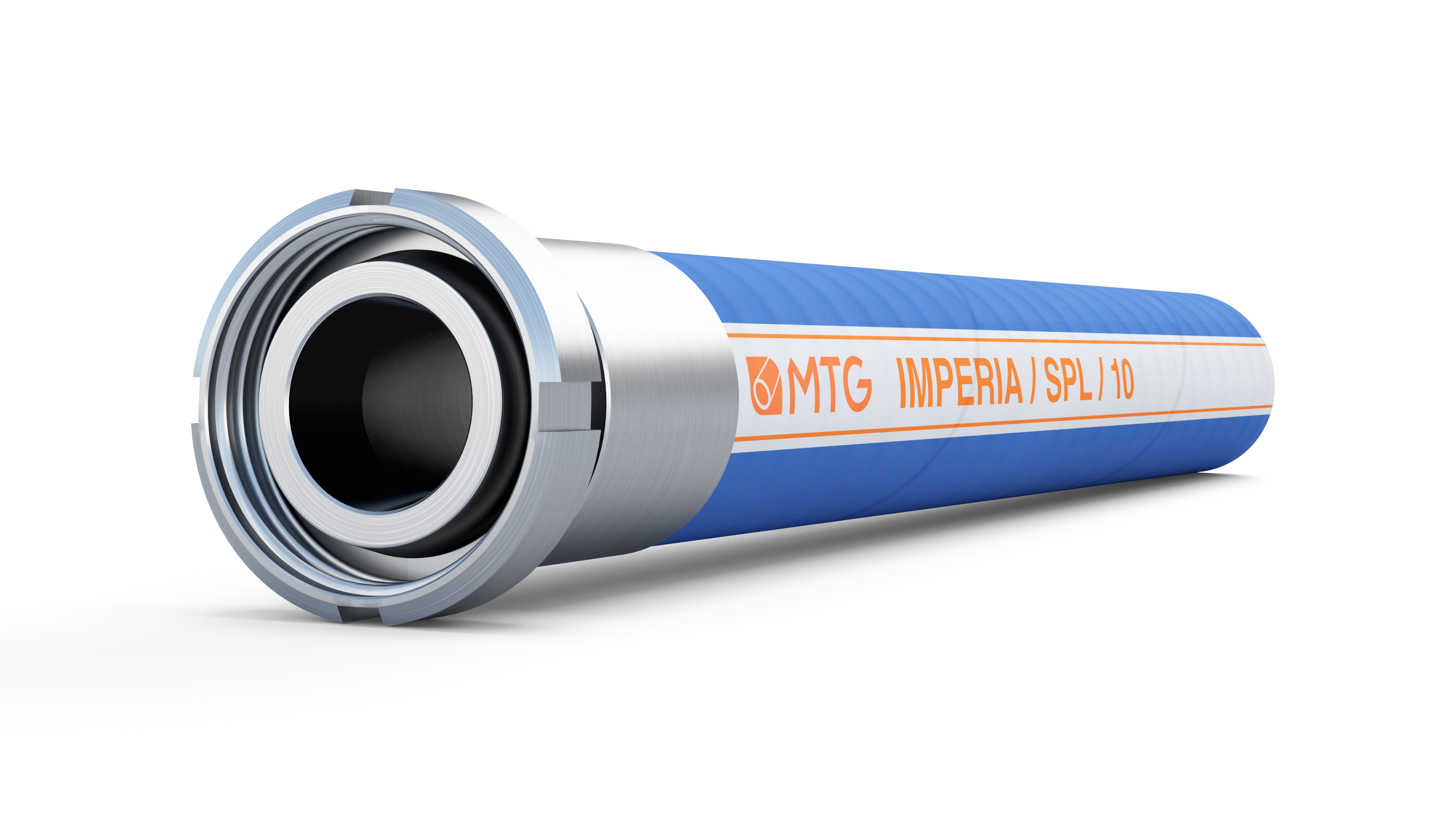

.The hose may be supplied in application lengths, assembled with any kind of couplings (CLAMP, DIN 11851, etc.).

Marking

Dimensional tolerance

I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307

Internal diam.
mm
External diam.
mm
Wall thickness
mm
Working pressure
BAR
Burst pressure
BAR
Raggio curvatura min.
mm
Vacuum
BAR
Approx. weight
kg/m
Max. length
m
19 31 6 10 30 80 -0,9 0,69 40
25 37 6 10 30 120 -0,9 0,85 40
32 44 6 10 30 150 -0,9 1,04 40
38 52 7 10 30 200 -0,9 1,56 40
40 54 7 10 30 200 -0,9 1,62 40
45 59 7 10 30 225 -0,9 1,78 40
50 64 7 10 30 250 -0,9 1,95 40
52 66 8 10 30 280 -0,9 2,1 40
60 76 8 10 30 330 -0,9 2,72 40
65 81 8 10 30 360 -0,9 2,93 40
70 86 9 10 30 420 -0,9 3,14 40
75 93 9 10 30 450 -0,9 3,82 40
80 98 9 10 30 480 -0,9 3,95 40
100 118 9 10 30 600 -0,9 5,2 40
Internal diam.
inch
External diam.
inch
Working pressure
BAR
Burst pressure
BAR
Raggio curvatura min.
inch
Vacuum
BAR
Approx. weight
kg/m
Max. length
m
3/4 1,22 150 450 3,15 -26,57 0,46 131,2
1 1,46 150 450 4,72 -26,57 0,57 131,2
1 1/4 1,73 150 450 5,91 -26,57 0,7 131,2
1 1/2 2,05 150 450 7,87 -26,57 1,05 131,2
1 37/64 2,13 150 450 7,87 -26,57 1,09 131,2
1 49/64 2,32 150 450 8,86 -26,57 1,19 131,2
1 31/32 2,52 150 450 9,84 -26,57 1,31 131,2
2 3/64 2,6 150 450 11,02 -26,57 1,41 131,2
2 3/8 2,99 150 450 12,99 -26,57 1,82 131,2
2 9/16 3,19 150 450 14,17 -26,57 1,97 131,2
2 3/4 3,39 150 450 16,54 -26,57 2,11 131,2
2 61/64 3,66 150 450 17,72 -26,57 2,56 131,2
3 5/32 3,86 150 450 18,9 -26,57 2,65 131,2
3 15/16 4,65 150 450 23,62 -26,57 3,49 131,2

Other sizes and colours are available upon request. Please contact our Sales Department.
Above technical data refer to application at room temperature (+20°C).

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative.

The Company reserves the rights to implement changes in product specifications without notice and as may be deemed appropriate by the Company for any technical or commercial reason.
